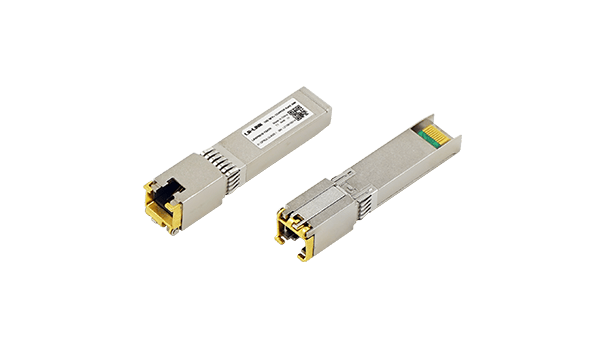

LR-LINK LRXP0010-Y3ATR 10G SFP+ fiber optic module adopts ultra-low power consumption and longer transmission distance solutions. The module interface adopts a small hot-swappable RJ45 electrical port module package, conforms to the 10G Ethernet standard and the SFP multi-source agreement (MSA) standard, supports 10G transmission rate, and uses Cat 6a/7 twisted-pair network cables for communication. Compatible with various brands of switches, network adapters and other equipment and instruments, widely used in data centers and enterprise networks. Comply with RoHS 2.0, Reach, CE and FCC certification requirements. Based on the standard RJ45 interface, this product is compatible with traditional networks and can increase the transmission rate of Ethernet without changing the existing wiring. It is a low-cost preferred solution for Ethernet upgrades.
Operating Parameter
Parameter | Symbol | Mix | Typ | Max | Unit |
Power Supply | VCC | 3.14 | 3.3 | 3.46 | V |
Storage Temperature | TS | -40 | - | 85 | oC |
Operating Temperature | TOP-com | 0 | - | 70 | oC |
Bit Error Rate (10G) | BER |
|
| 10-12 |
|
Transmission Rate (per channel) | DR |
| 10 |
| Gbps |
Operating Current | Icc | - | 750 | 840 | mA |
Inrush Current | Isurge |
|
| 30 | mA |
Power | PDis | - | 2.5 | 2.8 | W |
Size | Mm |
| 69.2*13.9*13.4 |
| mm |
Weight | g |
| 26 |
| g |
