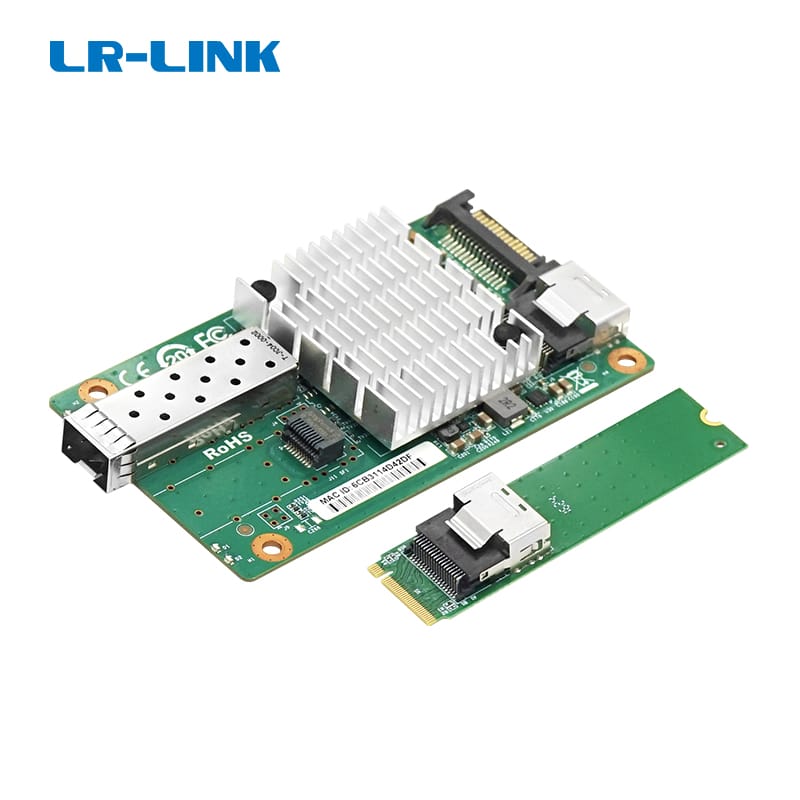

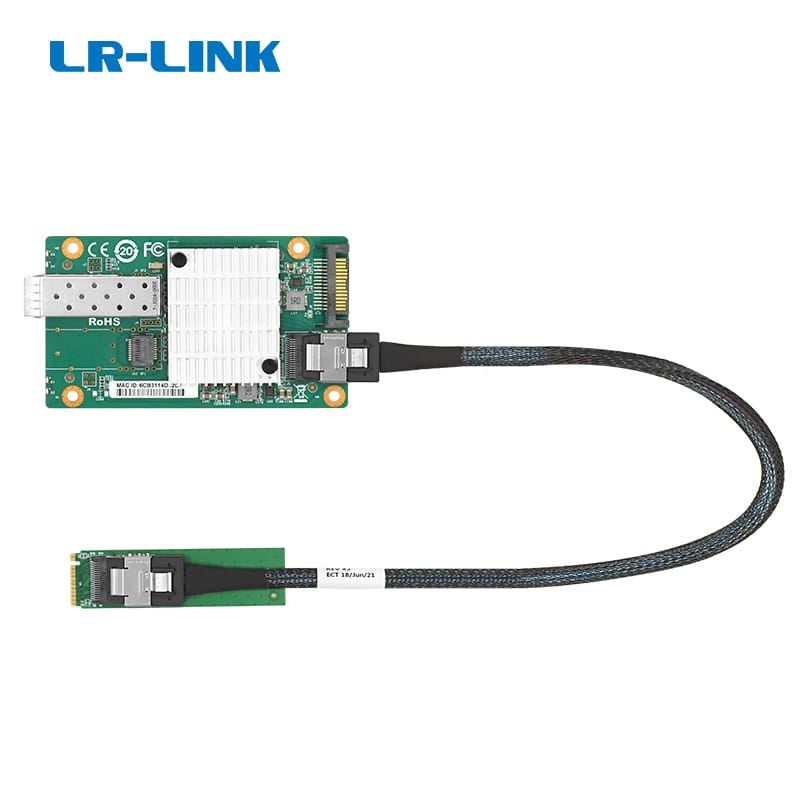

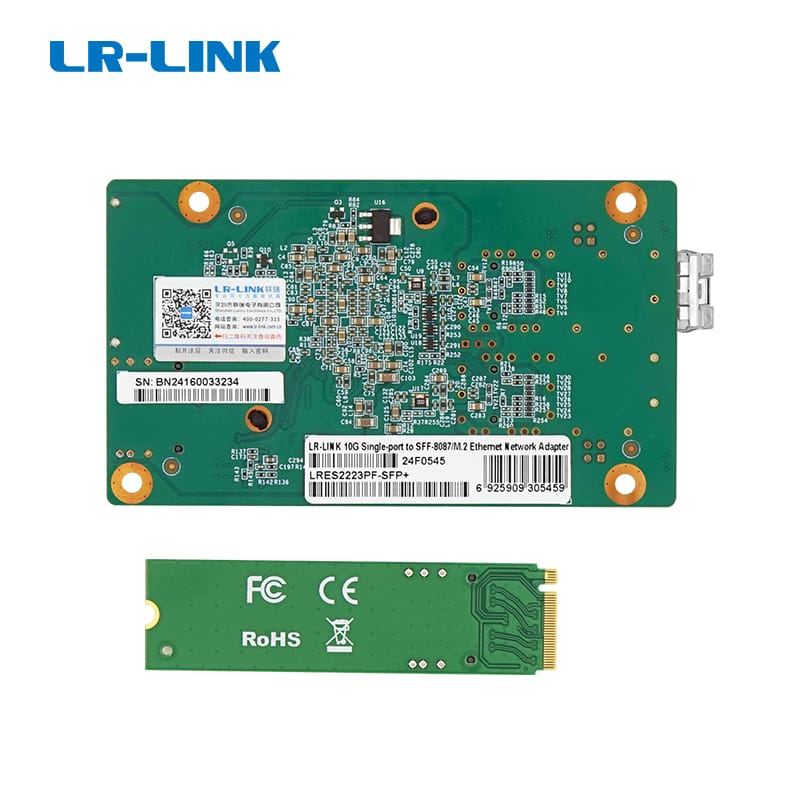

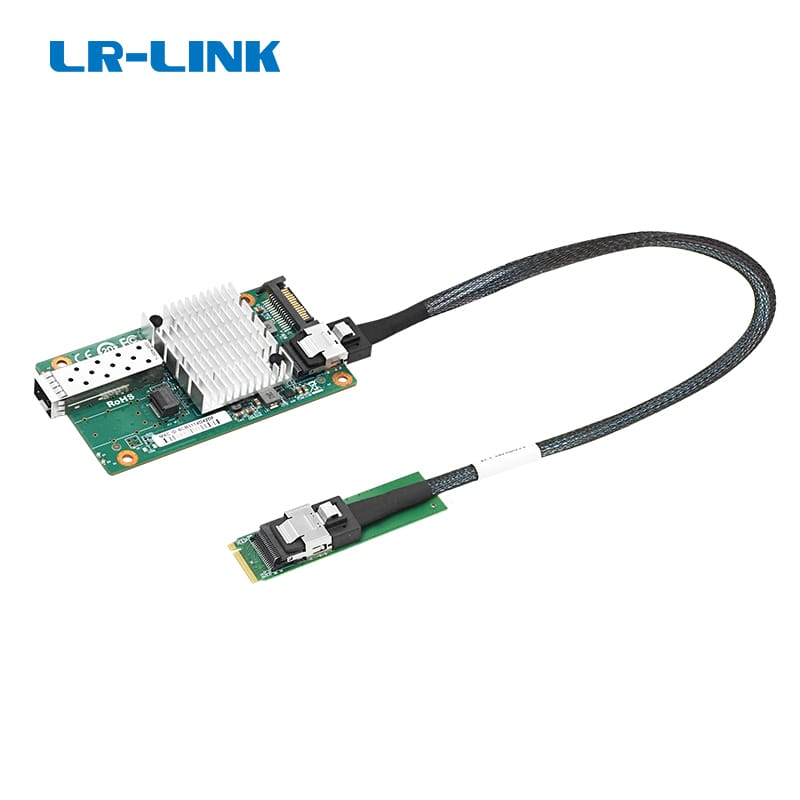

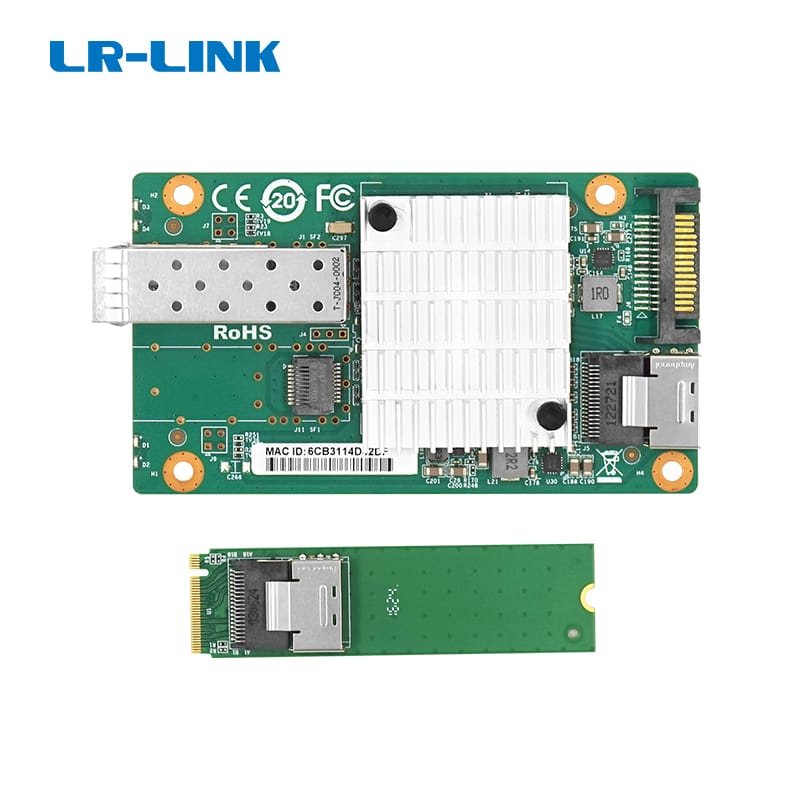

LRES2130PF-SFP+ 10G Single-port to SFF-8087/M.2 Ethernet Network Adapter (Mellanox X3 Based)
Zoomed Image

LRES2130PF-SFP+ 10G Single-port to SFF-8087/M.2 Ethernet Network Adapter (Mellanox X3 Based)

LRES2130PF-SFP+

$90.00
Lv.1 Lv.1
0% OFF
Lv.2 Lv.2
1% OFF
Lv.3 Lv.3
3% OFF
Quantity :
-
1
+
Introduction
-Developed based on Mellanox X3 main control.
- Equipped with a 10G optical port, supporting data transmission rates of 1Gbps and 10Gbps.
-Support RDMA function.

LRES2130PF-SFP+ is a 10G Single-port to SFF-8087/M.2 Ethernet Network Adapter developed based on the Mellanox X3 main control solution. It is designed to meet the needs of modern network connections, providing reliable, high-speed network connections and enhancing compatibility of network devices. By converting the M.2 interface into single-port 10G fiber optic Ethernet, this product enables the device to easily adapt to high-speed network environments without the need for cumbersome hardware upgrades or changes. Supports RDMA technology to achieve zero-copy data transmission, significantly improving network transmission efficiency. At the same time, it supports RoCE technology, which can achieve low-latency and high-throughput data transmission on Ethernet, greatly improving network performance. Whether in an enterprise data center or a personal computer, this adapter can provide a stable and  efficient network connection to meet the various needs of users. All in all, the LRES2223PF-2SFP+ is a flexible and easy-to-use  network adapter suitable for a variety of scenarios requiring high-speed, reliable network connections.

Model



LRES2130PF-SFP+



Controller

Mellanox X3

Cable medium

Optical Fiber

Fiber Type

1000BASE-SX、1000BASE-LX

10GBASE-R

Bus Type

PCIe v3.0 (8.0GT/s) x4; M.2 interface

Data rate

1Gbps;10Gbps

Connector

1*10G SFP+

Power supply

15PIN SATA power socket

Operating System Support

* Windows 10/11

* Windows Server 2012/2016

* Windows Server 2019/2022

* Deepin 15.11/20/20.6/20.9

* VMware ESXi 6.5 /6.7 /7.0

* Galaxy Unicorn V10

* NeoKylin 7.6

* RHEL/CentOS 7.3/7.6/7.9/8.2

* Ubuntu 16.04.3/18.04.5

* Ubuntu 20.04.1/22.04.2

* SUSE 12.5/15.4

* ZTE New Fulcrum 5.0.5/3.2.2

* Asianux Server V7.0

* Zhongke Fangde desktop operating system 4.0

* Zhongke Fangde server operating system

* Emind OS

* Mikrotik

* iKuai router

PXE

Yes

WoL

No

UEFI

No

Jumbo Frames

Yes

SR-IOV

No

RDMA

Yes

Jumbo Frame(max)

9.5KB

Protocol Support

IEEE 802.3ae 10 Gigabit Ethernet over fiber

IEEE 802.1Q VLAN    IEEE 802.3AD

IEEE 802.3AZ         IEEE P802.1Qaz

IEEE Std 802.1Qau    IEEE P802.1Qbb

1G/10Gbps

LINK

Green Link

ACT

Green Blink + Green Link
