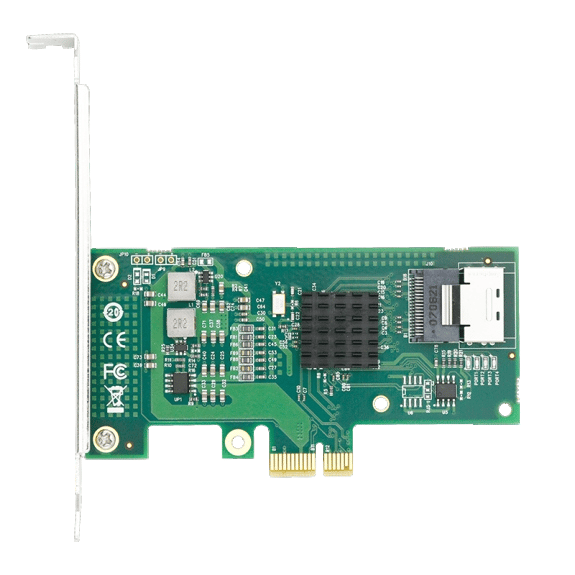

LRST9630-4IR 4 Port SATA III PCI-e 2.0 x1 RAID Controller Card
Zoomed Image

LRST9630-4IR 4 Port SATA III PCI-e 2.0 x1 RAID Controller Card

LRST9630-4IR

$79.00
Lv.1 Lv.1
0% OFF
Lv.2 Lv.2
1% OFF
Lv.3 Lv.3
3% OFF
Quantity :
-
1
+
INQUIRE NOW
Introduction
LRST9630-4IR x1 is a 6Gb/s PCIe 2.0 x1 to 4 Port SATA 3.0 RAID Controller Card which can be widely used in Applications of PC, Servers, Gaming and video editing.
PCIE Features
Compliant with PCIe 2.0 specifications.
Supports communication speeds of 2.5 Gbps and 5.0 Gbps.
Supports IDE programming interface registers for the SATA controller.
Supports AHCI programming interface registers for the SATA controller.
Supports aggressive power management.
Supports error reporting, recovery, and correction.
Supports Message Signaled Interrupt (MSI).










































































































SATA Features

Supports hardware RAID 0, 1, and 10, JBOD.
  • Supports SATA HDD & SSD.
  • Compliant with Serial ATA Specification 3.1.
  • Supports communication speeds of 6.0 Gbps, 3.0 Gbps, and 1.5 Gbps.
  • Supports programmable transmitter signal levels.
  • Supports Gen 1i, Gen 1x, Gen 2i, Gen 2m, Gen 2x, and Gen 3i.
  • Supports four SATA ports.
  • Supports AHCI 1.0 and IDE programming interface.
  • Supports Native Command Queuing (NCQ).
  • Supports Port Multiplier FIS based switching or command based switching.
  • Supports Partial and Slumber Power Management states.
  • Supports Staggered Spin-up.
  • Supports AES-256.
HARDWARE
Model
LRST9630-4IR x1
Number of Device
4 internal
I/O Controller
MARVELL 88SE9230
Bus Type
PCI Express 2.0 x1
Compatible Device Types
4 SATA SSD
Interface
1* SFF-8087
RAID Level
RAID 0, 1, 10, JBOD
CONNECTOR(S)
Drive Connector
1* SFF-8087
Host Connector
PCIe 2.0 x1
ENVIRONMENTAL
Humidity
0% – 90%
Operating Temperature
0°C to 50°C (32°F to 122°F)
Storage Temperature
-10°C to 65°C (14°F to 149°F)
PCIe supply voltage
3.3V ±9%
Power dissipation
1W
PHYSICAL CHARACTERISTICS
Dimension
116mm*69mm
Product Weight
50g
WARRANTY INFORMATION
Warranty
2 Years
PACKAGING INFORMATION
Shipping (Package)Weight
4.5oz [125 g]
WHAT'S IN THE BOX
Included in Package
1 - PCI Express to SATA 3 Expansion Card
1 - low-profile bracket
1 - full-profile bracket (installed)
