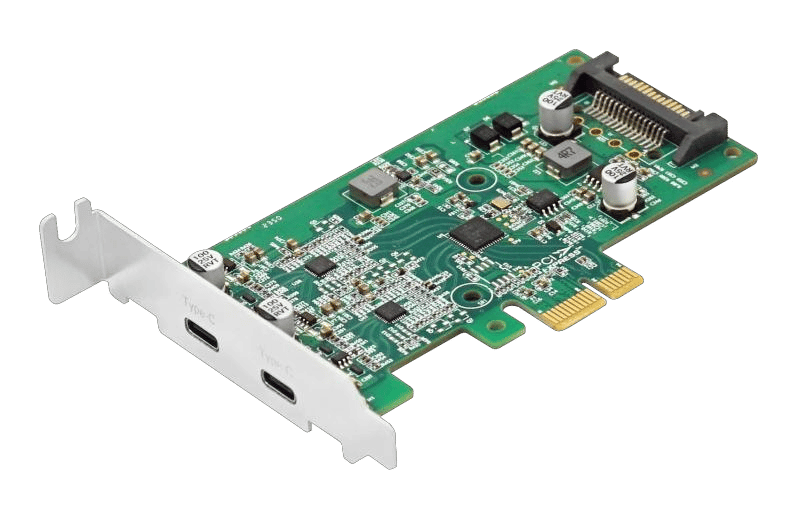

When modern servers or industrial PCs lack enough USB Type-C ports to handle high-speed peripherals and device charging, every PCIe slot counts. The LRSU9A72-2C expansion card answers by delivering two USB 5Gbps Type-C ports over a single PCIe 2.0 x1 interface, eliminating the need to sacrifice slots or rely on hubs.
Driven by a Renesas UPD720202 controller, each port pushes up to 5Gbps bandwidth—enough to saturate external SSDs or fast-charge smartphones without throttling. A dedicated 15-pin auxiliary power connector ensures stable 900mA supply per port, so power-hungry devices remain operational even under full load. The card’s low-profile bracket support adds installation flexibility in slim chassis.
Ideal for connecting external hard drives, high-speed data transfer, and charging smart devices in data center servers, industrial gateways, or digital signage systems, the LRSU9A72-2C bridges the Type-C gap. Broad OS compatibility—from Windows and Linux to VMware ESXi—means it integrates seamlessly into existing infrastructure, keeping your operations moving without hardware headaches.
Hardware
| Model | LRSU9A72-2C |
|---|---|
| Bus Type | PCIe 2.0 x1 |
| I/O Controller | UPD720202 |
| External Port | USB 5Gbps Type-C |
| Number of Ports | 2 |
| Transfer Speed | 5Gb/s |
| ESD Contact Discharge | ±8KV (Class C) |
| ESD Test Classification | Class A: Normal performance within the limits specified by the manufacturer, commissioner, or purchaser. Class B: Temporary loss or reduction of function or performance, but can be recovered by itself after the disturbance stops, without operator intervention; Class C: Temporary loss or degradation of function or performance that requires operator intervention to restore; Class D: irrecoverable loss of function or performance degradation due to damage to device hardware or software, or loss of data. |
Connector
| Device Connector | USB Type-A |
|---|---|
| Host Bus | PCIe 2.0 x1 |
Power Consumption
| Min Power | 0.3W |
|---|---|
| Max Power | 5.3W (SSD 4.0), 8.9W (SSD 5.0) |
Operating Environment
| Humidity | 15%-95% |
|---|---|
| Operating Temperature | 0℃-70℃ (32℉-158℉) |
| Storage Temperature | -25℃-80℃ (-13℉-176℉) |
Physical Dimensions
| Product Size | 62*105.8 mm |
|---|---|
| Package Size | 179*150*30 mm |
Packing List
| Included | 1- PCIe 2.0 x1 to USB 5Gbps 2-port Expansion Card, 1- Full bracket (installed), 1- Half bracket |
|---|---|
| Packaging | Carton + Anti-static bag |
