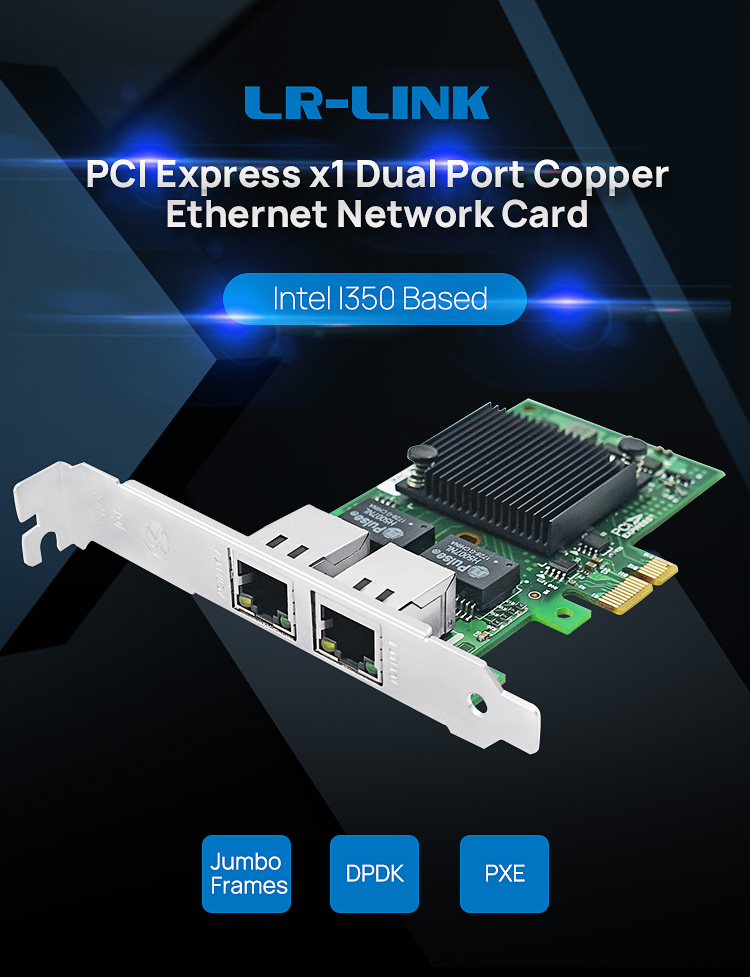

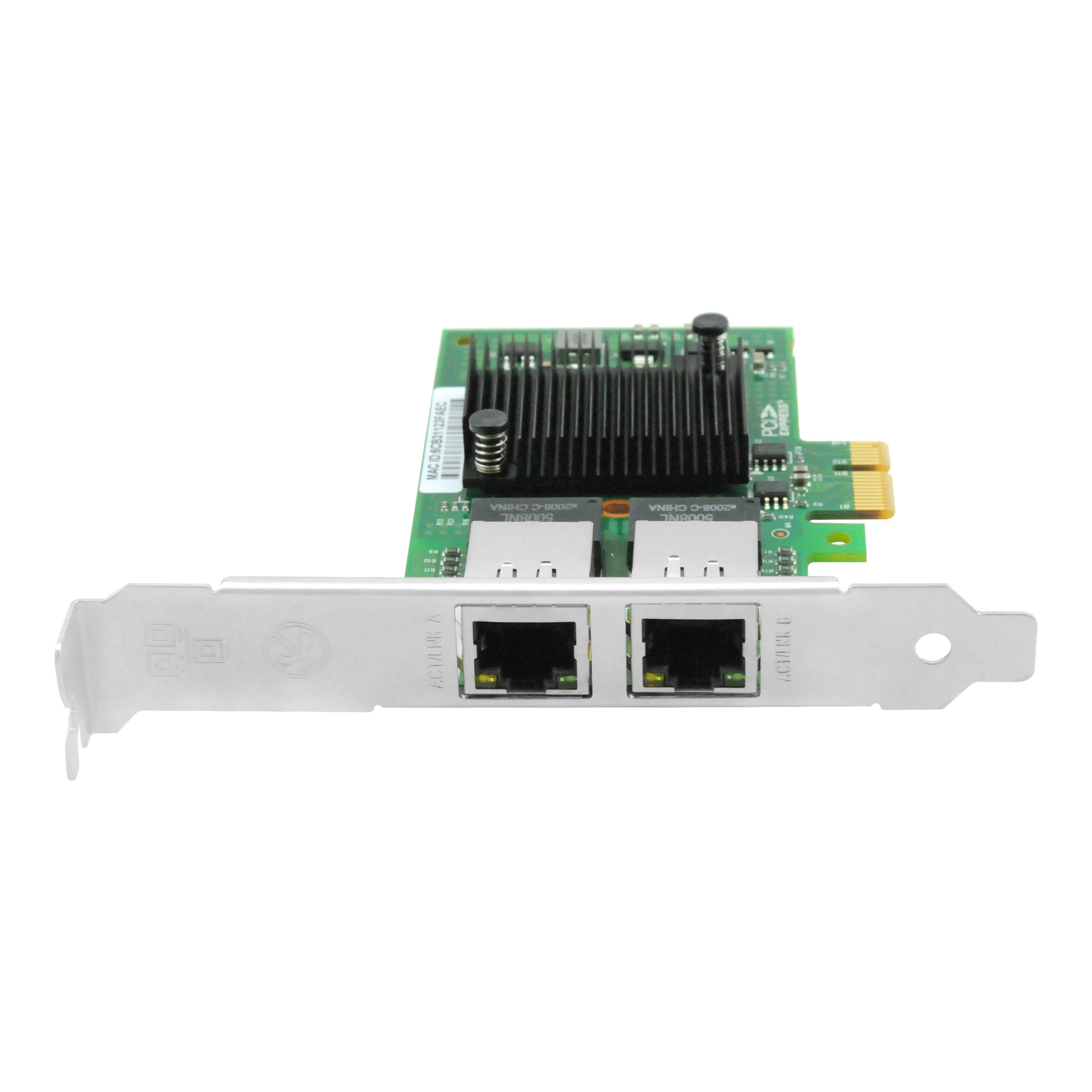

LREC9222HT LRLINK Dual Port RJ45 Gigabit Sever Adapter 1000mbps 1G Ethernet PCIe Network Interface Cards Based Intel I350 Chipset

LREC9222HT LRLINK Dual Port RJ45 Gigabit Sever Adapter 1000mbps 1G Ethernet PCIe Network Interface Cards Based Intel I350 Chipset

Name: LREC9222HT LRLINK Dual Port RJ45 Gigabit Sever Adapter 1000mbps 1G Ethernet PCIe Network Interface Cards Based Intel I350 Chipset
Brand: LR-LINK
SKU: LREC9222HT
Price: 70.00 USD
Availability: InStock

LREC9222HT

LR-LINK

Size Guide

0 reviews

1 orders

$70.00

Lv.1

0% OFF

Lv.2

1% OFF

Lv.3

3% OFF

Quantity :

ADD TO CART

More payment options

INQUIRE NOW

ADD TO FAVORITES (0)

Introduction

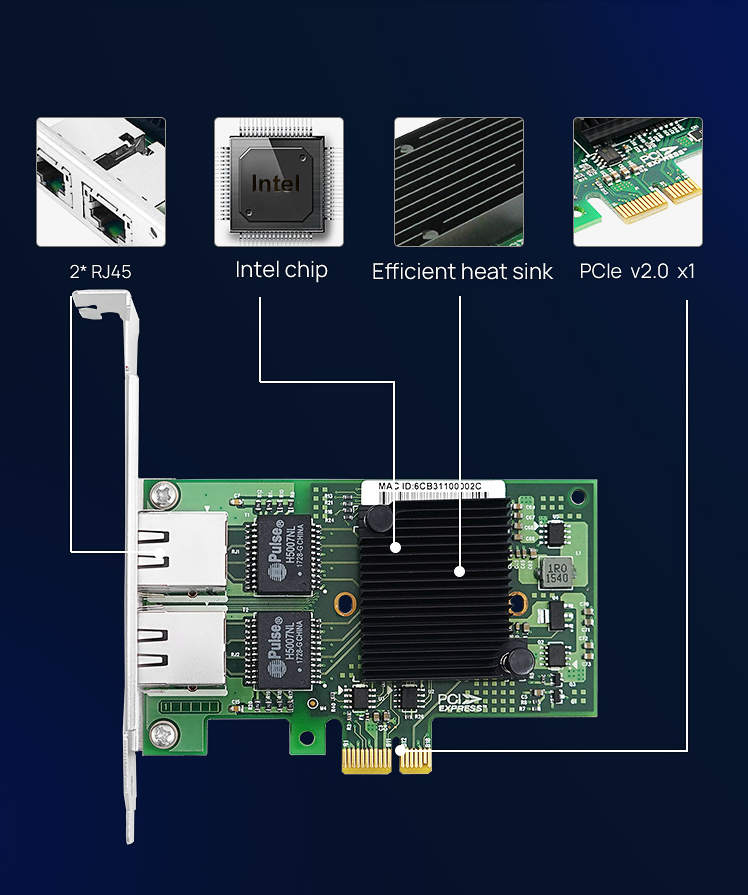

• Dual Port 10/100/1000Mbps adapters
• PCI Express v2.1,(5.0GT/s) x1 lane
• RJ45 Connectivity
• Support PCI-SIG SR-IOV
• Support Jumbo Frame up to 9.5KB
• Flexible I/O virtualization for port partitioning and quality of service (QoS) of up to 32 virtual ports
• IEEE 802.1q VLAN support with VLAN tag insertion
• Low profile and full-height bracket

Description

LRLINK Dual Port RJ45 Gigabit Sever Adapter 1000mbps Ethernet PCIe Network Interface Cards Based Intel I350

Features
Controller	Intel I350
Rate	100Mbps/1000Mbps
PCIe Bus Type	PCI Express v2.1 (2.5GT/s) x1
Bracket	Full-height&Half-height Bracket
Power consumption	6W
PCIe Bus Type	PCI Express v2.1 (2.5GT/s) x1
Connector	2 * 8-Pin RJ45
Operating system support	Windows Server 2003/2008 (R2)/2012 (R2)/2016 R2 Windows XP/ Vista/7/8/8.1/10 Linux Stable Kernel version 2.4.x/2.6.x/3.x/4.x or later Linux SLES 10/11 or later VMware ESX/ESXi 4.x/5.x/6.x or later

Technical Features
Ethernet Power Management	Yes
IEEE* 802.3 Automatic negotiation	Yes
Support Speed	10BASE-T, 100BASE-TX, 1000BASE-T
IEEE Standard	IEEE 802.3ab 1000BASE-T Gigabit Ethernet IEEE 802.3u 100Base-TX Fast Ethernet IEEE 802.1Q VLAN IEEE 802.3az IEEE 802.1ad
Jumbo frame	Yes
VMDq	Yes
WOL	Yes
PXE	Yes
DPDK	Yes
iSCSI	Yes
FCoE	No

Environment Features
Operating Temperature	0°C to 55°C (32°F to 131°F)
Storage Temperature	-40°C to 70°C (-40°F to 158°F)
Storage Humidity	90% non condensing under 35°C

LED Indicators
LED	1000Mbps: Yellow and Green Blinking
	100Mbps: Green and Green Blinking

Driving
Windows	Intel® Ethernet Server Adapter I350-T4
Linux	Intel Corporation I350 Gigabit Network Connection (rev 01)

Physical Features
PCB Size (mm)	1001201.6

Order Information
M/N	Description
LRES2004PT-PoE	PCle x1 Dual-port Network Interface Card (Intel I350)
PS: The above details is just for reference,if there is any change,no inform will have.
