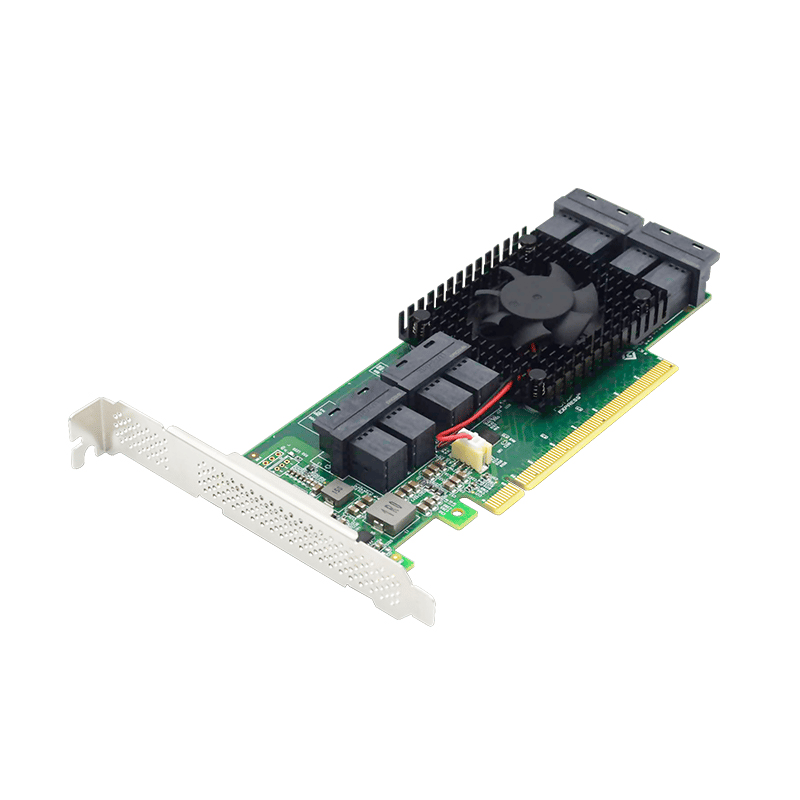

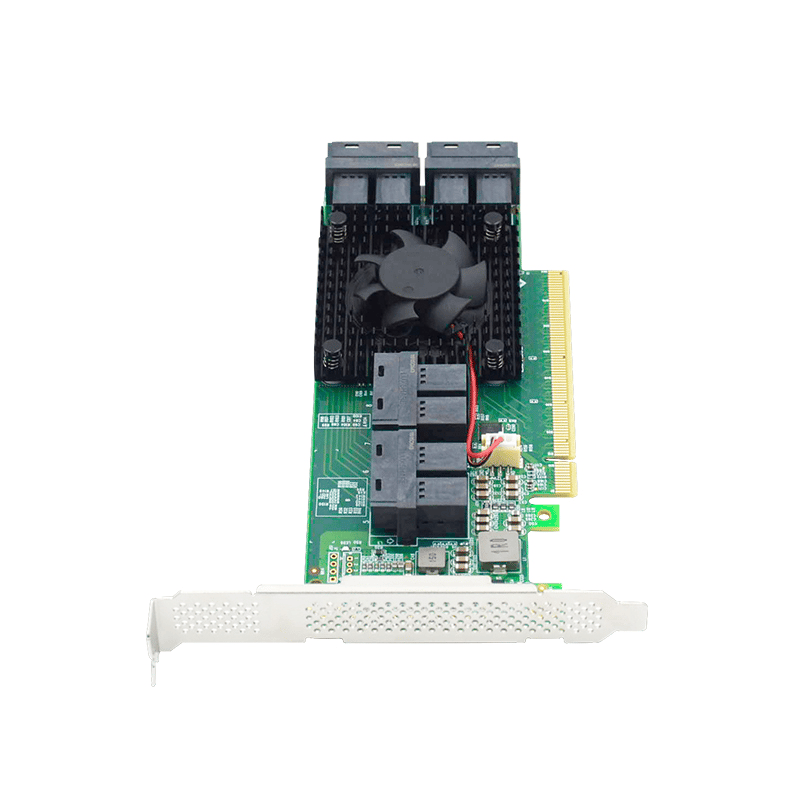

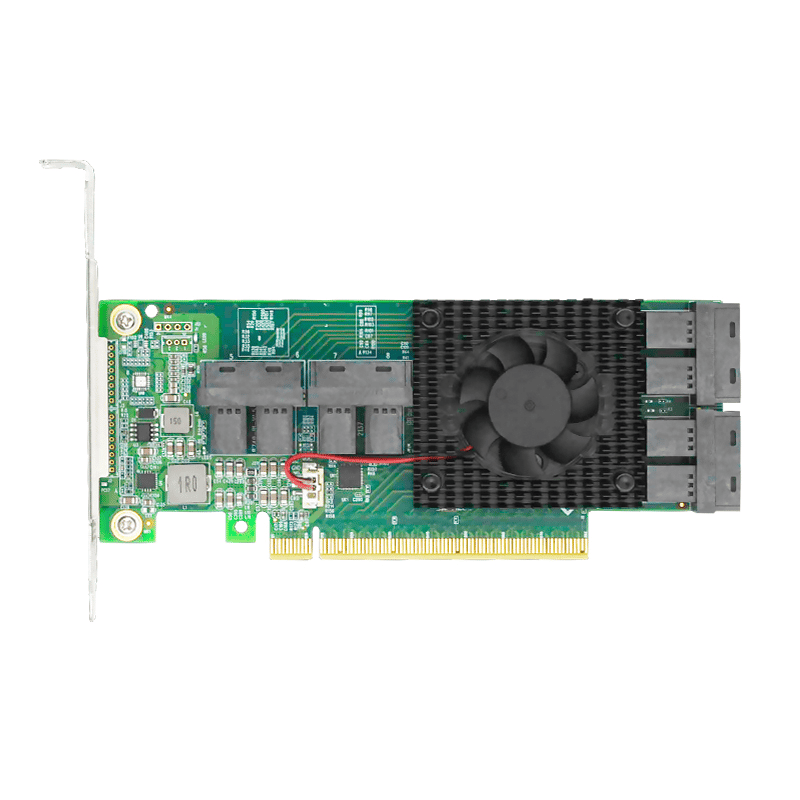

LRNV9348-8I PCI Express X16 to 8 U.2 SFF-8643 NVMe SSD Adapter Card PLX 8748
Zoomed Image

LRNV9348-8I PCI Express X16 to 8 U.2 SFF-8643 NVMe SSD Adapter Card PLX 8748

LRNV9348-8I

$132.00
Lv.1 Lv.1
0% OFF
Lv.2 Lv.2
1% OFF
Lv.3 Lv.3
3% OFF
Quantity :
-
1
+
INQUIRE NOW
Introduction
Chipset：PLX 8748
Interface Type：8*SFF-8643 Connectors
Support Equipment：8 Port NVMe SSD or 8 Port PCIe x4 or 4 Port PCIe x8 or 2 Port PCIe x16
Host Bus Type：PCIe 3.0 x16























































































































Description





LRSU9A42-AC PCIe 3.0 x8 to 2 x M.2 NVMe SSD Adapter

LRNV9348-8I NVMe Series is PCI Express x16 Gen3 Multi-Host PCI-e switch Card. It offers Multi-Host PCI Express switching capability that enables users to connect multiple hosts to their respective endpoints via scalable, high-bandwidth, non-blocking interconnection to a wide variety of applications including servers, storage, communications, and graphics platforms.High Performance & Low Packet Latency
The LRNV9348-8I supports packet cut-thru with a maximum latency of 126ns (x16 to x16). This combined with large packet memory, flexible common buffer/FC credit pool and non-blocking internal switch architecture, provides full line rate on all ports for performance-hungry applications such as servers and switch fabrics. The low latency enables applications to achieve high throughput and performance and supports a packet payload size of up to 2048 bytes, enabling the user to achieve even higher throughput.

Product Model:LRNV9348-8I
Product Name:PCI Express x16 to 8 U.2 SFF-8643 NVMe SSD Adapter Card
Chipset：PLX 8748
Interface Type：8*SFF-8643 Connectors
Support Equipment：8 Port NVMe SSD or 8 Port PCIe x4 or 4 Port PCIe x8 or 2 Port PCIe x16
Host Bus Type：PCIe 3.0 x16

HARDWARE

Number of Device
8 internal
Bus Type
PCI Express
Compatible Drive Types
8 Port NVMe SSD or 8 Port PCIe x4 or 4 Port PCIe x8 or 2 Port PCIe x16
CONNECTOR(S)

Drive Connectors

SFF-8643
Host Bus
PCIe x16
Environmental Parameter
Humidity
15% ~ 90%
Operating Temperature
5°C to 50°C (41°F to 122°F)
Storage Temperature
-25°C to 70°C (-13°F to 158°F)
Physical Features
PCB Size (mm)
165mm x 68.90mm
weight (g)
148g
Order Information
M/N
Description
LRNV9348-8I
LRNV9348-8I PCI Express x16 to 8 U.2 SFF-8643 NVMe SSD Adapter Card
PS: The above details is just for reference,if there is any change,no inform will have.
