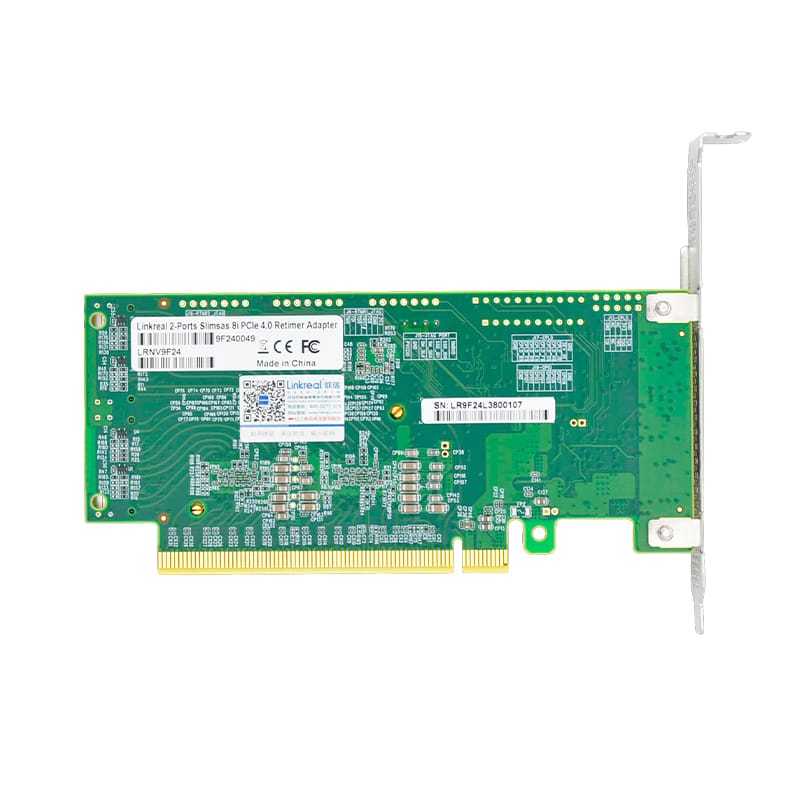

LRNV9F24 PCIe 4.0 X16 to TwoSlimSAS SFF-8654 8i Retimer Adapter Card

LRNV9F24 PCIe 4.0 X16 to TwoSlimSAS SFF-8654 8i Retimer Adapter Card

Name: LRNV9F24 PCIe 4.0 X16 to TwoSlimSAS SFF-8654 8i Retimer Adapter Card
SKU: LRNV9F24

LRNV9F24

0 reviews

1 orders

$159.00

Lv.1

0% OFF

Lv.2

1% OFF

Lv.3

3% OFF

model number:

LRNV9F24

Quantity :

ADD TO CART

More payment options

INQUIRE NOW

ADD TO FAVORITES (0)

Introduction

PCI Express Base Specification, r4.0, compatible PCIe 1.0&2.0&3.0
Compliant with Intel PCIe 4.0 Retimer
Compliant with SFF-8654 Specification Version 1.2
Compliant with NVM Express 1.3

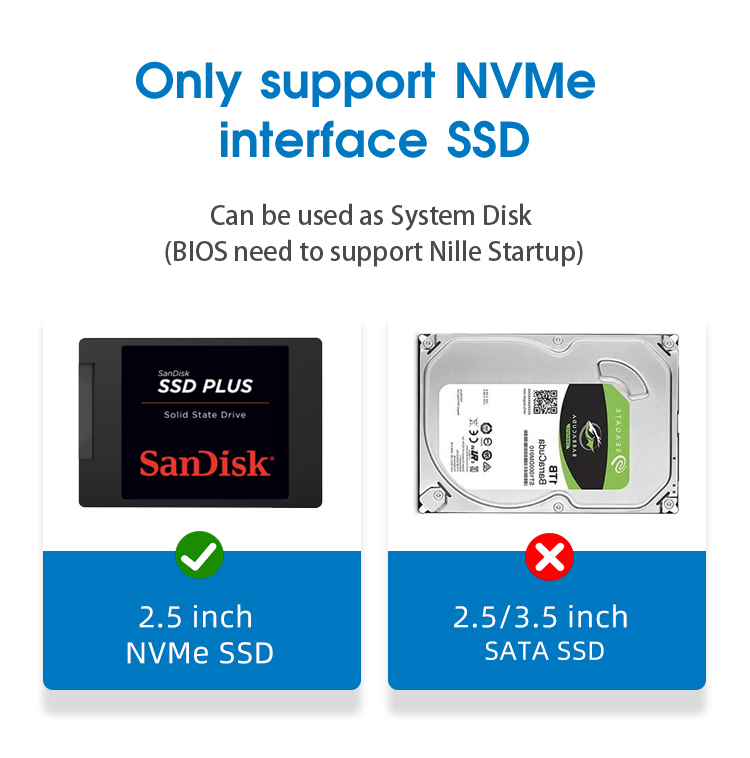

Support up to 4 NVMe SSDs
Support hot plug,but need to be used with a backplane that supports hot-swappable, Such as Intel whitley Ice Lake server and AMD
server backplane & TYAN TS65A-B8036 (B8036T65AV4E24HR)

Description

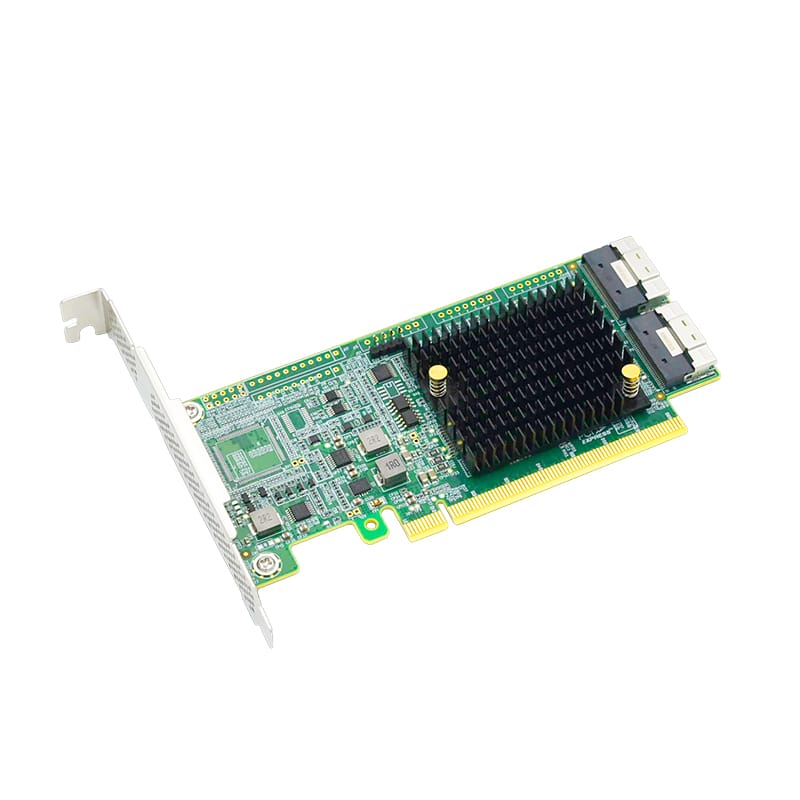

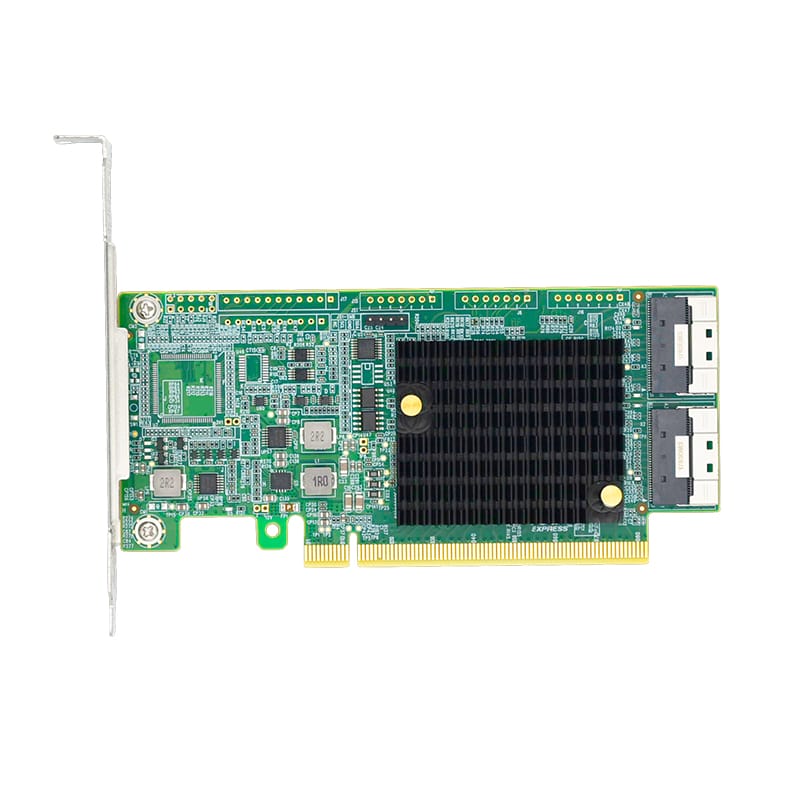

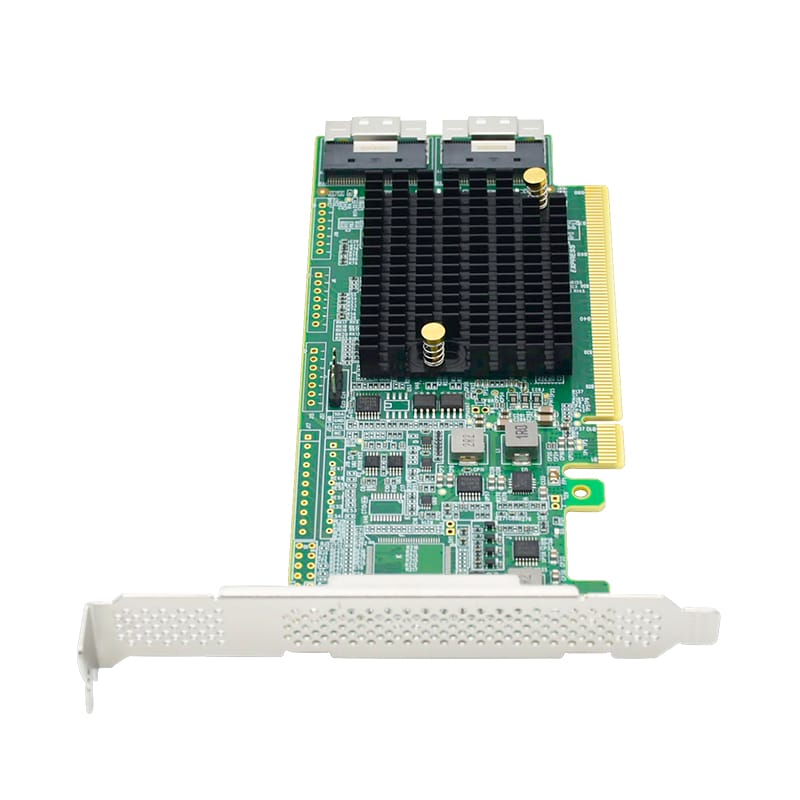

LRNV9F24 PCIe 4.0 x16 To TwoSlimSAS SFF-8654 8i Retimer Adapter Card

Product Description
LRNV9F24 is a signal retimer adapter used to secure the link budget to meet the challenging signal integrity requirements for long PCIe Gen4 channel comprising PCB, connector and cable. It uses advanced signal conditioning techniques to compensate for the channel attenuation and remove the impacts of various jitter sources. It connects NVMe SSD or PCIe connectors via SlimSAS connector (SFF-8654).

Applications
It is targeted for meeting the higher performance PCIe Gen4 interconnection needs of the following end applications:
* Servers
• Storage Appliances
• Hardware Accelerators

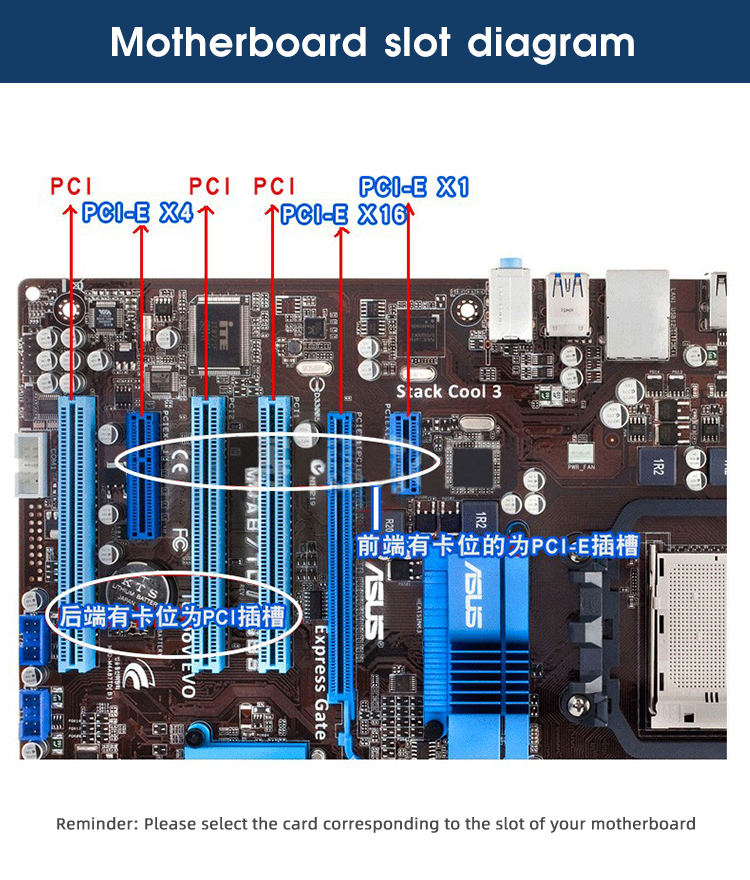

The Motherboard with CPU and BIOS needs to support bifurcation to ensure PCIe x16 link width to bifurcate two x8 link width or four x4 link width for NVMe SSD, Otherwise this card can only support one PCIe x8 link width.

Operating System support
The adapter does not require a driver for operation or communication to attached NVMe drives. The drives are presented natively to
the host and use the native NVMe drivers.
Redhat
Free BSD
Vmware
Linux
Windows

Application
Suitable for higher performance of PCIe Gen4 connections for Storage Servers, Data Center, Servers RAID and Controllers.

Features

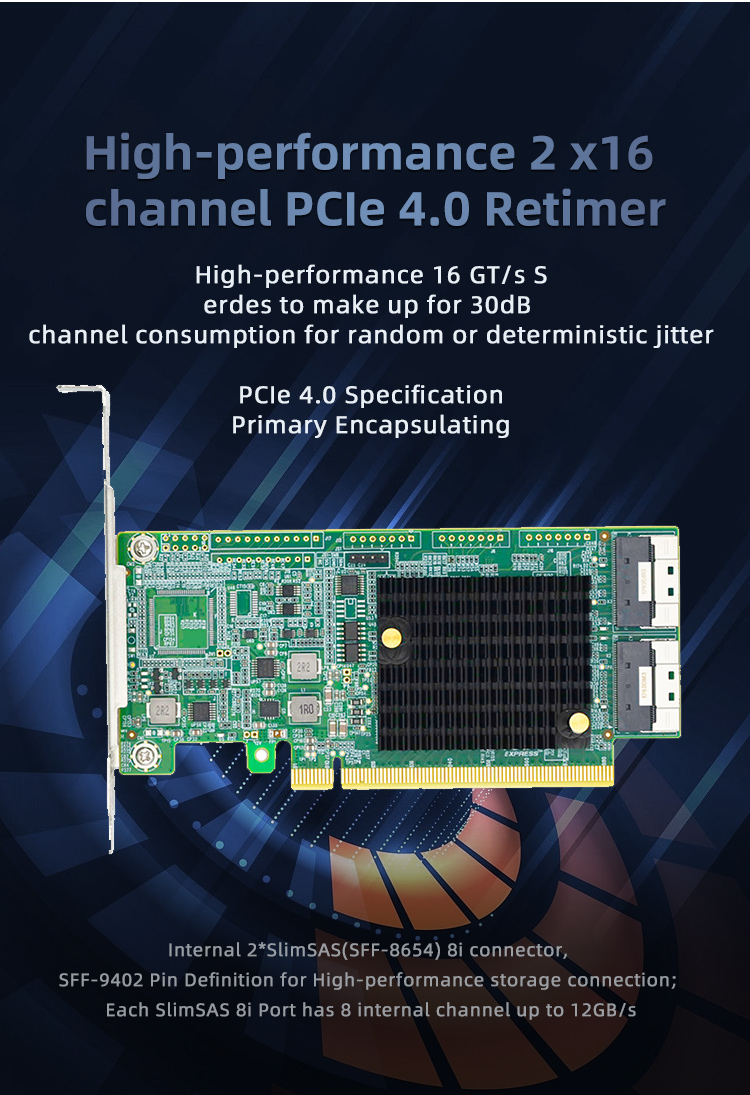

High Performance Retimer
- Compensate for channel loss up to 30dB by comprising PCB, connector and cable
- Eliminate deterministic and random jitter
PCIe Standards and Compatibility
Supplemental Features and Standard BGA
Clocking
- Use standard 100MHz reference clock
- Supports the optional SRIS feature (Separate Reference Clock Independent Spreading)
- Support 100MHz reference clock output

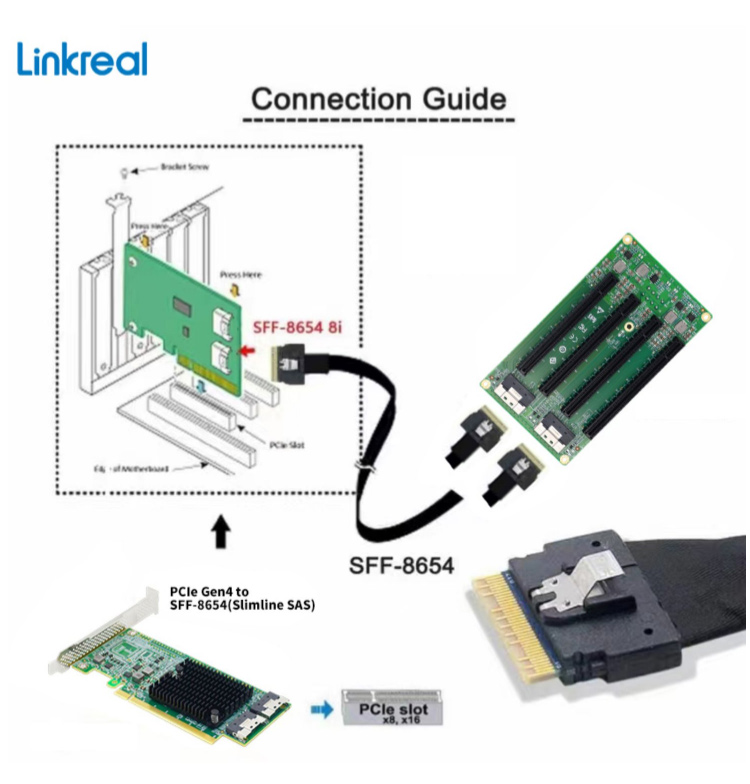

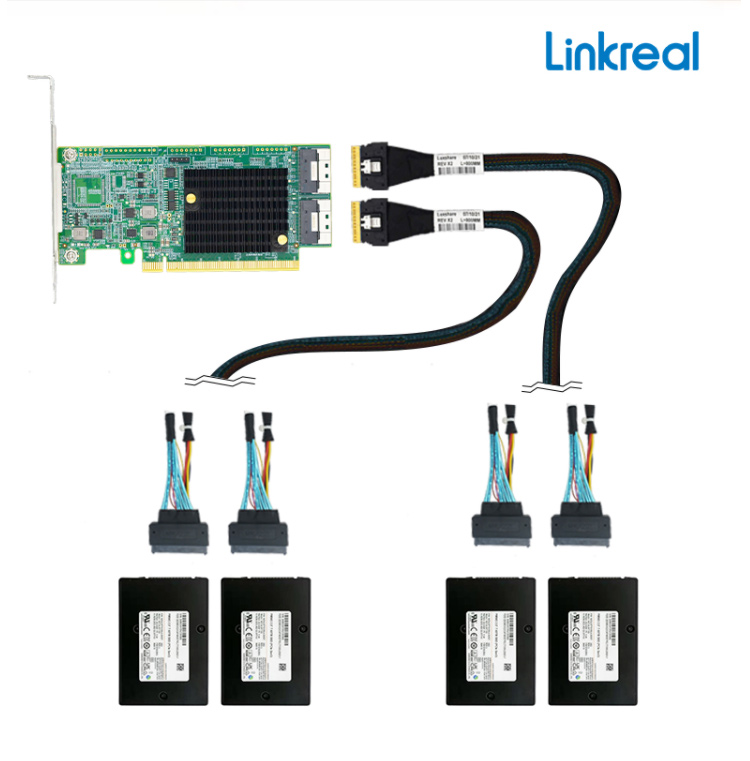

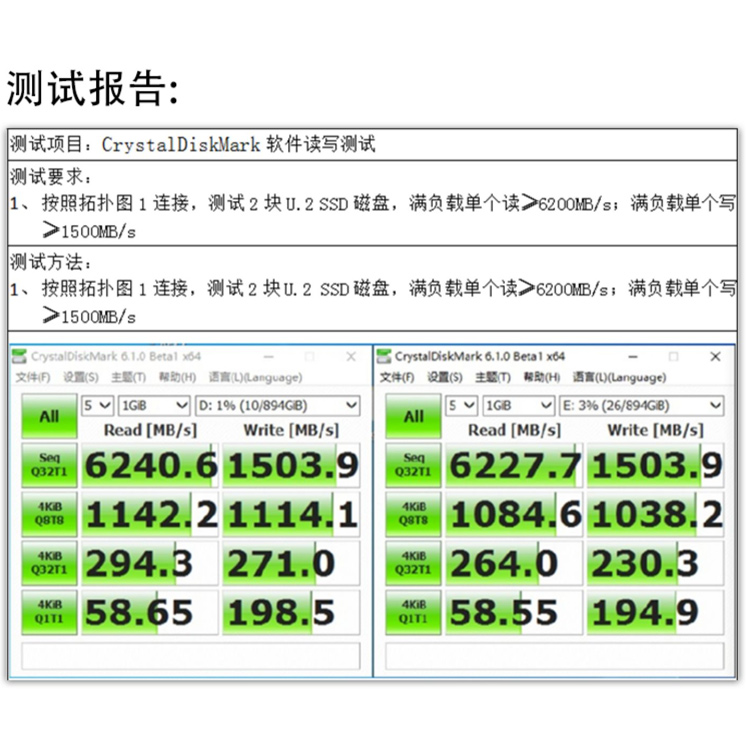

Directly connected to PCIe 4.0 U.2 NVMe SSD by SFF-8654 8i to 2x SFF-8639 cable
Support bifurcated in quad x4 data link width configuration(CPU and BIOS both support)
Support bifurcated in two x8 data link width configuration (CPU and BIOS both support)
Build in SlimSAS(SFF-8654) 8i connector 2 sets, pin-out defined by SFF-9402 for high-performance storage connectivity
Eight internal lanes per SlimSAS 8i port, 128GB/s per port，
PCIe Standard Full-profile bracket pre-installed and also a low-profile bracket for small form factor computer.

HARDWARE
Number of Device	4 internal
Bus Type	PCI Express
Compatible Drive Types	U.2 (PCIe_NVMe SSD, SFF-8639)

CONNECTOR(S)
Drive Connectors	2*SFF-8654(74 Pin, x8 PCIe Gen 4)
Host Bus	PCI Express x16

Environmental Parameter
Humidity	15% ~ 90%
Operating Temperature	5°C to 50°C (41°F to 122°F)
Storage Temperature	-25°C to 70°C (-13°F to 158°F)

Physical Features
PCB Size (mm)	146.5mm x 67.9mm
weight (g)	115g

Order Information
M/N	Description
LRNV9F24	LRNV9F24 PCI Express 4.0 x16 to Two SlimSAS SFF-8654 8i Retimer Adapter
PS: The above details is just for reference,if there is any change,no inform will have.
