Introduction
Product Model:LRNV9347L-2I
Product Name:2 Port PCIe 3.0 x 8 to U.2 NVMe Switch Adapter
Chipset：PLX 8747
Interface Type：2*SFF-8643 Connectors
Support Equipment：2*NVMe SSD or PCIe adapter card
Host Bus Type：PCIe 3.0 x 8














































































































Description

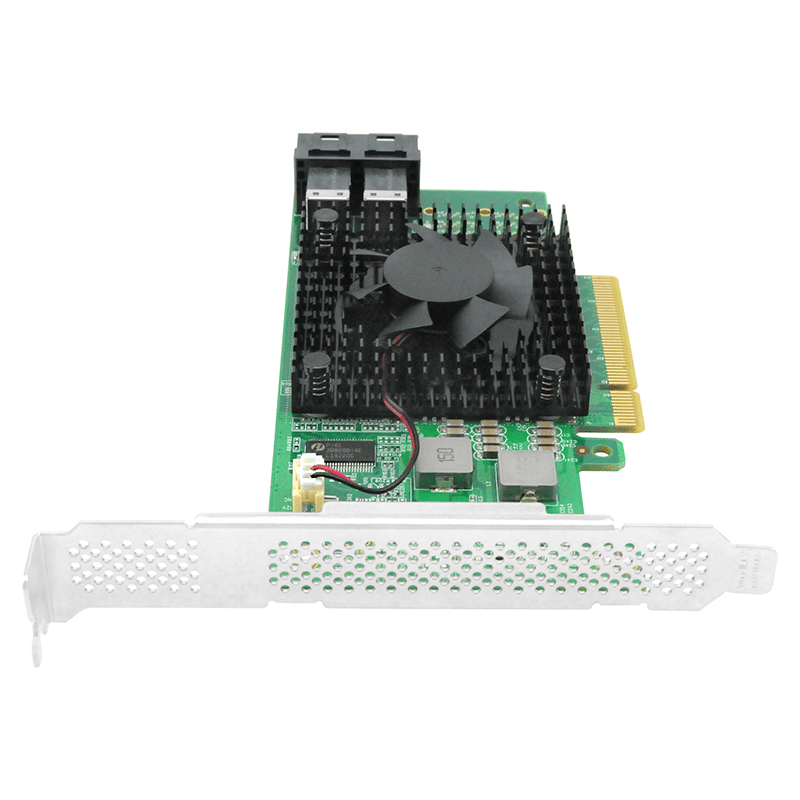

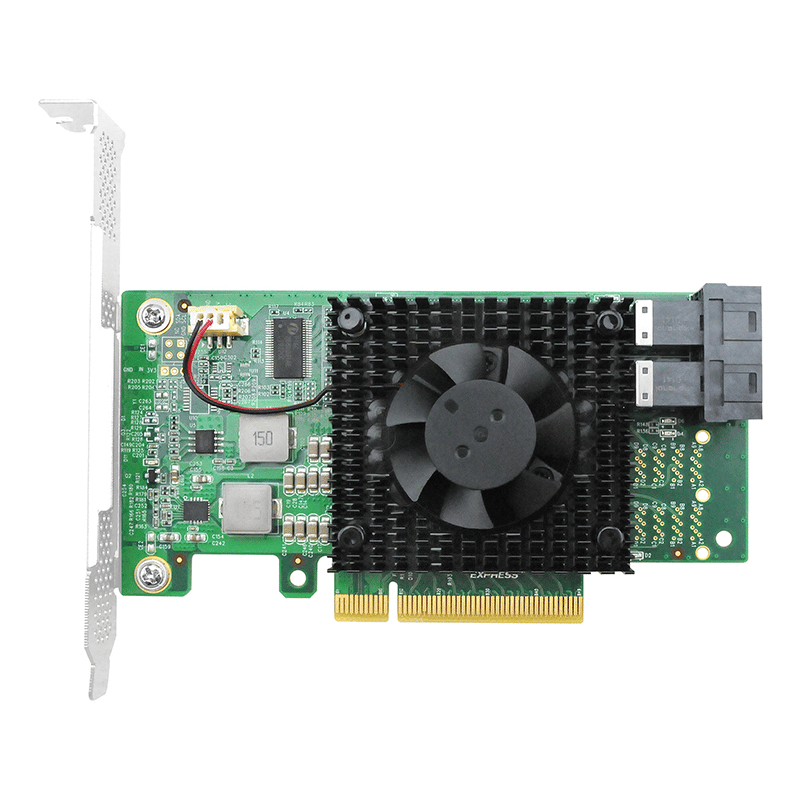

PCI Express 3.0 x8 to 2 x U.2 (SFF-8643) NVMe Switch Adapter Card LRNV9347L-2I


LRNV9347 NVMe Adapter is PCI Express x8 Gen3 PCIe switch Card. It expands the maximum storage of the 2 U.2 SSD via scalable, high-bandwidth, non-blocking interconnection to a wide variety of graphics applications including servers, storage, communications, and graphics platforms. It is optimized to support high-resolution graphics while supporting peer-to-peer traffic and multicast for maximum performance.
Applications
Suitable for NVMe SSD support PCI Express, it can get the maximum bandwidth and transfer rate while the 2 U.2 NVMe SSD running at the same time.

HARDWARE

Number of Device
2 internal
Bus Type
PCI Express
I/O Controller
PLX PEX8747
CONNECTOR(S)

Drive Connectors

2*NVMe SSD
Host Bus
PCI Express 3.0
Environmental Parameter
Humidity
15% ~ 90%
Operating Temperature
5°C to 50°C (41°F to 122°F)
Storage Temperature
-25°C to 70°C (-13°F to 158°F)
Physical Features
PCB Size (mm)
130mm x68.9mm
weight (g)
141.5g
Order Information
M/N
Description
LRNV9347L-2I
LRNV9347L-2I PCI Express 3.0 x8 to 2 x U.2 (SFF-8643) NVMe Switch Adapter
PS: The above details is just for reference,if there is any change,no inform will have.
