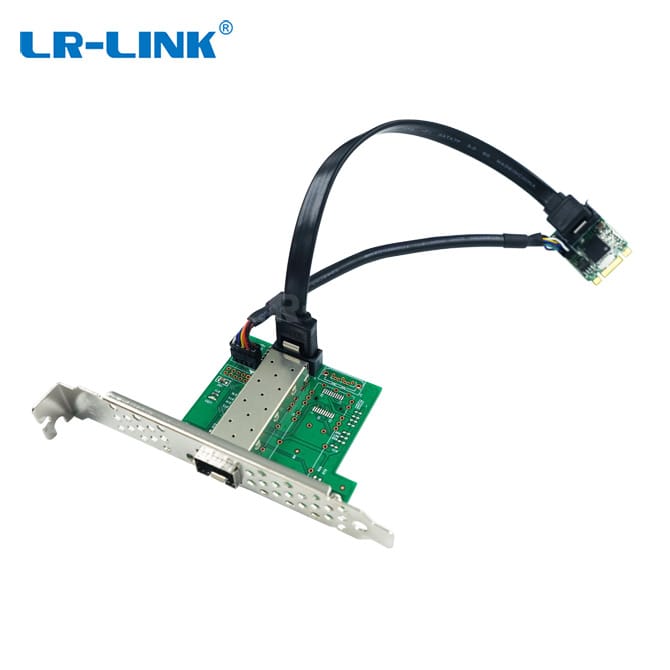

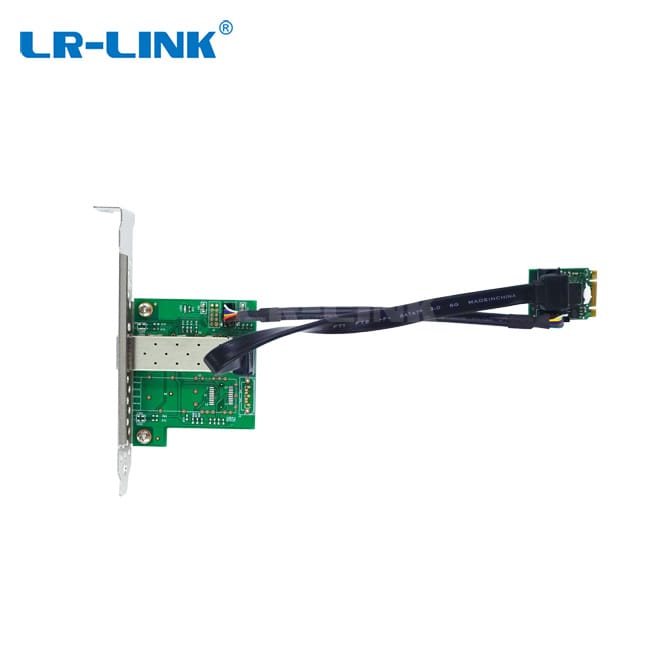

LRES2213PF-SFP is a single-port optical fiber M.2 B+M Key 1G SFP Network Card developed by Shenzhen Lianrui Electronics Co., Ltd. based on the Intel I210 main control solution with M.2 B+M Key interface.
This M.2 B+M Key 1G SFP Network Card adopts the Mini structure design of the M.2 B+M Key interface, which can be adapted to various compatible M.2 interface slots. It is designed to be widely used in small PCs, industrial computers, single board computers, Digital multimedia and other devices with M.2 interface slots can be used to solve the problem of compact device space. This Ethernet adapter card supports 1000Mbps link rate.
LRES2213PF-SFP M.2 B+M Key 1G SFP Network Card adopts Intel I210 main control chip, which has high performance, high stability, high quality and very good compatibility.
The M.2 B+M Key 1G SFP Network Card uses a Gigabit SFP communication interface design, users can combine a variety of use occasions with the fiber optic module to meet the needs. At the same time it has excellent safety and stability when used in a complex environment.
Controller | Intel I210 |
Baffle Height | Full-height & half-height configurations |
Power Consumption | 1.0W |
System Support | Windows 7/8/8.1/10 |
Windows Server2008 R2/2012 R2/2016 R2/2019 R2; | |
Linux Stable Kernel version 2.6.32.x/3.x/4.x/5.x or later; | |
Linux CentOS/RHEL 6.x / 7.x or later; | |
Ubuntu 14.x/15.x/16.x or later; | |
VMware ESX/ESXi 4.x/5.x/6.x or later | |
Bus Type | M.2 B+M Key |
Data rate supported per port | 1000MbE |
Connector | 1*SFP |
Technical Features
Protocol Support | IEEE 802.3z 1000BASE-X Gbit/s Ethernet IEEE 802.1Q VLANs IEEE 802.3x IEEE 1588 IEEE 802.3az - Energy Efficient Ethernet (EEE) IEEE 802.3az - Energy Efficient Ethernet (EEE) |
iSCSI | No |
WoL | No |
Jumbo Frames | YES |
DPDK | Yes |
PXE | Yes |
FCoE | No |
