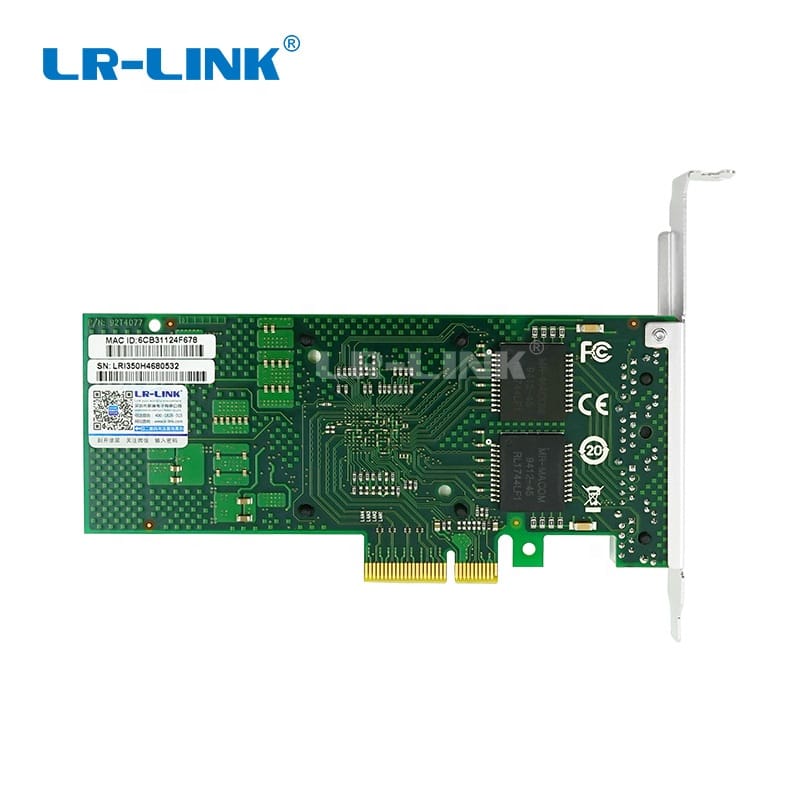

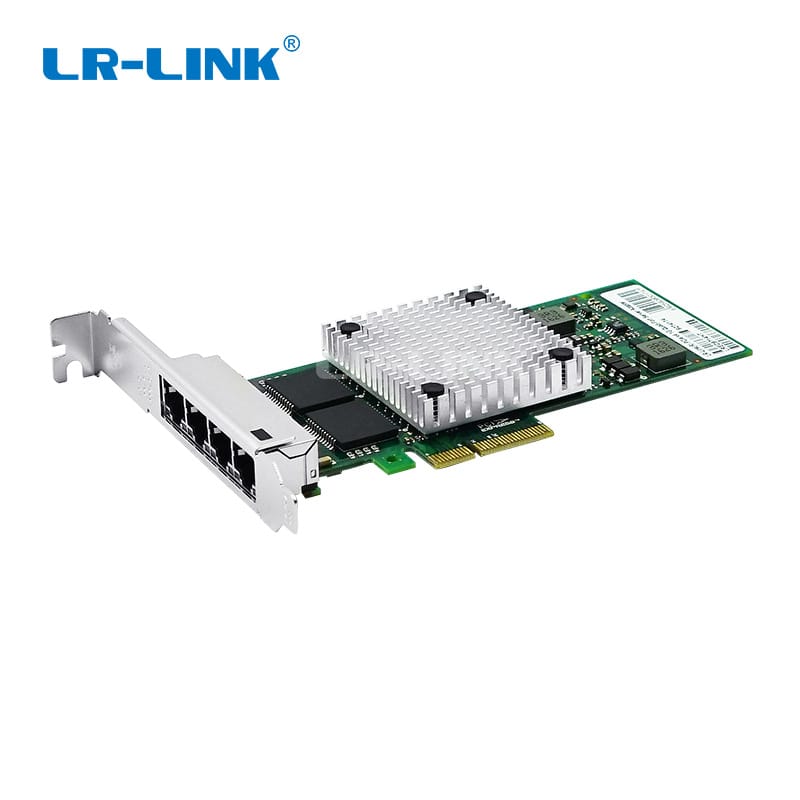

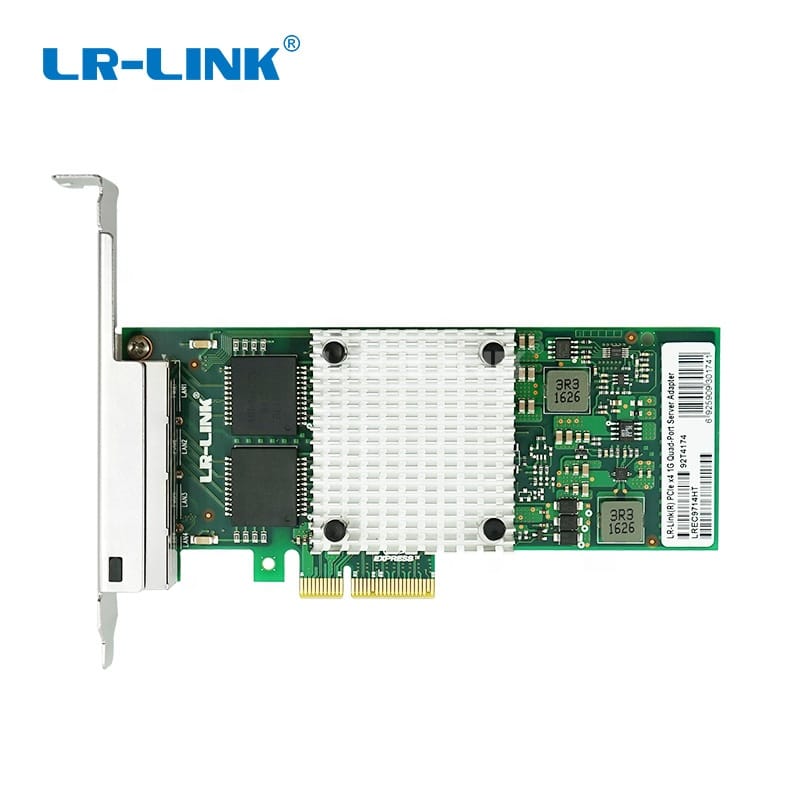

LR-LINK LREC9714HT
PCI Express x4 Gigabit Quad Ports Copper 10/100/1000Mbps 4 RJ45 Ports 1000Base-T Network Adapter
LREC9714HT is a 4-port gigabit ethernet network adapter with PCIe x4 bus interface developed by Shenzhen Linrui Electronics Co., LTD based on Intel chip. It is widely used in industrial manufacturing, machine processing and other data transmission environment requirements.
Developed on one quad chip ethernet MAC+PHY (Media Access Controller and Physical Interface Transceiver) controllers, the LREC9714HT allows four ports to operate simultaneously in full-duplex mode for high-performance network communications over gigabit ethernet connections. Link aggregation can also be used to expand bandwidth and save PCIe channel resources. In addition, it does not occupy bus bandwidth and saves PCI Express channel resources
Key Features
1. Based on Intel control;
2. Suitable for industrial manufacturing, machine processing and other data transmission environment requirements;
3. Link aggregation can be used to expand bandwidth and save PCIe channel resources.
Specifications
Controller | Intel Chip |
Transmission medium | Copper |
Copper Type | Cat 5E & Cat6 or higher, 1000Base-T up to 100m |
| Cat 5 & Cat5E or higher, 100Base-T up to 100m | |
| Cat 3,4,5 & Cat5E or higher, 10Base-T up to 100m | |
Baffle Height | Half & Full-height bracket |
Power Consumption | 6.72W |
OS Support | Windows 7/8/8.1/10 |
Windows Server 2008 R2 /2008 R2 /2012 R2 /2016 R2 /2019 R2 | |
Linux SLES 11/12 | |
CentOS / RHEL 6.x / 7.x or later | |
Ubuntu 14.x/16.x or later | |
FreeBSD 9 / 10 / 11 or later | |
Linux Stable Kernel version 3.x / 4.x or later | |
Vmware ESX/ESXi 4.x / 5.x or later | |
Bus Type | PCIe v2.1 x4,compatible with x8 , x16 |
Data rate per port | 10/100/1000Mbps |

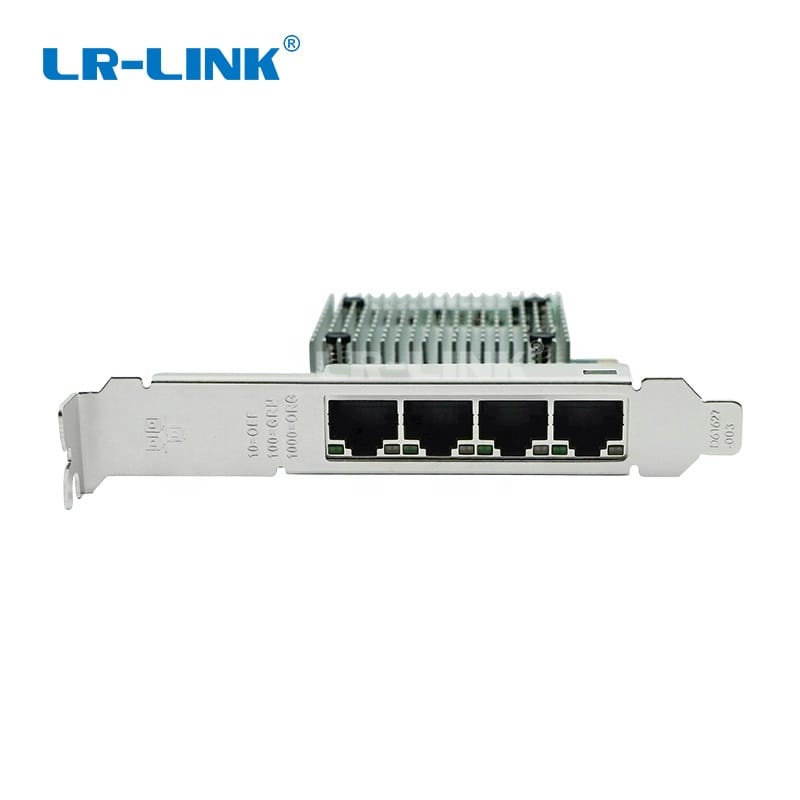

Connector | 4*1G RJ45 Connector |
Power supply | PCIe |
Technical Features
Standards compliant | IEEE 802.3ab 1000BASE-T Gigabit Ethernet IEEE 802.3u 100BASE-TX Fast Ethernet IEEE 802.3z IEEE 802.1Qav IEEE 802.1Qbu IEEE 802.1Qbv IEEE 802.3br IEEE 1588 IEEE 802.3ad IEEE 802.3az - Energy Efficient Ethernet |
iSCSI | No |
WoL | Yes |
Jumbo Frames | Yes |
DPDK | Yes |
PXE | Yes |
FCoE | No |
Environment Features
Operating Temperature | 0℃ to 55℃ (32℉ to 131℉) |
Storage Temperature | -40℃ to 70℃ (-40℉ to 158℉) |
Storage Humidity | Maximum: 90% non-condensing relative humidity at 35℃ |
Certification | FCC, CE, RoHS |
Physical Features
Size (mm ±0.5mm) | 158*120*21 |
Weight (g ±2g) | * |
LED Indication
LED indication | 1000M, Orange + Green |
| 10M/100M, Orange |
