1. Based on Intel 10G chip;

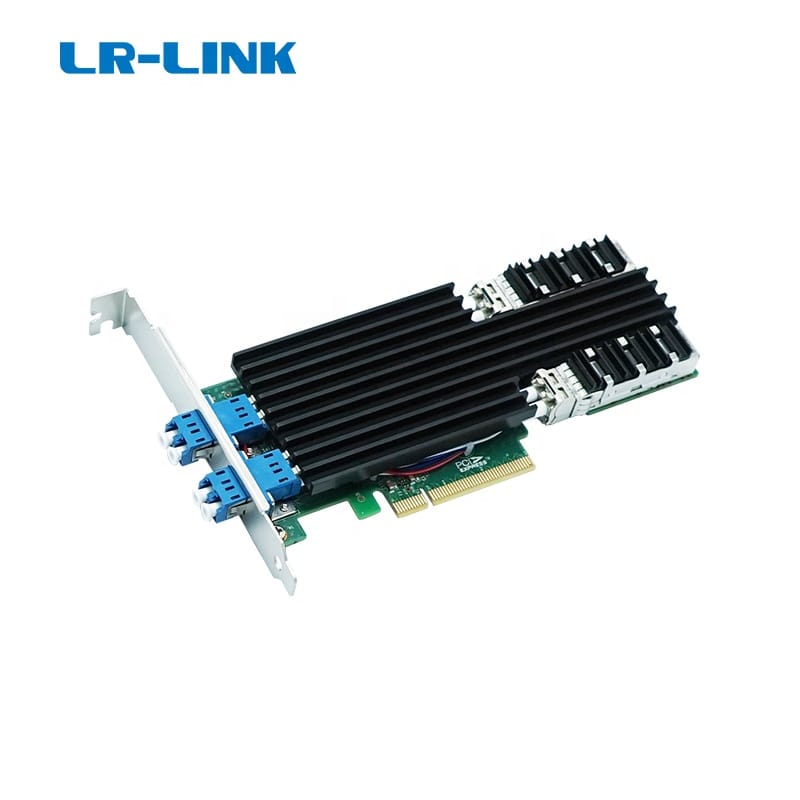

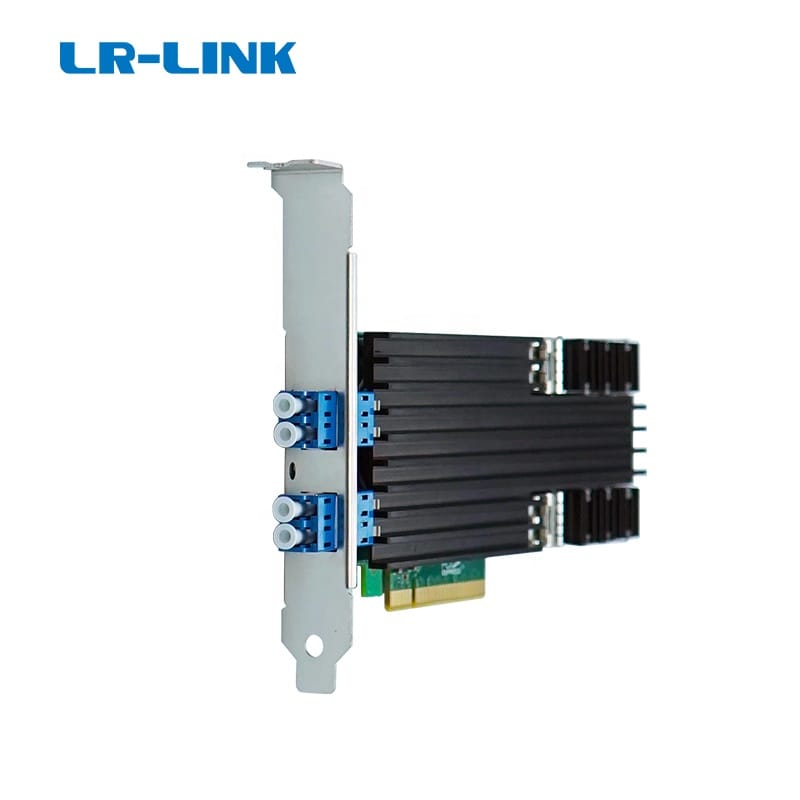

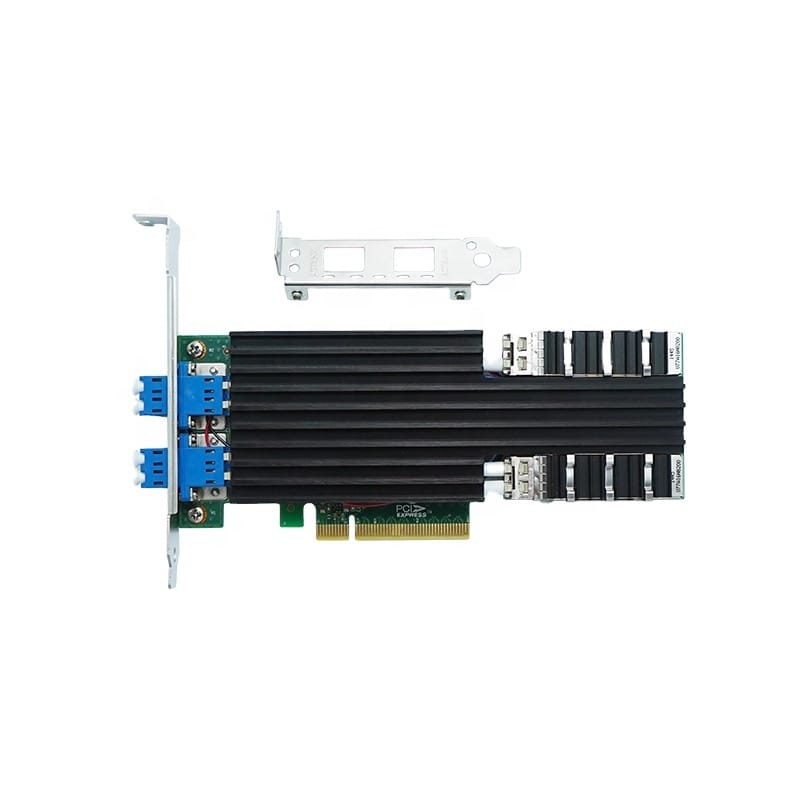

2. A PCIe V2.0x8 dual-port single Bypass Ethernet network adapter
3. The network card has a wide range of compatibility and performance assurance of the main control, can achieve conventional dual-port 10G Ethernet and Bypass work.
4. It can be widely used in high throughput gateway, firewall and other network equipment.
Controller | Intel 82599 |
Bracket | Full-height & half-height bracket |
power consumption | 7W |
System Support | Windows 7/8/8.1/10 Windows Server 2008 R2/2012 R2/2016 R2/2019 R2 or later; Linux SLES 11/12 or later; CentOS / RHEL 7.x or later; Ubuntu 16.10 or later; Linux Stable Kernel version 3.x/4.x or later; Vmware ESX/ESXi 4.x or later; |
Bus Type | PCIe v2.0 x8 |
Data Rate | 10GbE |
Connector | 2*10G SFP+ |
Technical Features | |
Standards Compliant | IEEE 802.3ae 10GBASE-X Ethernet IEEE 802.3x Full Duplex and flow control IEEE 802.1AS IEEE 802.1Q VLAN IEEE 802.3AD IEEE 1588 IEEE 802.3az - Energy Efficient Ethernet |
PXE | No |
iSCSI | Yes |
FCoE | No |
DPDK | Yes |
WoL | No |
Jumbo Frames | Yes |
Environment Features | |
Operating Temperature | 0 ℃ to 55 ℃ (32 ℉ to 131℉) |
Storage Temperature | -40℃ to 85℃ (-40℉ to 185℉) |
Storage Humidity | Maximum: 90% non-condensing relative humidity at 35℃ |
Physical Features | |
Size (mm ±1.0mm) | 170*120*21 |
Weight (g) | * |
LED Indication | |
10Gbps | Red Blink + Green Link |
BYPASS | Green Link |
Order Information | |
P/N | Description |
LRES1022PF-BP-LR | PCIe x8 Dual-port 10G Bypass Ethernet Network Adapter (Intel 82599 Chip Based) |
PS: Above details are only for reference, if there is any change,no prior notice. | |
