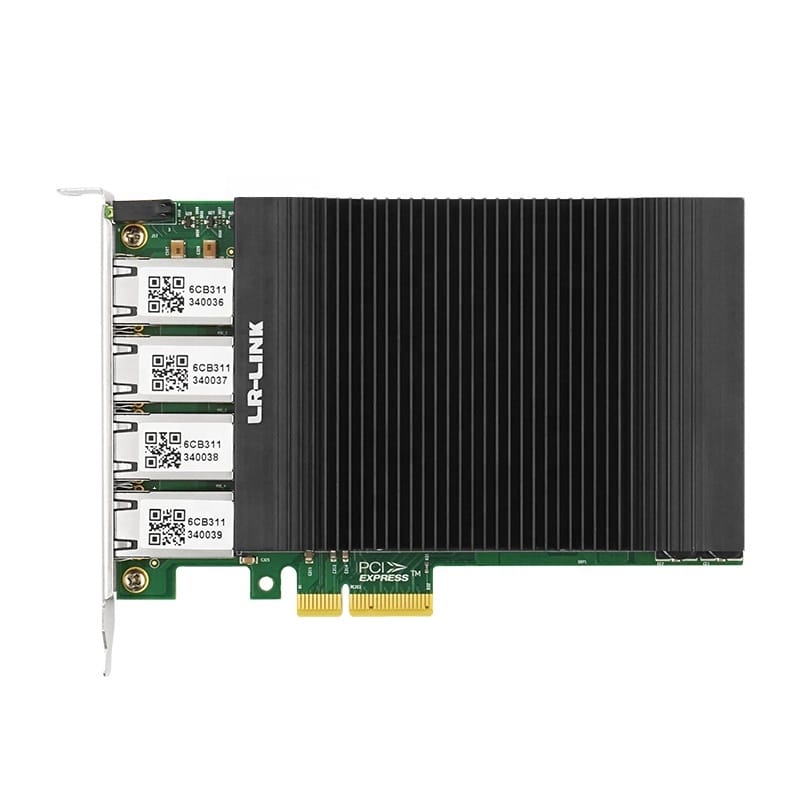

LR-LINK LRES2004PT-POE PCIe X4 Quad-port 802.3at PoE+ Gigabit Vision Frame Grabber Card

Name: LR-LINK LRES2004PT-POE PCIe X4 Quad-port 802.3at PoE+ Gigabit Vision Frame Grabber Card
SKU: LRES2004PT-POE
Price: 175.00 USD
Availability: InStock

LRES2004PT-POE

0 reviews

0 orders

$175.00

Lv.1

0% OFF

Lv.2

1% OFF

Lv.3

3% OFF

Quantity :

ADD TO CART

More payment options

INQUIRE NOW

ADD TO FAVORITES (0)

Introduction

• Quad Port 100/1000Mbps Industry Adapter
• PCI Express (PCIe) v2.1(2.5GT/s) x4 lanes
• Supports +12V DC AT/ATX input
• Powered Device (PD) auto detection and classification per PoE+ port
• Support 802.3at and IEEE 802.3af, two port delivers up to 30W of power, 95W total power budget
• 2.25KV Isolation protection on LAN ports and power
• Support WOL, PXE boot

Description

LR-LINK Brand PCle x4 Quad-port 802.3at PoE+ Gigabit Vision Frame Grabber Network Card 4 XRJ45 NIC Based Intel 1350

LRES2004PT-POE is a quad-port copper gigabit ethernet PCI Express x4 PoE+ ethernet frame grabber independently developed by Shenzhen Lianrui Electronics Co., Ltd. based on the Intel I350 chip. It is also compatible with PCIe x8 and x16. The grabber adapter design is mainly designed for industrial field visual inspection servers and equipment, visual field clients, fast mobile ethernet data transmission equipment, etc., and is also suitable for ordinary servers. The adapter has integrated hardware
acceleration and is capable of performing TCP/UDP/IP checksum offloading and TCP segmentation tasks. The host processing technology can offload the accelerator, and the host processing technology can offload the accelerator and release the CPU resources to free up more CPU resources to process other applications. This adapter is the ideal solution for deploying multiple networks and deploying critical network applications and environments on high-performance servers. Developed on the Intel I350
quad-port ethernet MAC+PHY controller, the LRES2004PT-POE allows up to four ports simultaneously in a gigabit ethernet connection. Working in a full-duplex mode of operation to accommodate high-performance network communications, you can extend bandwidth through link aggregation while conserving PCI Express channel resources without consuming bus bandwidth

Controller	Intel chip
Transmission medium	Copper
Cable Types	Cat 5E and Cat6:1000Base-T up to 100m (POE power min requirement Cat5) Cat 5E and Cat6:100Base-T up to 100m (POE power min requirement Cat5)
Bracket	Full-height bracket
power consumption	3.0W
PoE Power（max)	30W / port
System Support	Windows XP Windows Vista Windows 7 Windows 8/8.1 Windows 10 Windows Server 2003 /R2 Windows Server 2008 /R2 Windows Server 2012 /R2 Windows Server 2016 /R2 Linux Stable Kernel version 2.4.x / 2.6.x / 3.x /4.x or later Red Hat Enterprise Linux 5 / 6 / 7 or later SUSE Linux Enterprise Server 10/11 or later VMware ESX/ESXi 4.x/5.x/6.x or later FreeBSD 9 / 10 or later
Bus Type	PCI Express v2.0(2.5GT/s)x4；compatible with x8 x16 lanes
Data Rate	100Mbps/1000Mbps
Connector	2 *1G 8-Pin RJ45 interface
Power supply	PCIe power supply +3.3V±9%/ +12V±8%

Technical Features
Standards Compliant	IEEE 802.3ab 1000BASE-T Gigabit Ethernet IEEE 802.3u 100Base-TX Fast Ethernet IEEE 802.1Q VLAN IEEE 802.3 IEEE802.3x IEEE802.3af IEEE802.3at
PXE	Yes
iSCSI	No
FCoE	No
DPDK	Yes
WoL	No
Jumbo Frames	Yes

Environment Features
Operating Temperature	0℃ to 55℃ (32℉ to 131℉)
Storage Temperature	-40°C to 70°C (-40°F to 158°F)
Storage Humidity	Maximum: 90% non-condensing relative humidity at 35℃
Certification	FCC, CE, RoHS

Physical Features
Size (mm ±1.0mm)	149104.31.6
Weight (g)	251g

LED Indicators
LED Indicators	1000Mbps: Link: yellow , ACT: green 100Mbps/10Mbps: ACT: green

Order Information
P/N	Description
LRES2004PT-PoE	PCIe x4 1G Quad Port Copper Ethernet PoE Server Adapter (Based on Intel I350-AM4, 3U bracket)
PS: Above details are only for reference, if there is any change,no prior notice.
