* Low cost, low power,energy-efficient Ethernet and DMA merging.
* Single-port 1000MBASE-T controller with integrated MAC and PHY
* Four transmit queues and four receive queues per port.
* 1000Mbps Copper Ethernet networks transition.
* Half & full height Mini PCI Express interface
Controller | Intel 82574 |
Transmission medium | Copper |
Fiber Type | 1000Base-T Cat 5E/6 or higher,up to 100m 100Base-Tx Cat5/5E/6 or higher,up to 100m 10Base-T Category 3/4/5/5E/6 or higher,up to100m |
Bracket | Full & half height |
power consumption | 1.0W |
System Support | Windows XP/Vista/7/8/8.1/10 Windows Server 2003 R2/2008 R2/2012 R2/2016 R2/2019 R2; Linux Stable Kernel version 2.6.x/3.x/4.x or later; Linux CentOS/RHEL 6.5 / 7.x or later; Ubuntu 14.x/15.x/16.x or later; VMware ESX/ESXi 4.x/5.x/6.x or later |
Bus Type | Mini PCIe |
Data Rate per port | 10/100/1000MbE |
Connector | 1*8-Pin RJ45 |
Technical Features | |
Standards Compliant | IEEE 802.3ab 1000BASE-T Gigabit Ethernet IEEE 802.3u 100BASE-TX Fast Ethernet IEEE 802.3i 10BASE-T IEEE 802.3x Full Duplex and flow control IEEE 802.3ad Link aggregation for parallel links IEEE 802.1Q VLAN IEEE 1588 IEEE 802.3az - Energy Efficient Ethernet (EEE) |
PXE | Yes |
iSCSI | No |
FCoE | No |
DPDK | Yes |
WoL | No |
Jumbo Frames | Yes |
Environment Features | |
Operating Temperature | 0 ℃ to 55 ℃ (32 ℉ to 158 ℉) |
Storage Temperature | -40 ℃ to 70 ℃ (-40 ℉ to 158 ℉) |
Storage Humidity | Maximum: 90% non-condensing relative humidity at 35℃ |
Physical Features | |
Size (mm ±1.0mm) | 30*50.9*1.0 + 63*25.3*1.6 |
Weight (g) | 139 |
LED Indication | ||
LED Indication | 1000Mbps, Yellow Link + Green Blink | |
BYPASS | 10Mbps/100Mbps, Green Blink | |
Order Information | |
P/N | Description |

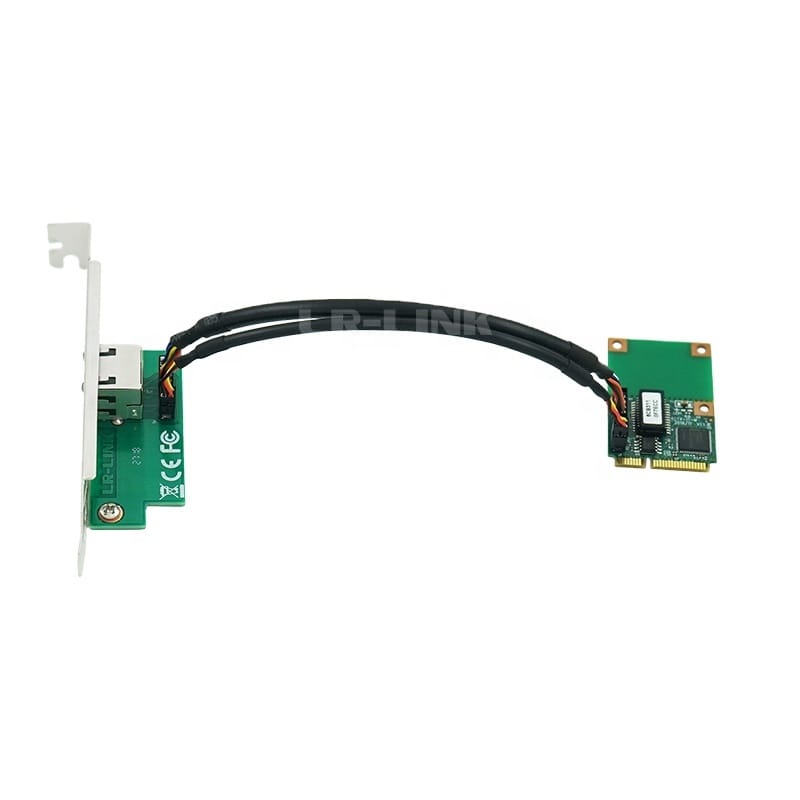

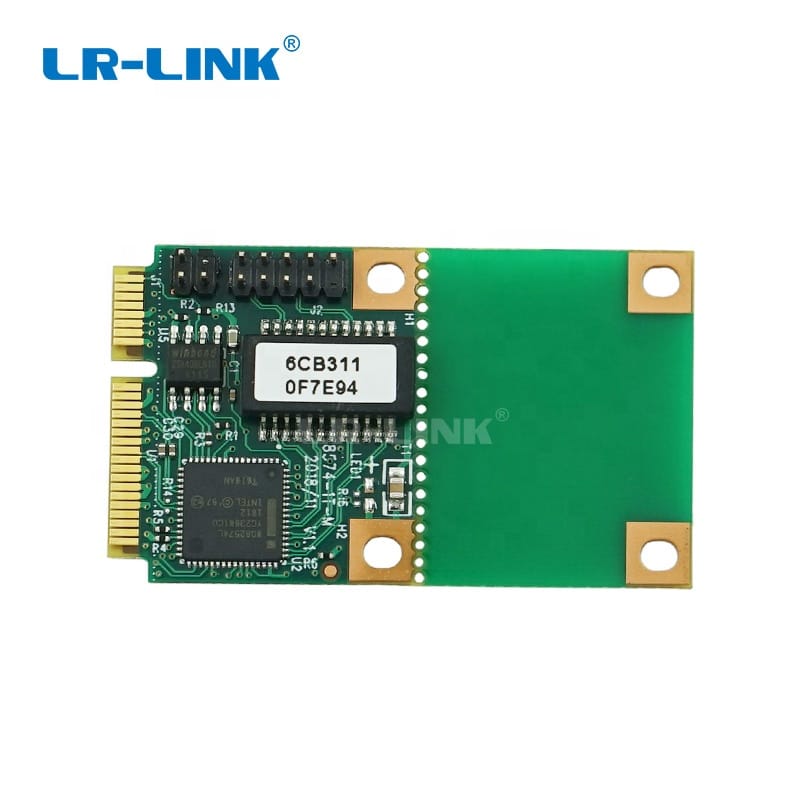

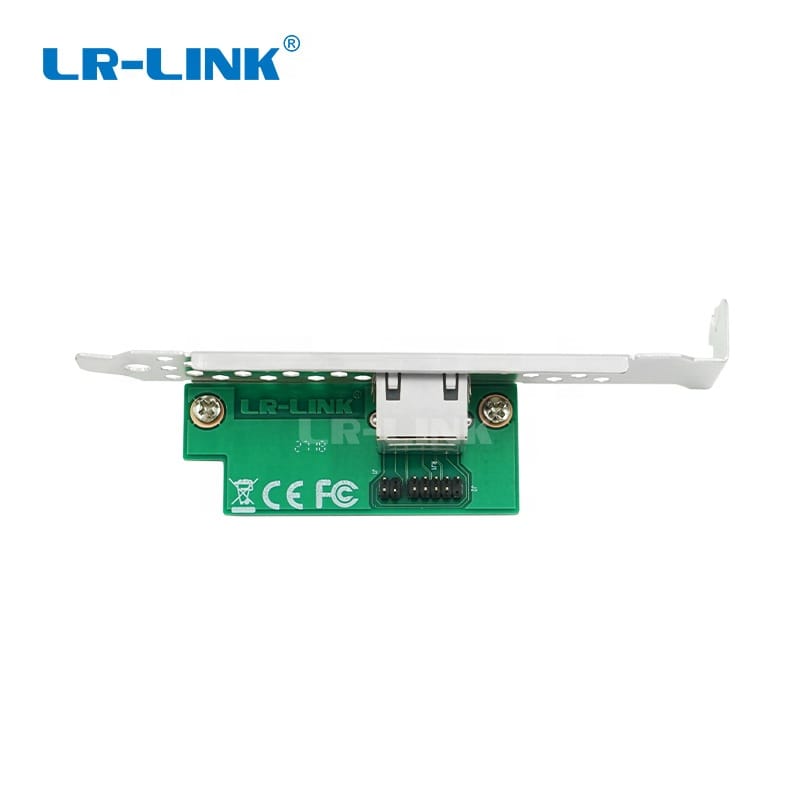

LRES2201PT | Mini PCIe Single Port Gigabit Copper Ethernet Network Adapter (Intel 82574 Based) |
PS: Above details are only for reference, if there is any change,no prior notice. | |
