The adapter card adopts a wider RJ45 pitch design; The interface specially designed for industrial cable access, with LR-LINK customized industrial network cable, can lock the cable and network port more firmly, solve the problem of unstable connection between network port and cable in industrial places effectively. It is also compatible with common cable access. The larger heat sink can effectively solve the heat dissipation problem of the adapter in the case of poor heat dissipation environment, and ensure the stable operation of the adapter card for long time effectively.Carefully selected thickened gold RJ45 connector to ensure a more secure and reliable connectivity; 2*8-Pin RJ45 connectors are designed to better save the motherboard's valuable PCIe slot resources.
Controller | Intel(R) I350 |
Cable | Copper |
Cable Type | Cat 5E/6 or higher: 1000Base-T up to 100m Cat5/5E/6 or higher: 100Base-Tx up to100m Category 3/4/5/5E/6 or higher: 10Base-T up to 100m |
Bracket | Low Profile and Full-height Bracket |
power consumption | 3.0W |
System Support | Windows XP/Vista/7/8/8.1/10 Windows Server 2003 R2/2008/2008 R2/2012/2012 R2/2016/2016 R2 Core; Linux Stable kernel version 2.4.x/2.6.x/3.x/4.x or later RHEL/CentOS 5.x/6.x/7.x or later Linux SLES 11 SP3 / SLES 12 or later FreeBSD 9 / 10 / 11 or later VMware ESX/ESXi 4.x/5.x/6.x or later |
Bus Type | Mini PCIe |
Data Rate per port | 10/100/1000MbE |
Connector | 2*8-Pin RJ45 |
Technical Features | |
Standards Compliant | IEEE 802.3 IEEE802.3ad IEEE 802.1p IEEE 802.1Q VLANs IEEE 802.3ab 1000BASE-T Gigabit Ethernet IEEE 802.3u 100Base-TX Fast Ethernet |
PXE | Yes |
iSCSI | No |
FCoE | No |
DPDK | Yes |
WoL | No |
Jumbo Frames | Yes |
Environment Features | |
Operating Temperature | 0 ℃ to 55 ℃ (32 ℉ to 131 ℉) |
Storage Temperature | -40 ℃ to 70 ℃ (-40 ℉ to 158 ℉) |
Storage Humidity | 90% non condensing under 35℃ |
Physical Features | |
Size (mm ±1.0mm) | 63*41.5*1.6mm (M1) + 51*30*1.0 mm (M) |
Weight (g) | 30 |
LED Indication | ||
LED Indication | 1000Mbps:Green + Green Blink | |
BYPASS | 10Mbps/100Mbps, Green Blink | |
Order Information | |
P/N | Description |

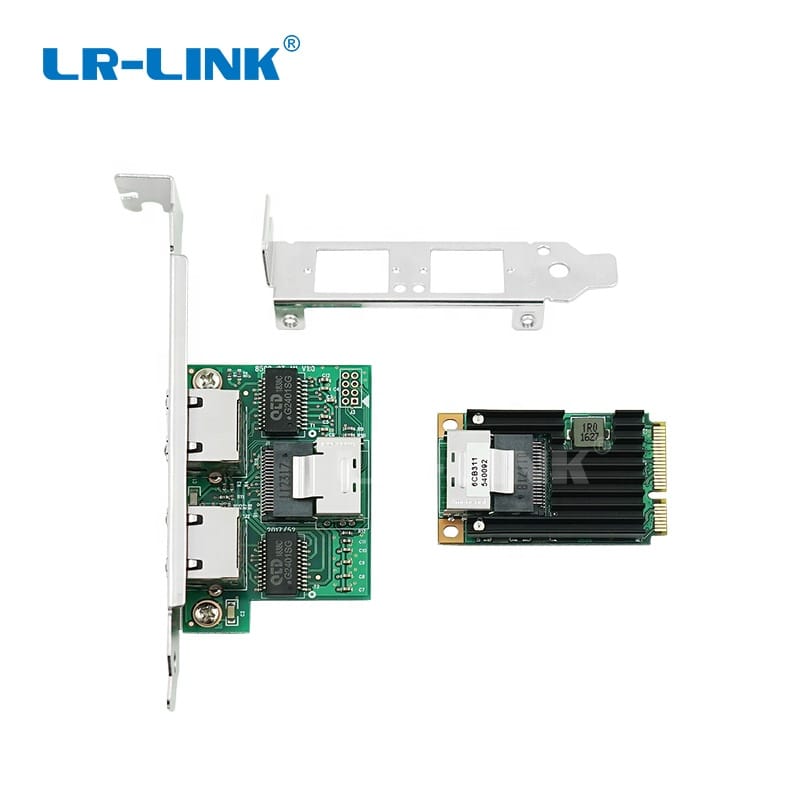

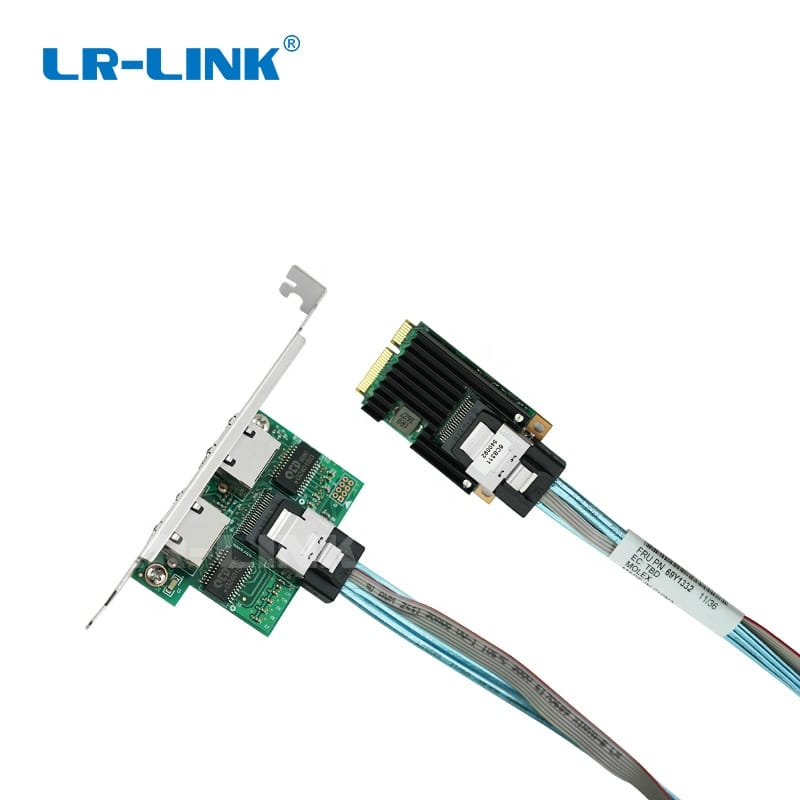

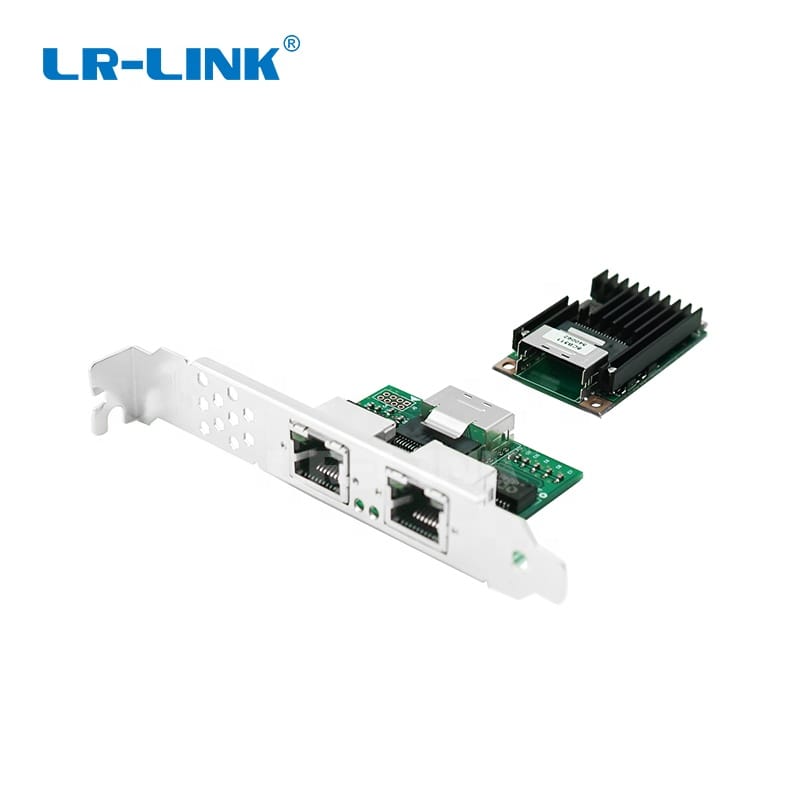

LRES2202PT | Mini PCIe Dual Port Copper Gigabit Ethernet Network Adapter (Based on Intel I350,3U/2U bracket) |
PS: Above details are only for reference, if there is any change,no prior notice. | |
