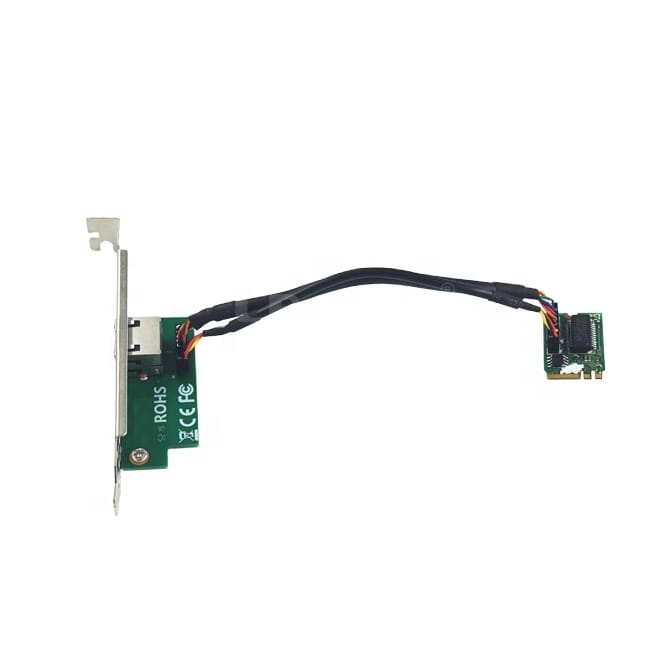

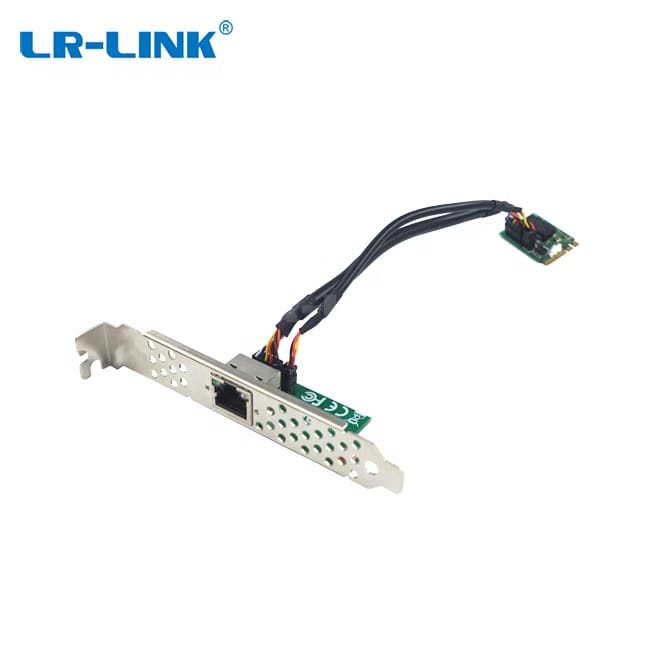

A single port gigabit copper ethernet network adapter with M.2 A+E Key interface;
·The Mini structure design with M.2 A+E Key interface can be adapted to various compatible M.2 interface slots;
·It is designed to be widely used in small PCs, industrial computers, single board computers, digital multimedia and other devices that contain M.2 interface slots;
·It has high performance, high stability, high quality and very good compatibility.
Controller | Intel I210 |
Bracket | Full-height & half-height configurations |
power consumption | 1.0W |
System Support | Windows 7/8/8.1/10/11; Windows Server 2008 R2/2012 R2/2016 R2/2019 R2/2022 R2 Linux Stable Kernel version 2.6.32.x / 3.x/4.x /5.xor later; Linux CentOS/RHEL 6.x / 7.x or later; Ubuntu 14.x/15.x/16.x or later; UOS V20 or later VMware ESX/ESXi 4.x/5.x/6.x or later; |
Bus Type | M.2 A+E Key |
Data Rate per port | 10/100/1000MbE |
Connector | 1*RJ45 |
Technical Features | |
Standards Compliant | IEEE 802.3z 1000BASE-X Gbit/s Ethernet IEEE 802.1Q VLANs IEEE 802.3x IEEE 1588 IEEE 802.3az - Energy Efficient Ethernet (EEE) IEEE 802.3az - Energy Efficient Ethernet (EEE) |
PXE | Yes |
iSCSI | No |
FCoE | No |
DPDK | Yes |
WoL | No |
Jumbo Frames | Yes |
Environment Features | |
Operating Temperature | 0 ℃ to +55 ℃ (-40 ℉ to +131 ℉) |
Storage Temperature | -55 ℃ to +105 ℃ (-67 ℉ to +221 ℉) |
Storage Humidity | Maximum: 90% non-condensing relative humidity at 35 ℃ |
Physical Features | |
Size (mm ±1.0mm) | 25.3*120*21+22.30 |
Weight (g) | * |
LED Indication | |
LED Indication | 1000Mbps:Link:yellow,ACT: green 100Mbps/10Mbps: ACT: green |
Order Information | |
P/N | Description |
LRES2210PT | M.2 A+E Key Single-port 1G Copper Ethernet Network Adapter (Intel Chip Based) |
PS: Above details are only for reference, if there is any change,no prior notice. | |
