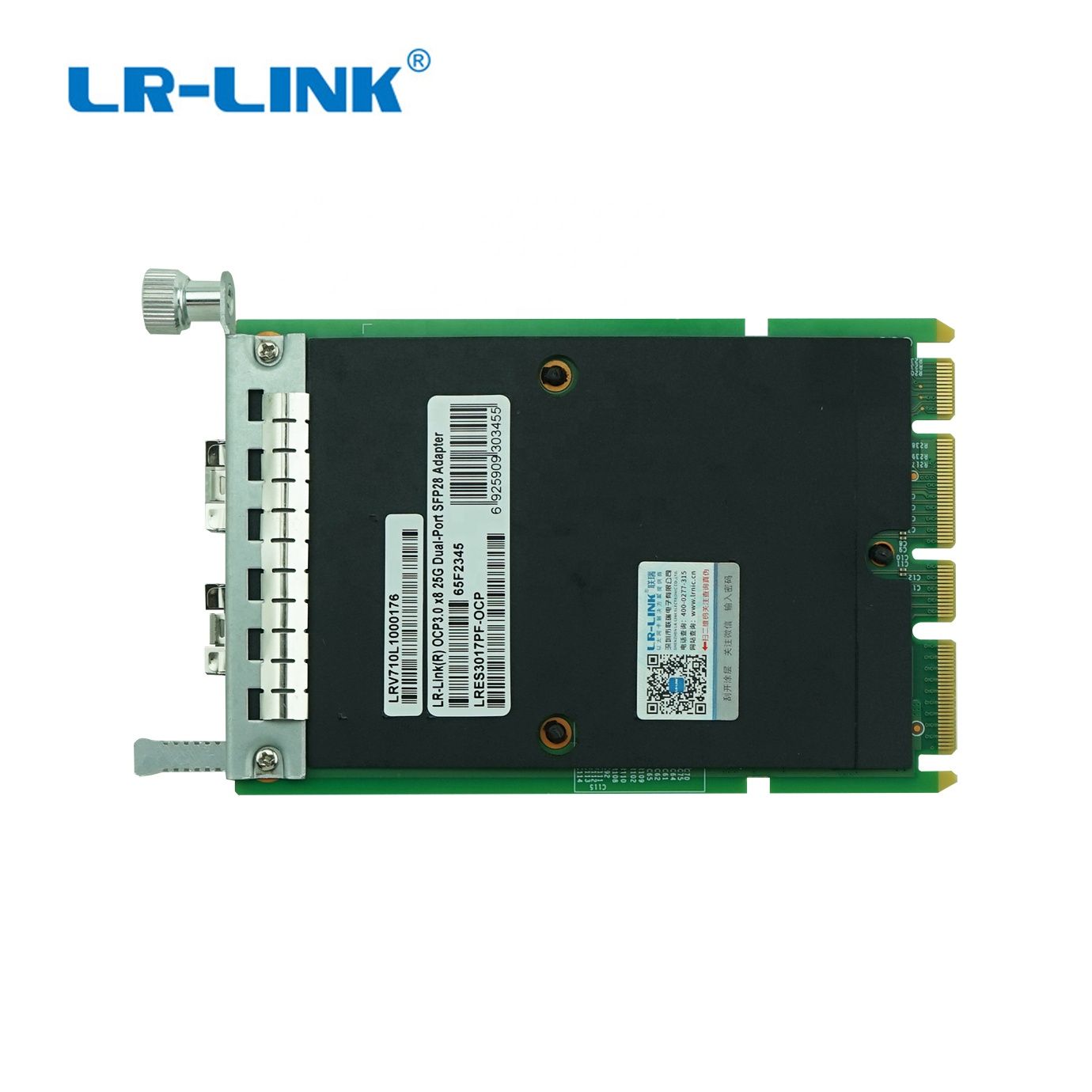

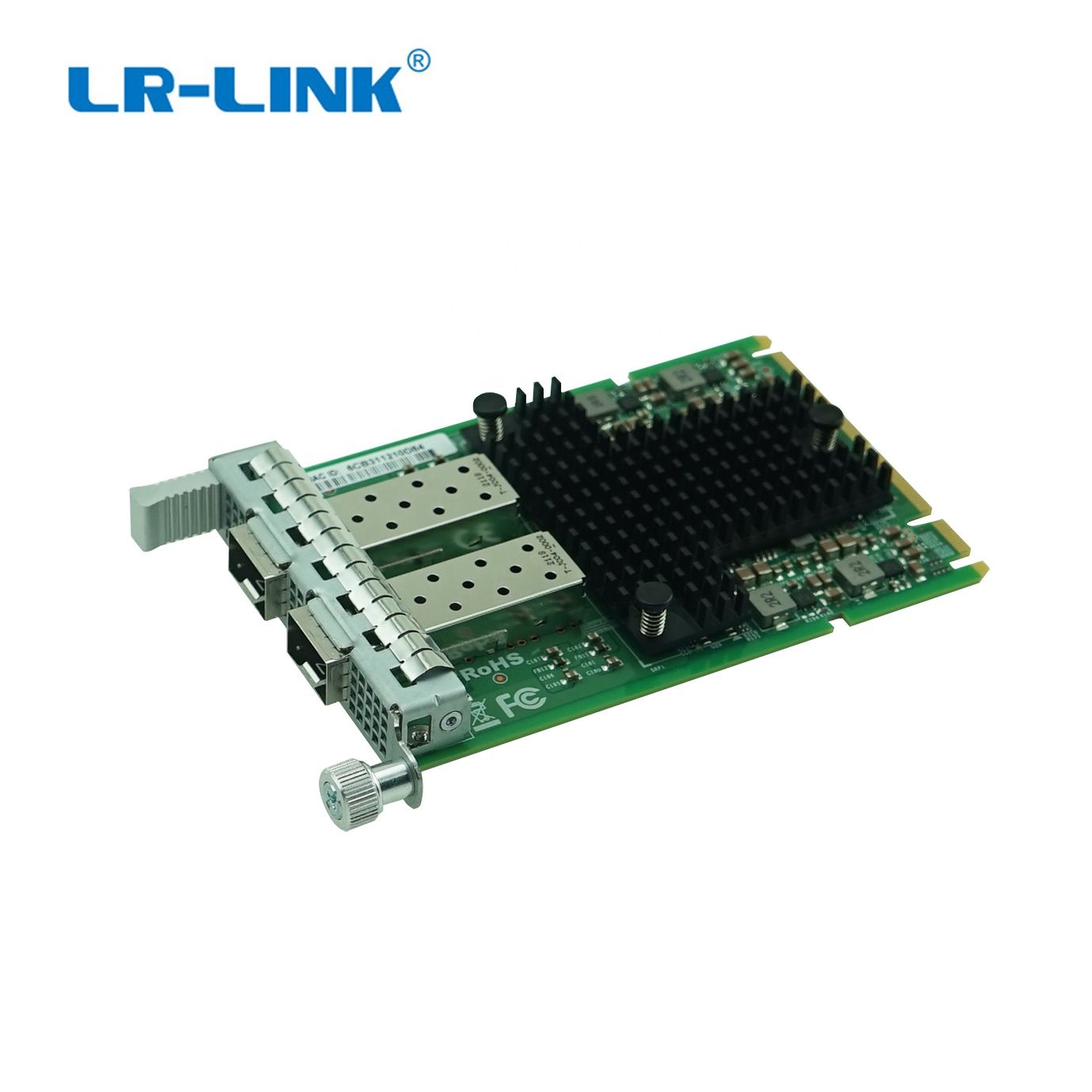

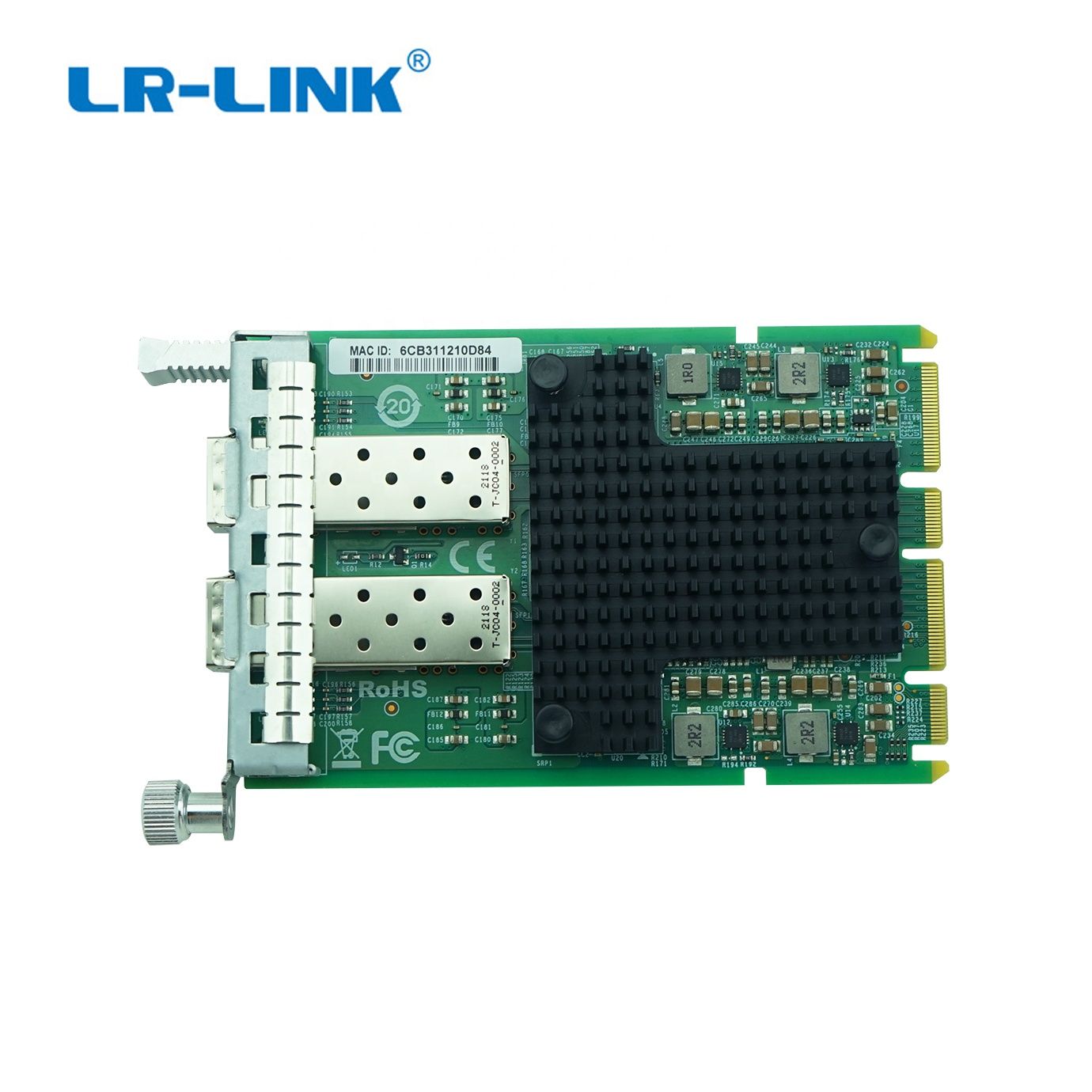

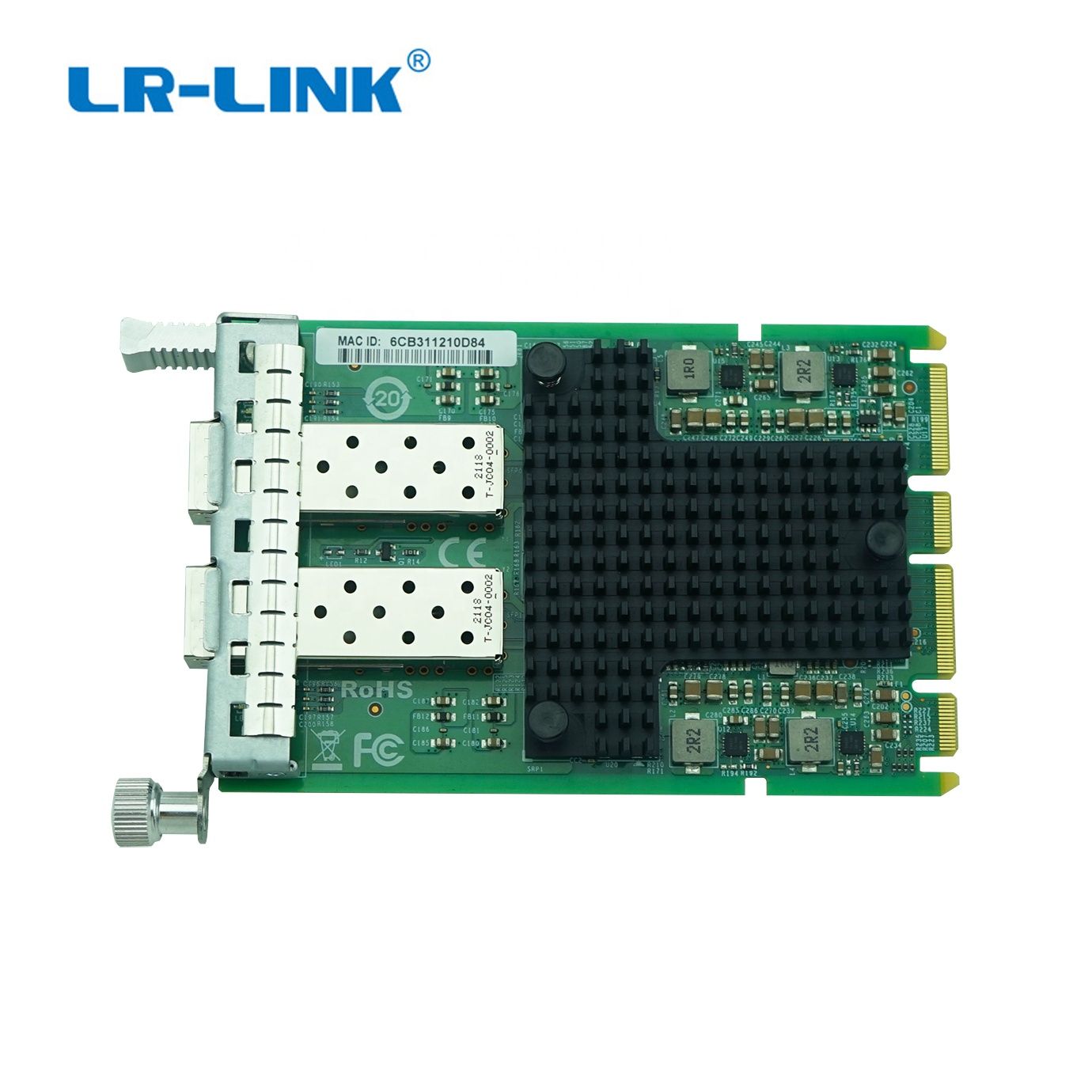

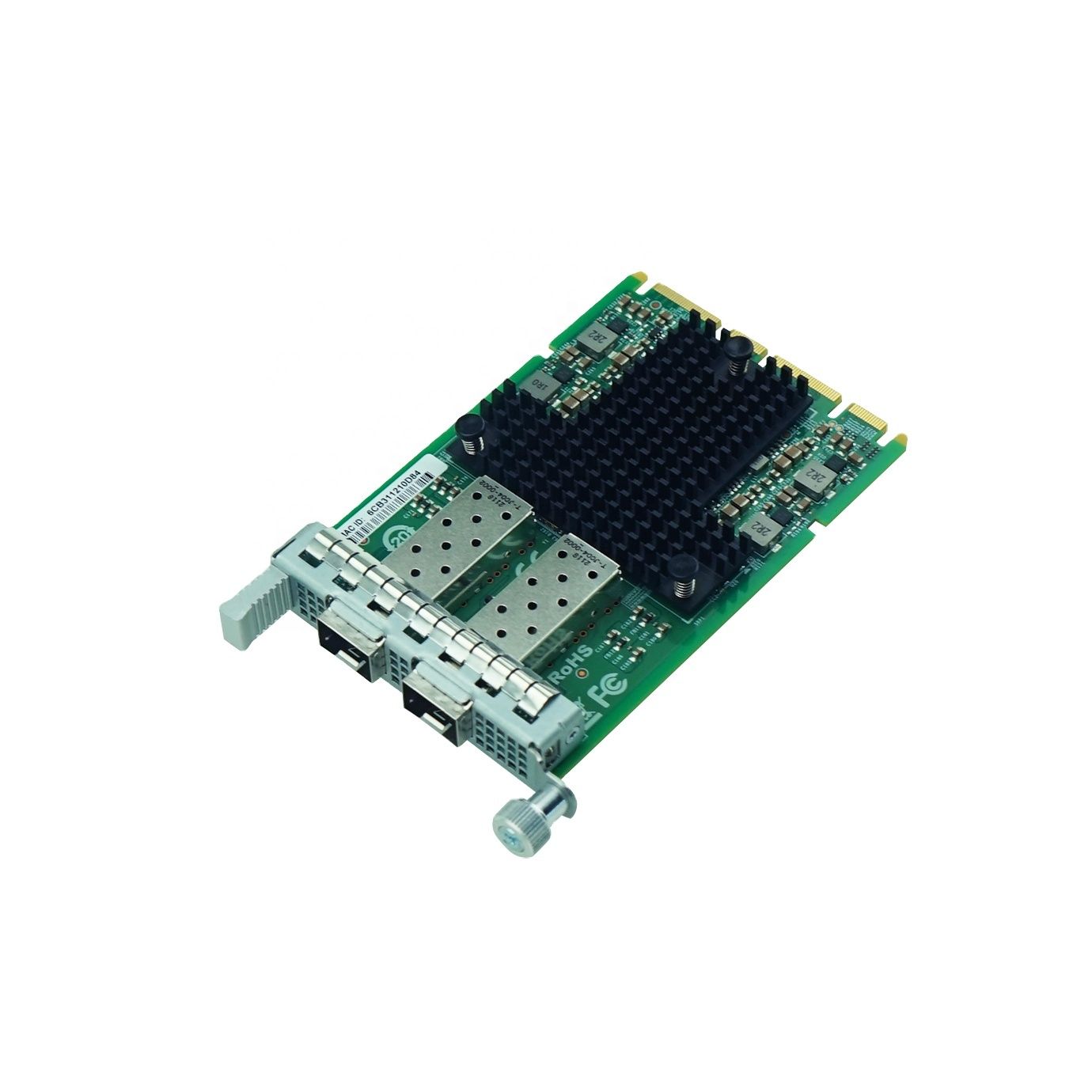

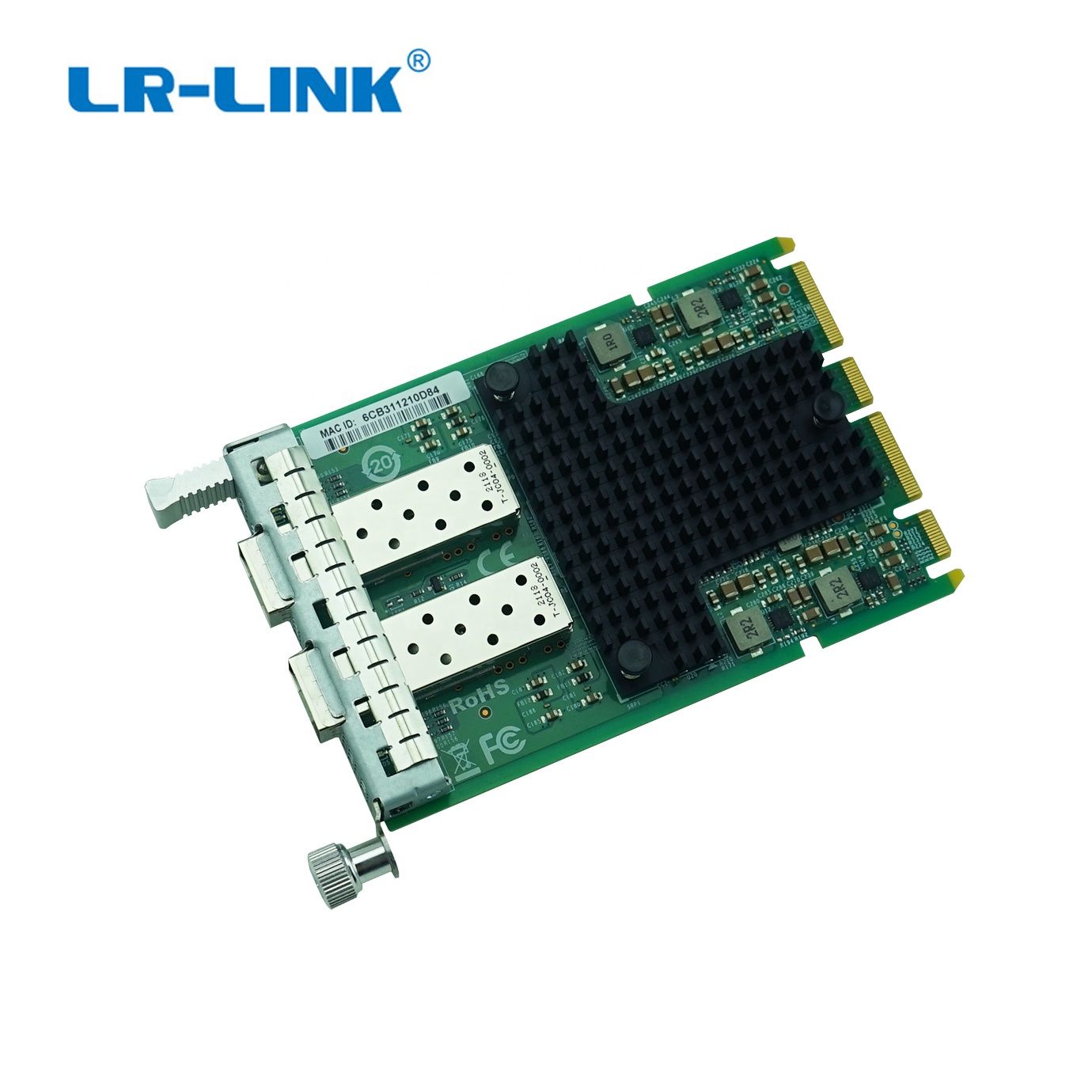

LRES3017PF-OCP OCP 3.0 Dual-port Mezzanine 25G SFP28 Ethernet Network Adapter

Name: LRES3017PF-OCP OCP 3.0 Dual-port Mezzanine 25G SFP28 Ethernet Network Adapter
SKU: LRES3017PF-OCP3.0
Price: 358.00 USD
Availability: InStock

LRES3017PF-OCP3.0

0 reviews

0 orders

$358.00

Lv.1

0% OFF

Lv.2

1% OFF

Lv.3

3% OFF

Quantity :

ADD TO CART

More payment options

INQUIRE NOW

ADD TO FAVORITES (0)

Introduction

1.An OCP 3.0 SFF dual-port 25G Ethernet adapter.
2.Both ports support 1/10/25G link rate adaptation.
3.With excellent compatibility of various operating systems, to meet the needs of customers for a variety of operating systems to use the network.
4.It is applied to the demand of network traffic and data diversion, processing and virtualization and big data operation.

Description

LRES3017PF-OCP OCP 3.0 Dual-port Mezzanine 25G SFP28 Ethernet Server Adapter

LRES3017PF-OCP is an OCP3.0 SFF dual-port 25G Ethernet adapter developed by Shenzhen Lianrui Electronics Co., Ltd. on the basis of Intel master control scheme. The server adapter card dual port supports 1/10/25G link rate adaption simultaneously. It can be used flexibly in a variety of network environments with different rate requirements, providing reliable performance in flexible LAN and SAN networks.
The adapter card is designed for use in servers and high-end devices. This adapter card can achieve fault-tolerance and redundancy by bundling multiple ports into a group at the same time to guarantee network performance and expand network bandwidth. It can implement real-time
self-detection and realize the communication from the fault port to the other members of the same group to continue running to achieve uninterrupted high-performance communication.

The adapter card becomes an ideal solution for deploying multiple networks and network applications and environments on high performance servers. The adapter card is based on the Intel 25G Ethernet MAC+PHY (Media Access Controller and Physical Interface Transceiver) two-port controller, with excellent compatibility across operating systems, to meet the needs of customers for multiple operating systems to use the network.
LRES3017PF-OCP Server Adapter Card is designed to meet the current and long-term needs of new and old server markets for network traffic and data distribution, processing, virtualization and big data operations.

1.An OCP 3.0 SFF dual-port 25G Ethernet adapter.
2.Both ports support 1/10/25G link rate adaptation.
3.With excellent compatibility of various operating systems, to meet the needs of customers for a variety of operating systems to use the network.
4.It is applied to the demand of network traffic and data diversion, processing and virtualization and big data operation.

Controller	Intel Chip
Bracket Height	*
Power Consumption	14.0W
System Support	Windows 10 Windows Server 2008 R2/2012 R2/2016 R2/2019 R2 CentOS / RHEL 7.4 or later Ubuntu 16.10 or later Linux Kernel 4.x/5.x or later VMware ESXi 6.x or later
Bus Type	OCP3.0 SFF
Data rate per port	25GbE
Connector	2*25G SFP28

Technical Features
Protocol Support	IEEE P802.3by 25Gb/s IEEE 802.11ae 10GBase-SR、10GBase-LR、10GBase-ER、10GBase ZR IEEE 802.3aq 10GBase-LRM IEEE 802.3x Full Duplex and flow control IEEE 802.3az - Energy Efficient Ethernet IEEE 802.3az - Energy Efficient Ethernet (EEE) IEEE 802.3z IEEE 802.1Q VLANs IEEE 802.3x IEEE 1588
iSCSI	No
WoL	Yes
Jumbo Frames	Yes
DPDK	Yes
PXE	Yes
FCoE	No
RDMA(RoCE、RoCE v2、iWARP)	Yes
Network Virtualization	VXLAN\GENEVE\NVGRE

Environment Features
Operating Temperature	0 ℃ to 55 ℃ (32℉ to +131℉)
Storage Temperature	-40 ℃ to 85 ℃ (-40℉ to 185℉)
Storage Humidity	Maximum: 90% non-condensing relative humidity at 35 ℃

Physical Features
PCB Size(mm)	115*76
Weight (g)	*

LED Indicators
LED Indicators	25000Mbps: Green Link + Green Blink
		10000Mbps: Yellow Link + Green Blink
	10Gbps	1000Mbps: Yellow Link

Order Information
P/N	Description
LRES3016PF-OCP	OCP 3.0 Dual-port Mezzanine 25G SFP28 Ethernet Server Adapter (QLogic Chip Based)
PS: Above details are only for reference, if there is any change,no prior notice.
