LR-LINK LRES3023PT-OCP OCP3.0 Quad-port Gigabit Ethernet Network Adapter Network Card

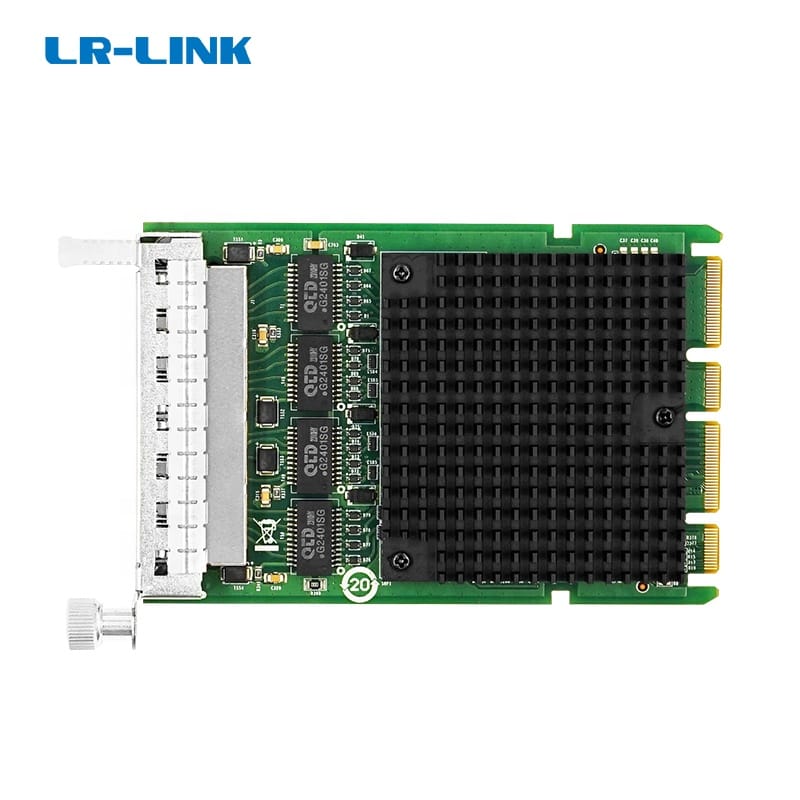

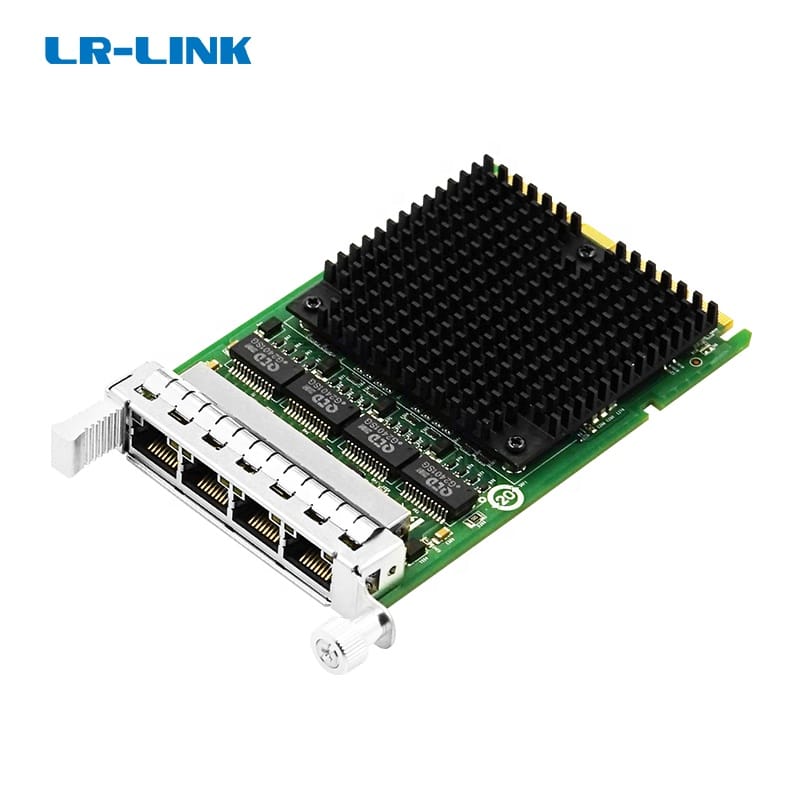

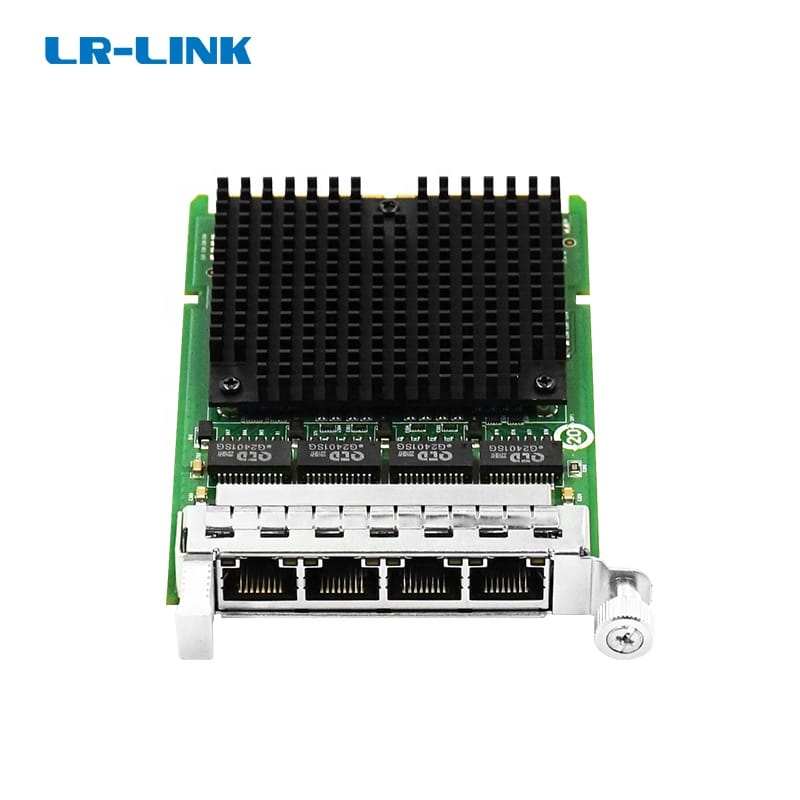

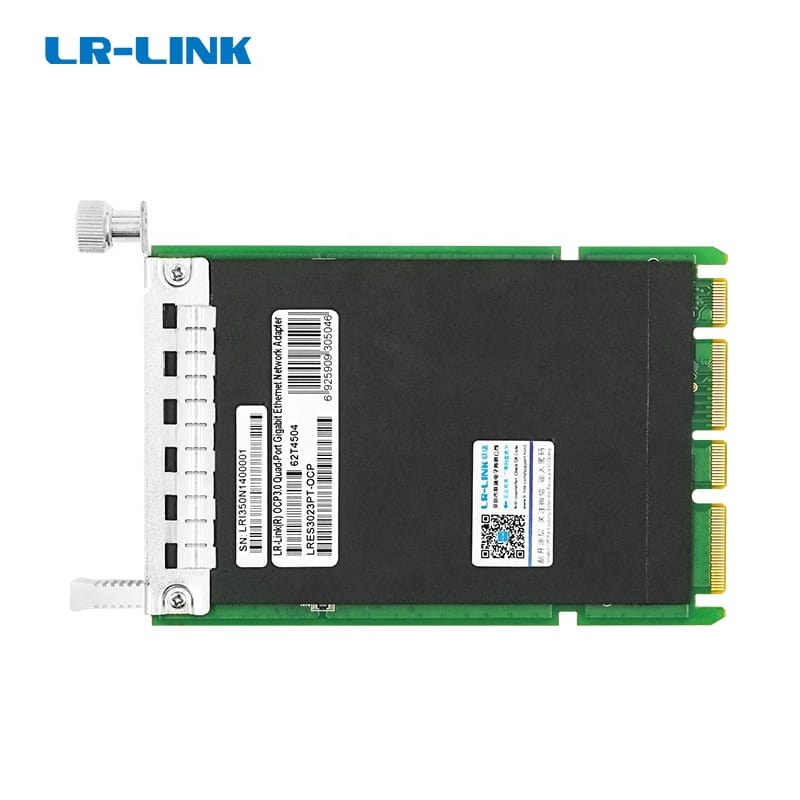

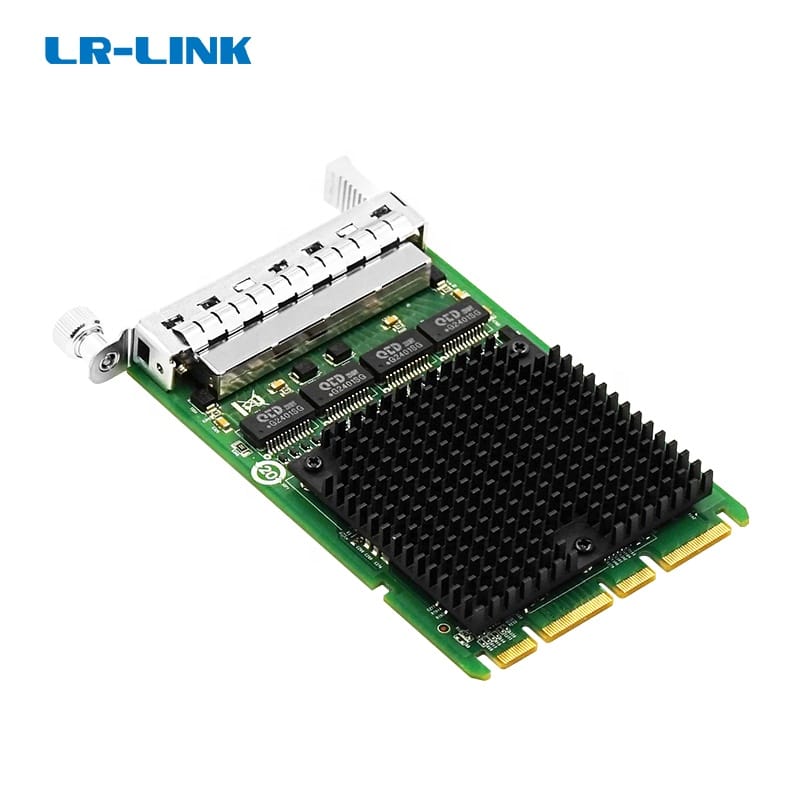

LR-LINK LRES3023PT-OCP OCP3.0 Quad-port Gigabit Ethernet Network Adapter Network Card

Name: LR-LINK LRES3023PT-OCP OCP3.0 Quad-port Gigabit Ethernet Network Adapter Network Card
SKU: LRES3023PT-OCP
Price: 129.00 USD
Availability: InStock

LRES3023PT-OCP

0 reviews

0 orders

$129.00

Lv.1

0% OFF

Lv.2

1% OFF

Lv.3

3% OFF

Quantity :

ADD TO CART

More payment options

INQUIRE NOW

ADD TO FAVORITES (1)

Introduction

1. An Intel I350 solution OCP3.0 SFF structure of the quad-port Copper Gigabit Ethernet network adapter
2. With a rate of 1G
3. It can enhance DPDK to be more efficient and flexible in packet forwarding and packet processing.

Description

LR-LINK LRES3023PT-OCP OCP3.0 Quad-port Gigabit Ethernet Network Adapter

LRES3023PT-OCP is an OCP3.0SFF four-port copper Gigabit Ethernet configurator independently developed by Shenzhen Lianrui Electronics Co., Ltd. based on the Intel I350 host solution. This suitable configurator is mainly designed for use in servers and their application equipment. LRES3023PT-OCP can simultaneously collect and aggregate actual errors and registrations into groups through multiple ports to expand network bandwidth and protect network performance. It is capable of real-time automatic detection and monitoring. Realistically routes the communication line from the failed port to other members of the same group to continue operation for uninterrupted high-performance communication.
LRES3023PT-OCP adopts the SFF standard structure of OCP3.0, which is developed on the Ethernet MAC+PHY (media interface controller and physical interface receiver) controller based on Intel Gigabit rate, and supports new current and subsequent A long time server needs while also adapting to the current network. It supports NCSI function and scan chain function, and is equipped with excellent ESD anti-static protection capability.

Specifications
Controller	Intel I350
Bracket	SFF
Power Consumption	2.316W
System Support	Windows7 /8 /8.1 /10 /11 Windows Server 2008 R2 /2012 R2 /2016 R2 Windows Server 2019 R2 /2022 R2 RHEL/Centos 7.3 /7.6 /7.9 /8.2 /8.3 Deepin 15.11 Deepin 20 /20.6 Ubuntu 18.04.5 /16.04.3 /20.04.3 SUSE 12.5 FreeBSD 12.2 ZTE New Fulcrum 3.2.2 /5.0.5 Asianux Server v7.0 Galaxy Unicorn v10 SP1 NeoKylin 7.6 Zhongke Fangde desktop operating system 4.0 Zhongke Fangde server operating system Tongxin UOS 20 Emind OS VMware ESXi 6.5 /6.7 /7.0 Mikrotik iKuai router OpenKylin
Bus Type	OCP3.0 SFF
Data rate per port	1Gbps
Connector	4*1G SFP+

Technical Features
Protocol Support	IEEE 802.3ae 10 Gigabit Ethernet over fiber IEEE 802.3z Gigabit Ethernet IEEE 802.3x Full Duplex and flow control IEEE 802.1AS / IEEE 802.1Q VLAN IEEE 802.3AD / IEEE 802.3ad IEEE 802.3az - Energy Efficient Ethernet (EEE) IEEE 802.1P / IEEE 802.3ac
iSCSI	No
WoL	Yes
Jumbo Frames	Yes
DPDK	Yes
PXE	No
FCoE	No

Environment Features
Operating Temperature	0 ℃ to 55 ℃ (32℉ to +131℉)
Storage Temperature	-40 ℃ to 85 ℃ (-40℉ to 158℉)
Storage Humidity	Maximum: 90% non-condensing relative humidity at 35 ℃

Physical Features
Size(mm)	17915030
Weight(g)	*

LED Indicators
1Gbps	Connection Status	(ACT)Green Link + (LINK) Orange Link
		Transfer status	(ACT)Green Blink + (LINK) Orange Link
100Mbps	Connection Status	(ACT)Green Link
		Transfer status	(ACT)Green Blink

Order Information
P/N	Description
LRES3023PF-OCP	OCP3.0 Quad-port Gigabit Copper Ethernet Network Adapter (Intel I350)
