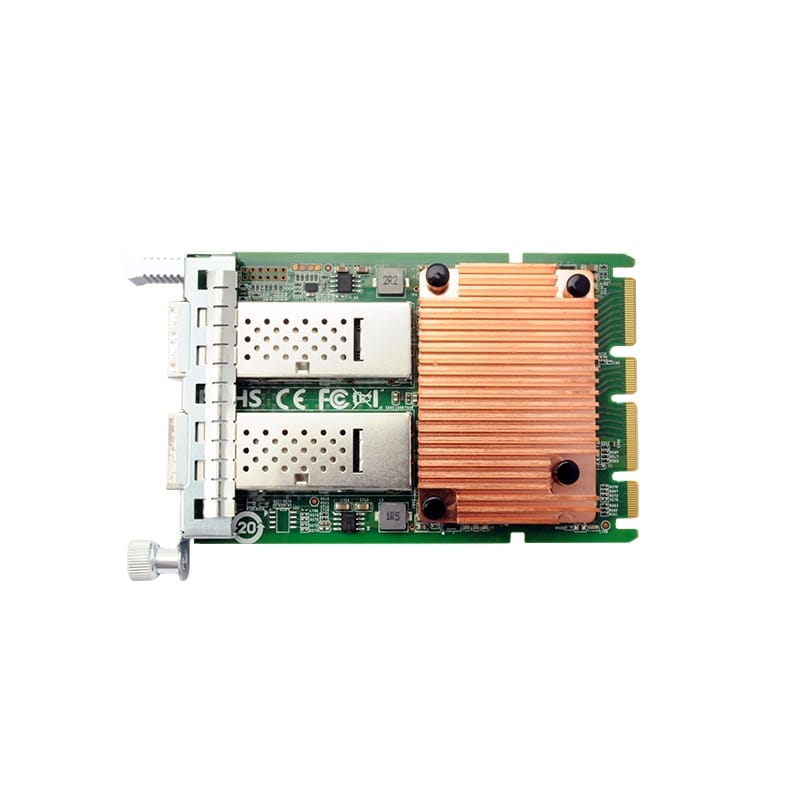

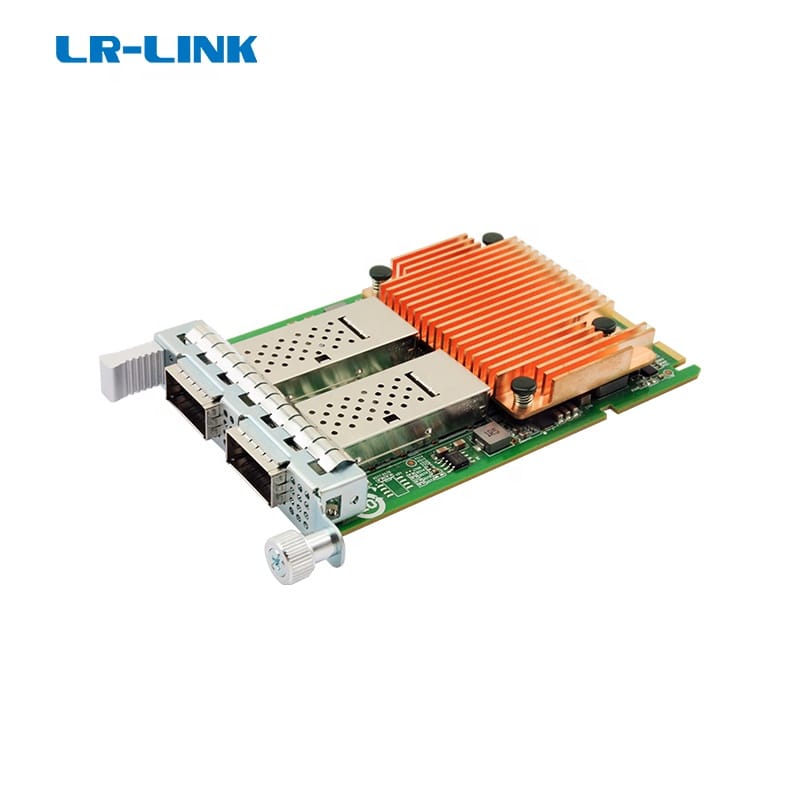

LR-LINK LRES3042PF-OCP
OCP3.0 SFF Dual-Port 40G QSFP+ Ethernet Network Mezzanine Card
LRES3042PF-OCP is an OCP3.0 SFF dual-port 40G 25G QSFP+ OCP3.0 Mezzanine Card developed by Shenzhen Liangrui Electronics Co., Ltd. on the basis of Intel master control scheme.
The 40G QSFP+ OCP3.0 Mezzanine Card dual port supports 40G link rate adaption simultaneously. It can be used flexibly in a variety of network environments with different rate requirements, providing reliable performance in flexible LAN and SAN networks.
The 40G QSFP+ OCP3.0 Mezzanine Card is designed for use in servers and high-end devices. This 40G QSFP+ OCP3.0 Mezzanine Card can achieve fault-tolerance and redundancy by bundling multiple ports into a group at the same time to guarantee network performance and expand network bandwidth. It can implement real-time self-detection and realize the communication from the fault port to the other members of the same group to continue running to achieve uninterrupted high-performance communication. The 25G SFP28 OCP3.0 Mezzanine Card becomes an ideal solution for deploying multiple networks and network applications and environments on high performance servers.
The 40G QSFP+ OCP3.0 Mezzanine Card is based on the Intel 40G Ethernet MAC+PHY (Media Access Controller and Physical Interface Transceiver) two-port controller, with excellent compatibility across operating systems, to meet the needs of customers for multiple operating systems to use the network.
LRES3042PF-OCP 40G QSFP+ OCP3.0 Mezzanine Card is designed to meet the current and long-term needs of new and old server markets for network traffic and data distribution, processing, virtualization and big data operations.
Features
1. An OCP 3.0 SFF dual-port 40G QSFP+ OCP3.0 Mezzanine Card.
2. Both ports support 40G link rate adaptation.
3. With excellent compatibility of various operating systems, to meet the needs of customers for a variety of operating systems to use the network.
4. It is applied to the demand of network traffic and data diversion, processing and virtualization and big data operation.
Controller | Intel Chipset |
Baffle Height | * |
Fiber Type | 40GBase-SR, 40GBase-LR |
Power Consumption | 11.0W |
System Support | Windows 10 |
Windows Server 2008 R2/2012 R2/2016 R2/2019 R2 | |
| Ubuntu 16.10 or later | |
CentOS / RHEL 7.4 or later | |
Linux Kernel 4.x/5.x or later | |
Bus Type | OCP 3.0 SFF |
Data Rate per port | 40GbE |
Connector | 2*QSFP+ |
Technical Features
Standards Compliant | IEEE P802.3by 40Gb/s IEEE 802.11ae 10GBase-SR,10GBase-LR,10GBase-ER,10GBase-ZR IEEE 802.3aq 10GBase-LRM IEEE 802.3x Full Duplex and flow control IEEE 802.3az - Energy Efficient Ethernet IEEE 802.3az - Energy Efficient Ethernet (EEE) IEEE 802.3z IEEE 802.1Q VLANs IEEE 802.3x IEEE 1588 |
iSCSI | No |
WoL | Yes |
Jumbo Frames | Yes |
DPDK | Yes |
PXE | Yes |
FCoE | No |
Network Virtualization | VXLAN,geneve,NVGRE |
Environment Features
Operating Temperature | 0 ℃ to 55 ℃ (-13 ℉ to 158 ℉) |
Storage Temperature | -40 ℃ to 70 ℃ (-40 ℉ to 158 ℉) |
Storage Humidity | Maximum: 90% non-condensing relative humidity at 35 ℃ |
Physical Features
Size(mm) | 115*76** |
Weight(g) | * |
LED Indicators
LED Indicators | Yellow Link + Green Blink |
Order Information
P/N | Description |
LRES3042PF-OCP | OCP 3.0 Dual-port 40G QSFP+ Ethernet Network Adapter (Intel Chipset Based) |
PS: Above details are only for reference, if there is any change,no prior notice.
