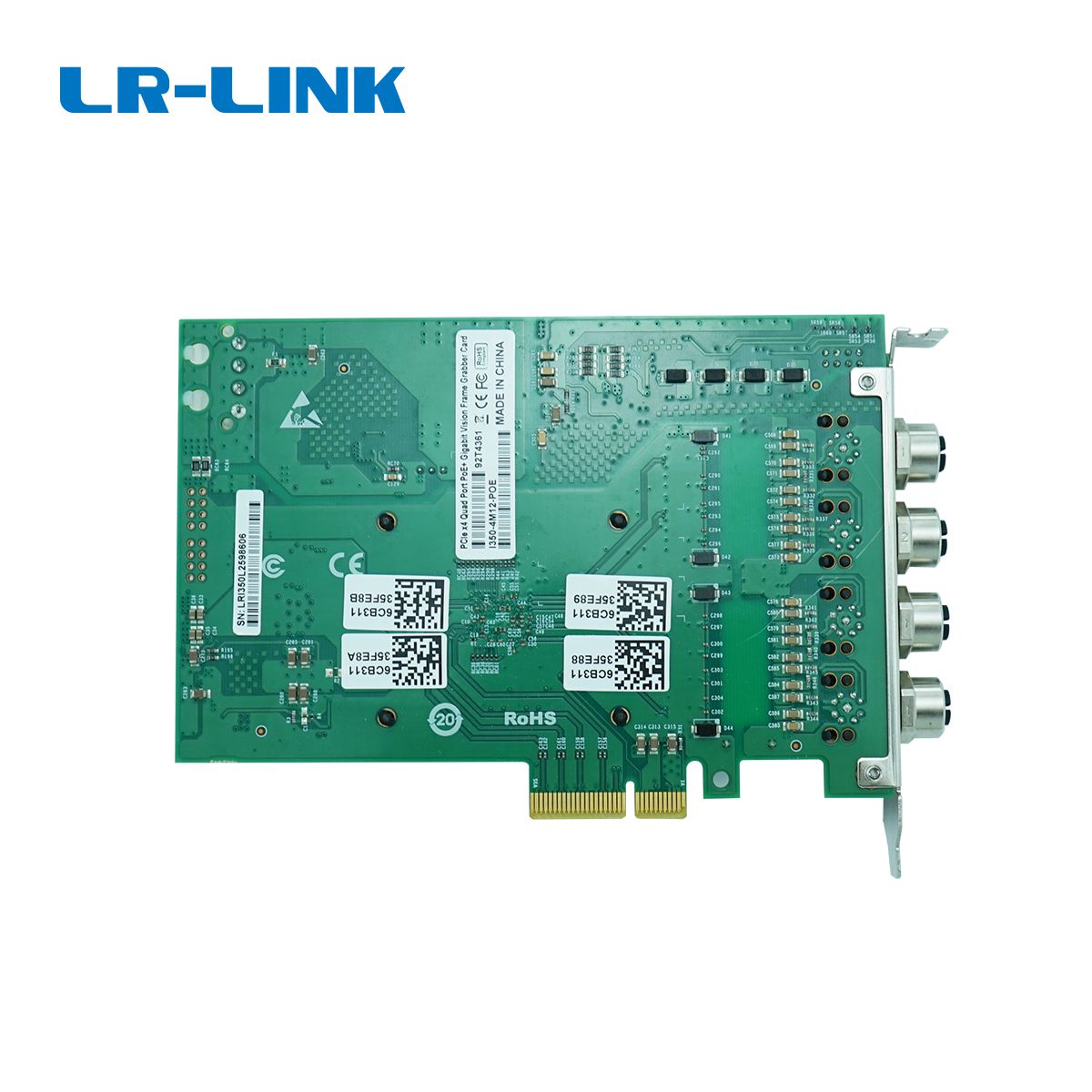

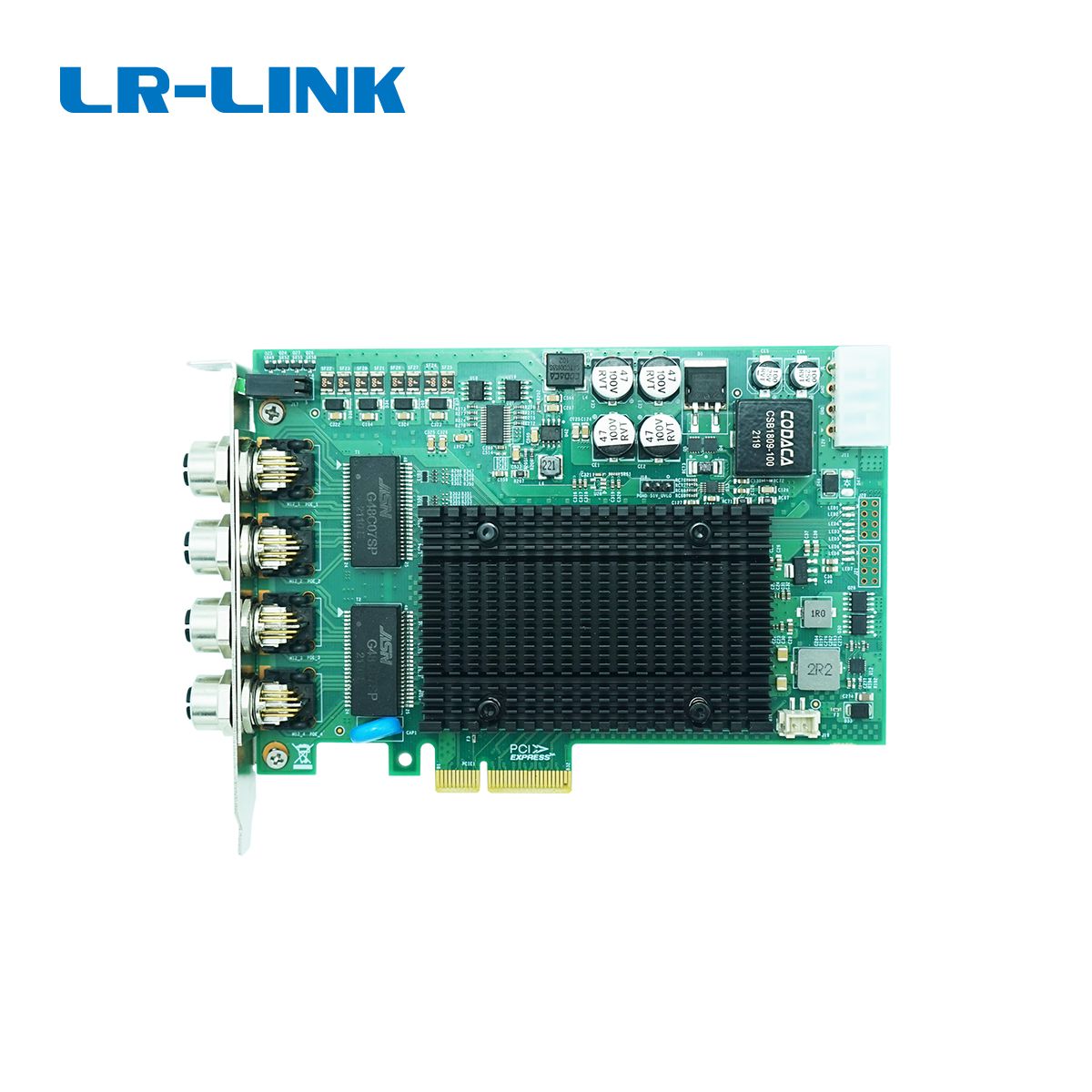

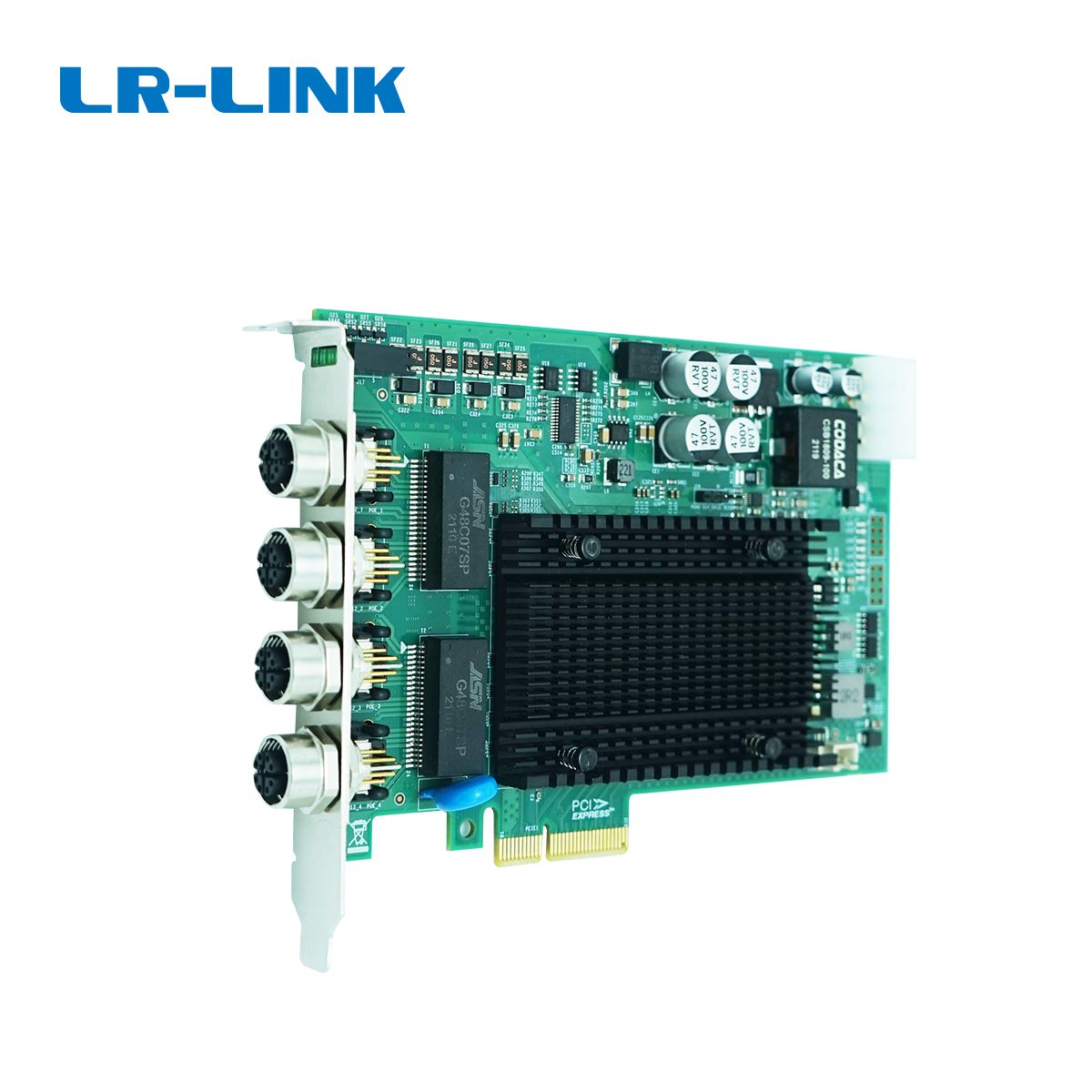

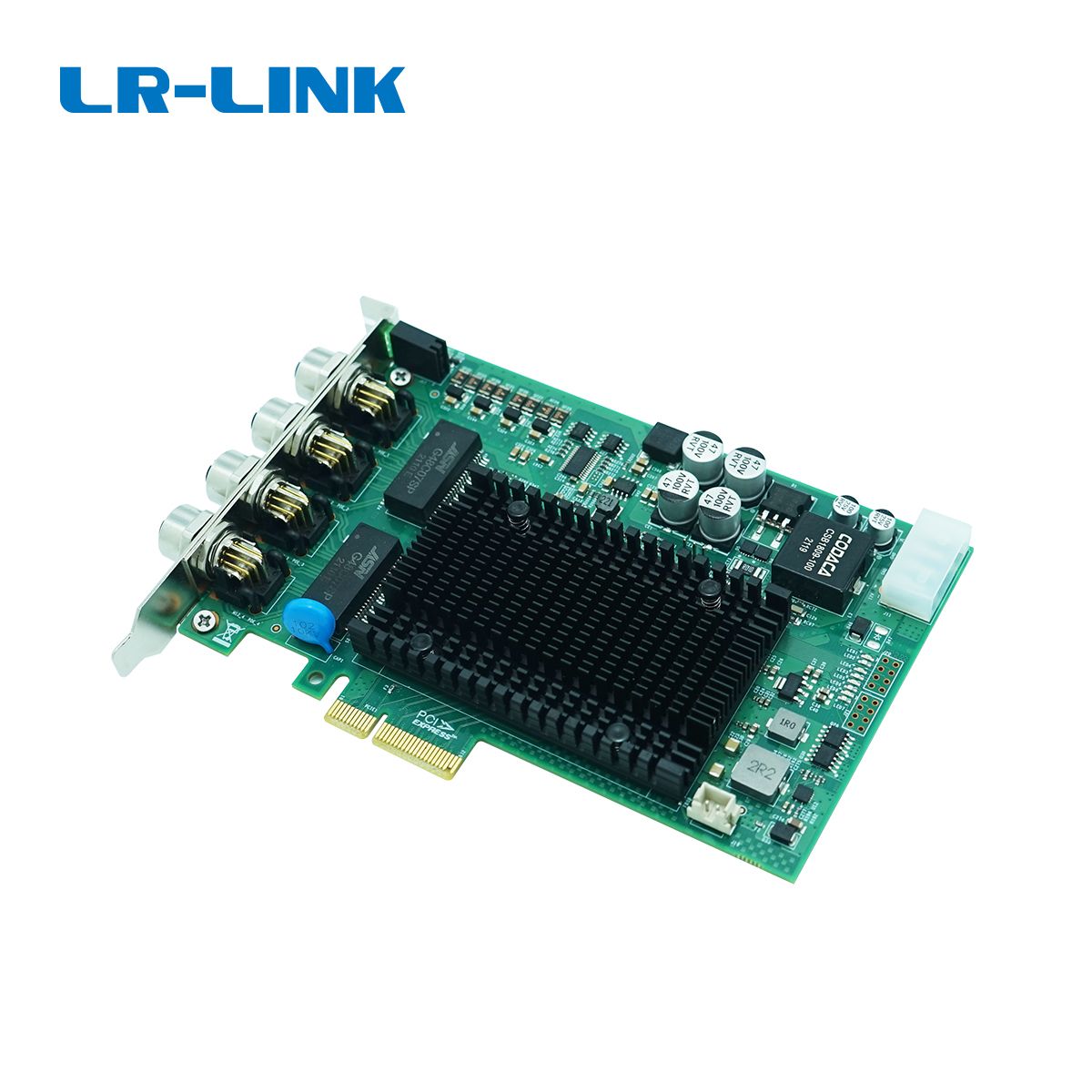

LR-LINK LRES4006MT-PoE PCIe X4 Quad Port 4*RJ45 Gigabit M12 Connector X-Code PoE+ Frame Grabber Card

LRES4006MT-POE is a PCI Express x4 4-port M12 X-code interface PoE+ gigabit ethernet M12 X-Code PoE+ Frame Grabber Card independently developed by Shenzhen Liangrui Electronics Co., Ltd. on the basis of Intel master control scheme, compatible with PCIe x8 and x16 channels at the same time.
The LRES4006MT-PoE is developed on Intel 4-port Ethernet MAC+PHY (Media Access Controller and Physical Interface Transceiver) controllers that allow four ports to operate in full duplex mode at the highest point in gigabit Ethernet connections to accommodate high-performance network communications. Link aggregation can be used to expand bandwidth and save PCI Express channel resources without using bus bandwidth.
The LRES4006MT-PoE uses a unique X-Code cross shield to isolate four communication signals for signal integrity, while its rugged and durable characteristics make the modified product ideal for wet and other harsh environments, such as field monitoring, railway monitoring, industrial production, etc.

1. Single port PoE+ output power consumption up to 30W;
2. Adaptive to power output required by external equipment;
3. The adapter card adopts a wider M12 spacing design;
4. The more efficient radiator can effectively solve the problem of heat dissipation of the adapter in the case of poor heat dissipation environment, and effectively ensure the stable operation of the adapter card for a long time;
6, carefully selected thickening gold technology X-code M12 linker to ensure a more solid and reliable connection;
7. The design of four M12 X-code interfaces (Aviation interfaces) can better save precious PCIe slot resources on the motherboard.
