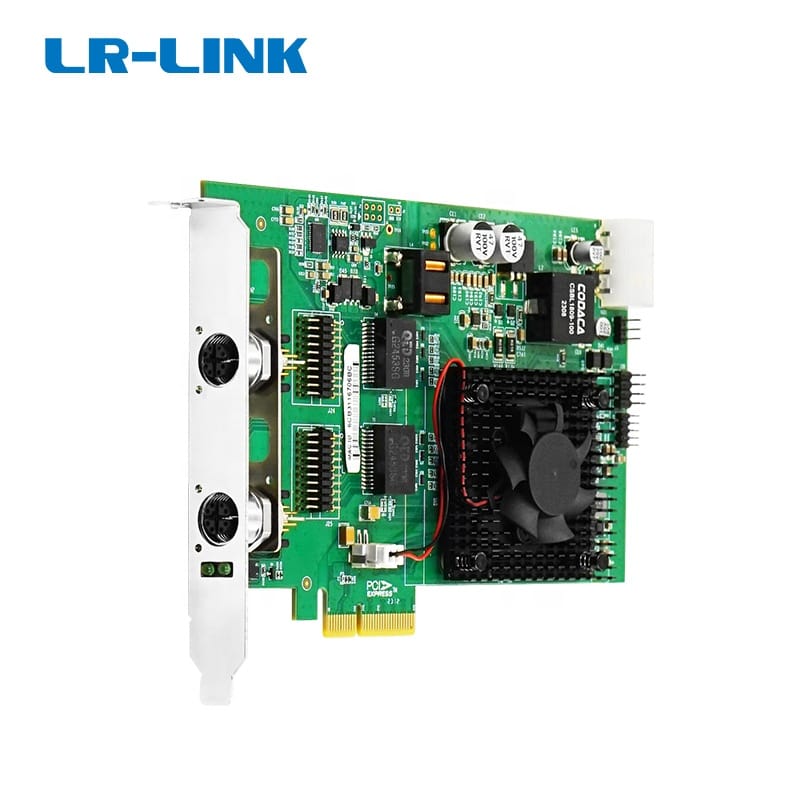

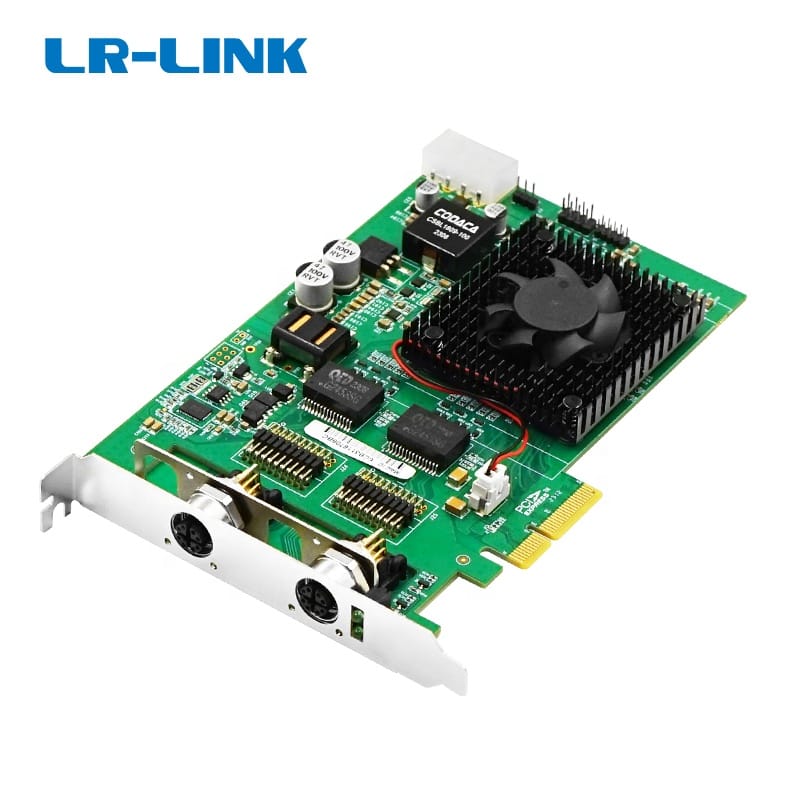

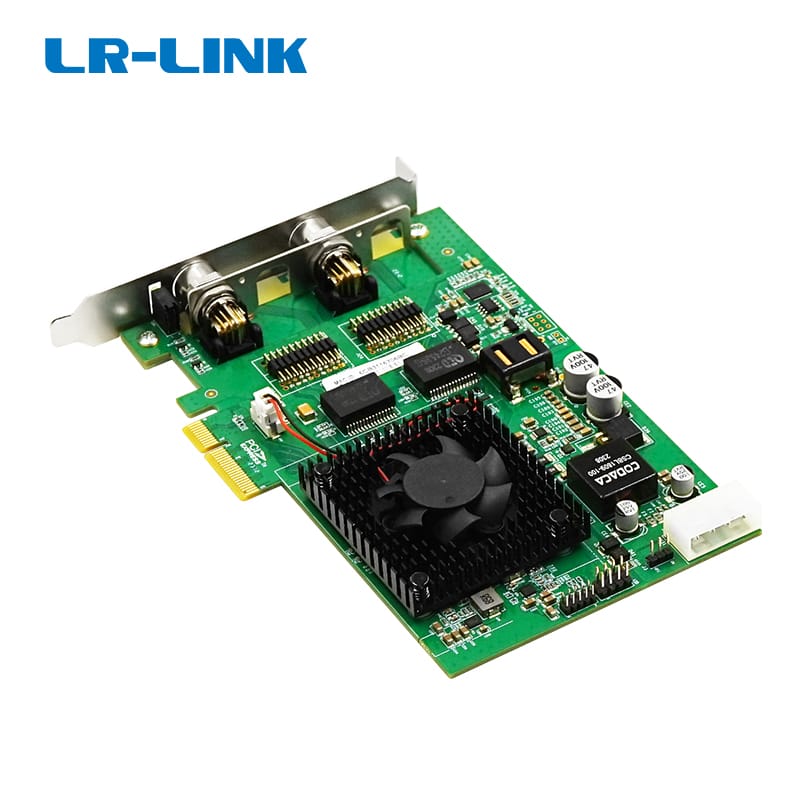

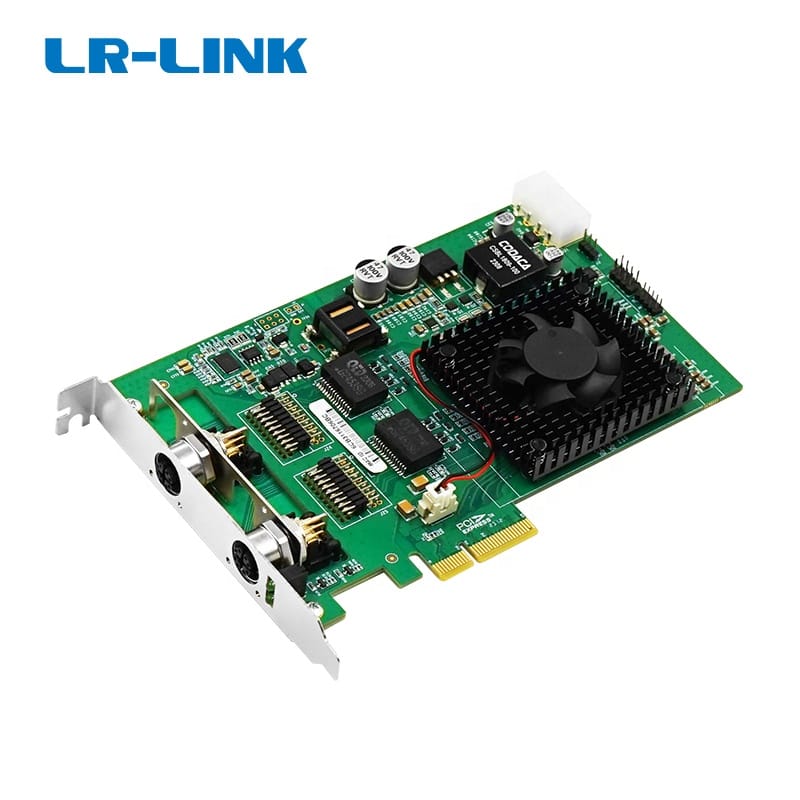

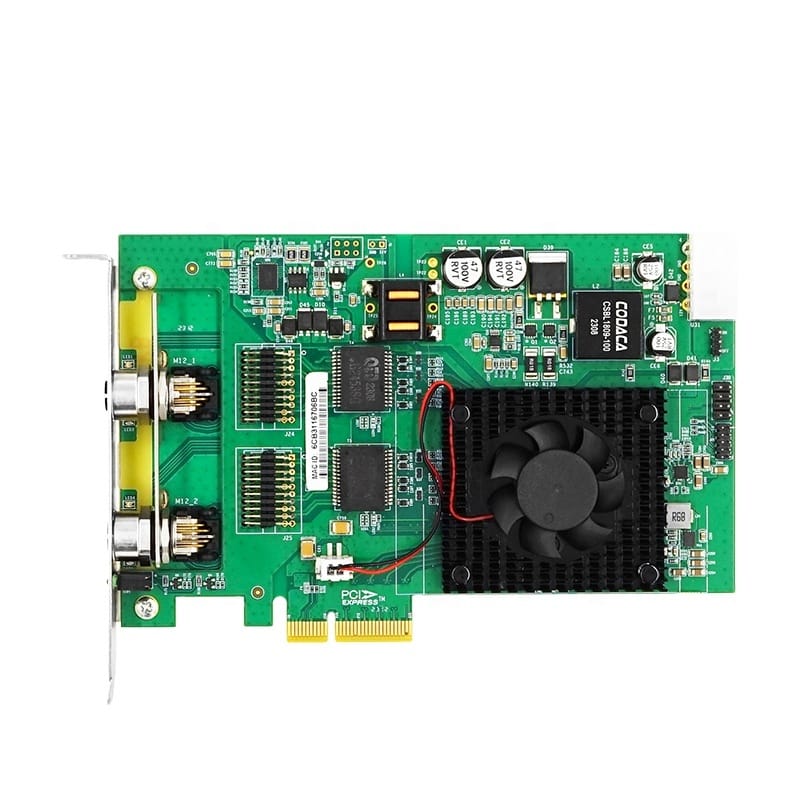

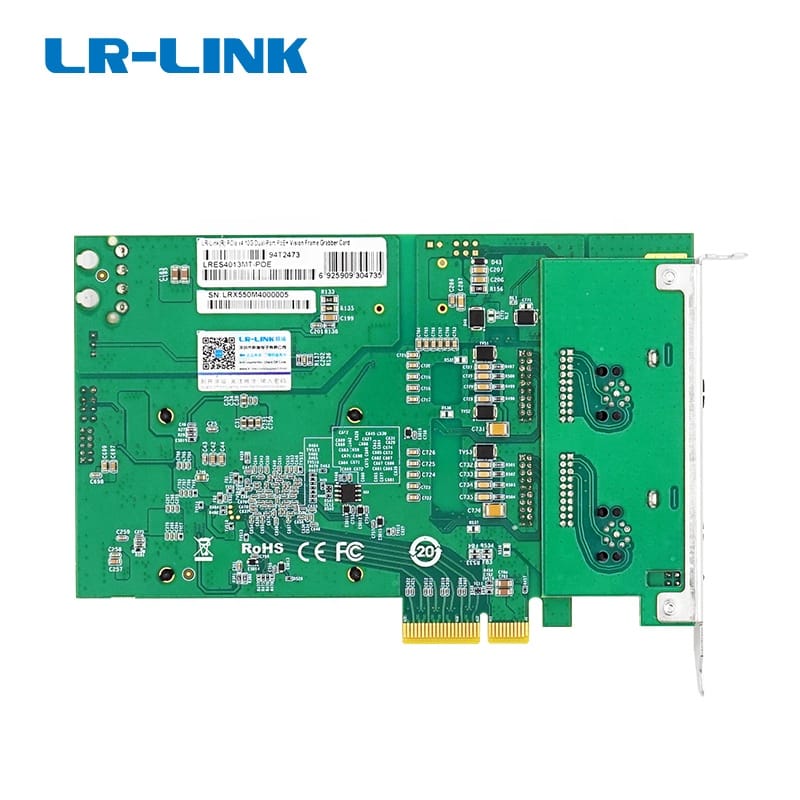

LR-LINK LRES4013MT-POE PCIe X4 Dual-port 10G PoE+ M12 Gigabit Vision Frame Grabber Card

Standards Compliant

IEEE 802.3ae 10 Gigabit Ethernet over fiber
IEEE 802.3z Gigabit Ethernet
IEEE 802.3x Full Duplex and flow control
IEEE 802.1AS / IEEE 802.1Q VLAN
IEEE 802.3AD / IEEE 802.3ad
IEEE 802.3az - Energy Efficient Ethernet (EEE)
IEEE 802.1P / IEEE 802.3ac

PXE

Yes

DPDK

Yes

RDMA

No

WoL

No

iSCSI

No

Jumbo Frames

Yes

FCoE

Yes

VMDq、SR-IOV

Yes

UEFI

Yes

Jumbo Data Frame Max

9.5KB

ESD_Contact discharge

±6KV (Class C)

ESD_Air discharge

±8KV (Class C)

ESD test classification
  Class A: Normal performance within the limits specified by the manufacturer, commissioner, or purchaser.
  Class B: Temporary loss or reduction of function or performance, but can be recovered by itself after the
  disturbance stops, without operator intervention;
  Class C: Temporary loss or degradation of function or performance that requires operator intervention to
  restore;
  Class D: irrecoverable loss of function or performance degradation due to damage to device hardware or
  software, or loss of data.

Operating Temperature

0 ℃ to 55 ℃ (32 ℉ to131 ℉)

Storage Temperature

-40 ℃ to 85 ℃ (-40 ℉ to 185 ℉)

Storage Humidity

Maximum: 90% non-condensing relative humidity at 35 ℃

Certification

FCC, CE, RoHS

PCB Size(mm)

167.7*111.15*1.6

Package Size(mm)

250*170*32

Weight (g)


*
