1. Support 4 independent Gigabit copper interfaces;
2. Adaptive 10/100/1000Mbps different rates;
3. Support 2 independent bypass channels;
4. Provide interface code for the host computer to call for easy application software control;
Controller | Intel I350 |
Transmission medium | Copper |
Copper Type | Cat 5E and Cat6：1000Base-T up to 100m Cat 5E and Cat6：100Base-T up to 100m |
Bracket | Full height |
power consumption | 5.5W |
Total output power | Power form PCIe up to 75W Power form 4-Pin up to 120W |
System Support | Windows 7/8/8.1/10/11 Windows Server 2008 R2 /2012 R2 /2016 R2 /2019 R2 /2022 R2 Linux Stable Kernel version 2.6.x / 3.x / 4.x or newer CentOS / RHEL 6.x / 7.x or newer Ubuntu 14.x/16.x or newer Vmware ESX/ESXi 5.x / 6.x or newer |
Bus Type | PCIe 1 (5.0GT/s) x4 ，compatible with x8，x16 |
Data Rate per port | 10/100/1000Mbps |
Connector | 4*8-Pin RJ45 Connector |
Power supply | PCIe |
Technical Features | |
Standards Compliant | IEEE 802.3ab 1000BASE-T Gigabit Ethernet IEEE 802.3u 100BASE-TX Fast Ethernet IEEE 802.3z IEEE 802.1Q VLANs IEEE 802.3x IEEE 1588 IEEE 802.3az - Energy Efficient Ethernet (EEE) |
PXE | No |
iSCSI | No |
FCoE | No |
DPDK | Yes |
WoL | No |
Jumbo Frames | Yes |
Environment Features | |
Operating Temperature | 0℃ to 55℃ (32℉ to 131℉) |
Storage Temperature | -40℃ to 70℃ (-40℉ to 158℉) |
Storage Humidity | Maximum: 90% non-condensing relative humidity at 35℃ |
Physical Features | |
Size (mm ±1.0mm) | 159*120.8*21 |
Weight (g) | * |
LED Indication | |
Bypass function indication | Bypass status: Blue Disconnect: Yellow Normal network function: OFF |
Network function status indication (RJ45 indicator) | 1000Mbps：Green Link + Green Blink 100/10Mbps: Yellow Link + Green Blink |
Order Information | |
P/N | Description |

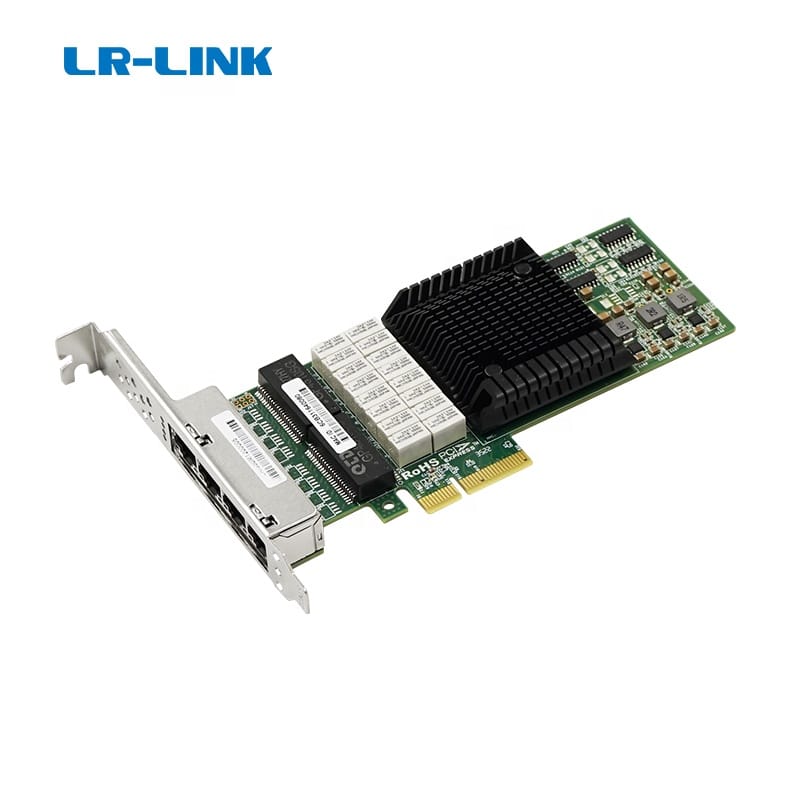

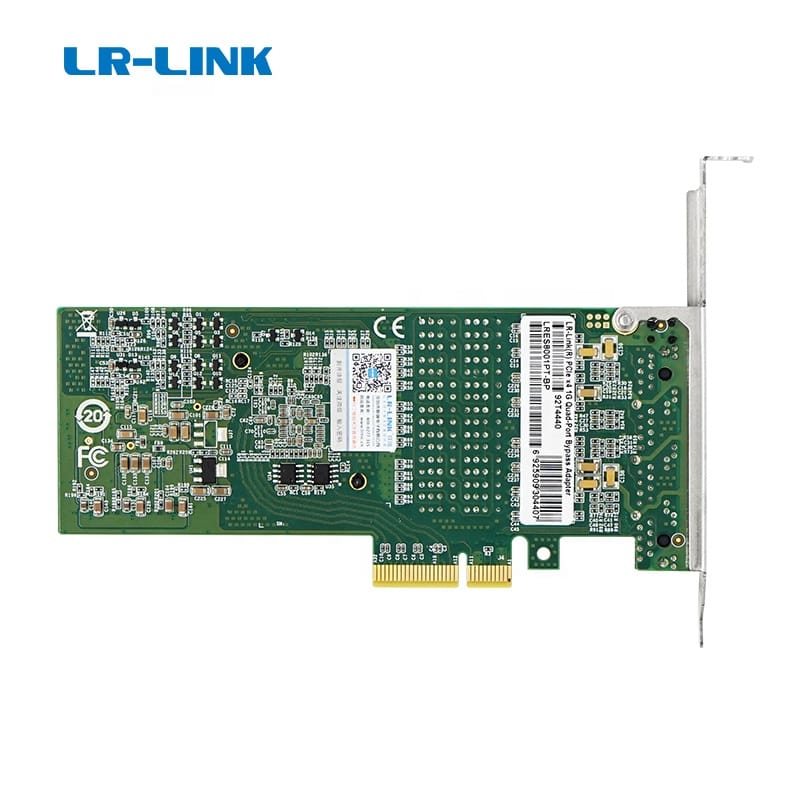

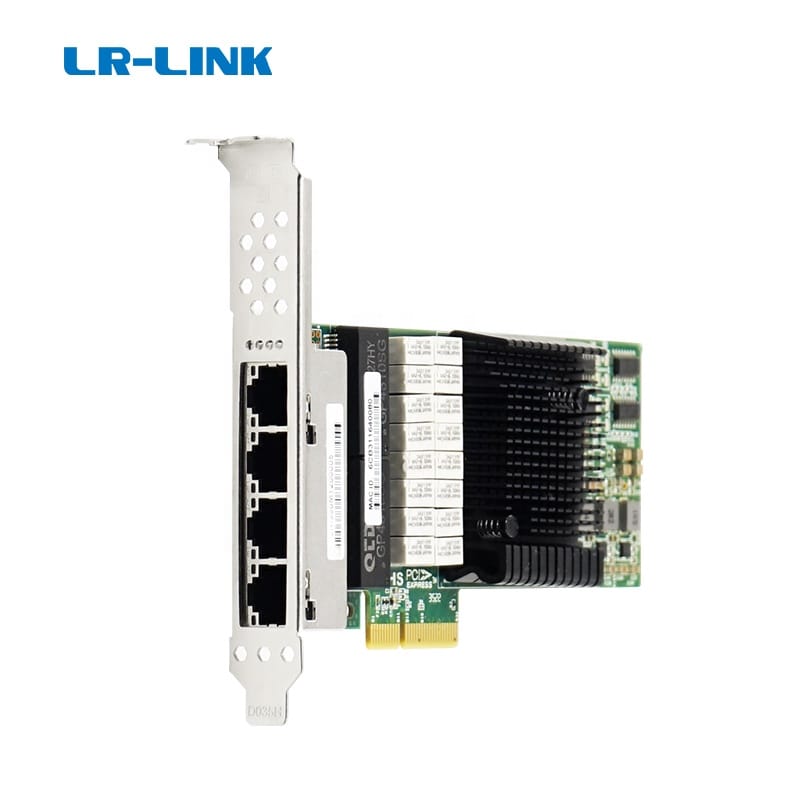

LRES8001PT-BP | PCIe x4 Quad-Port Copper Gigabit Dual Bypass Ethernet Network Adapter(Intel I350) |
PS: Above details are only for reference, if there is any change,no prior notice. | |
