LRES2055PT-POE LR-LINK PCIe 3.0 X4 Quad-port 5G POE+ Vision Framer Grabber Card Marvell AQC111C Machine Vision

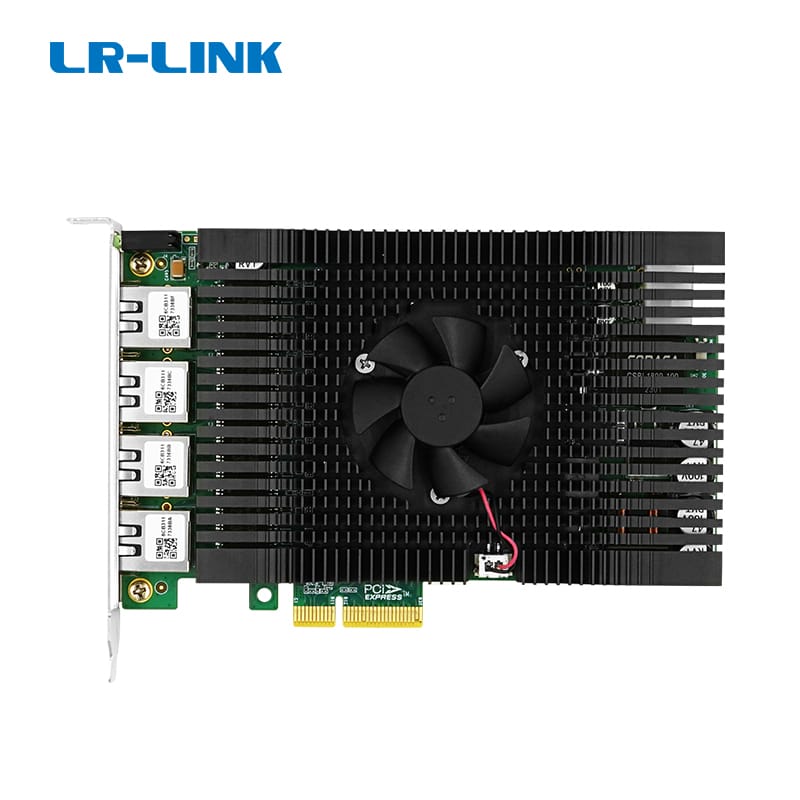

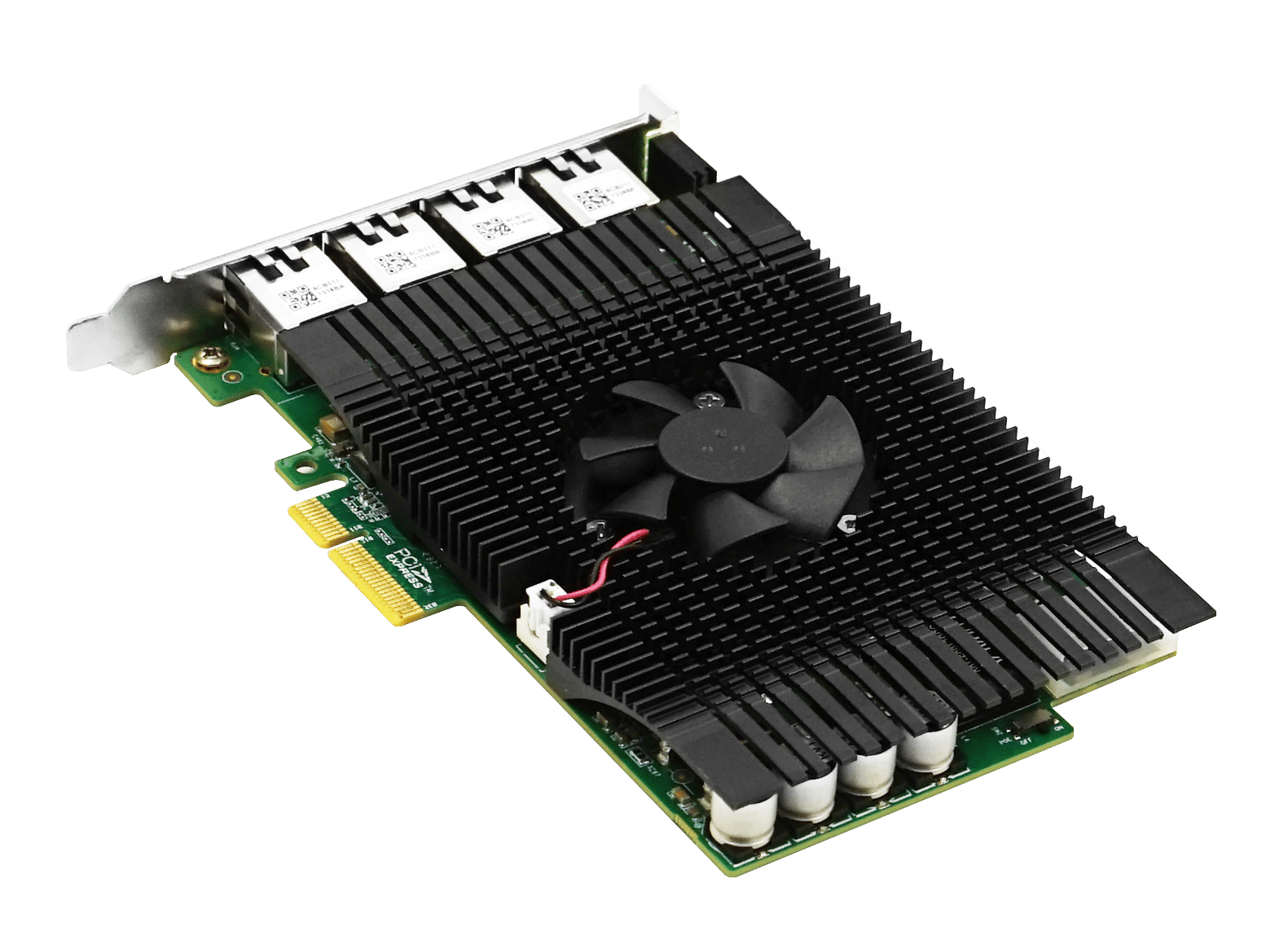

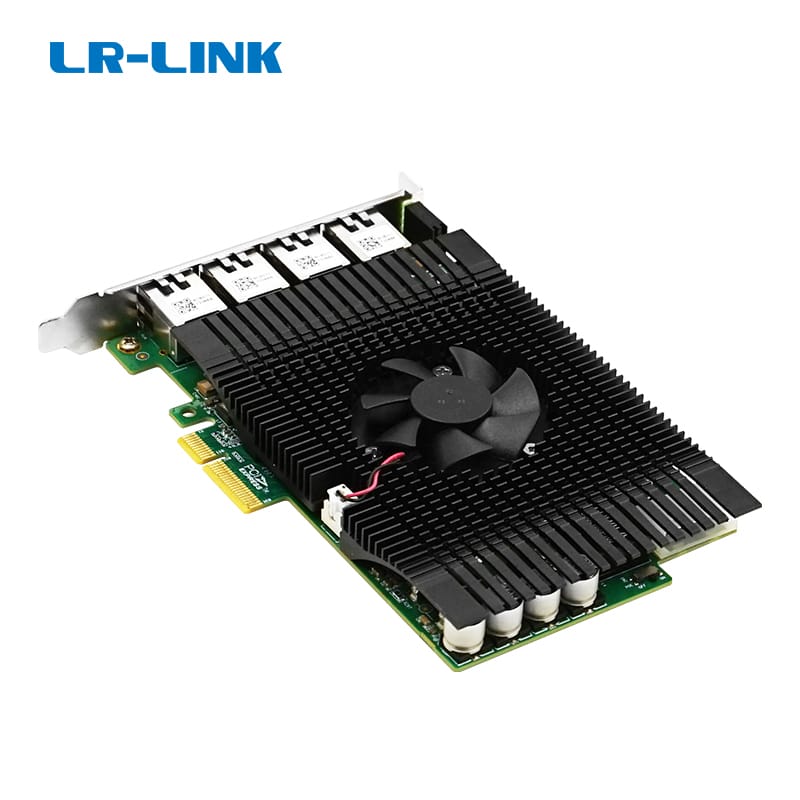

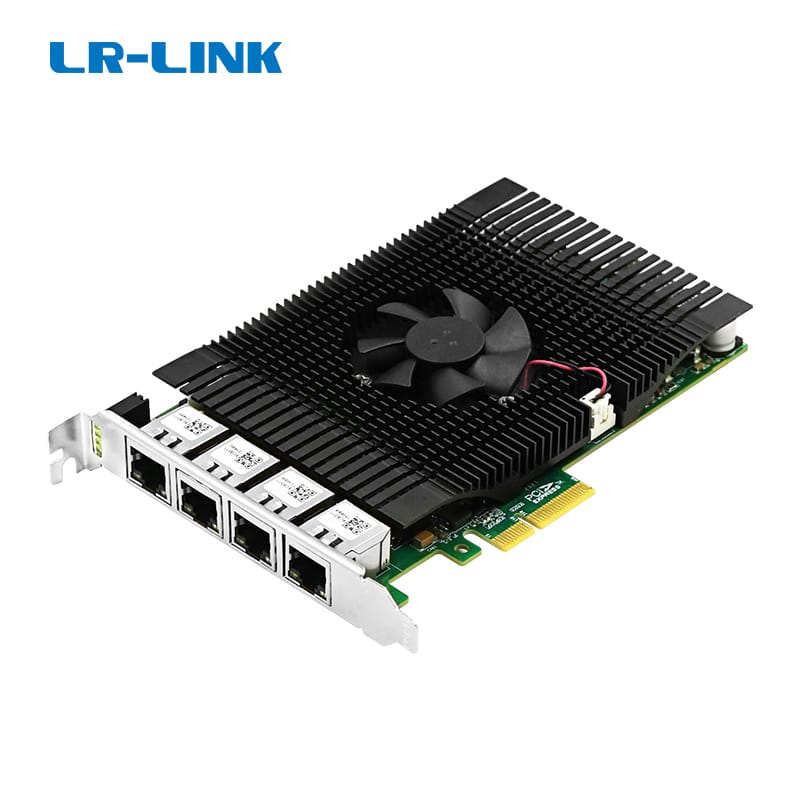

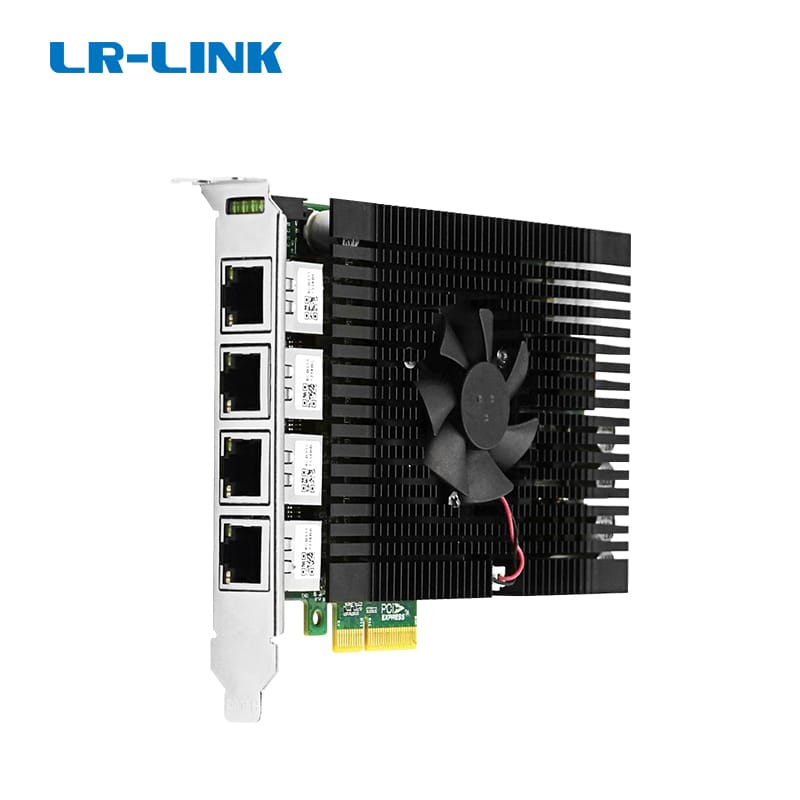

Name: LRES2055PT-POE LR-LINK PCIe 3.0 X4 Quad-port 5G POE+ Vision Framer Grabber Card Marvell AQC111C Machine Vision
SKU: LRES2055PT-POE
Price: 317.00 USD
Availability: InStock

LRES2055PT-POE

0 reviews

0 orders

$317.00

Lv.1

0% OFF

Lv.2

1% OFF

Lv.3

3% OFF

Quantity :

ADD TO CART

More payment options

INQUIRE NOW

ADD TO FAVORITES (0)

Introduction

Wider RJ45 spacing design;
Stable network speed and strong signal quality;
Larger heat sink;
Thickened gold-plated RJ45 connector;
16kb jumbo frame support.

Description

LR-LINK LRES2055PT-POE PCI Express x4 Quad-port PoE + Gigabit Ethernet Frame Grabber Card

LRES2055PT-POE is a four-port PCIe v3.0 x4 5G PoE+ Ethernet image capture card independently developed by Linkreal Co., Ltd. based on the Marvell AQC111C main controller solution. It is also compatible with PCIe x8 and x16 channels. It is A high-performance 4-port electrical adapter. Mainly used in industrial field visual inspection equipment, visual field clients, fast mobile Ethernet data transmission equipment, etc. This image capture card performs outstandingly in data transmission, network bandwidth, average transmission delay, actual small packet transmission rate and other indicators. It can be connected to four 5GigE industrial cameras at the same time to work stably and meet the installation and use of conventional industrial computers.

Features
Controller	Marvell AQC111C
Cable medium	Copper cable
Bracket	Full-height Bracket
Thermal design power consumption (max)	20.76W
Single-port PoE output power consumption(max)	4.44W
Connector	4* RJ45
PCIe Bus Type	PCIe v3.0 (8.0GT/s) x4; compatible x8 x16
Rate	100Mbps;1Gbps;2.5Gbps;5Gbps
Operating system support	* Windows 10 /11 * Windows Server 2016 /2022 * Deepin 15.11 /20 /20.6 /20.9 * VMware ESXi 6.7 /7.0 * Galaxy Unicorn V10 SP1 /V10 * NeoKylin 7.6 * RHEL/CentOS 7.6 /7.9 /8.3 * Ubuntu 16.04.3 /18.04.5 * Ubuntu 20.04.1 /22.04.2 * ZTE New Fulcrum 5.0.5 /3.2.2 * Tongxin UOS 20 * Asianux Server V7.0 * Zhongke Fangde desktop operating system 4.0 * Zhongke Fangde server operating system * Emind OS * iKuai router

Technical Features
IEEE 1588	No
PCI-SIG* SR-IOV	No
UEFI	No
Jumbo frame packet	Yes
VMDq	Yes
WOL	No
PXE	Yes
DPDK	Yes
iSCSI	No

Environment Features
Operating Temperature	0℃ to 70℃ (32 ℉ to 158 ℉)
Storage Temperature	-40 ℃ to 85 ℃ (-40 ℉ to 185 ℉)
Storage Humidity	90% non condensing under 35°C

Physical Features
PCB Size (mm)	156.7 x 104.37 x 1.6
weight (g)	251g

Order Information
M/N	Description
LRES2055PT-POE	PCIe 3.0 x4 Quad-port 5G POE+ Vision Framer Grabber Card(Marvell AQC111C Based)
PS: The above details is just for reference,if there is any change,no inform will have.

1. Who are we?
We are based in Guangdong, China, is a Design-R&D-Production-Sales-in-one National High-tech Enterprise.

2. How can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;

3.What can you buy from us?
fiber optic network card,server network card,RJ45 optic card,OCP optic card,ethernet card,PoE frame grabber card

4. Why should you buy from us not from other suppliers?
Independent R&D, Own factory, focus on NIC 16 years ISO 9001:2015 Quality Management Certificate Integrity, Pragmatism, Innovation and Win-win Over 30 intellectual properties and 300 products PCIE Network Adapter

5. What services can we provide?
Accepted Delivery Terms: FOB,CFR,CIF,EXW；
Accepted Payment Currency: USD,CNY;
Accepted Payment Type: T/T,Credit Card,PayPal,Western Union,Cash,Escrow;
Language Spoken: English, Chinese PCIE Network Adapter
