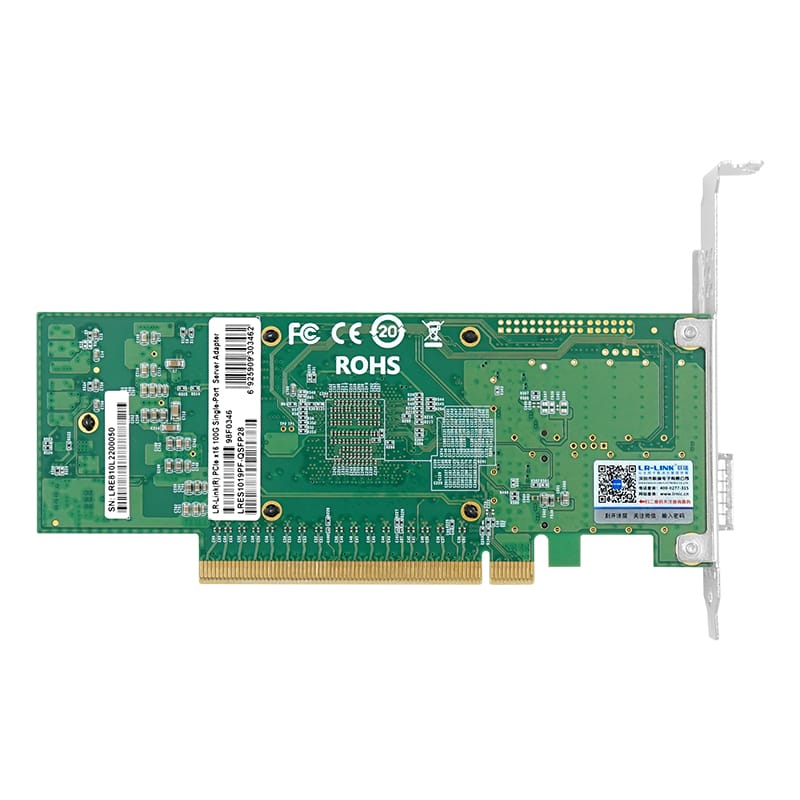

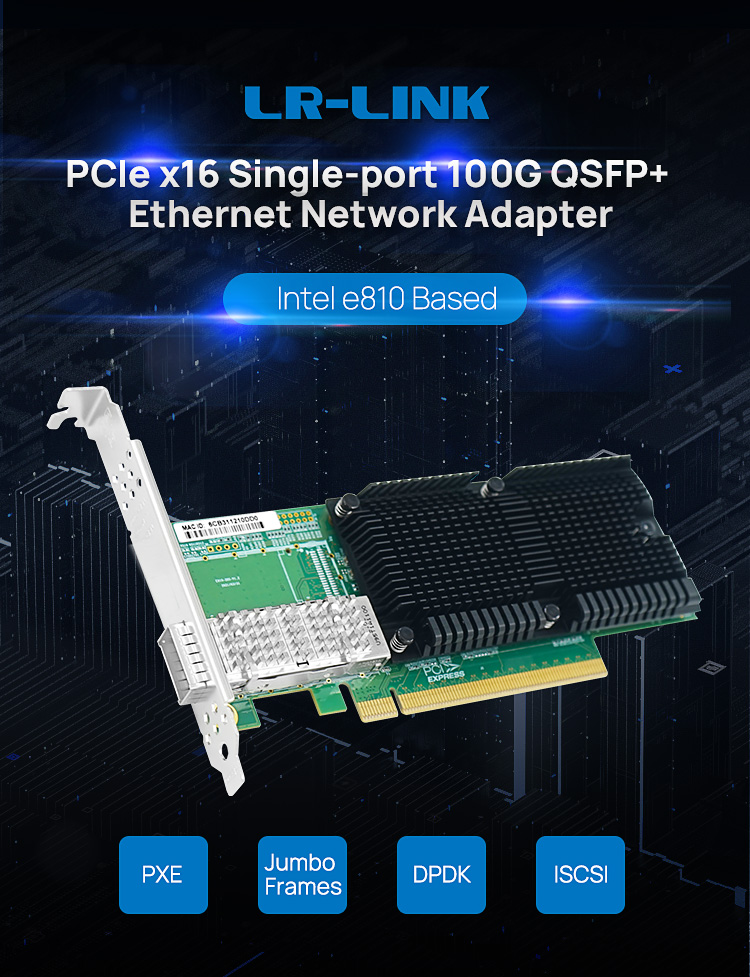

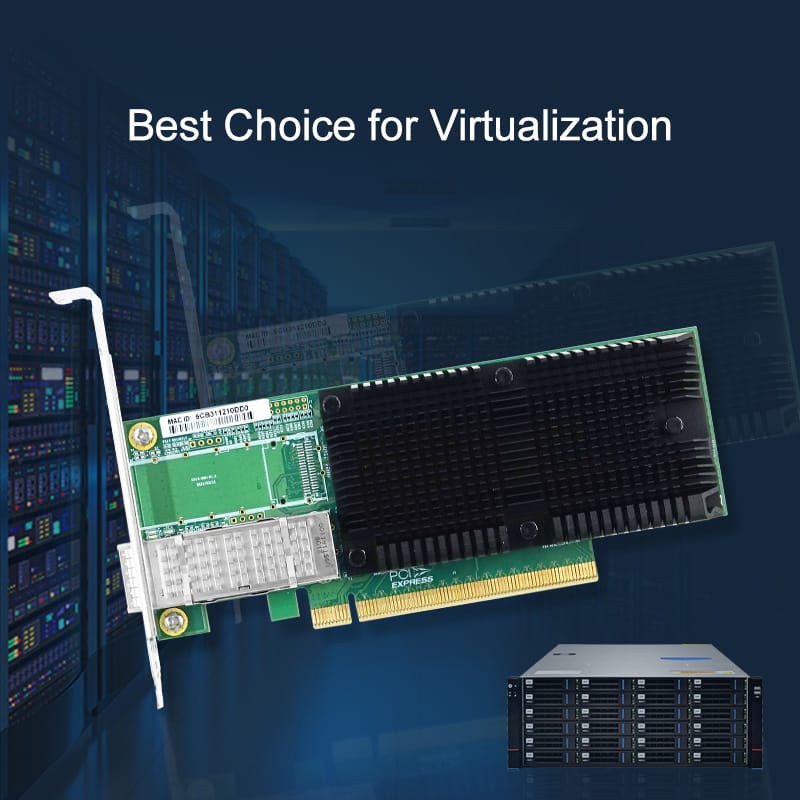

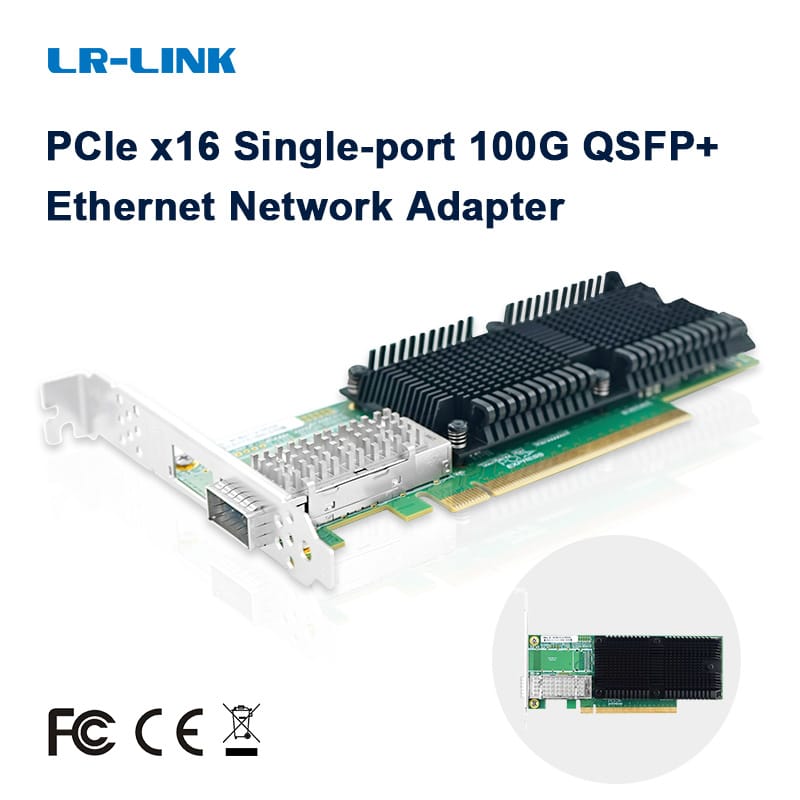

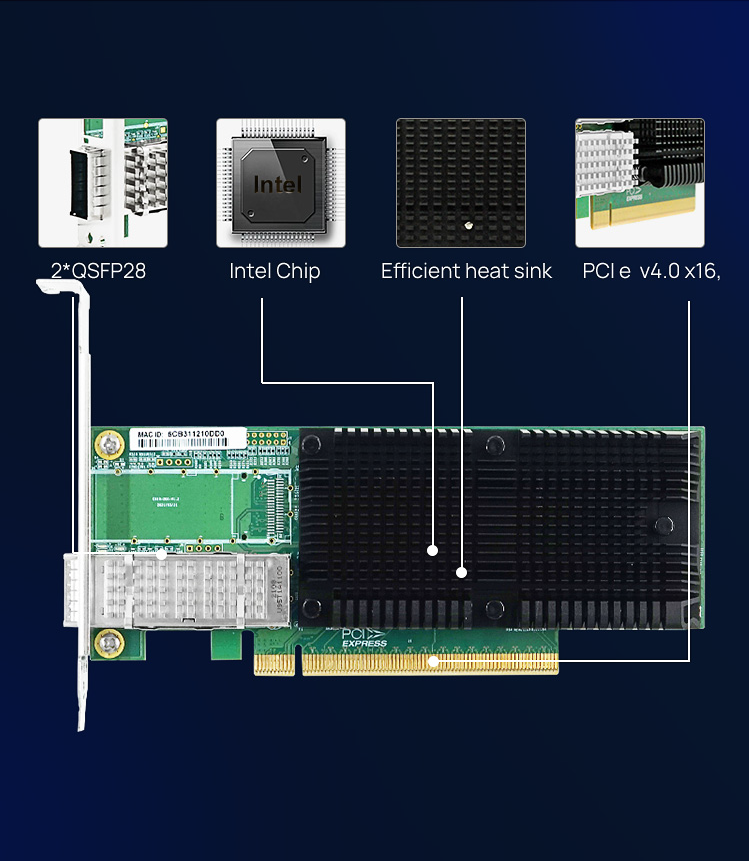

LRES1019PF-QSFP28 is a PCI express v4.0 x16 single-port 100G ethernet network adapter developed by Shenzhen Lianrui Electronics Co., Ltd. on the basis of the Intel chip. It is supplemented by the expansion function of hardware acceleration data packet processing, and the application queue technology is introduced. This technology can realize the NVMe support of Fabric TCP. It also has selective support for the iWARP and RoCEv2 functions of RDMA. This adapter can at the same time, it is backward compatible with PCIe v3.0 & v2.0. The adapter card achieves a dual-port bidirectional communication transmission rate with a theoretical throughput of 400GB on a PCI express v4.0 x16 bus.
Controller | Intel E810 | ||||||
Bracket | Full height & half height | ||||||
Power Consumption | Cu cable, 19.2W；Fiber model, 27.1W | ||||||
System Support | Windows Server 2016 R2/2019 R2 CentOS/RHEL 7.x or later Ubuntu 16.x or later FreeBSD 11.x/12.x or later | ||||||
Bus Type | PCI Express v4.0 x16, Compatible with PCI Express v3.0 | ||||||
Data Rate | 100GbE | ||||||

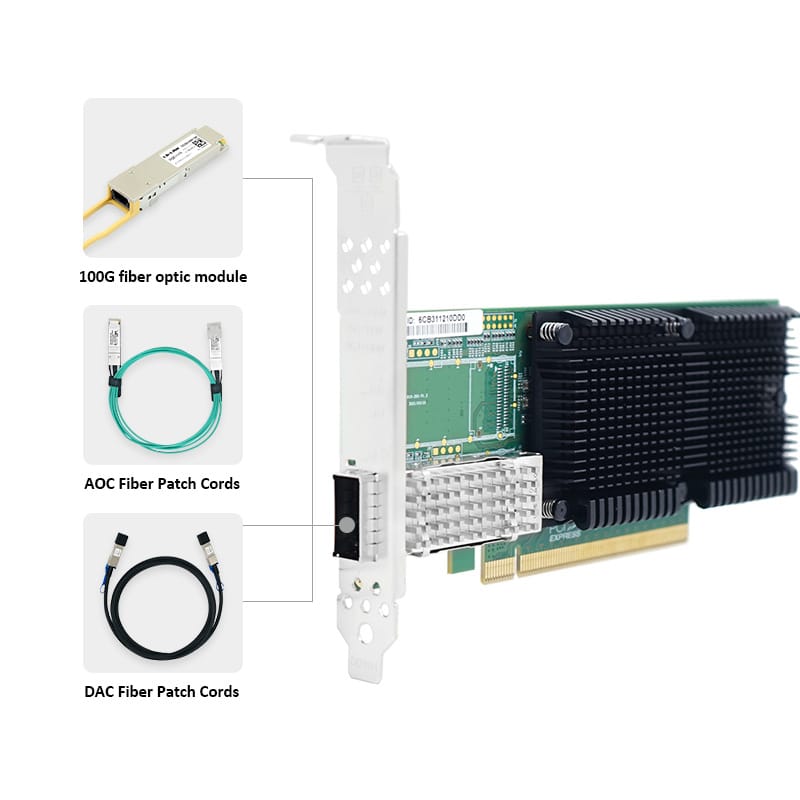

Connector | 1*QSFP28 | ||||||
Technical Features | ||||||||
Standards Compliant | IEEE 802.3bj 100GBASE Ethernet IEEE 802.3cd 50Gb/s IEEE P802.3by 25Gb/s IEEE 802.3ae 10GBase-X IEEE 802.3x Full Duplex and flow control IEEE 802.3az IEEE 802.3AS IEEE 802.1Q VLAN IEEE 802.1Qaz IEEE 802.1Qbb IEEE 802.1x IEEE 802.1bd IEEE1588 v1&v2 | |||||||
PXE | Yes | |||||||
iSCSI | Yes | |||||||
FCoE | No | |||||||
DPDK | Yes | |||||||
WoL | No | |||||||
VMDq | Yes | |||||||
Jumbo Frames | Yes | |||||||
RSS | Yes | |||||||
PCI-SIG*SR-IOV | Yes | |||||||
Environment Features | ||||||||
Operating Temperature | 0 ℃ to 55 ℃ (-13 ℉ to 158 ℉) | |||||||
Storage Temperature | -40 ℃ to 70 ℃ (-40 ℉ to 158 ℉) | |||||||
Storage Humidity | Maximum: 90% non-condensing relative humidity at 35 ℃ | |||||||
Physical Features | ||||||||
Size (mm ±1.0mm) | 171.5*120*21 | |||||||
Weight (g) | 220 | |||||||
LED Indicators | ||||||||
LED Indicators | Yellow Link + Green Blink | |||||||
Order Information | ||||||||
P/N | Description | |||||||
LRES1019PF-QSFP28 | PCIe x16 Single-port 100G QSFP28 Ethernet Network Adapter (Intel E810 Chip Based) | |||||||
PS: Above details are only for reference, if there is any change,no prior notice. | ||||||||
