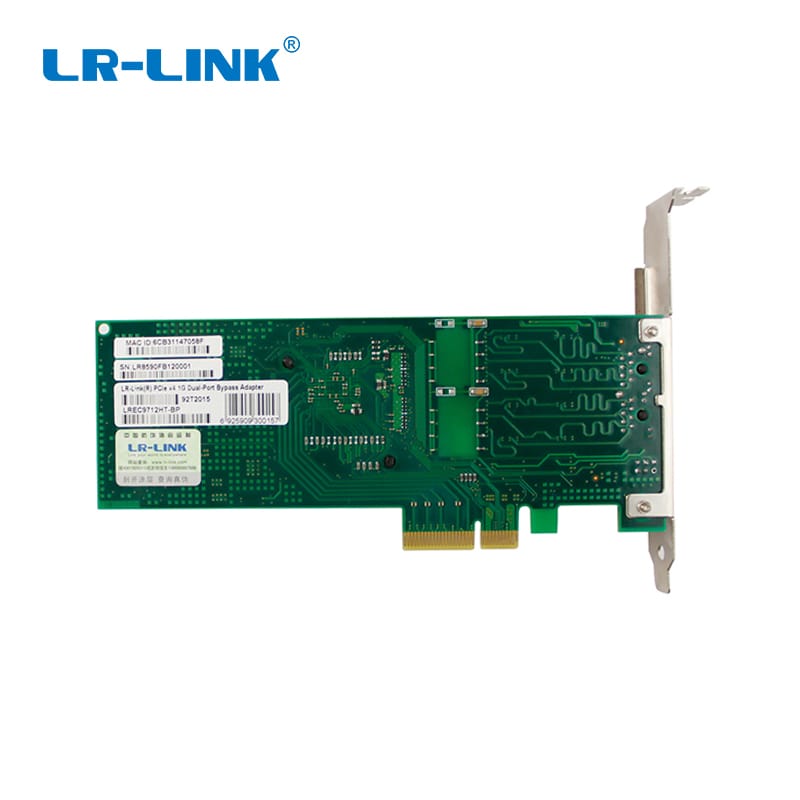

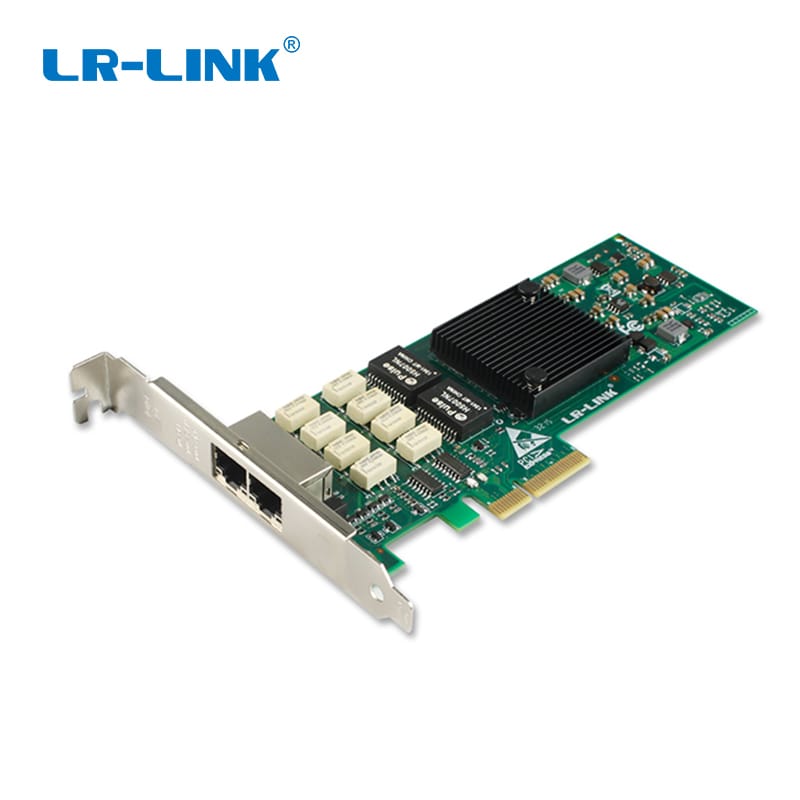

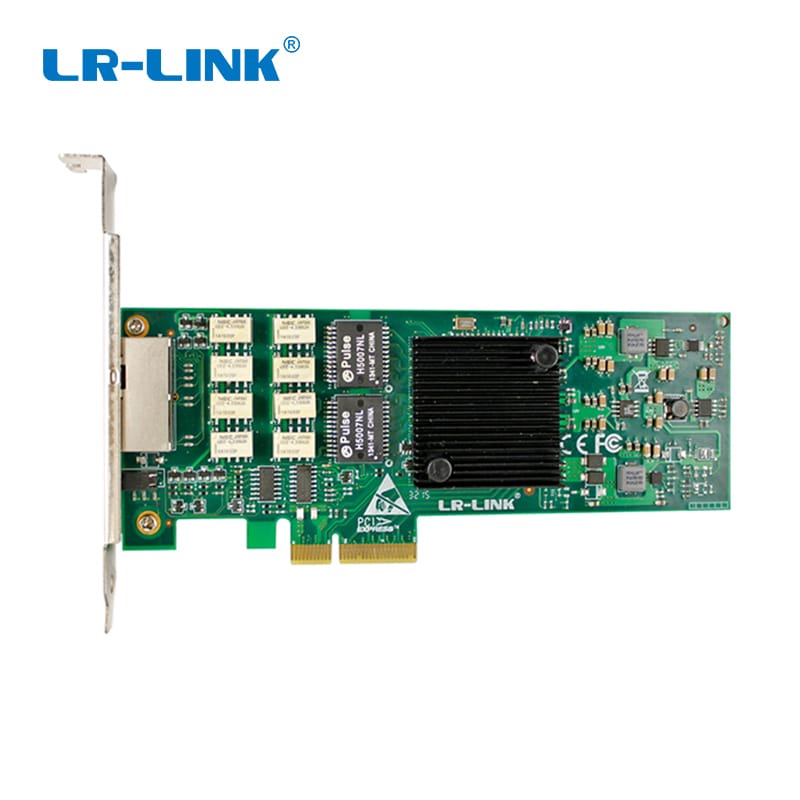

LREC9712HT-BP PCIe x4 1G Dual-port Bypass Adapter (Intel I350)

LREC9712HT-BP is a PCIe x4 Gigabit Copper One Group Bypass Ethernet Adapter based on Intel I350 chipset, compatible with PCIe x8 and x16 slot.

In Normal mode, the ports are independent interfaces. In Bypass mode, all packets received from one port are transmitted to adjacent port. In Disconnect mode, the adapter simulates switch / rout cable disconnection. In Bypass mode, the connections of the Ethernet ports are disconnected from the system and switched over to the other port to create a crossed connection loop-back between the Ethernet ports. Hence, in bypass mode all packets received from one port are transmitted to the adjacent port and vice versa. This feature enables to bypass a failed system and provides maximum up time for the network. In Disconnect mode, the adapter simulates switch / router cable disconnection. In Disconnect mode, the switch / router does not detect link partner of the adapter.
