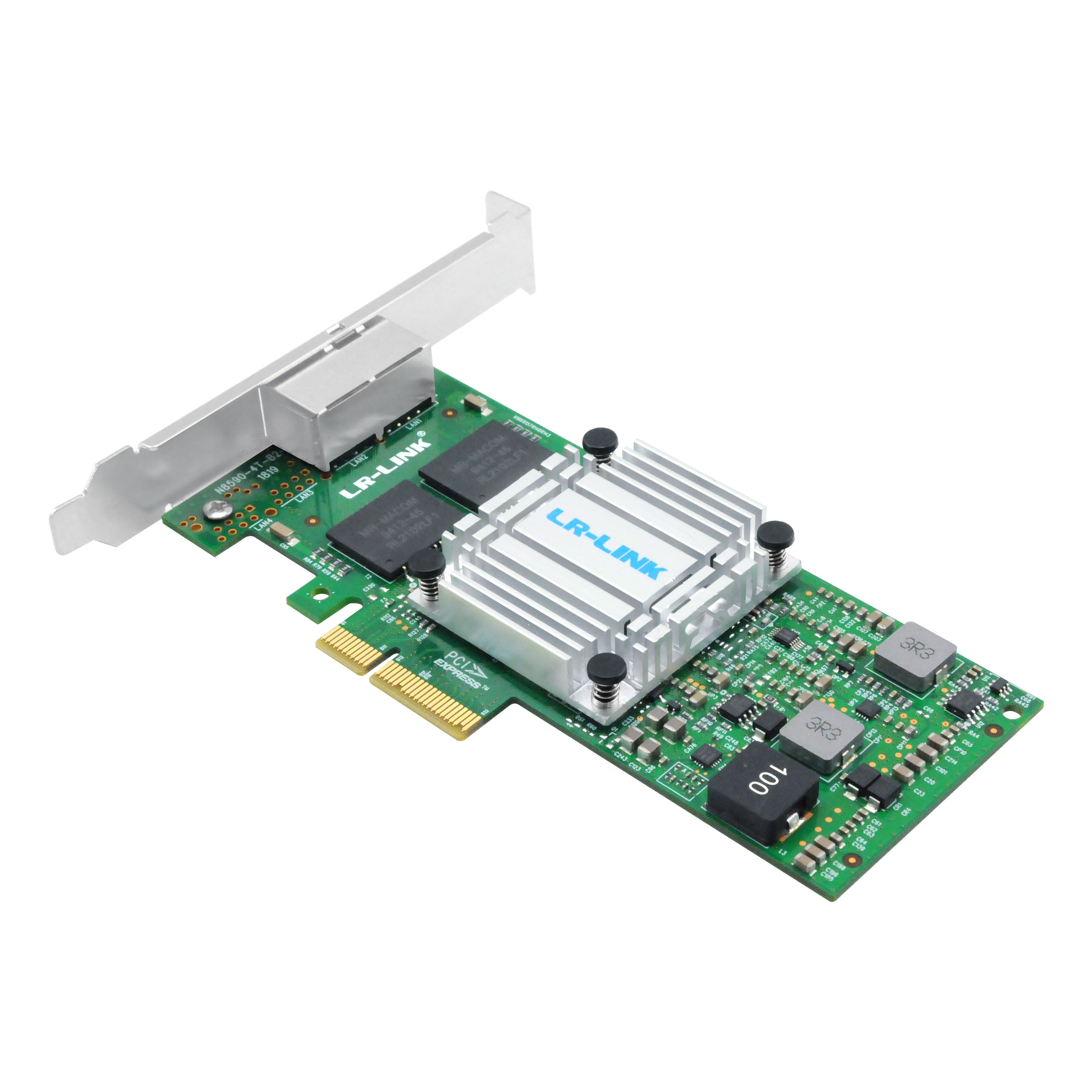

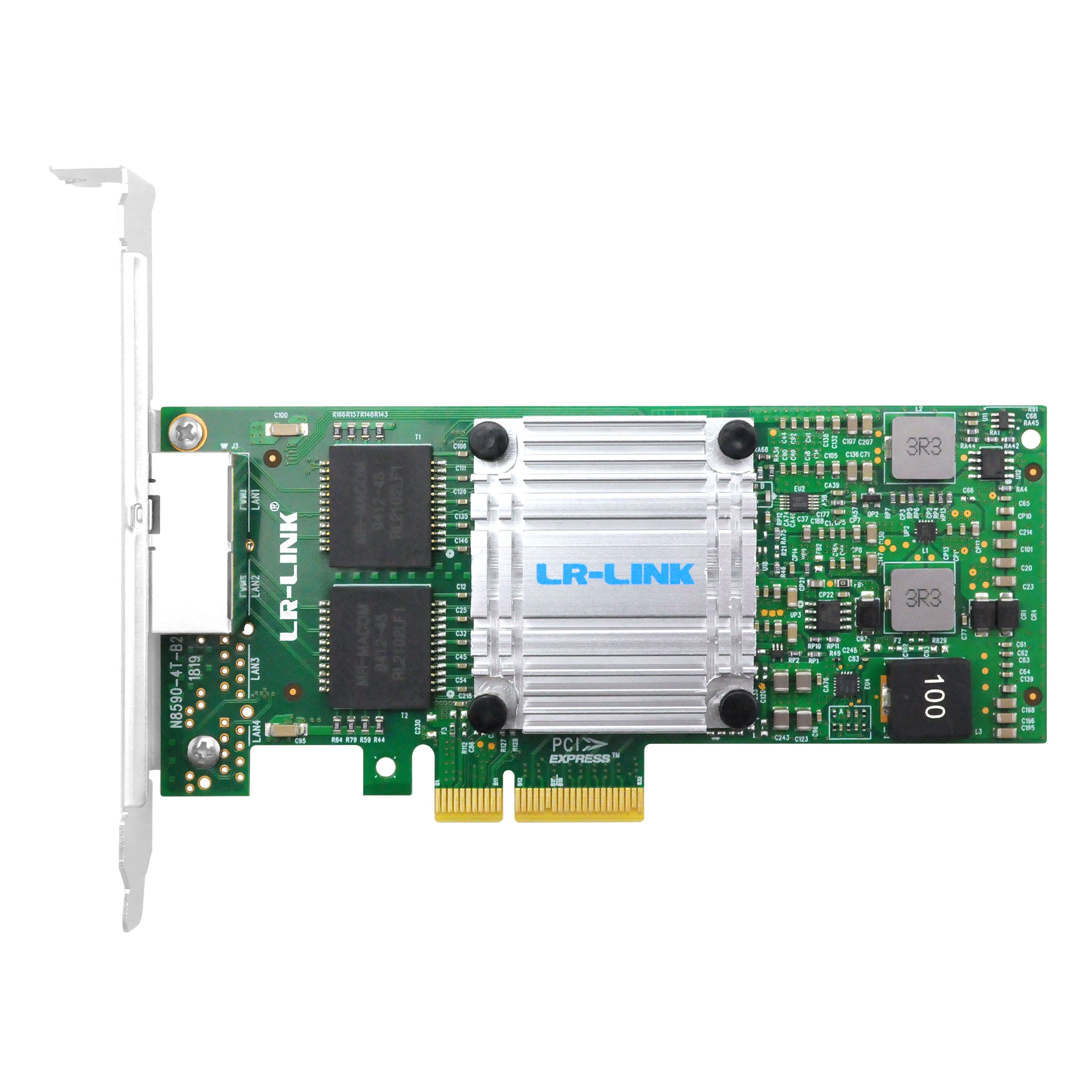

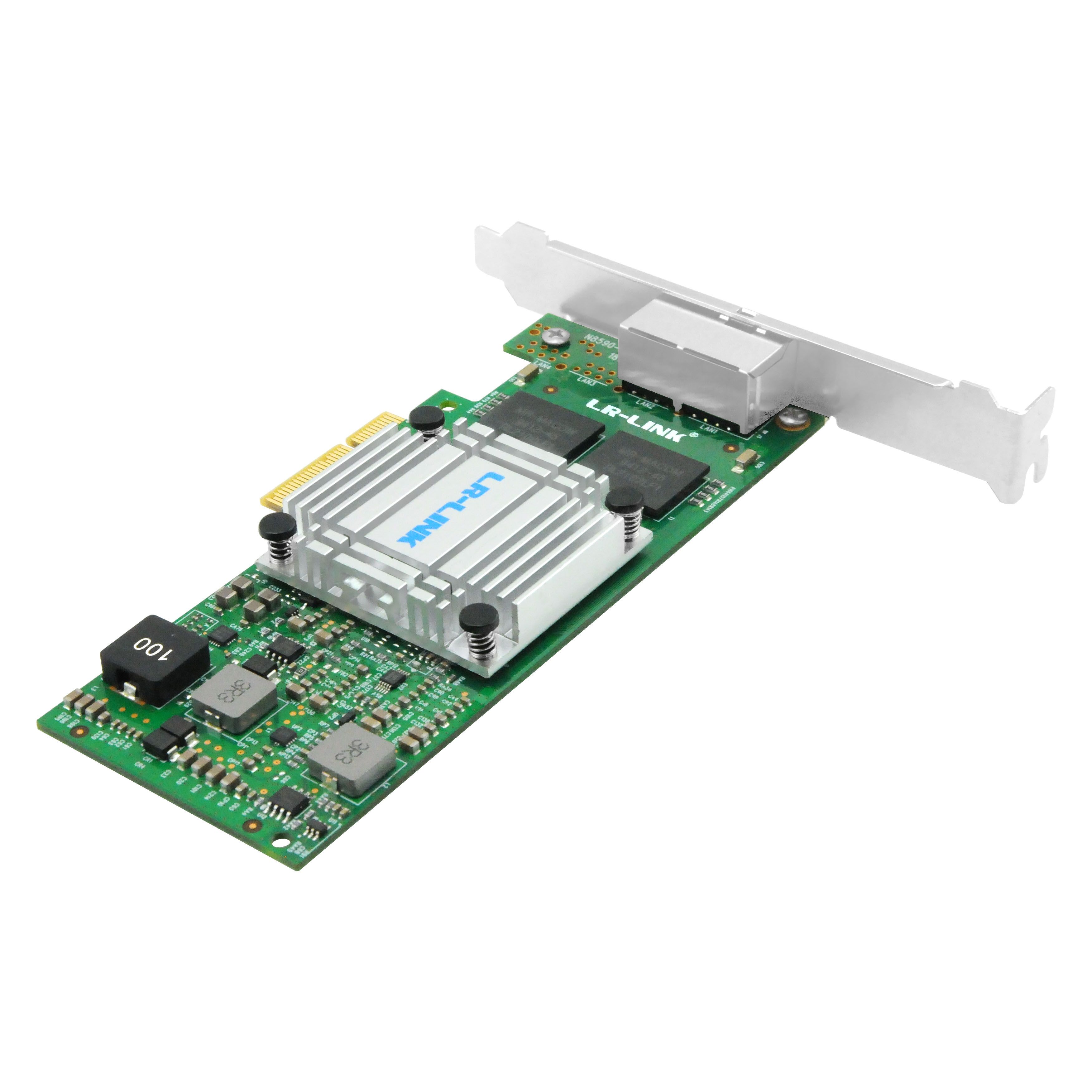

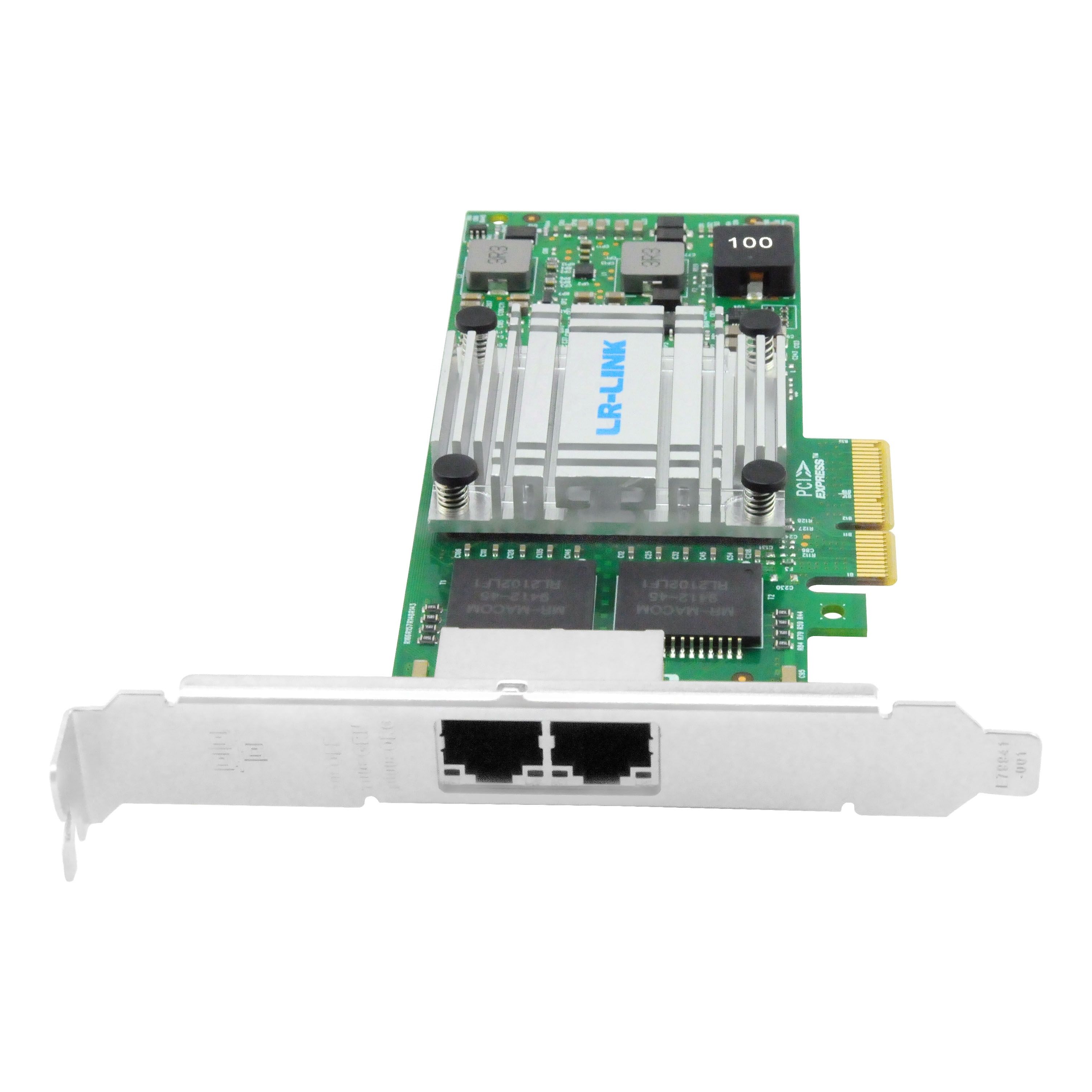

LREC9712HT Intel I350 Ethernet Network Card 2 Port Lan Card I350 PCIe Express Dual Ports Network Adapter

LREC9712HT Intel I350 Ethernet Network Card 2 Port Lan Card I350 PCIe Express Dual Ports Network Adapter

Name: LREC9712HT Intel I350 Ethernet Network Card 2 Port Lan Card I350 PCIe Express Dual Ports Network Adapter
SKU: LREC9712HT
Price: 66.00 USD
Availability: InStock

LREC9712HT

0 reviews

0 orders

$66.00

Lv.1

0% OFF

Lv.2

1% OFF

Lv.3

3% OFF

Quantity :

ADD TO CART

More payment options

INQUIRE NOW

ADD TO FAVORITES (0)

Introduction

4 x 1G RJ45 Connector
PCI Express v2.1 (2.5GT/s & 5.0GT/s) x4 lanes
RJ45 Connectivity
Network Virtualization
Flexible I/O virtualization for port partitioning and QoS of up to 32 virtual ports

Description

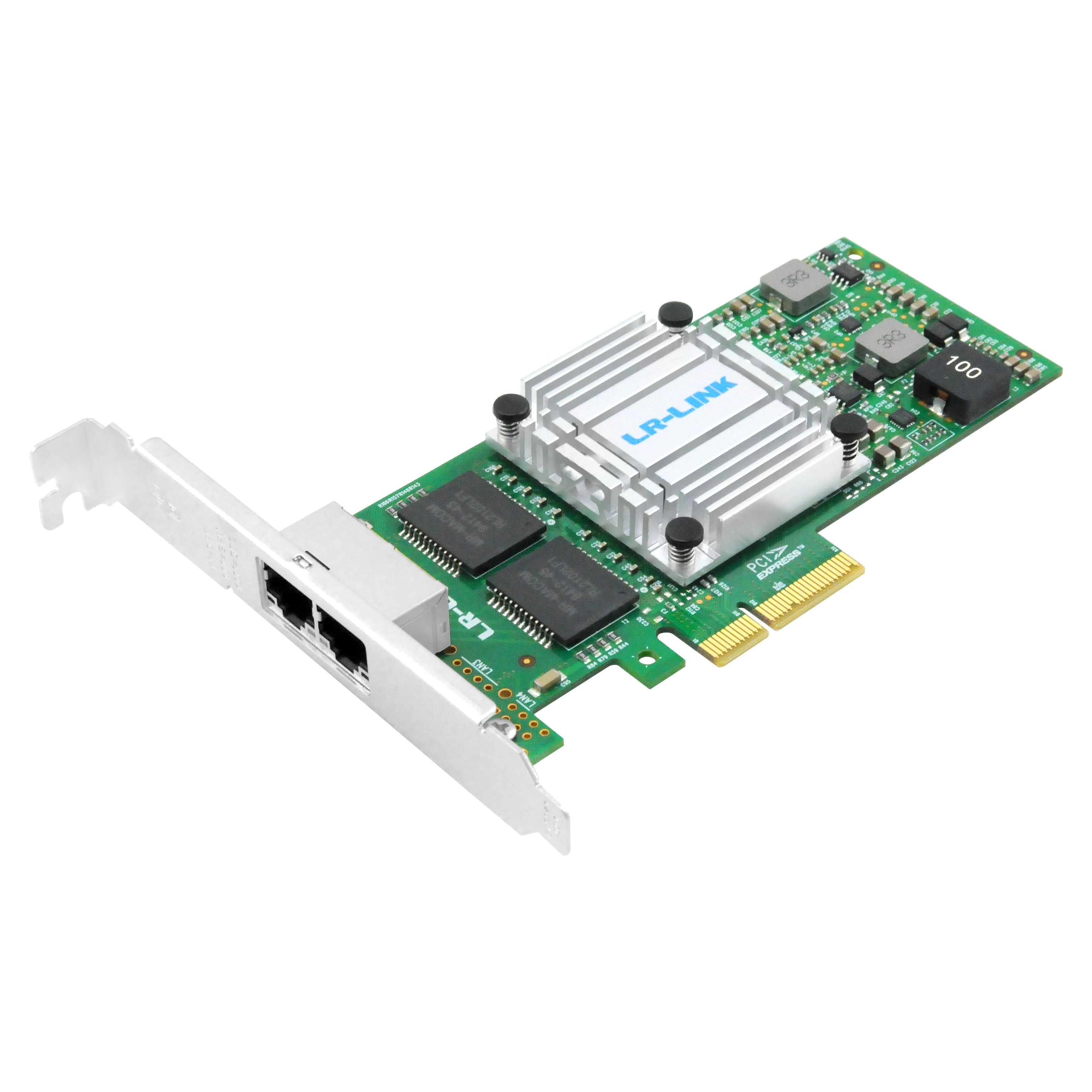

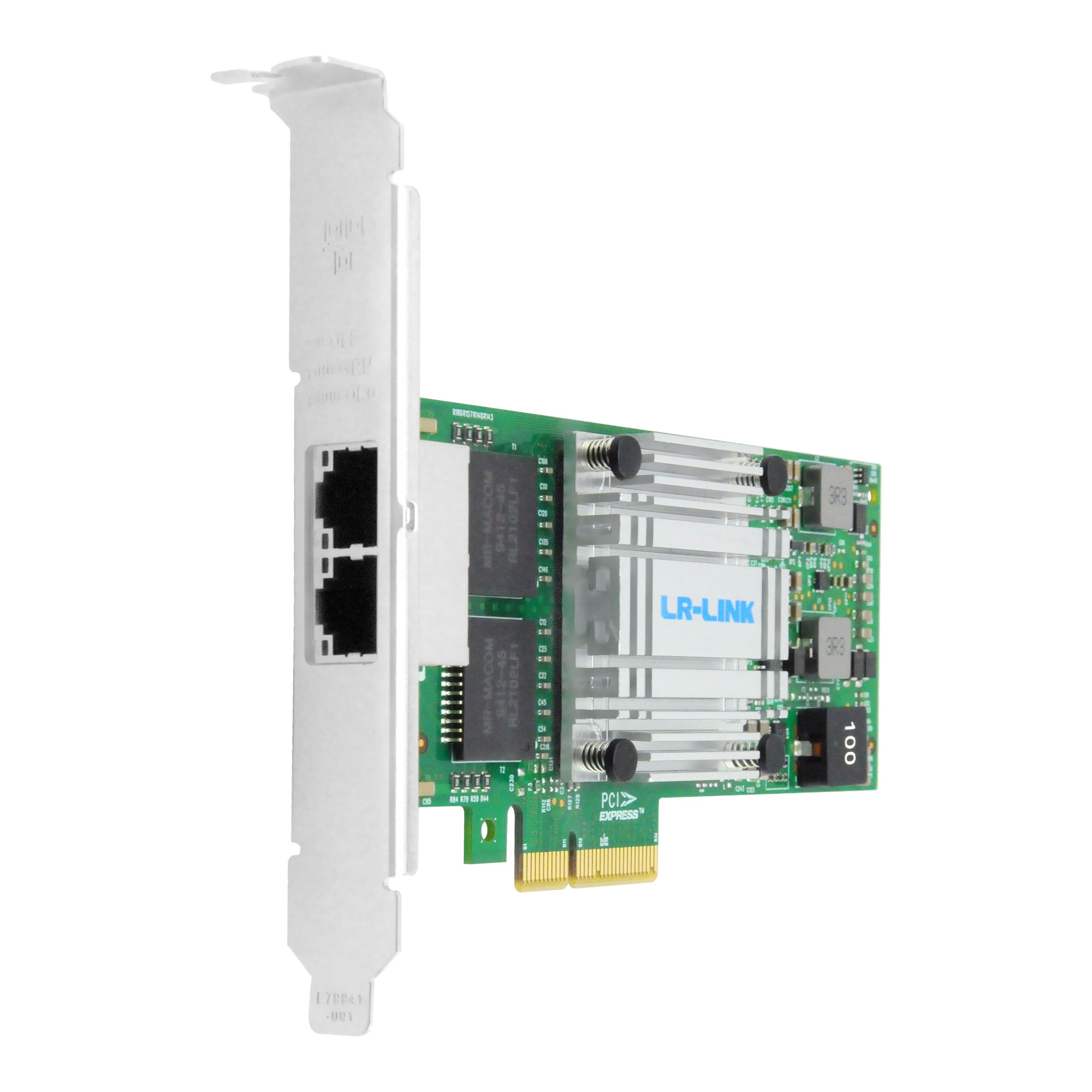

LREC9712HT Ethernet Network Card 2 Port Lan Card i350 PCIe Express Dual Ports Network Adapter

LREC9712HT is a PCIe x4 dual-port Gigabit Ethernet network adapter independently developed and produced by Shenzhen Lianrui Electronics Co., Ltd. based on the Intel master chip solution. It is compatible with PCIe x8 and x16 channels in structural installation. The design of this adapter card is mainly used in network applications such as servers and server clusters. This adapter card can achieve fault tolerance and redundancy by bundling multiple ports together into a group at the same time to expand network bandwidth and ensure network performance. This can automatically detect and route communications from failed ports to other members in the same group in real time. Continue to run to achieve uninterrupted high-performance communication.

Features

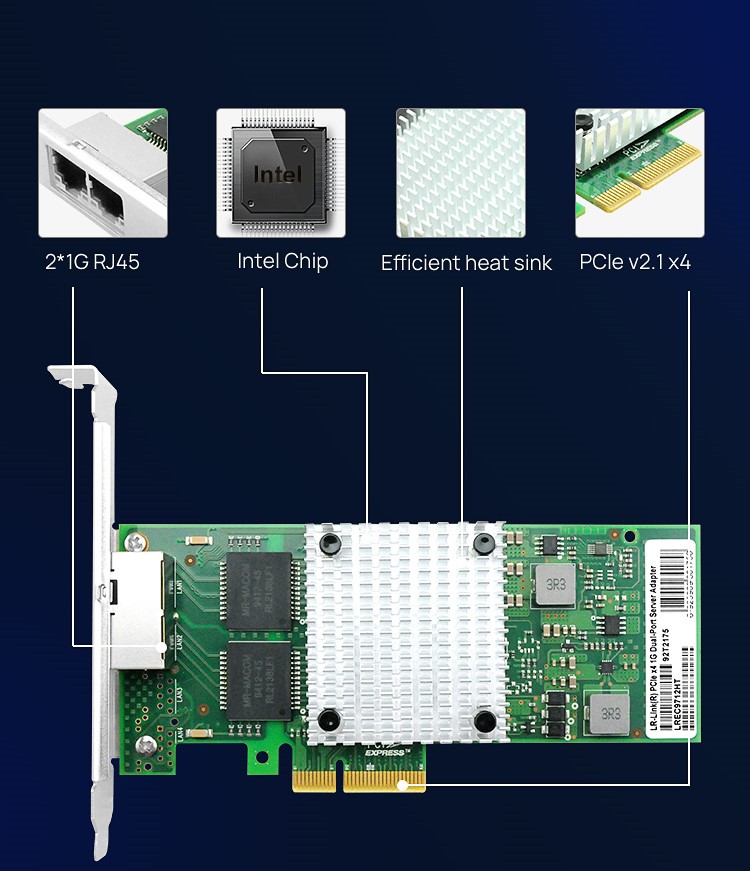

Controller	Intel I350
Bracket	Half,Full-height Bracket
Power consumption (max)	4.0W
Connector	2*RJ45
PCIe Bus Type	PCI Express v2.1 (2.5GT/s&5.0GT/s) x4
Rate	10Mbps/100Mbps/1000Mbps
Operating system support	DOS, Novell ODI Windows XP 32-bit(64-bit) Windows Server 2003 32-bit(64-bit) Windows Vista 32-bit(64-bit) Windows 7 32-bit(64-bit) Windows 8 32-bit(64-bit) Windows 8.1 32-bit(64-bit) Windows Server 2008 32-bit(64-bit) Windows Server 2008 R2 32-bit(64-bit) Windows Server 2012 Windows Server 2012 R2 Linux 2.4 series kernel 2.6.x 3.x FreeBSD 7.x or most of FreeBSD UnixWare / Open Unix 8 Sun Solaris x86 VMware Xen4

Technical Features
Ethernet Power Management	Yes
IEEE Standard	IEEE* 802.3 auto-negotiation 1Gb/s Ethernet IEEE 802.3, 802.3u, 802.3ab PHY specifications Compliant Integrated PHY for 10/100/1000 Mb/s for multispeed, full, and half-duplex IEEE 802.3x and 802.3z compliant flow control support with software-controllable Rx thresholds and Tx pause frames Automatic cross-over detection function (MDI/MDI-X) IEEE 1588 protocol and 802.1AS implementation
Jumbo frame packet	Yes
WOL	Yes
PXE	Yes
DPDK	Yes
iSCSI	No
FCoE	No

Environment Features
Operating Temperature	0°C to 55°C (32°F to 131°F)
Storage Temperature	-40°C to 70°C (-40°F to 158°F)
Storage Humidity	90% non condensing under 35°C

LED Indicators
LED	1000Mbps: Orange+Green
		100Mbps/10Mbps: ACT: green

Physical Features
PCB Size (mm)	16412021

Order Information
M/N	Description
LREC9712HT	PCI Express x4 Dual Copper Port Gigabit Server Adapter (Intel I350AM2 Based)
PS: The above details is just for reference,if there is any change,no inform will have.
