LRES2001PT-POE PCIe X1 Gigabit Single Port Copper POE Ethernet Network Card Based on Intel I210 Chipset

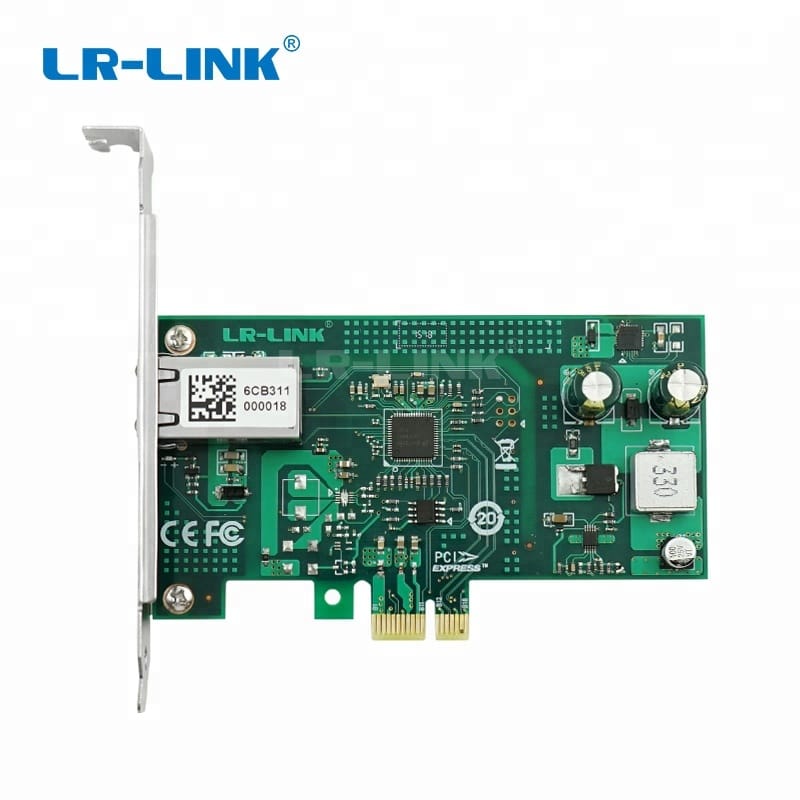

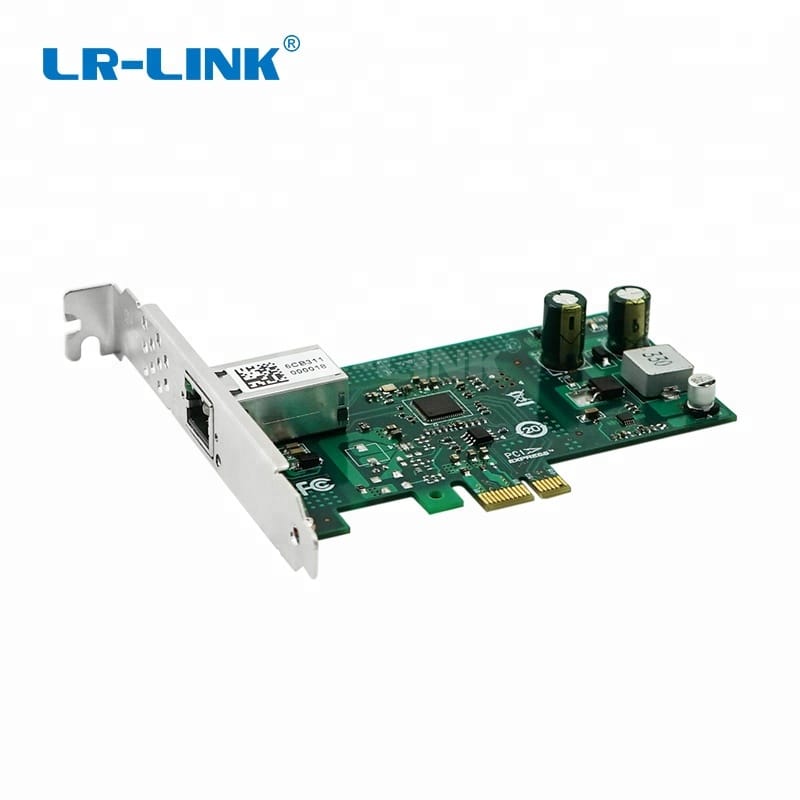

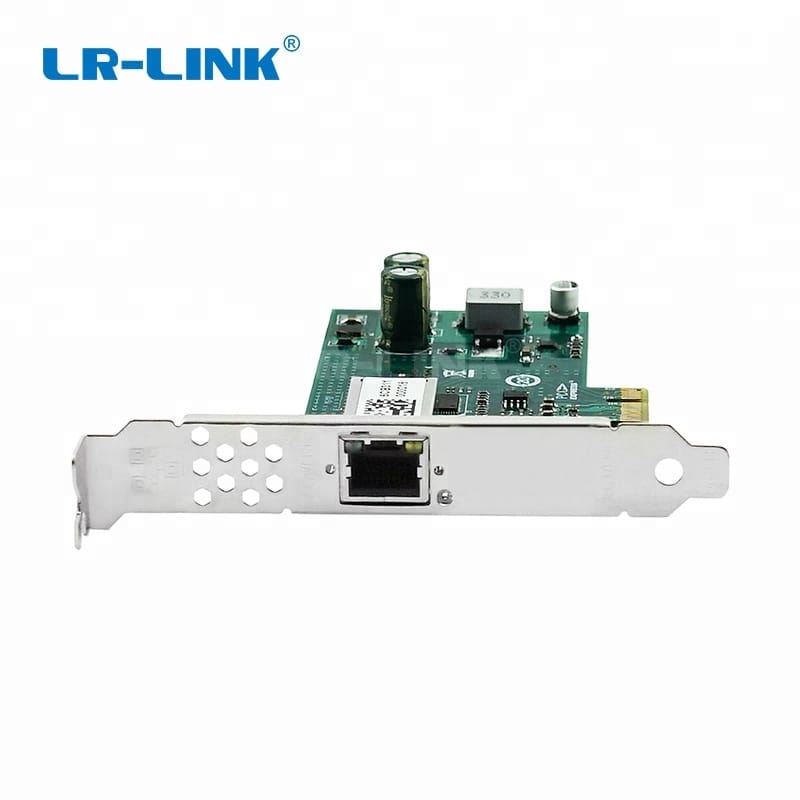

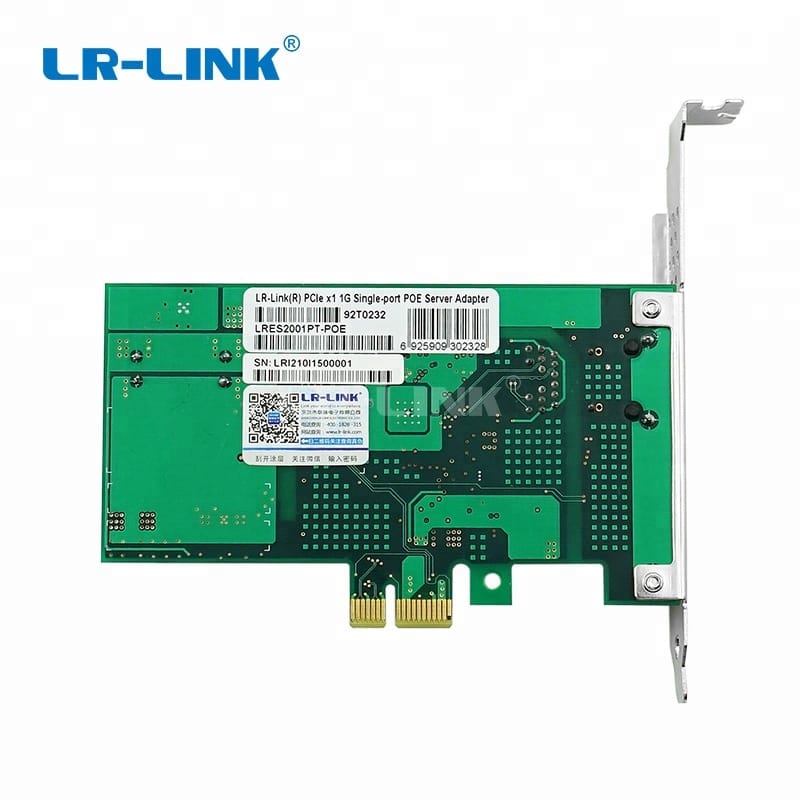

LRES2001PT-POE PCIe X1 Gigabit Single Port Copper POE Ethernet Network Card Based on Intel I210 Chipset

Name: LRES2001PT-POE PCIe X1 Gigabit Single Port Copper POE Ethernet Network Card Based on Intel I210 Chipset
SKU: LRES2001PT-POE
Price: 65.00 USD
Availability: InStock

LRES2001PT-POE

1 reviews

2 orders

$65.00

Lv.1

0% OFF

Lv.2

1% OFF

Lv.3

3% OFF

Quantity :

ADD TO CART

More payment options

INQUIRE NOW

ADD TO FAVORITES (0)

Introduction

1. Single-port PoE output power consumption up to 30W;
2. Adaptive power output required for external devices: Class 0, Class 1, Class 2, Class 3;
3. The interface designed for industrial-grade cable accessm with LR-LINK customized industrial cable can more securely lock the cable and network port, effectively solve the problem of unstable network ports and cable connections in industrial sites. Also compatible with ordinary cable access;
4. Selected RJ45 connector with thickened gold to ensure more reliable connection;

Description

LR-LINK LRES2001PT-POE
PCIe x1 Single Port Copper Gigabit POE Ethernet Network Card Based On Intel I210 Chipset

LRES2001PT-POE is PCI Express x1 Single-port Copper Gigabit Ethernet PoE Industrial network card based on Intel I210 chip independently developed by Shenzhen Lianrui Electronics Co., Ltd. , compatible with PCIe x4, x8, and x16 channels. This POE Ethernet Network Card is mainly designed for industrial field visual inspection servers and devices, visual field clients, fast Ethernet data transmission equipment etc., as well as general servers. The LRES2001PT-POE POE Ethernet Network Card compact design and does not reduce the performance of the NIC. It has extremely high network performance and reliability. Interruption adjustment improves performance while significantly reducing CPU usage. Compatible with the PCI-Express slot design for high-performance network transmission over the new PCI-Express desktop bus architecture while being compatible with Ethernet and Fast Ethernet to significantly reduce customer deployment and training costs. The POE Ethernet Network Card can be easily and quickly migrated to Gigabit Ethernet 10/100/1000Mbps auto-adapted to the stable, reliable operation of Ethernet, Fast Ethernet and Gigabit Ethernet compatible on the network, the Gigabit controller The related advanced configuration makes the power interface (ACPI) use less energy.

LR-LINK unique design for POE Ethernet Network Card:

1. Single-port PoE output power consumption up to 30W;

2. Adaptive power output required for external devices: Class 0, Class 1, Class 2, Class 3;

3. The interface designed for industrial-grade cable accessm with LR-LINK customized industrial cable can more securely lock the cable and network port, effectively solve the problem of unstable network ports and cable connections in industrial sites. Also compatible with ordinary cable access;

4. Selected RJ45 connector with thickened gold to ensure more reliable connection;

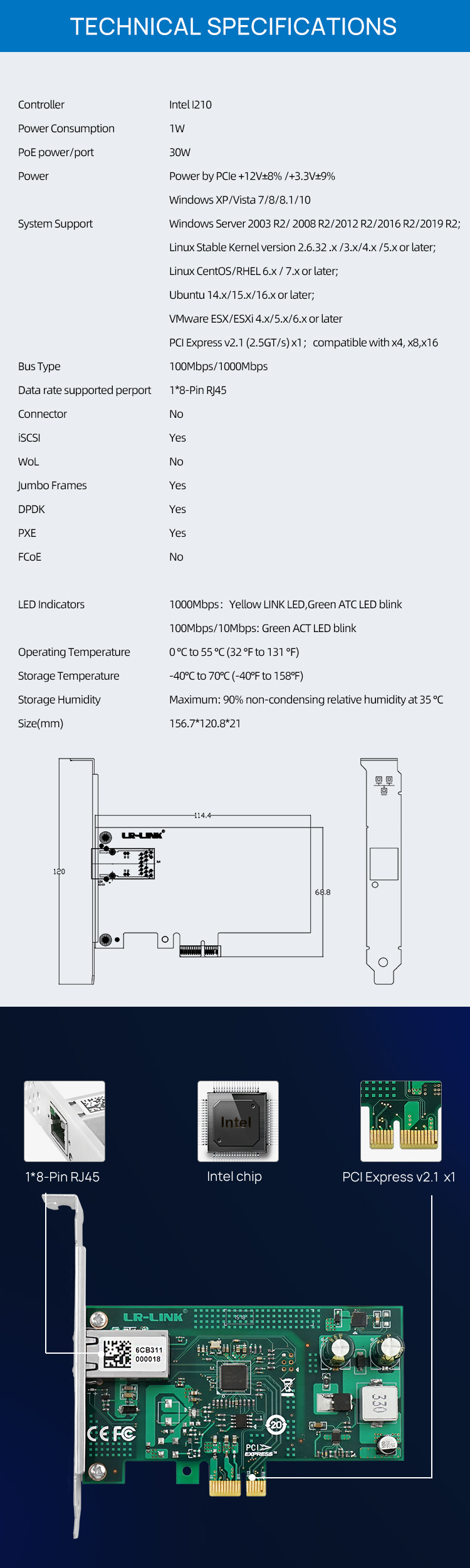

Controller	Intel I210
Transmission Rate Per Port	10/100/1000 Mbps
Network Standard Physical Layer Interfaces	1000BASE-T:Cat 5eor higherup to 100m
Network Standard Physical Layer Interfaces	100BASE-Tx:Cat5e/6or higherup to 100m
Jumbo Frame Support	Up to 9.5 KB
Operating Temperature	0 °C to 55°C (32 °F to 131°F)
Boot Option and Virtualization	PXE support, Intel® VT-c
LED Indicators	1000Mbps/s:Yellow Link and Green Ack,
LED Indicators	100Mbps/s:Green Link and Green Ack
POE Output	Supports PoE+ ports up to 30W at 48V DC
Operating System Support	Windows Server2008 /2008 R2 / 2012 /2012 R2 /2016 R2
	Windows7 / 8 / 8.1 / 10
	FreeBSD 9 /10or later
	Linux Stable Kernel version 2.6.x/ 3.x/ 4.xor later
	VMwareESX/ESXi5.x/6.xor later

Environment Features
Operating Temperature	0°C to 55°C (32°F to 131°F)
Storage Temperature	-40°C to 70°C (-40°F to 158°F)
Storage Humidity	90% non condensing under 35°C

LED Indicators
LED	1000Mbps:Yellow LINK LED,Green ATC LED blink
		100Mbps/10Mbps: Green ACT LED blink

Driving
Windows	Intel(R) I210 Gigabit Network Connection
Linux	Intel Corporation I210 Gigabit Network Connection (rev 03)

Physical Features
PCB Size (mm)	11468.81.6
weight (g)	63g

Order Information
M/N	Description
LRES2001PT-PoE	PCIe x1 Gigabit Single-Port Copper POE Ethernet Network Card
PS: The above details is just for reference,if there is any change,no inform will have.
