LRES2041PT-2RJ45 M.2 BM 1G Dual-port Adapter
Zoomed Image

LRES2041PT-2RJ45 M.2 BM 1G Dual-port Adapter

LRES2041PT-2RJ45

$95.90
Lv.1 Lv.1
0% OFF
Lv.2 Lv.2
1% OFF
Lv.3 Lv.3
3% OFF
Quantity :
-
1
+
INQUIRE NOW
Introduction
PCI Express 2.1 x1
2 * RJ45
M.2(B + M Key)
Support 1000/100/10Mbps
Support 1588 PTP










































































































The LRES2041PT-2RJ45 is a dual-port Gigabit Ethernet adapter independently developed by Linkreal Co., Ltd.,based on the Intel® I210 controller. Featuring an M.2 B+M Key interface, it supports stable and reliable 10/100/1000 Mbps network connections. With its PCIe 2.1 x1 interface to the host system, the adapter offers excellent compatibility and low power consumption.

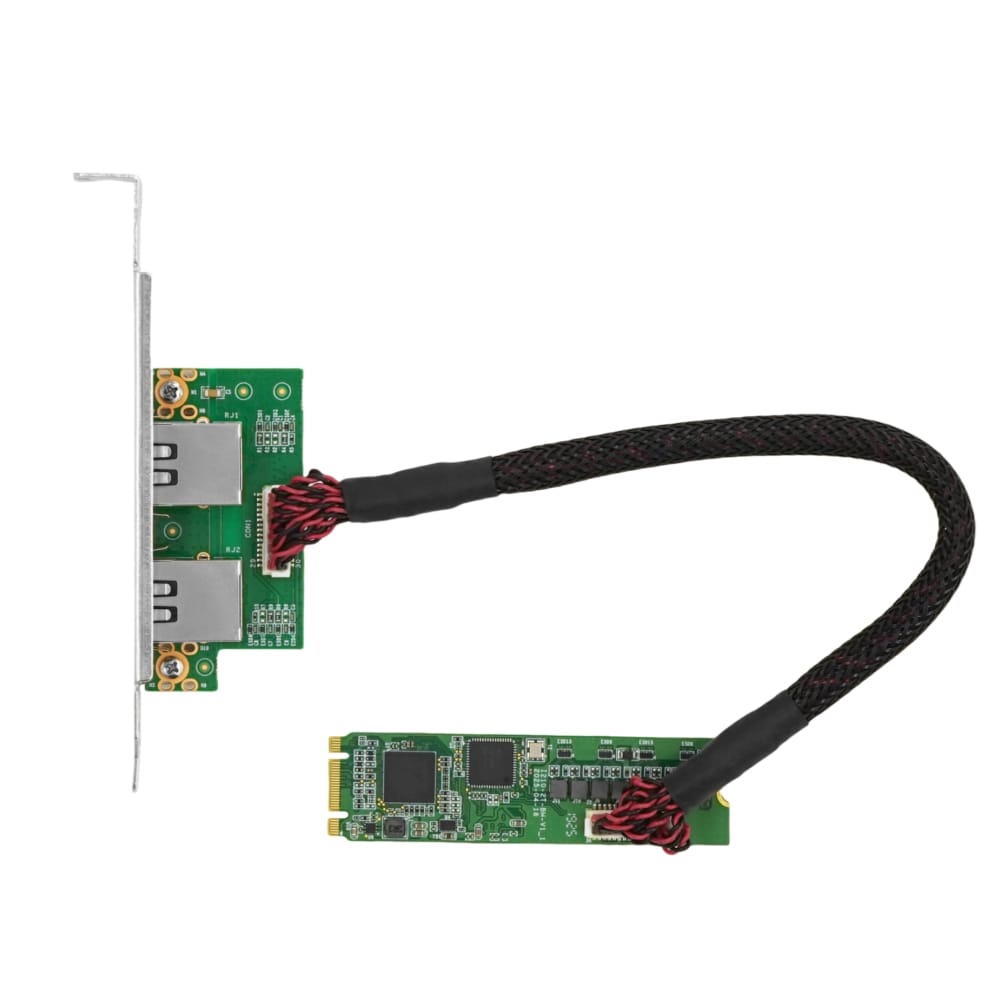

The adapter adopts a modular split design, consisting of two parts: an integrated dual RJ45 network port module,and a compact M.2 2280 (B+M Key) sub-board connected via a dedicated cable. This flexible architecture allowsdeployment in space-constrained or structurally customized system environments.
In addition to delivering high-speed and stable data transmission, the adapter ensures broad compatibility,meeting the stringent demands of industrial automation and embedded systems for real-time performance,stability, and efficiency. It serves as an ideal network connectivity solution for industrial automation, intelligent manufacturing, edge computing, and a wide range of embedded applications.
Specifications
Model
LRES2041PT-2RJ45
Controller
Intel I210
Adapter Type
M.2 Ethernet Adapter
Form Factor
2280(M.2 B+M Key)
Host Connector
PCIe2.1 x1
Connectors
RJ45
Port
Dual
Link Speed
1000/ 100/ 10Mbps



Protocol Support
IEEE 802.3 (10BASE-T, 100BASE-TX, 1000BASE-T)
IEEE 802.3, 802.3u, 802.3ab PHY specifications compliant IEEE 802.3 autonegotiation
IEEE 802.3x and IEEE 802.3z compliant flow control IEEE 1588 protocol and 802.1AS implementation
IEEE 802.3az - Energy Efficient Ethernet (EEE)
PXE/ UEFI
No
WoL
No
SR-IOV
No
1588 PTP
Yes
Jumbo Frames
9.2KB
LED Indicators
LED Type
Color/Behavior
Note
Speed
Off
10Mbps
Amber
100Mbps
Green
1000Mbps
Link/Activity
Off
No Link
Green
Link
Green(blink)
Link up(traffic flowing)
Supported Physical Layer Interfaces


Cabling
CAT3 or higher for 10BASE-T
CAT5 or higher for 100BASE-TX operation
CAT5e or higher for 1000BASE-T operation
Supported Operating System
Windows      Windows Server     Deepin                RHEL/CentOS       Ubuntu         FreeBSD              Fusion OS                    SUSE
Kylin OS         Neo Kylin OS           NewStarOSt      OpenKylin OS        Debian         VMwareESXi       iKuai Routing OS       UOS
Rocky             Fangde OS               OpenEuler
Technical Specifications
Operating Temperature

   -10°C to 60°C

Storage Temperature

   -40°C to 70°C

Storage Humidity
Maximum: 90% non-condensing relative humidity at 35 °C
Certification
FCC,CE, RoHS
Physical Properties
PCB Size(Unit:mm)
88*22
Package Size (Unit: mm)
179* 150*30
Packing List
Internet Network Adapter
*1
Product Warranty Card
*1
Packaging
Carton + Anti-static bag
