LRES3041PT-OCP Dual Port OCP 3.0 Intel I350 Chipset Based 1G Ethernet Network Adapter Edge Computer

Name: LRES3041PT-OCP Dual Port OCP 3.0 Intel I350 Chipset Based 1G Ethernet Network Adapter Edge Computer
SKU: LRES3041PT-OCP
Price: 102.00 USD
Availability: InStock

LRES3041PT-OCP

0 reviews

0 orders

$102.00

Lv.1

0% OFF

Lv.2

1% OFF

Lv.3

3% OFF

Quantity :

ADD TO CART

More payment options

INQUIRE NOW

ADD TO FAVORITES (0)

Introduction

1. An Intel solution OCP3.0 SFF structure of the dual-port optical fiber Gigabit Ethernet network adapter
2. With a rate of 1G
3. It can enhance DPDK to be more efficient and flexible in packet forwarding and packet processing.

Description

LRES3041PT-OCP Dual Copper Port 1 Gigabit Ethernet Network Cards OCP 3.0 Network Adapter Network Card

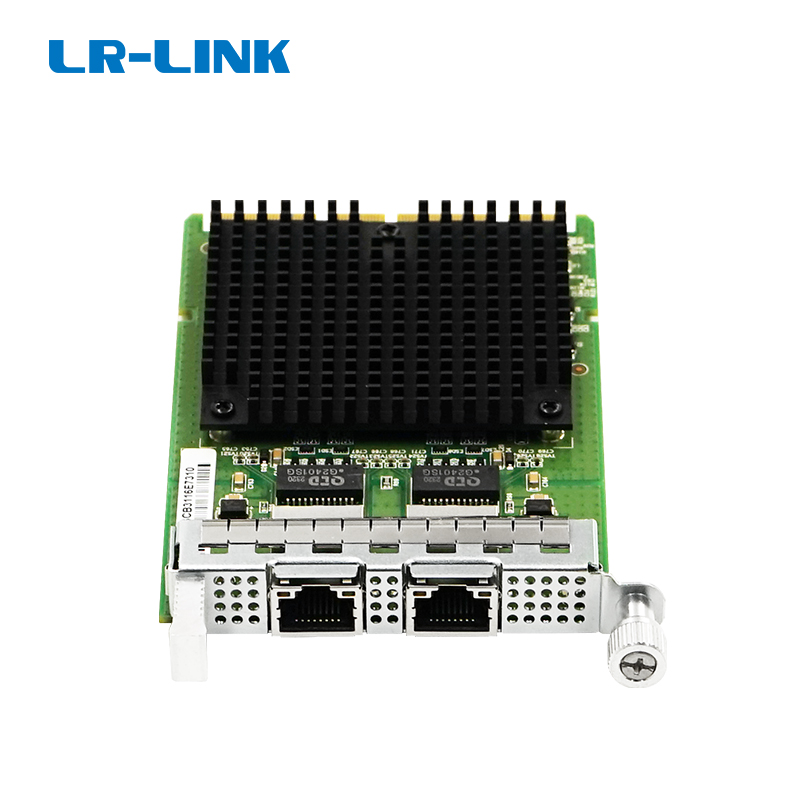

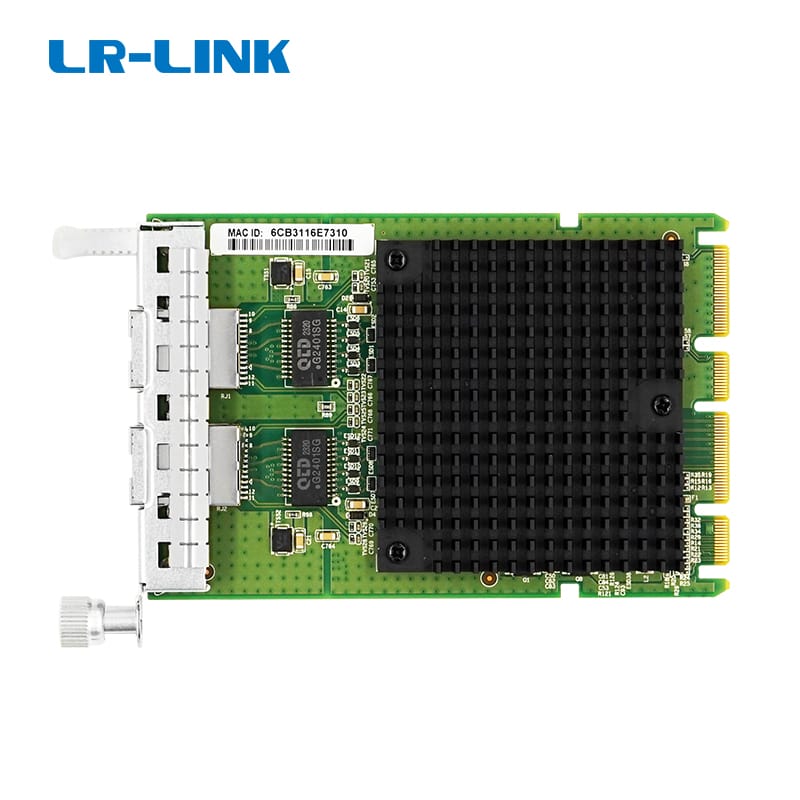

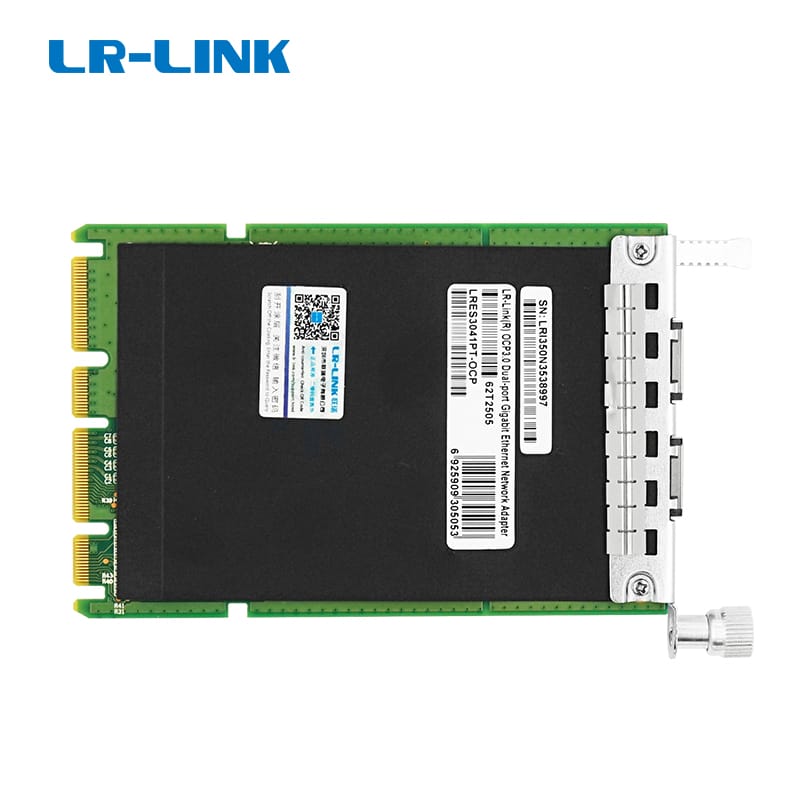

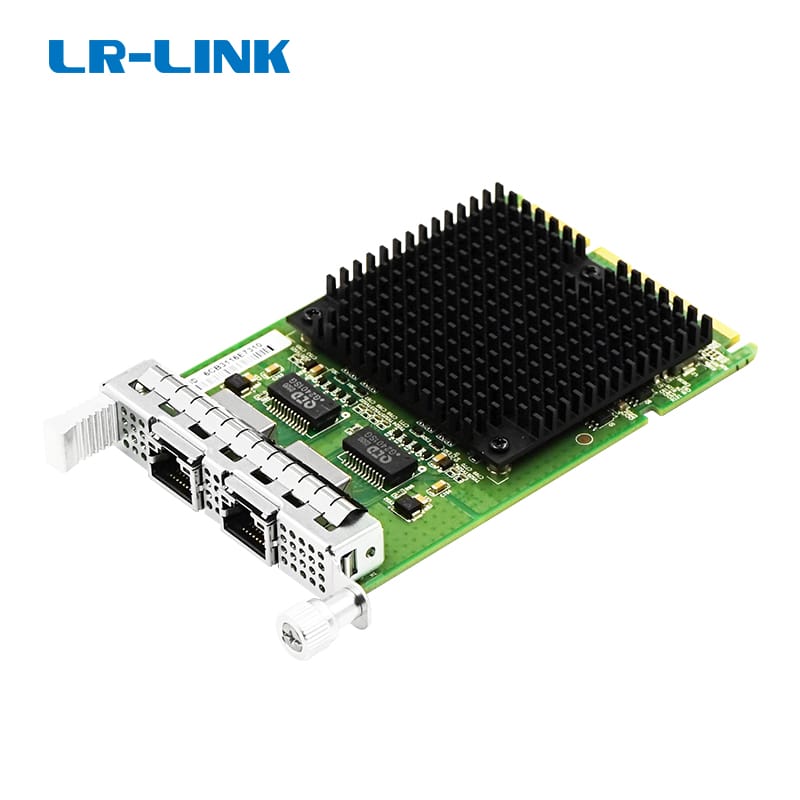

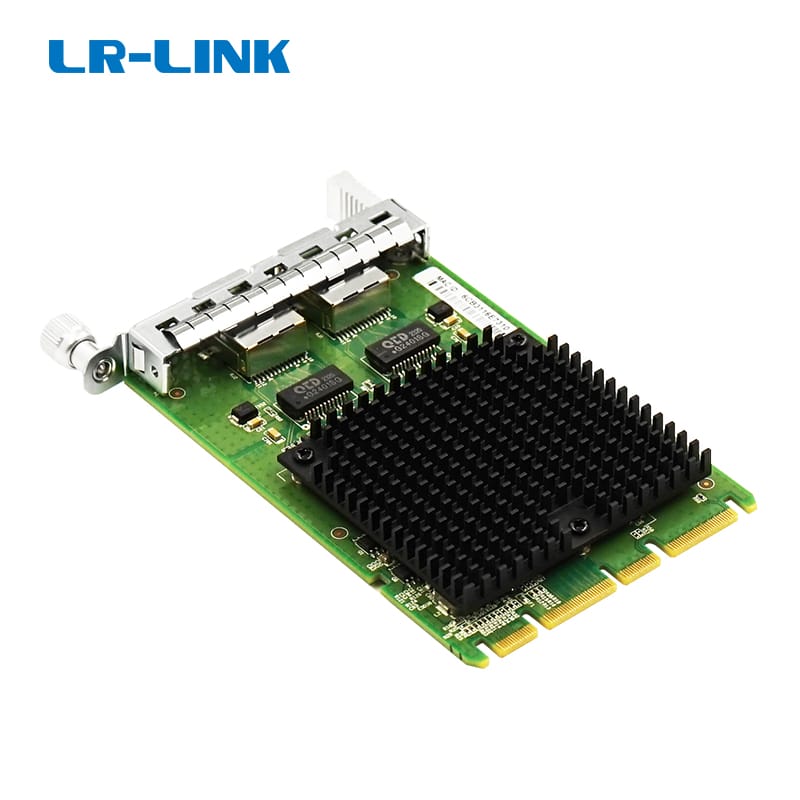

LRES3041PT-OCP is an OCP3.0 SFF dual-port copper Gigabit Ethernet network adapter independently developed by Shenzhen Lianrui Electronics Co., Ltd. based on the Intel I350 master control solution. This adapter is mainly designed for use in servers and their application equipment.
LRES3041PT-OCP can simultaneously bundle and aggregate multiple ports into a group to achieve fault tolerance and redundancy, to expand network bandwidth and ensure network performance, and can automatically detect and implement real-time fault recovery. The communication of the port is routed to other members in the same group to continue operation to achieve uninterrupted high-performance communication.
LRES3041PT-OCP adopts the SFF standard structure of OCP3.0, which is developed on the Ethernet MAC+PHY (media access controller and physical interface transceiver) controller based on Intel Gigabit rate, and supports NCSI function and Scan Chain Function, also has ESD anti-static protection ability and surge protection ability.

Technical Features
Controller	Intel I350
Cable medium	Copper
System Support	Windows 7 /8 /8.1 / 10 /11 Windows Server 2008 /2012 /2016 /2019 /2022 RHEL/Centos7.3 /7.6 /7.9 /8.2 /8.3 Deepin 15.11 /20 /20.6 Ubuntu 16.04.3 /18.04.5 /20.04.1 SUSE 12.5 FreeBSD 12.2 ZTE New Fulcrum 3.2.2 /5.0.5 Asianux Server v7.0 Galaxy Unicorn v10 SP1 NeoKylin 7.6 Zhongke Fangde desktop operating system 4.0 Zhongke Fangde server operating system Tongxin UOS 20 Emind OS OpenKylin0.7.5 VMware ESXi 6.5 /6.7 /7.0 Mikrotik iKuai router
Bus Type	OCP3.0 SFF
Data rate	1G
Connector	2*1G RJ45
Standards Compliant	IEEE 802.3ab 1000BASE-T Ethernet IEEE 802.3az - Energy Efficient Ethernet (EEE) IEEE 802.3z IEEE 802.1Q VLANs IEEE 802.3x IEEE 1588
PXE	No
iSCSI	No
FCoE	No
DPDK	Yes
WoL	No
Jumbo Frames	Yes

Environment Features
Operating Temperature	0 ℃ to 55 ℃ (32 ℉ to 131℉)
Storage Temperature	-40 ℃ to 70 ℃ (-40 ℉ to 158 ℉)
Storage Humidity	Maximum: 90% non-condensing relative humidity at 35 ℃

Physical Features
Size (mm ±1.0mm)	761151.6

LED Indicators
LED Indicators	Yellow Link + Green Blink

Order Information
P/N	Description
LRES3041PT-OCP	OCP3.0 Dual-port Gigabit Copper Ethernet Network Adapter(Intel I350)
PS: Above details are only for reference, if there is any change,no prior notice.
