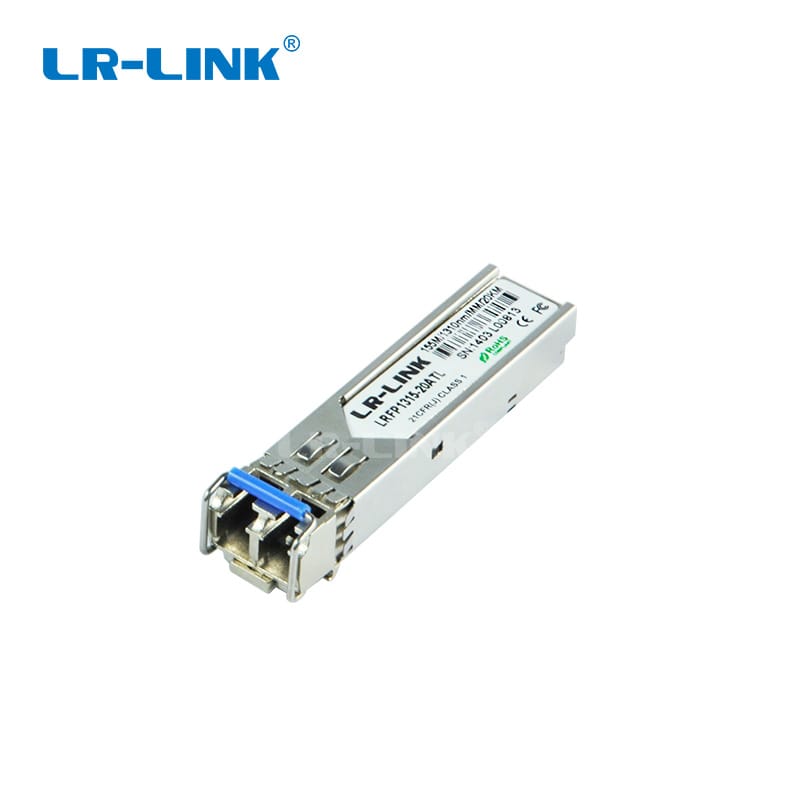

LRFP1315-20ATLD

Absolute Maximum Ratings

Parameter

Symbol

Min.

Typical

Max.

Unit

Data rate

DR

155

Mb/s

BER

BER

10⁻¹²

Operating temperature

T_C

0

70

◦C

Storage temperature

T_STO

−40

85

◦C

Working current

I_CC

260

mA

Operating voltage

V_CC

3.14

3.3

3.46

V

Transmitter

Parameter

Symbol

Min.

Typical

Max.

Unit

Transmitted optical power

P

−15

−7

dBm

Optical center wavelength

λ_C

1270

1310

1360

nm

Extinction Ratio @1.25Gb/s

ER

8.2

dB

Spectral width (RMS)

Δλ

3

nm

Optical signal rise/fall time (20%-80%)

t_r/t_f

90

100

110

ps

Receiver

Parameter

Symbol

Min.

Typical

Max.

Unit

Optical center wavelength

λ _C

1260

1610

nm

Receive Sensitivity

R_{X SEN1}

−28

dBm

LOS signal active

LOS_A

−44

dBm

LOS signal failure

LOS_D

−29

dBm

LOS signal hysteresis interval

LOS_H

0.5

2

6

dB

Transmitter

Parameter

Symbol

Min.

Typical

Max.

Unit

Total Supply Current

I_CC

A

mA

Transmitter Disable Input-High

V_DISH

2

V_CC+0.3

V

Transmitter Disable Input-Low

V_DISL

0

0.8

V

Transmitter Fault Input-High

V_DISL

2

V_CC+0.3

V

Transmitter Fault nput-Low

V_TxFH

0

0.8

V

Receiver

Parameter

Symbol

Min.

Typical

Max.

Unit

Total Supply Current

I_CC

B

mA

Output signal rise time / fall time (20%-80%)

t_r/t_f

300

ps

LOS signal active

V_{LOS A}

V_CC-0.5

V_{CC HOST}

V

LOS signal failure

V_{LOS D}

V_EE

V_EE+0.5

V
