1.U.2 SFF-8639 four-disks design, Stable installation, Can run Four U.2 disks at full speed at the same time.
2.Built-in multiple sets of high-power DC modules for sustainable and stable work.
3.The innovative design can accommodate four U.2 of the chassis, and can support simultaneous operation.
4.The 2.5" NVMe U.2 SSD can be the primary bootable device containing the OS and applications (requires support in the system
BIOS)
5.No driver installation required, Support Windows 10/8, Server 2012 R2, Linux, etc.
6.Fully Rohs, FCC and CE Compliant.
1.U.2 SFF-8639 four-disks design, Stable installation, Can run Four U.2 disks at full speed at the same time.
2.Built-in multiple sets of high-power DC modules for sustainable and stable work.
3.The innovative design can accommodate four U.2 of the chassis, and can support simultaneous operation.
4.The 2.5" NVMe U.2 SSD can be the primary bootable device containing the OS and applications (requires support in the system BIOS)
5.No driver installation required, Support Windows 10/8, Server 2012 R2, Linux, etc.
6.Fully Rohs, FCC and CE Compliant.
HARDWARE | |
Number of Device | 4 internal |
Bus Type | PCI Express |
Compatible Drive Types | 4*U.2 (PCIe NVMe SSD, SFF-8639) |
CONNECTOR(S) | |
Drive Connectors | 4*68-pin SFF-8639 interface connector |
Host Bus | PCI Express x16 |
Environmental Parameter | |
Humidity | 15% ~ 90% |
Operating Temperature | 5°C to 50°C (41°F to 122°F) |
Storage Temperature | -25°C to 70°C (-13°F to 158°F) |
Physical Features | |
PCB Size (mm) | 286mm X122.50mm |
weight (g) | 115g |
Order Information | |
M/N | Description |

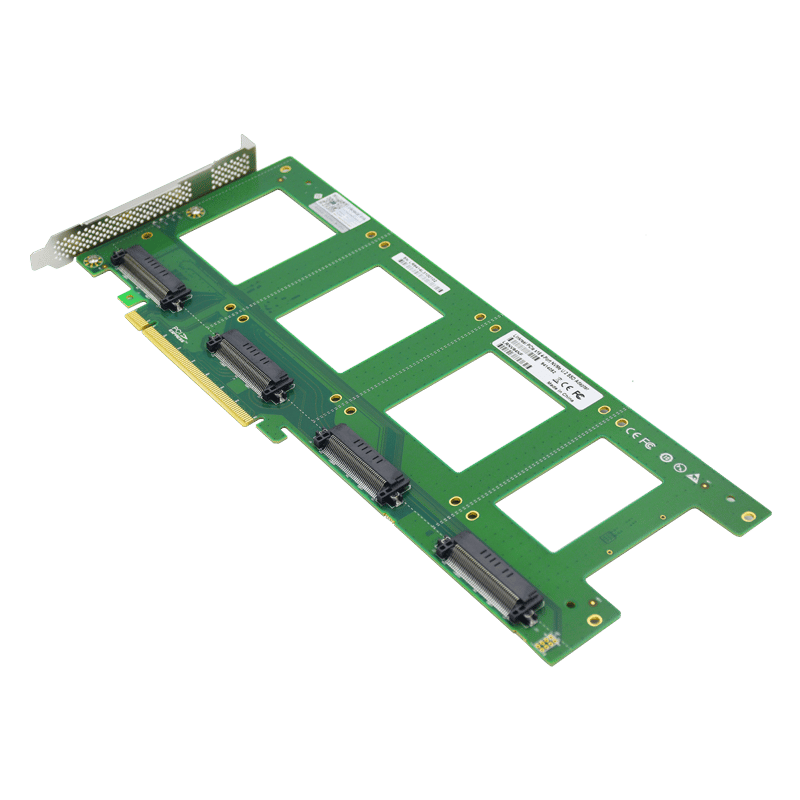

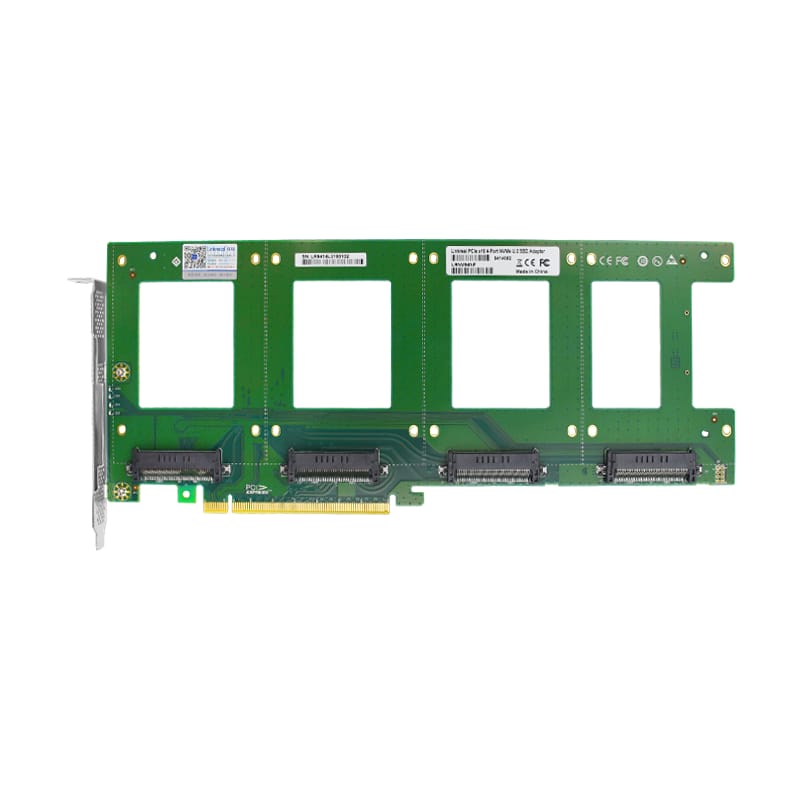

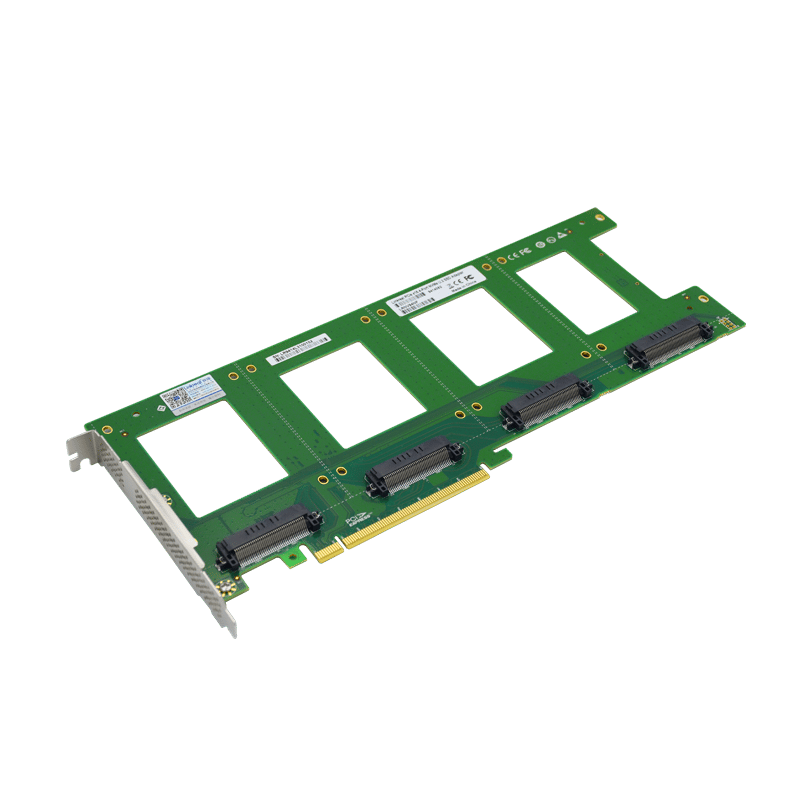

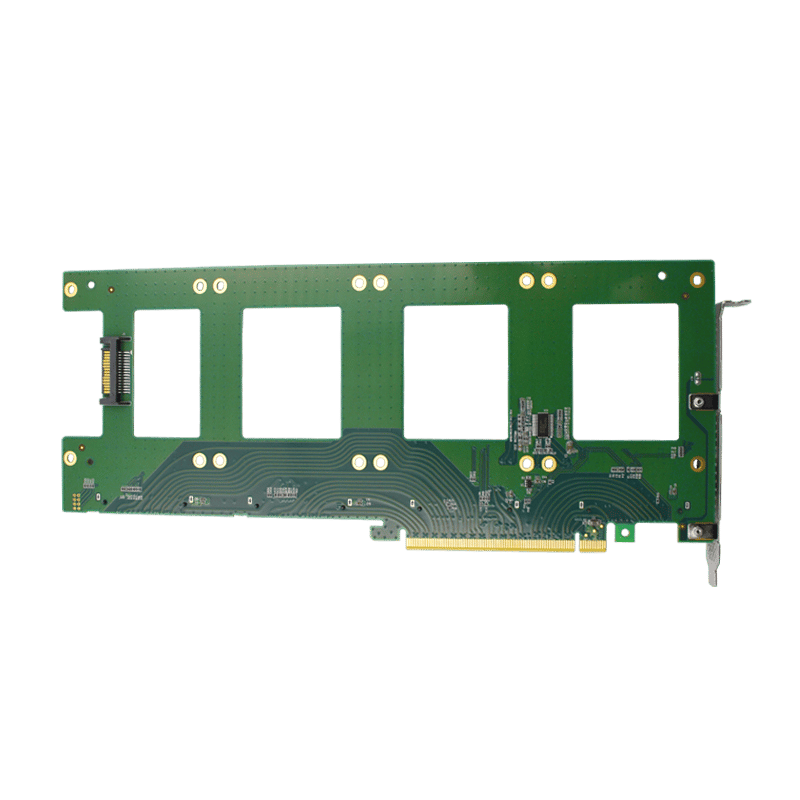

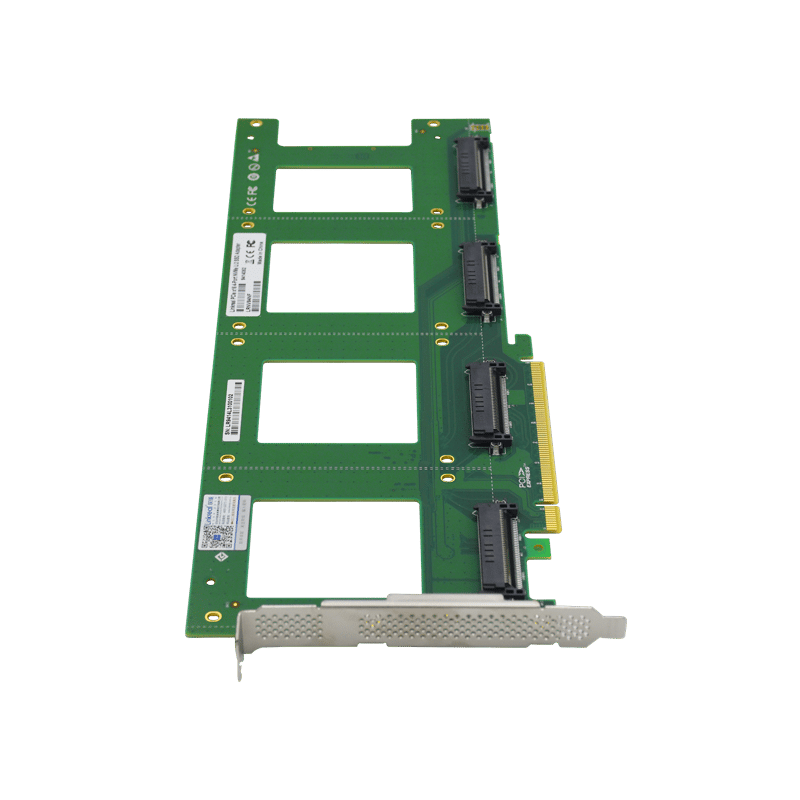

LRNV94NF | 4 xU.2 SFF-8639 To PCIe 3.0 x16 Riser Adapter Card for 2.5" U.2 NVMe SSD |
PS: The above details is just for reference,if there is any change,no inform will have. | |
