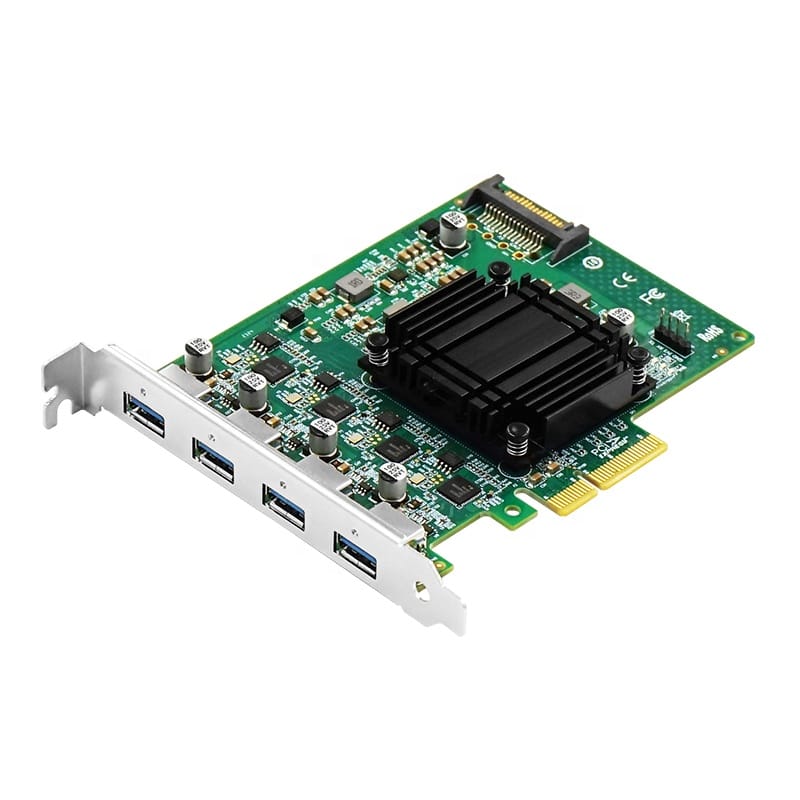

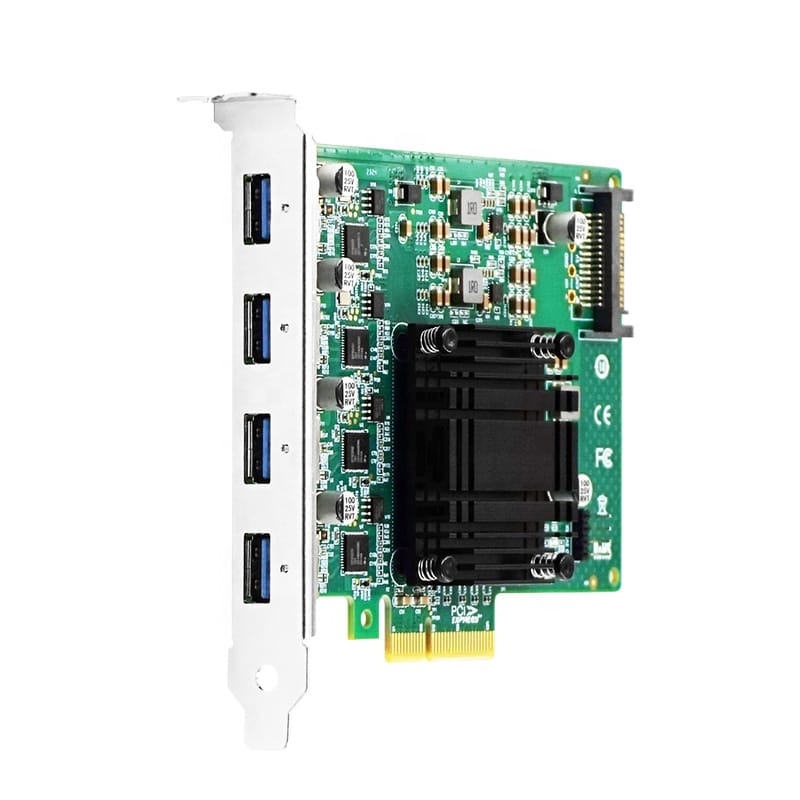

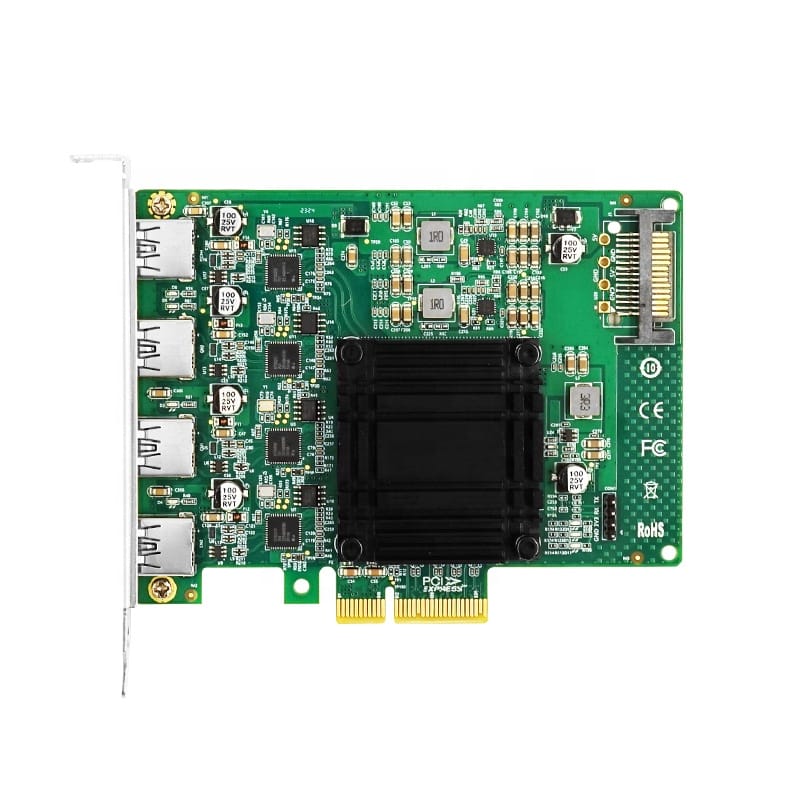

LRSU9A72-4A(3U) PCIe X4 Quad Ports USB3.0 Type-A 5Gb 4*USB3.0 Adapter Expansion Card for Industrial USB Camera

LRSU9A72-4A(3U) PCIe X4 Quad Ports USB3.0 Type-A 5Gb 4*USB3.0 Adapter Expansion Card for Industrial USB Camera

Name: LRSU9A72-4A(3U) PCIe X4 Quad Ports USB3.0 Type-A 5Gb 4*USB3.0 Adapter Expansion Card for Industrial USB Camera
Brand: LR-LINK
SKU: LRSU9A72-4A(3U)
Price: 99.00 USD
Availability: InStock

LRSU9A72-4A(3U)

LR-LINK

Size Guide

0 reviews

0 orders

$99.00

Lv.1

0% OFF

Lv.2

1% OFF

Lv.3

3% OFF

Quantity :

ADD TO CART

More payment options

INQUIRE NOW

ADD TO FAVORITES (0)

Introduction

1.Renesas uPD720202 main control chip, USB3.0 host controller
2.Support 4 USB3.0 ports
3.Up to 4Gbps single channel bandwidth performance
4.Backward compatible with USB2.0 functions and devices
5.PCIe2.0 x4 interface, compatible with slot x8, x16
6.Compliant with USB Link Protocol Revision V1.0
7.Compliant with the Universal Serial Bus USB3.0 specification
8.Support multiple USB devices to run simultaneously
9.Supports Wake-on-LAN for USB keyboard or mouse devices 10.Support USB device hot-swappable independent power supply, stable performance

Description

LRSU9A72-4A(3U)

PCIe x4 4*USB 3.0 Type-A 5Gb USB Adapter Expansion Card For Industrial USB Camera

LRSU9A72-4A(3U) is a PCI Express 2.0 x4 quad-port USB3.0 Type-A 5Gb USB3.0 adapter expansion card developed based on the Renesas uPD720202 master control solution. This USB adapter expansion card can easily expand 4 USB ports to a PC or server to connect multiple external devices such as external storage, external CD/DVD drive, digital camera, printer, webcam through available x4 or higher PCle slot and other equipment. This USB adapter expansion card has a USB 3.0 port with a channel bandwidth of up to 5 Gbps. The design of the LRSU9A72-4A (3U) allows the product to have a single channel bandwidth of 4Gbps, and this port supports hot plugging, allowing users to connect and disconnect external drives as needed during use. The adapter configures the new USB3.0 standard to support data transmission speed ten times faster than the previous generation USB2.0 standard, so that it can quickly and efficiently transfer and backup a large number of photos, music and movies.

Technical Specifications

Complete technical details for integration and deployment planning.

Controller

I/O Controller	Renesas uPD720202

Bus/Interface

Bus Type	PCI-Express 2.0 x4
Compatibility	Compatible with slot x8, x16

Ports

External Port	USB 3.2 Gen1 Type-A
Number of ports	4
Transfer Speed	per channel: 5Gb/s

Protocols

Protocol Support	Universal Serial Bus USB 3.2 Gen1 specification

Features

Feature Support (Yes)	Hot-plugging, Hot-swappable, Independent power supply, Backward compatible with USB 2.0

Environment

Operating Temperature	0℃-85℃ (32℉-185℉)
Storage Temperature	-20℃-70℃ (-4℉-158℉)
Humidity	15%-90%
ESD Contact discharge	±8KV (Class A)
ESD Air discharge	±4KV (Class A)

Power

Min Power	3.648W
Max Power	11.76W

Physical

PCB size	*981241.6 mm*
