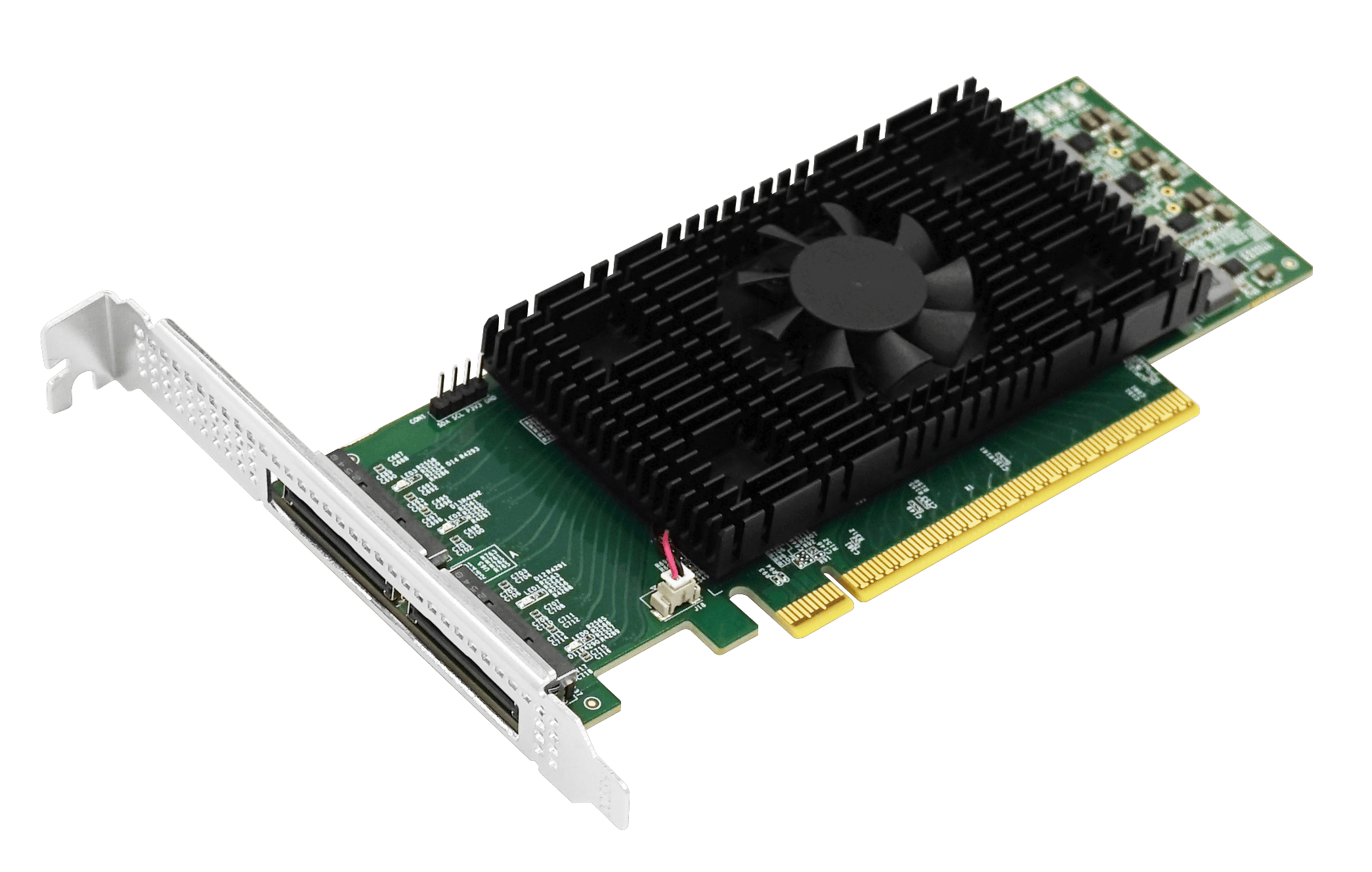

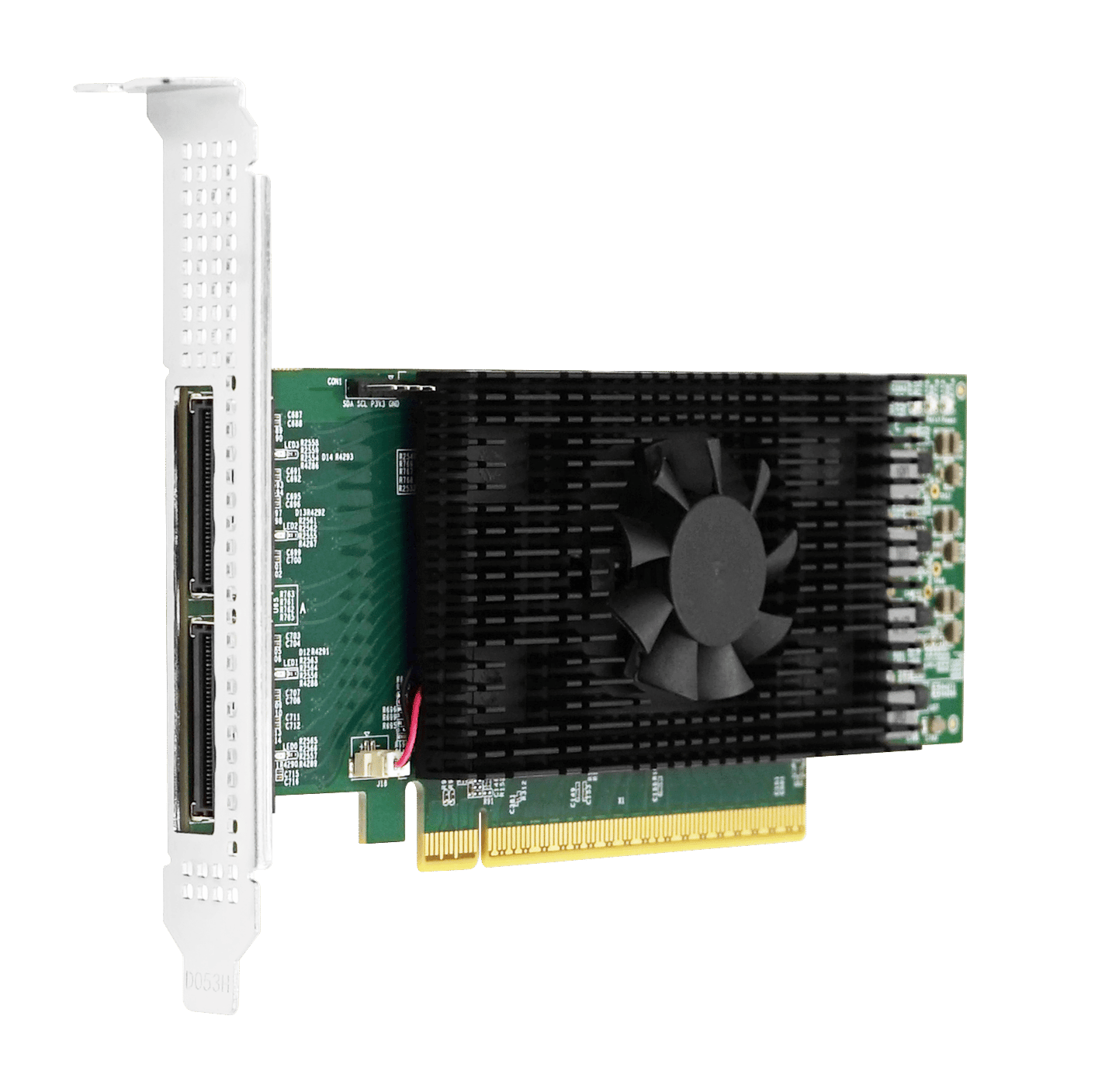

LRSV9570-2E is a PCIe5.0 x16 to external 2* MCIO 8i Retimer Adapter independently developed by Linkreal Co., Ltd.,based on Sillicon Innovation XRET5032 controller. It is equipped with two MCIO 8i connectors, enabling high-speed signal transmission.
LRSV9570-2E is fully compliant with PCIe Gen5/Gen4/Gen3/Gen2/Gen1 standards and supports the Compute Express Link® (CXL) 2.0 protocol. It offers excellent signal integrity and protocol-transparent forwarding capabilities.Supporting multiple lane bifurcation modes, the card can reliably extend PCIe signals from the host platform to external devices via up to two MCIO (Mini Cool Edge IO) 8-lane interfaces. The retimer functionality enhances PCIe signal quality to meet the demands of low-latency, high-bandwidth data transfers.With this expansion card, users can easily connect the host system to multiple external JBOF storage devices, achieving flexible NVMe storageresource expansion and deployment.
Controller
Silicon Innovation XRET5032
Host Connector
PCIe 5.0 x16
Adapter Type
Retimer Expansion Card
Ports & Connectivity
Connectors
MCIO 8i
Port Count
Dual
Link Speed
32GT/s
Lane Bifurcation
Single 16-lane (1x16), Dual 8-lane (2x8), Quad 4-lane (4x4)
LRSV9570-2E - Ports & Connectivity Specifications
Protocol Support
Standards
PCIe Gen5/Gen4/Gen3/Gen2/Gen1, CXL 2.0
LRSV9570-2E - Protocol Support Specifications
Power & Environment
Power (Min)
6.1W
Power (Max)
19.1W
Operating Temp.
-10°C to 55°C
Storage Temp.
-40°C to 70°C
Storage Humidity
Maximum: 90% non-condensing relative humidity at 35°C
