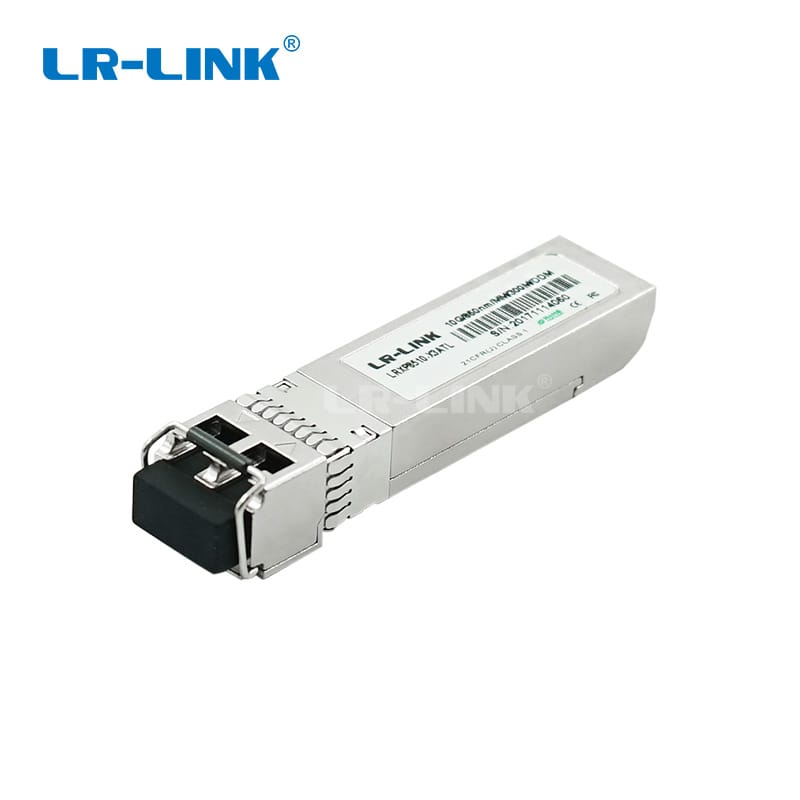

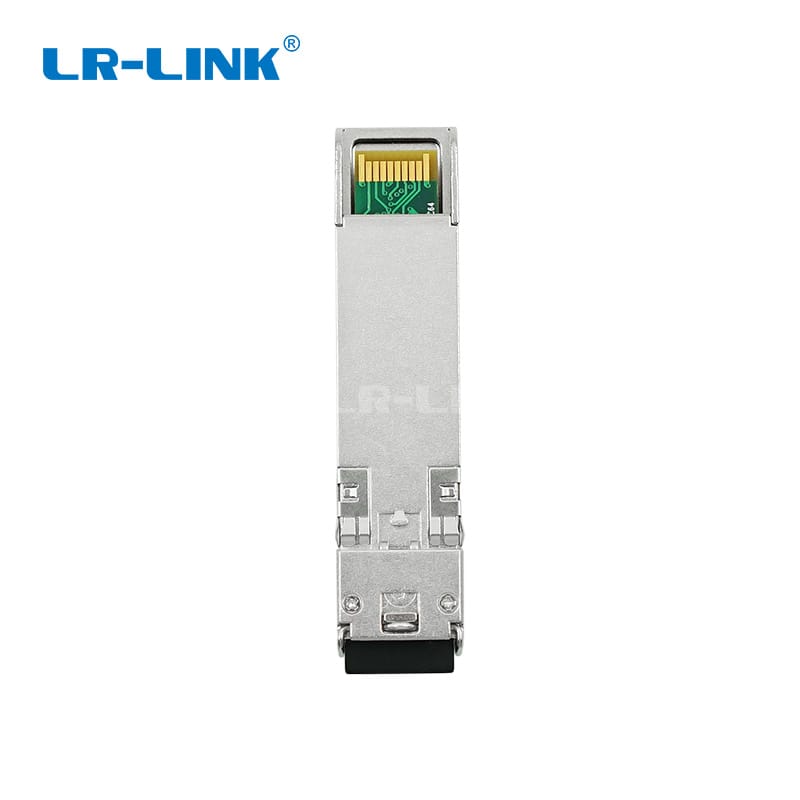

LRXP8510-X3ATL 10G SFP+ multi-mode ethernet fiber module

LR-LINK LRXP8510-X3ATL 10G SFP+ Multimode Ethernet Fiber Optic Module has 10Gb/s transceiver data transmission capability for 10Gb/s Ethernet, which is compliant with the IEEE 802.3ae standard and SFF-8431 standard.
LRXP8510-X3ATL has a transmission distance of up to 300M over SMF. The product realizes digital diagnostic function through 2-wire serial bus, complies with the standard of SFF-8472, and consumes less than 1W of power, which has the advantages of low power consumption, low EMI and excellent ESD protection.

Application
10Gb/s 10G Ethernet
10Gb/s Fibre Channel
10G CPRI

Applications

10GBASE-SR at 10.3125Gbps
10GBASE-SW at 9.953Gbps
Other optical links

Compliant with SFP+ MSA
Compliant with IEEE 802.3ae-2002

Compliant with FDA 21 CFR 1040.10 and 1040.11, Class I except for deviations pursuant

RoHS compliance
