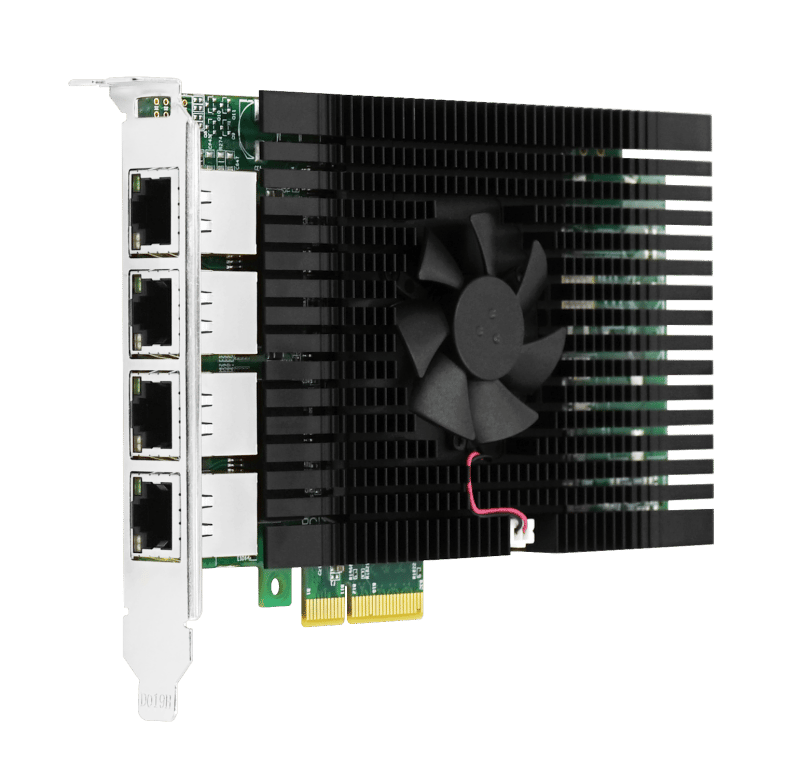

LRES2344PT Quad-port 5G Ethernet network adapter for industrial vision inspection equipment, based on Marvell AQC114

In industrial machine vision systems, transmitting high-resolution images from multiple cameras without frame drops or latency is critical. The LRES2344PT quad-port 5G frame grabber card addresses this challenge by providing four RJ45 ports that each operate at up to 5Gbps, enabling simultaneous connection to four 5GigE cameras and eliminating data bottlenecks.

With a Marvell AQC114 controller and PCIe 3.0 x4 host interface, the adapter ensures efficient data transfer—aggregating up to 20Gbps of throughput—while 16K jumbo frames reduce CPU overhead. The card draws just 17.3W maximum and maintains performance across an operating range of -10°C to 60°C, suiting harsh industrial environments.

Ideal for industrial field visual inspection equipment, visual clients, and fast mobile Ethernet data transmission, the LRES2344PT meets the stability demands of conventional industrial computers. Its support for multiple major operating systems, including Windows and a wide array of Linux distributions, makes it a flexible choice for OEM and end-user deployments.

General

Bus Interface

Protocol Support

Feature Support (Yes)

Power

Physical

Environmental

OS Support

LED Indicators
