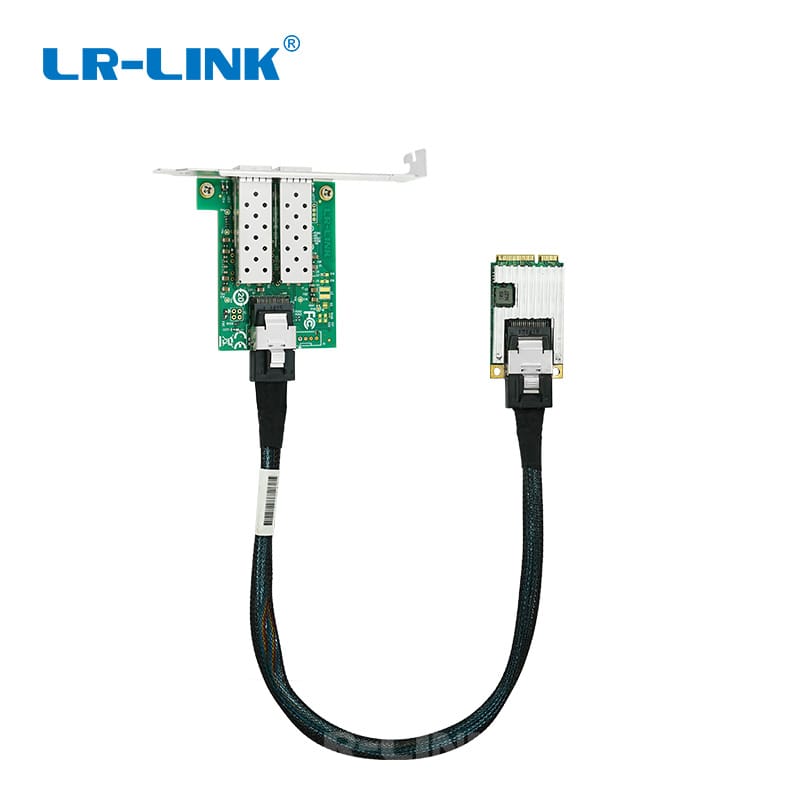

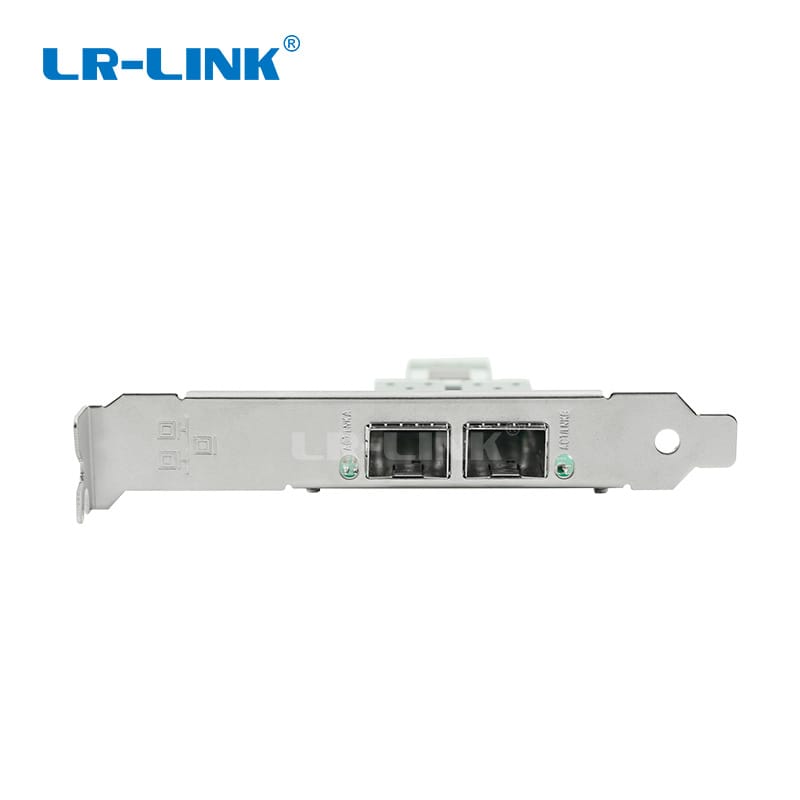

LRES2203PF-2SFP

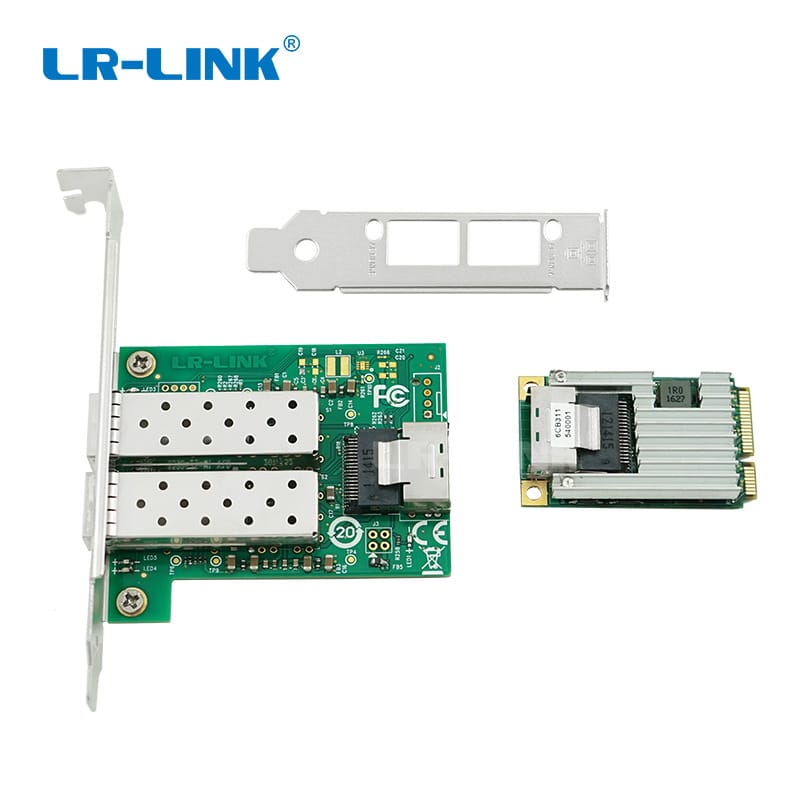

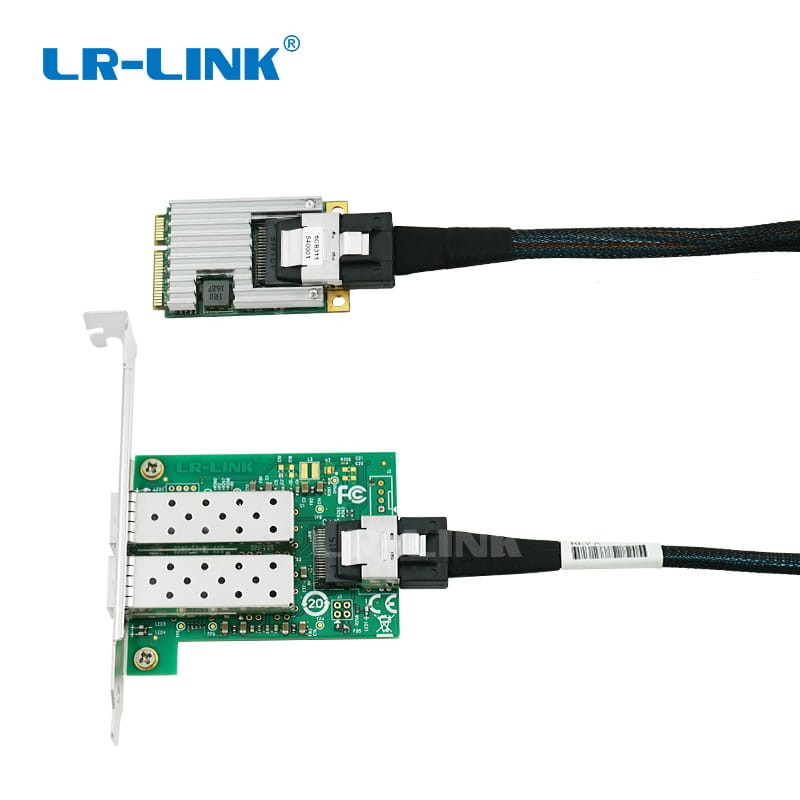

Mini PCIe Dual 2*SFP Ports Gigabit 1000Base-X Ethernet Fiber Mini PCIe Network Card Intel I350 Based
LRES2203PF-2SFP based on Intel I350 controller, is a Mini PCIe dual-port SFP Gigabit Ethernet 2*SFP Mini PCIe Network Card developed by Shenzhen Lianrui Electronics Co., Ltd.
This 2*SFP Mini PCIe Network Card is designed with Mini PCI-e slot and is designed for use on industrial equipment including Mini PCIe interface slots such as industrial PCs and single board machines. It can solve the problem of compact space of equipment. The 2*SFP Mini PCIe Network Card supports a dual port 1000 Mbps link rate.
This 2*SFP Mini PCIe Network Card can be widely used in network equipment such as industrial computer, embedded computer, single board computer, digital multimedia, etc. It can support Windows, Linux and other systems, and has excellent security and stability in complex environments.
Dual Port 1000Mbps 2*SFP Mini PCIe Network Card
Mini PCIe lanes
9 KB jumbo frame support
PXE Support
Flow Control Support
Low Profile and full-Height bracket
Specifications | |
Controller | Intel I350 |
Fiber Medium | 1G SFP |
Fiber Type | 1000Base-SX/1000Base-LX/ SFP |
Bracket | Low Profile and Full-height Bracket |
Power(max) | 3W |
Operating System Support | Windows XP |
Windows 7 | |
Windows Vista | |
Windows 8/8.1 | |
Windows 10 | |
Windows Server 2003 | |
Windows Server 2008 | |
Windows Server 2008 R2 | |
Windows Server 2012 | |
Windows Server 2012 R2 | |
Windows Server 2016 | |
Windows Server 2016 R2 Core | |
Linux Stable kernel version 2.4.x/2.6.x/3.x/4.x or later | |
RHEL/CentOS 5.x/6.x/7.x or later | |
Linux SLES 11 SP3 / SLES 12 or later | |
FreeBSD 9 / 10 / 11 or later | |
VMware ESX/ESXi 4.x/5.x/6.x or later | |
Connector | 2*SFP |
PCIe Bus | Mini PCI Express |
Transmission Rate | 1000Mbps |
Technical Parameters | |
IEEE Standard | IEEE802.3ad IEEE 802.1p IEEE 802.1Q VLANs |
PXE | Yes |
DPDK | Yes |
Jumbo Frame | Yes |
iSCSI | No |
FCoE | No |
WOL | No |
Environment Features | |
Operating Temperature | 0 ℃ to 55 ℃(32 ℉ to 131 ℉) |
Storage Temperature | -40 ℃ to 70 ℃ (-40 ℉ to 158 ℉) |
Storage Humidity | 90% non condensing under 35℃ |
Certification | FCC B, UL, CE, VCCI, BSMI, CTICK, MIC |
LED | |
LED | 1000Mbps:Green + Green Blink |
Physical Features | |
PCB size(mm) | 51*30*1.0(M) |
Weight(g) | 35 |
Ordering Information
| P/N | Description | Noted |
| LRES2203PF-2SFP | Mini PCIe Dual 2*SFP Ports Gigabit 1000Base-X Ethernet Fiber Mini PCIe Network Card | Base on Intel(R) I350,3U/2U bracket |
PS: Above details are only for reference, if there are any changes, no inform will have.
