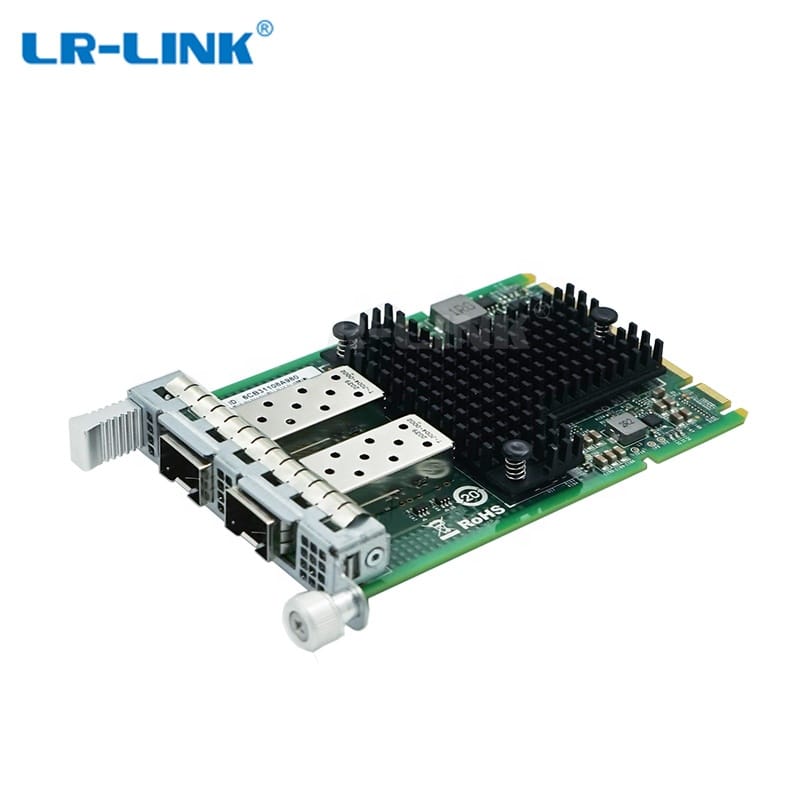

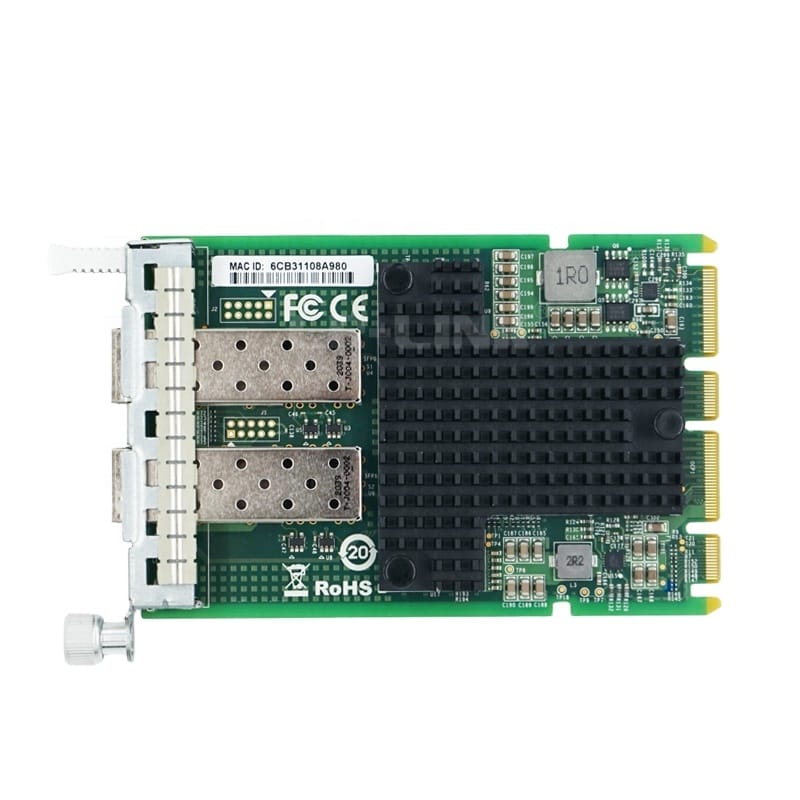

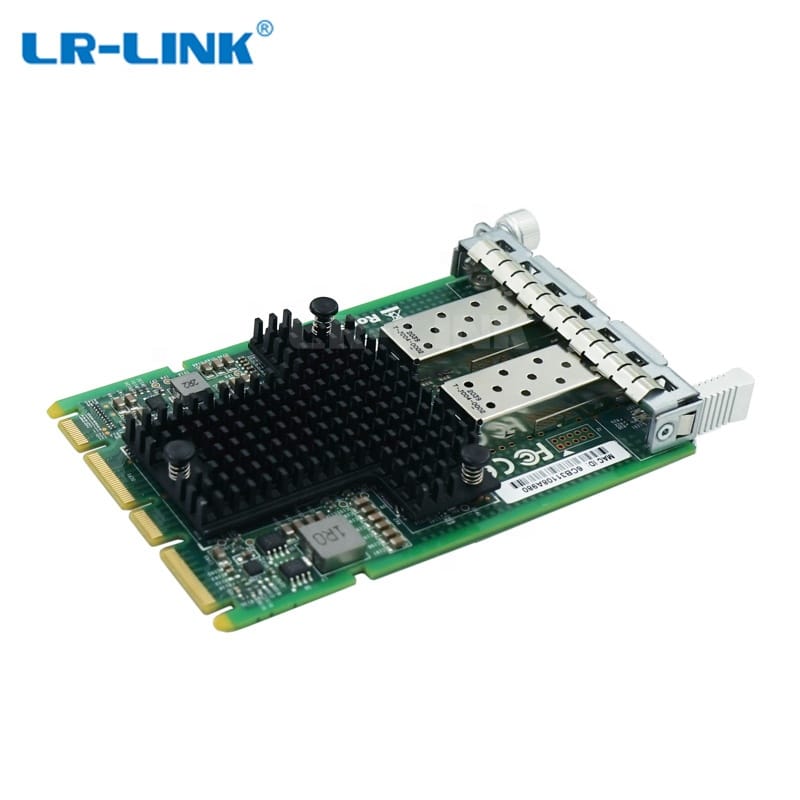

LRES3012PF-OCP OCP 3.0 Dual-port Mezzanine 10G SFP+ Ethernet Network Adapter (Intel 82599)
Zoomed Image
OCP 3.0 Dual-port Mezzanine 10G SFP+ Ethernet Network Adapter (Intel 82599)
OCP 3.0 Dual-port Mezzanine 10G SFP+ Ethernet Network Adapter (Intel 82599)
OCP 3.0 Dual-port Mezzanine 10G SFP+ Ethernet Network Adapter (Intel 82599)

LRES3012PF-OCP OCP 3.0 Dual-port Mezzanine 10G SFP+ Ethernet Network Adapter (Intel 82599)

LRES3012PF-OCP

$128.00
Lv.1 Lv.1
0% OFF
Lv.2 Lv.2
1% OFF
Lv.3 Lv.3
3% OFF
Quantity :
-
1
+
Introduction
1. Small size (SFF) panels in accordance with OCP 3.0 design specification.
2. It supports fault tolerance and redundancy by bundling and aggregating multiple ports to ensure network performance and expand network bandwidth. It can implement real-time self detection and route the communication from the fault port to other members in the same group to continue running to achieve uninterrupted high-performance communication.
3. In addition to stateless offloading, the adapter card can also distribute the network traffic to the CPU core, which improves the network throughput.
4. It is applied to meet the needs of current and long-term server market for network traffic and data diversion, processing and virtualization, big data computing and cloud computing.

OCP 3.0 Dual-port Mezzanine 10G SFP+ Ethernet Network Adapter (Intel 82599)
OCP 3.0 Dual-port Mezzanine 10G SFP+ Ethernet Network Adapter (Intel 82599)
OCP 3.0 Dual-port Mezzanine 10G SFP+ Ethernet Network Adapter (Intel 82599)

Description

LRES3012PF-OCP Dual Port 10 Gigabit Ethernet Network Cards OCP 3.0 Network Adapter SFP+ Network Card

LRES3012PF-OCP is a OCP 3.0 dual-port fiber ethernet network mezzanine card developed by Shenzhen Lianrui Electronics Co., Ltd. on the basis of Intel chip, using a physical board size in accordance with OCP 3.0 design specifications, small size (SFF) structure.
The fit card meets the needs of the next generation of data centers by providing features for server and network virtualization technologies. Provide reliable performance on flexible LAN and SAN networks. The fit card has a flexible dual-port 10GbE link rate on a SFF structure.
This adaptive card enables fault tolerance and redundancy in groups through multiple port bundles at the same time to guarantee network performance and extend network bandwidth, enables real-time self-detection, and enables the routing of traffic from failed ports to other members of the same group to continue to operate for uninterrupted, high-performance communication. In addition to stateless uninstall, the adaptive card can also be distributed over network traffic to the CPU core, improving the throughput of the network.
The LRES3012PF-OCP server fit card is designed to perform well in multiprocessor systems. It is used to meet the needs of the current and longer-term server market for network traffic and data se throughout, processing and virtualization and big data computing, cloud computing, etc.
Controller
Intel Chipset
Bracket
*
Power Consumption
8.0W
System Support
Windows 7/8/8.1/10
Windows Server 2003 R2/2008 R2/2012 R2/2016 R2/2019 R2;
Linux Stable Kernel version 2.6.32.x/3.x/4.x/5.x or later;
CentOS/RHEL 6.x / 7.x or later;
Ubuntu 14.x/15.x/16.x or later;
VMware ESX/ESXi 4.x/5.x/6.x or later

Bus Type
OCP3.0 SFF
Data Rate
10G
Connector
2*SFP+
Technical Features
Standards Compliant
IEEE802.3ae 10 Gigabit Ethernet over fiber
IEEE 802.3x Full Duplex and flow control
IEEE 802.1AS
IEEE 802.1Q VLAN
IEEE 802.3AD
IEEE 1588
IEEE 802.3az - Energy Efficient Ethernet (EEE)
PXE
Yes
DPDK
Yes
Jumbo Frames
Yes
iSCSI
Yes
FCoE
Yes
WoL
No
Environment Features
Operating Temperature
 0 ℃ to +55 ℃ (-40 ℉ to +131 ℉)
Storage Temperature
--55 ℃ to +105 ℃ (-67 ℉ to +221 ℉)
Storage Humidity
Maximum: 90% non-condensing relative humidity at 35 ℃
Physical Features
Size (mm ±1.0mm)
115*76
Weight (g)

*
LED Indicators
LED Indicators
10000Mbps, Yellow Link + Green Blink
Order Information
P/N
Description
LRES3012PF-OCP
OCP 3.0 Dual-port Mezzanine 10G SFP+ Ethernet Network Adapter (Intel 82599 Based)
PS: Above details are only for reference, if there is any change,no prior notice.
