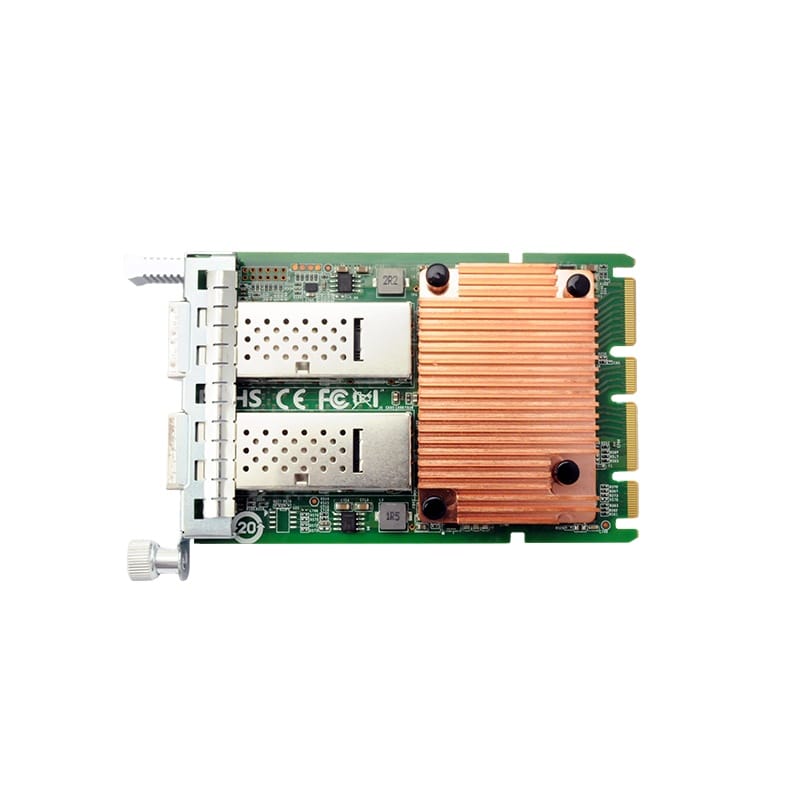

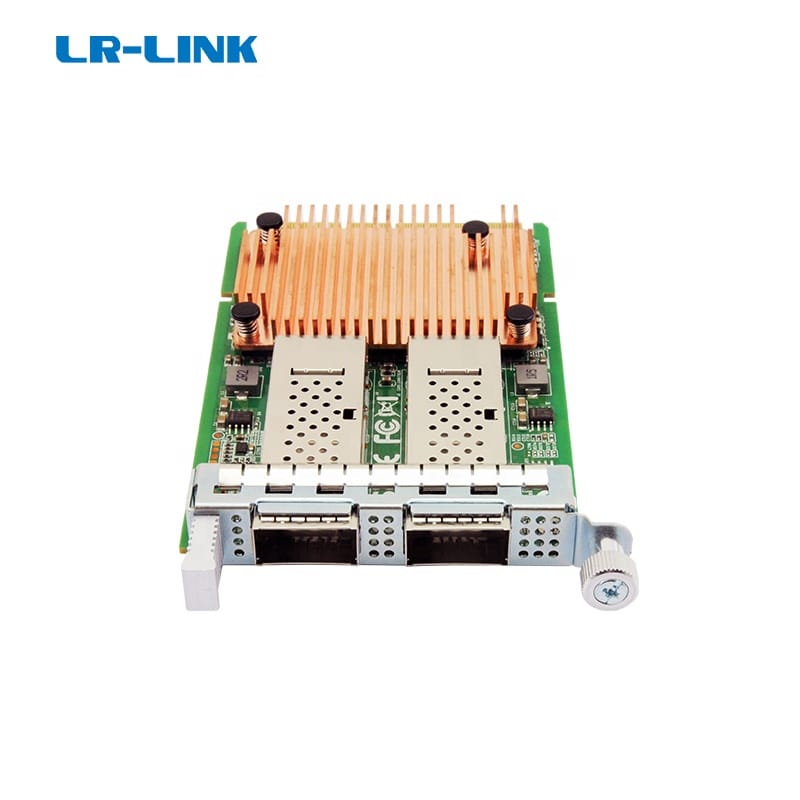

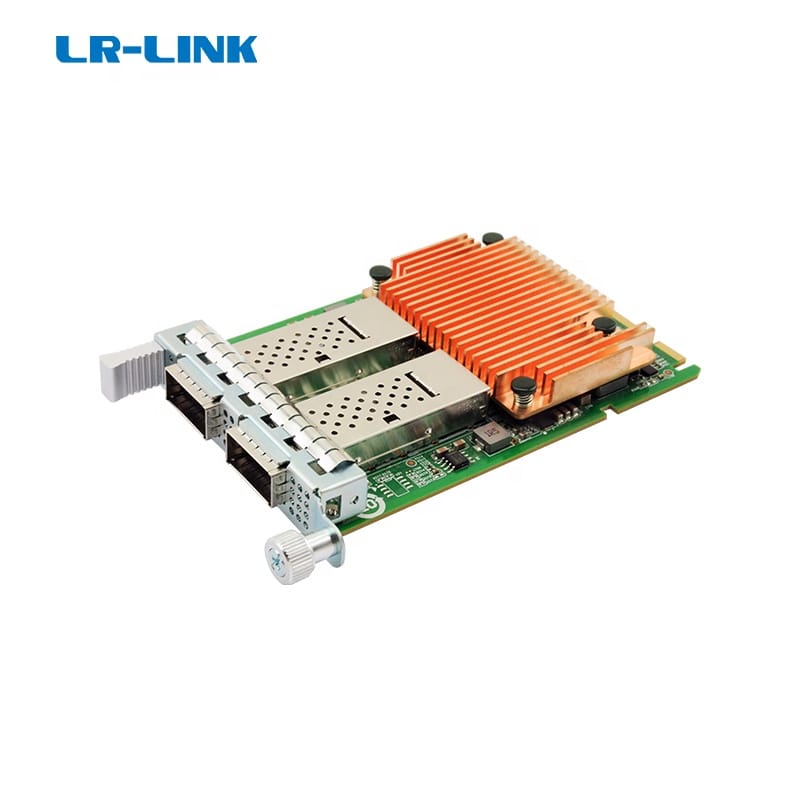

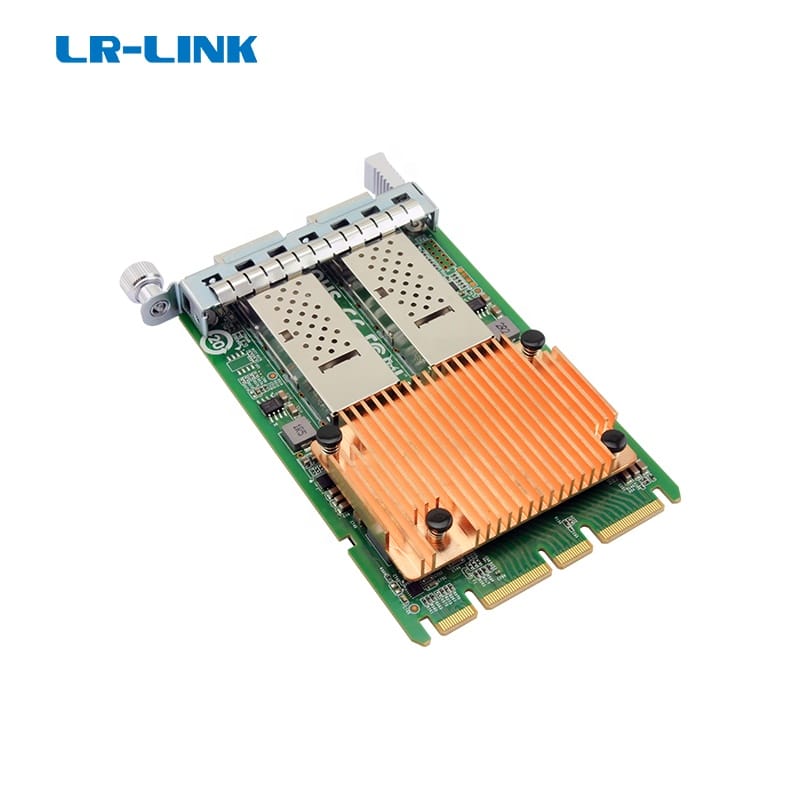

LRES3026PF-OCP OCP3.0 SFF Dual-Port QSFP28 100GbE OCP3.0 Mezzanine Ethernet Network Adapters

LRES3026PF-OCP OCP3.0 SFF Dual-Port QSFP28 100GbE OCP3.0 Mezzanine Ethernet Network Adapters

Name: LRES3026PF-OCP OCP3.0 SFF Dual-Port QSFP28 100GbE OCP3.0 Mezzanine Ethernet Network Adapters
SKU: LRES3026PF-OCP
Price: 618.00 USD
Availability: InStock

LRES3026PF-OCP

0 reviews

0 orders

$618.00

Lv.1

0% OFF

Lv.2

1% OFF

Lv.3

3% OFF

Quantity :

ADD TO CART

More payment options

INQUIRE NOW

ADD TO FAVORITES (0)

Introduction

1. An OCP3.0 SFF dual-port 100GbE Network Adapter;
2. NVMe support for Fabric TCP via technology, as well as optional support for RDMA's iWARP and RoCEv2 features;
3, the application queue technology function to ensure that each application can request belongs to its own queue, with up to 100Gbps transmission speed;
4, can be widely used in high-throughput data center service, cloud computing, storage and other network equipment can handle a variety of workloads, in the actual operation combined with the use of program queue can reduce application delay and improve throughput;
5. Using EPCT's multi-function port configuration technology, the adapter can be configured for multiple rates.

Description

LR-LINK Brand LRES3026PF-OCP OCP3.0 SFF Dual-Ports QSFP28 100GbE OCP3.0 Mezzanine Ethernet Network Adapters

LRES3026PF-OCP is an OCP3.0 SFF dual port 100G Ethernet Mezzanine Network Adapter by Shenzhen Lianrui Electronics Co., LTD based on Intel E810 chip. This is complemented by hardware-accelerated packet processing extensions and the introduction of application queuing technology, which enables NVMe support for Fabric TCP, as well as optional support for RDMA's iWARP and RoCEv2 capabilities. The OCP3.0 100GbE Network Adapter launched by Shenzhen Lianrui Electronics Co., LTD. The application queue technology function of the optical fiber network card ensures that each application can request its own queue, that is, the data between each other is no longer confused, with up to 100Gbps interface speed, It can be widely used in network devices such as data center service, cloud computing and storage with high throughput and can handle various workloads. In practical operation, it can reduce application delay and improve throughput by using program queue. The OCP3.0 100GbE Network Adapter provides scalable ADQ technology to improve the performance scalability and predictability of critical workloads by dedicating specific resources to critical workloads. ADQ implements application-specific data control, information, and rate limiting using optimized application thread to device data paths.

1. An OCP3.0 SFF dual-port 100GbE Network Adapter;

2. NVMe support for Fabric TCP via technology, as well as optional support for RDMA's iWARP and RoCEv2 features;

3, the application queue technology function to ensure that each application can request belongs to its own queue, with up to 100Gbps transmission speed;

4, can be widely used in high-throughput data center service, cloud computing, storage and other network equipment can handle a variety of workloads, in the actual operation combined with the use of program queue can reduce application delay and improve throughput;

5. Using EPCT's multi-function port configuration technology, the adapter can be configured for multiple rates.

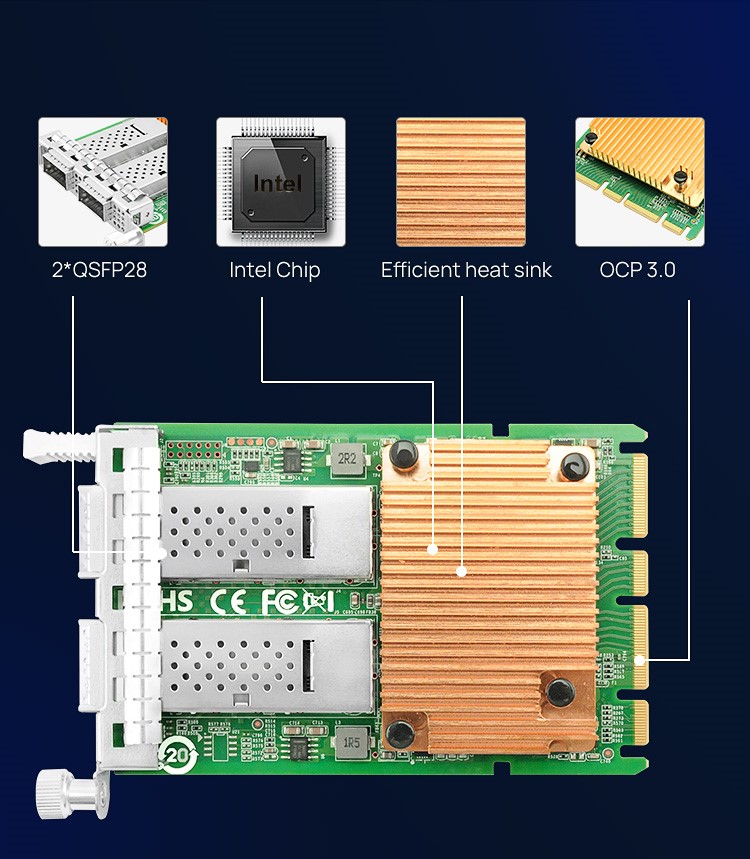

Controller	Intel E810 Chipset
Bracket	*
Power Consumption	DAC, 19.2W；Fiber, 27.1W
System Support	Windows Server 2016 R2/2019 R2/2022 R2 Linux SLES 12.x or later CentOS / RHEL 7.x or later Ubuntu 16.x or later FreeBSD 11.x/12.x or later Linux Stable Kernel version 3.10.x/4.x or later
Bus Type	OCP 3.0 SFF
Data Rate	10/25/50/100GbE
Connector	4*QSFP28

Technical Features
Standards Compliant	IEEE 802.3bj 100GBASE Ethernet IEEE 802.3x Full Duplex and flow control IEEE 802.3az Energy Efficient Ethernet (EEE) IEEE 802.3AS IEEE 802.1Q VLAN IEEE 802.1Qaz IEEE 802.1Qbb IEEE 802.1x IEEE 802.1bd IEEE1588 v1&v2
PXE/UEFI	Yes
iSCSI	No
FCoE	No
DPDK	Yes
Jumbo Frames	Yes
RDMA（iWARP、RoCEv2）	Yes
Network virtualization	SR-IOV, VxLAN, GENEVE, GRE

Environment Features
Operating Temperature	0 ℃ to 60 ℃ (32 ℉ to 140 ℉)
Storage Temperature	-40 ℃ to 70 ℃ (-40 ℉ to 158 ℉)
Storage Humidity	Maximum: 90% non-condensing relative humidity at 35 ℃

Physical Features
Size (mm ±1.0mm)	115*76
Weight (g)	*

LED Indicators
LED Indicators	100Gbps, Yellow Blink + Green Link (For reference)
	25/50Gbps, Green Blink + Green Blink (For reference)
	10Gbps, Yellow Blink (For reference)

Order Information
P/N	Description

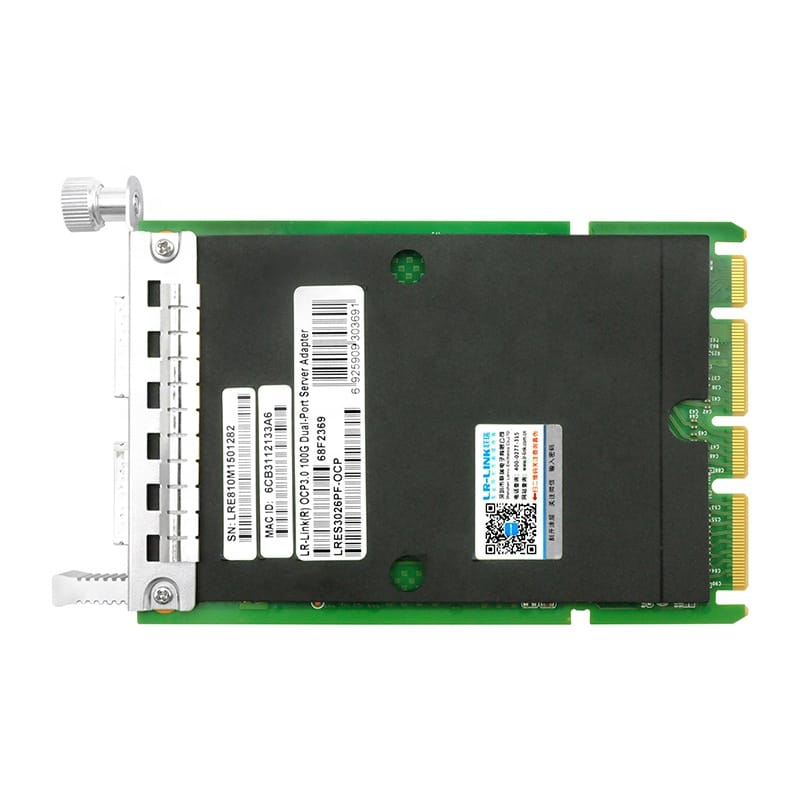

LRES3026PF-OCP	OCP3.0 Dual-port 100G QSFP28 Ethernet Network Adapter (Intel E810 Chip Based)
PS: Above details are only for reference, if there is any change,no prior notice.
