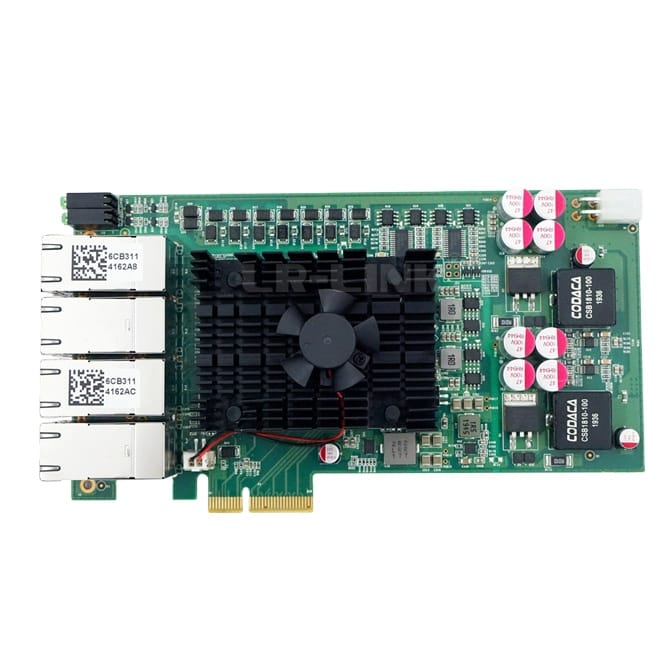

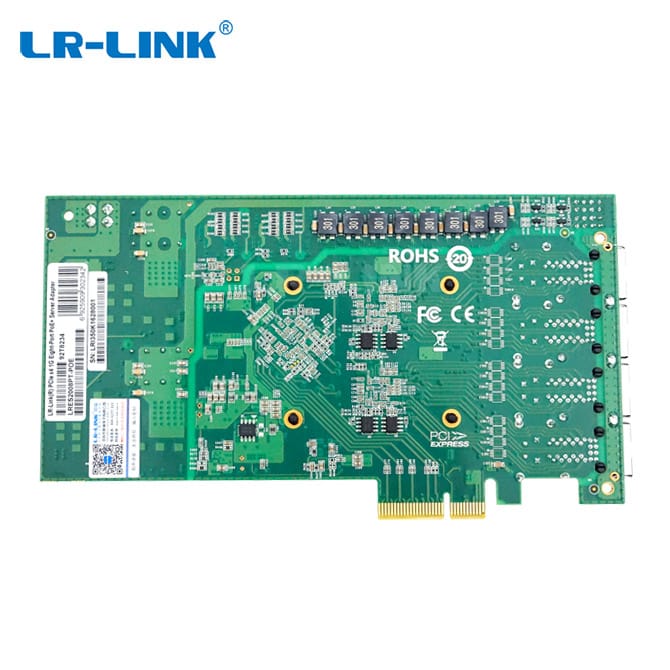

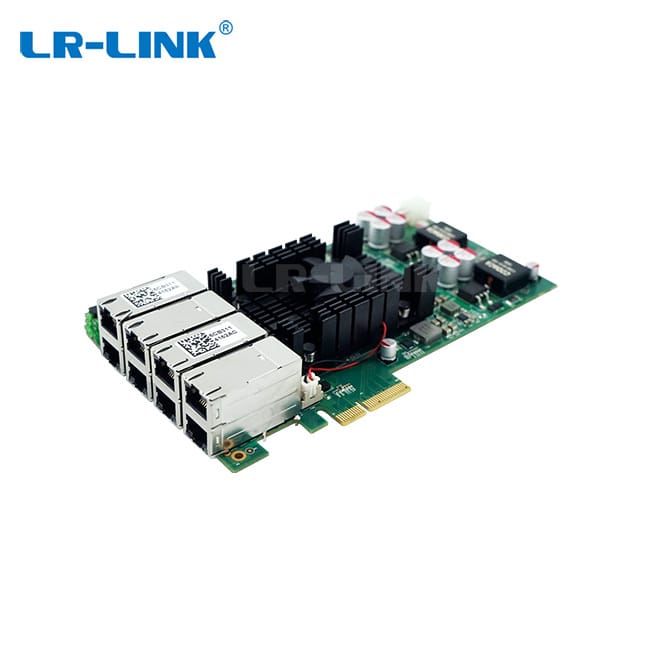

LRES2008PT-POE PCI Express X4 Gigabit 8-port RJ45 PoE Frame Grabber GigE Camera Machine Vision

LRES2008PT-POE is a PCI Express x4 eight-port PoE + Gigabit Ethernet image acquisition card independently developed by Shenzhen Linkreal Co., Ltd. based on the Intel I350 chip solution, and is compatible with PCIe x8 and x16 channels. The server adapter card design is mainly designed for industrial field visual inspection servers and equipment, visual field clients, fast mobile Ethernet data transmission equipment, etc., and is also suitable for ordinary servers.

This adapter card has integrated hardware acceleration function and can perform TCP / UDP / IP checksum offload and TCP segmentation tasks. The host processing technology can offload the accelerator, and the host processing technology can offload the accelerator, freeing up CPU resources to free up more CPU resources to process other applications. This adapter card is an ideal solution for deploying multiple networks and deploying critical network applications and environments on high-performance servers.

LRES2008PT-POE was developed based on the Intel I350 Ethernet MAC + PHY (Media Access Controller and Physical Interface Transceiver) controller, which can allow eight ports to be fully dual at the same time in the highest Gigabit Ethernet connection The work mode of the worker works to adapt to high-performance network communication, which can expand the bandwidth through link aggregation and save PCI Express channel resources, while not occupying the bus bandwidth.

PCIe x4 Quad-port 802.3at PoE+ Gigabit Vision Frame Grabber Card (Intel I350): LRES2004PT-POE
