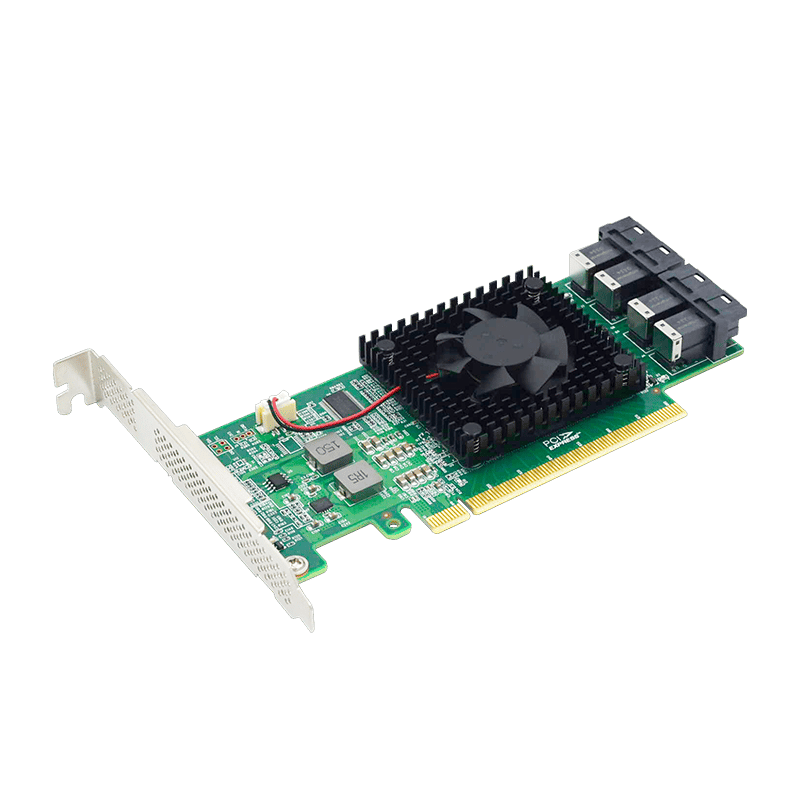

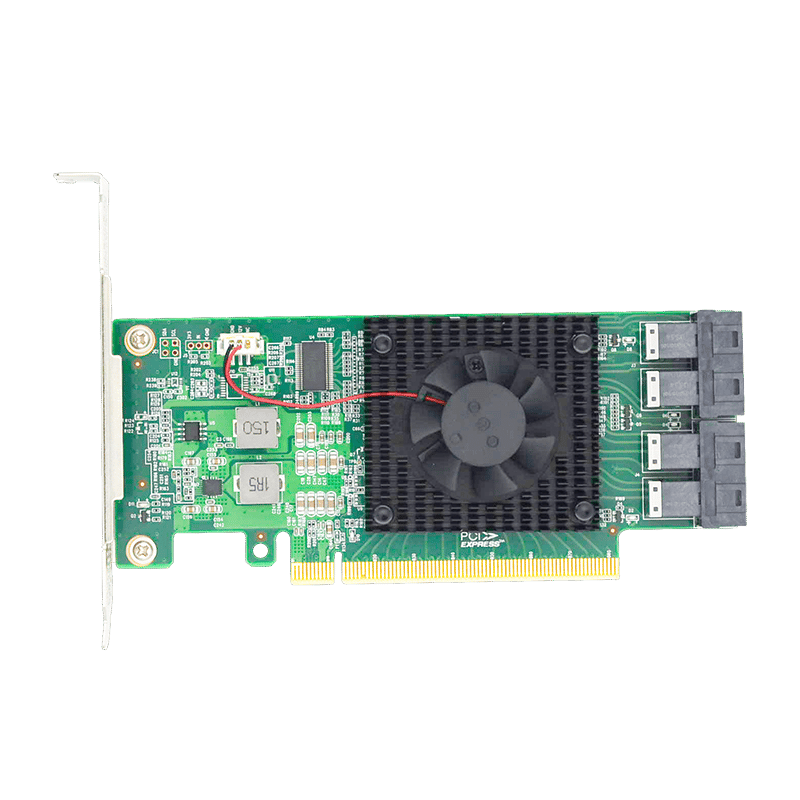

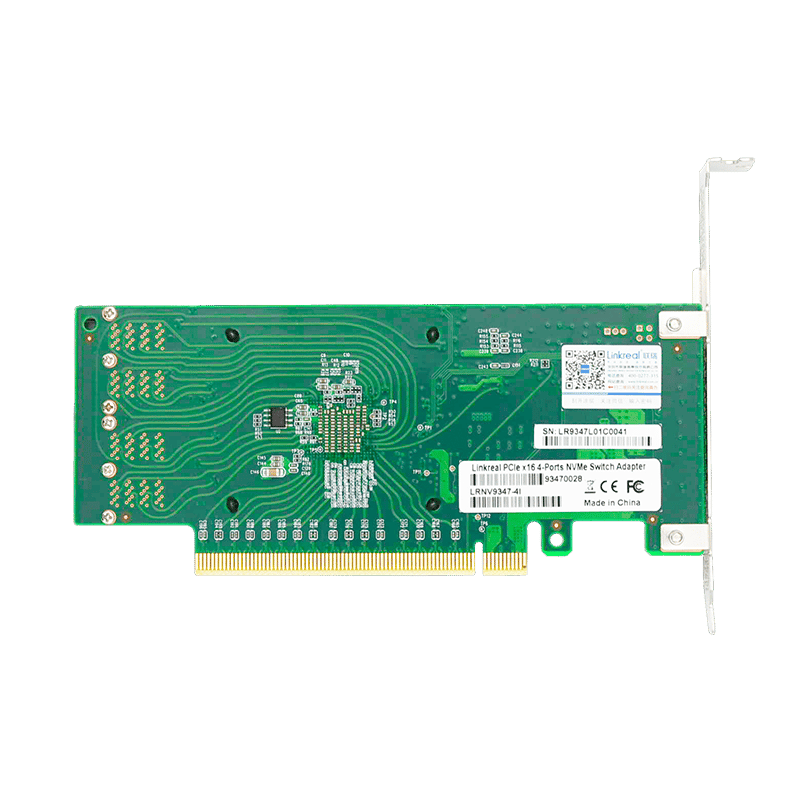

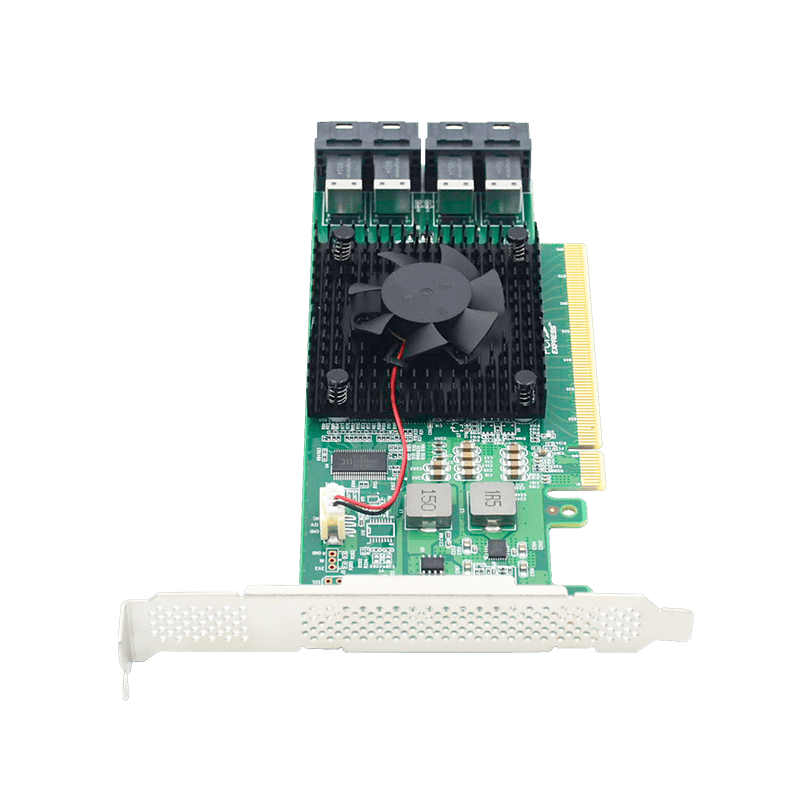

LRNV9347-4I PCIe 3.0 X16 to 4 Port SFF-8643 U.2 NVMe SSD Adapter

LRNV9347-4I NVMe Adapter is PCI Express x16 Gen3 PCIe switch Card. It allows us to connect 4x U.2 device at full speed to a host system, and it expands the maximum storage of the 4 U.2 SSD via scalable, high-bandwidth, non-blocking interconnection to a wide variety of graphics applications including servers, storage, communications, and graphics platforms. It is optimized to support high-resolution graphics while supporting peer-to-peer traffic and multicast for maximum performance. Functional Characteristics * Compliant PCI Express Base Specification, r3.0 (compatible w/ PCIe r1.0a/1.1&2.0).
* Compliant with PCI Power Management Spec, r1.2.
* Microsoft Vista Compliant.
* Supports Access Control Services.
* High Performance. Non-blocking switch fabric, Full line rate on all ports.
* Quality of Service. Eight traffic classes per port.
* Reliability, Availability, Serviceability.
* Supports PCIe NVME ports.

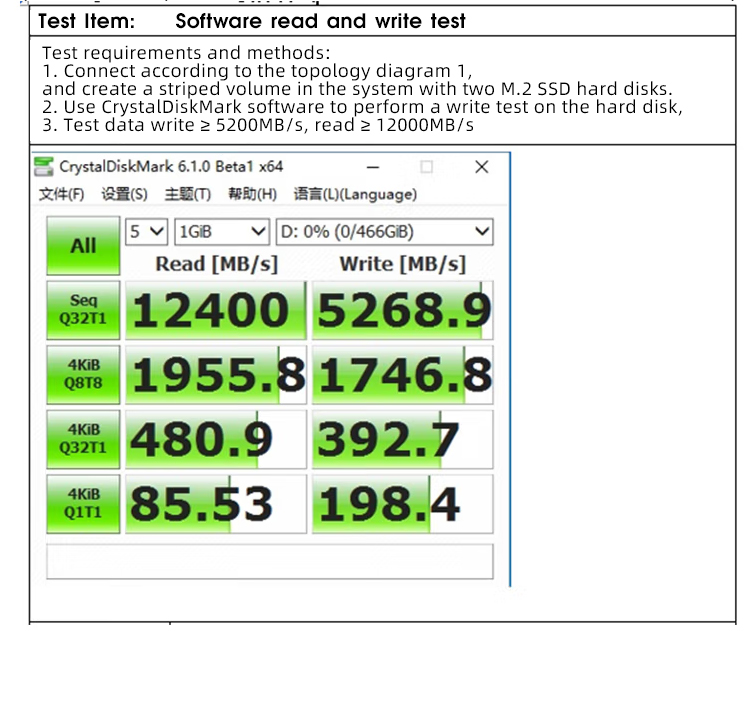

* The PCIe transfer rate up to 128Gb/s and the SSD transfer rate up to 32Gb/s. Applications Suitable for NVMe SSD support PCI Express, it can get the maximum bandwidth and transfer rate while the 4 U.2 NVMe SSD running at the same time.
