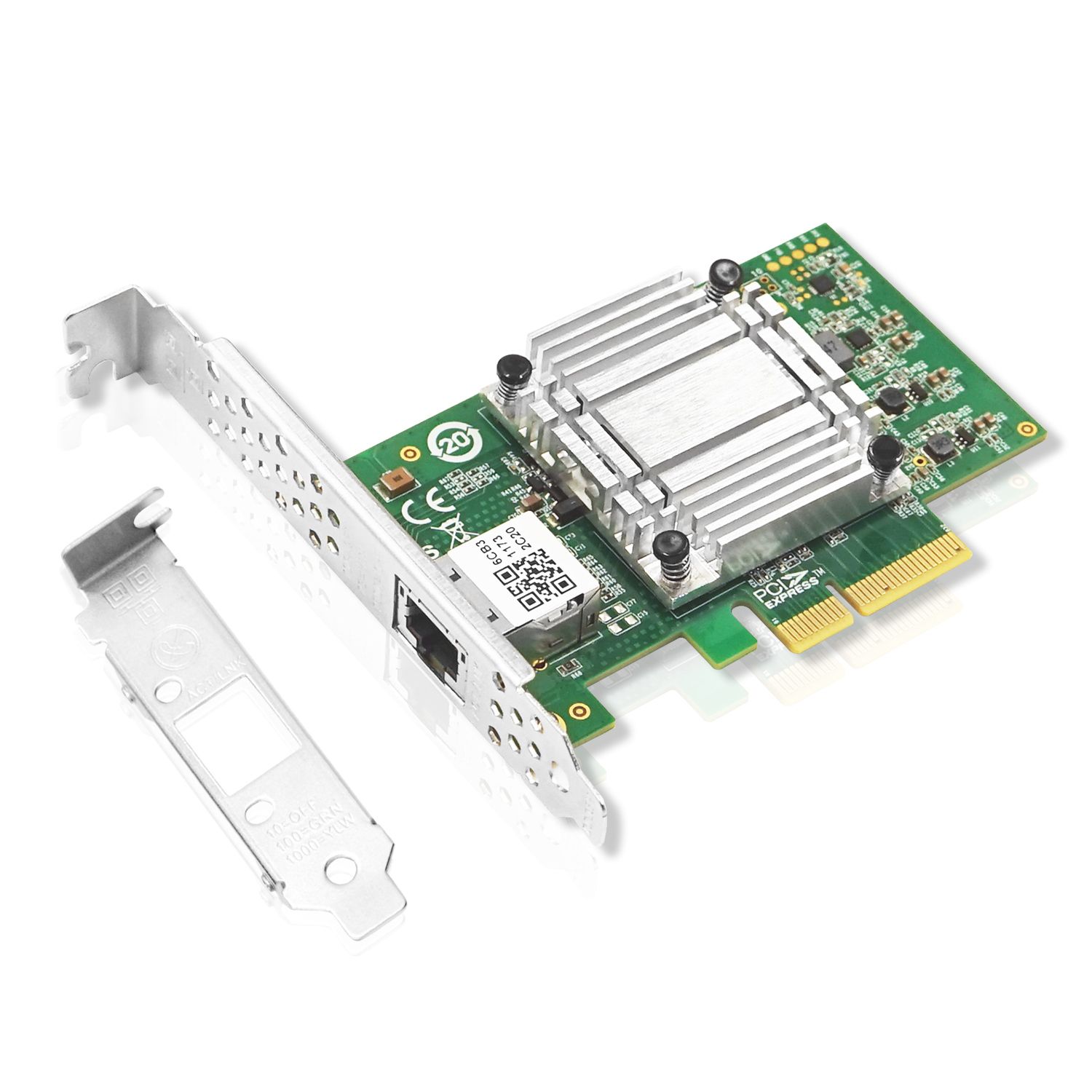

LRES2051PT is a single-port 10G Ethernet network adapter developed by Linkreal Co., Ltd based on the Marvell AQC113 master control scheme. This adapter is compatible with PCIe x8 and x16 channels and is a high-performance six-speed adapter that provides power and space-efficient connections for client systems while the universal PCIe v3.0 x4 interface provides better flexibility.
LRES2051PT is compatible with IEEE 802.3an & IEEE 802.3 bz standards and can achieve 10GBASE-T, 5GBASE-T, 2.5GBASE-T, 1000BASE-T, 100BASE-TX, and 10BASE-T transmission on 10-meter twisted pair wiring. The product has excellent ESD anti-static performance and supports jumbo frames up to 16 KB, which can fully utilize the Ethernet performance of the network adapter and improve data transmission efficiency.
Jumbo Frame Transfer PCIe x4 dual-port 10G Ethernet Network Adapter: LRES1042PT
Model | LRES2051PT | |
Controller | Marvell AQC113 | |
Cable medium | Copper | |
Copper Cable Type | 10GBASE-T/5GBASE-T/2.5GBASE-T/1000BASE-T/100BASE-T/ 10BaseT | |
Bracket Height | Low Profile & Full Height | |
Power (min) | 1.2177 W | |
Power (max) | 2.805W | |

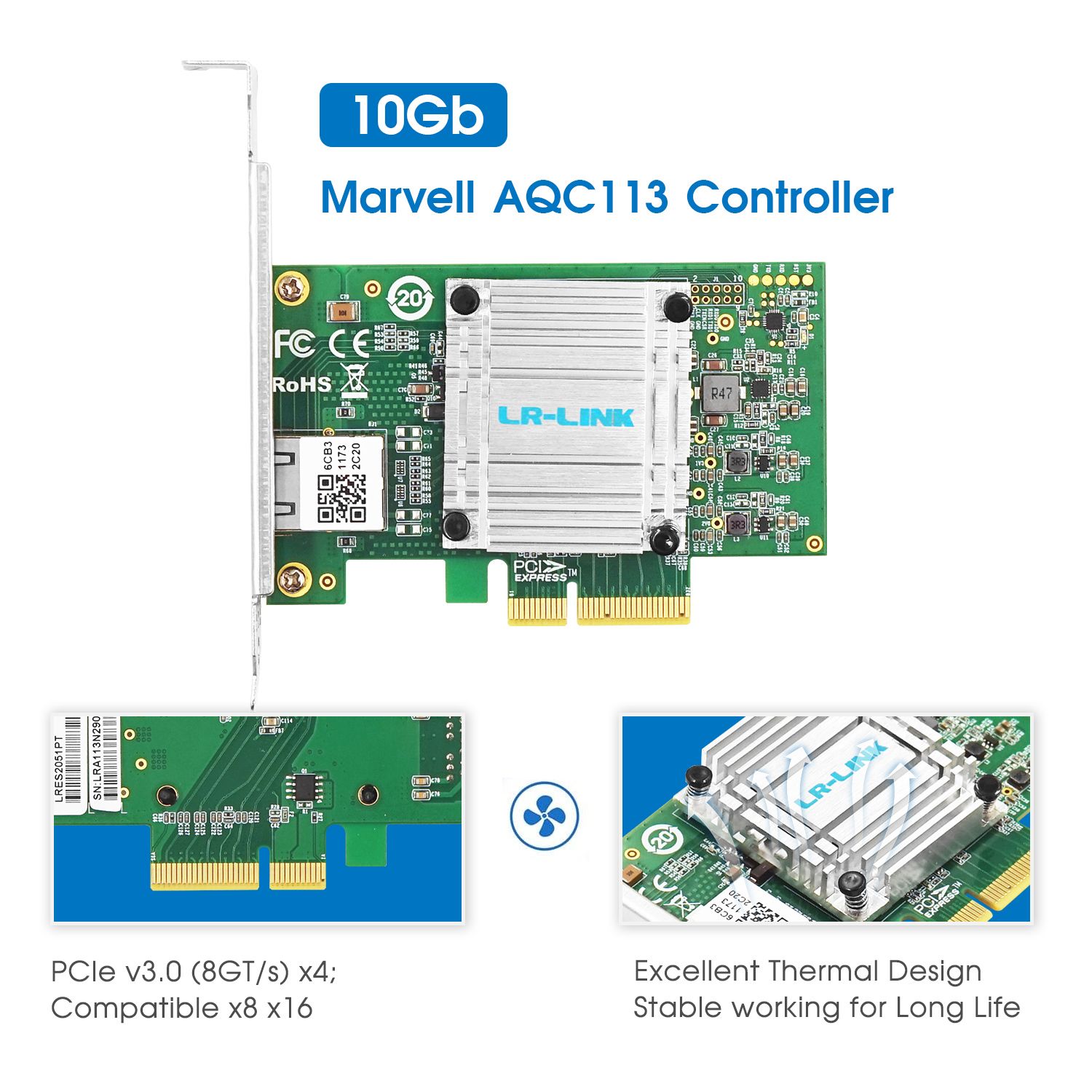

Bus Interface | PCIe v3.0 (8GT/s) x4; Compatible x8 x16 | |
Data rate per port | 10G /5G /2.5G /1G /100M /10M | |

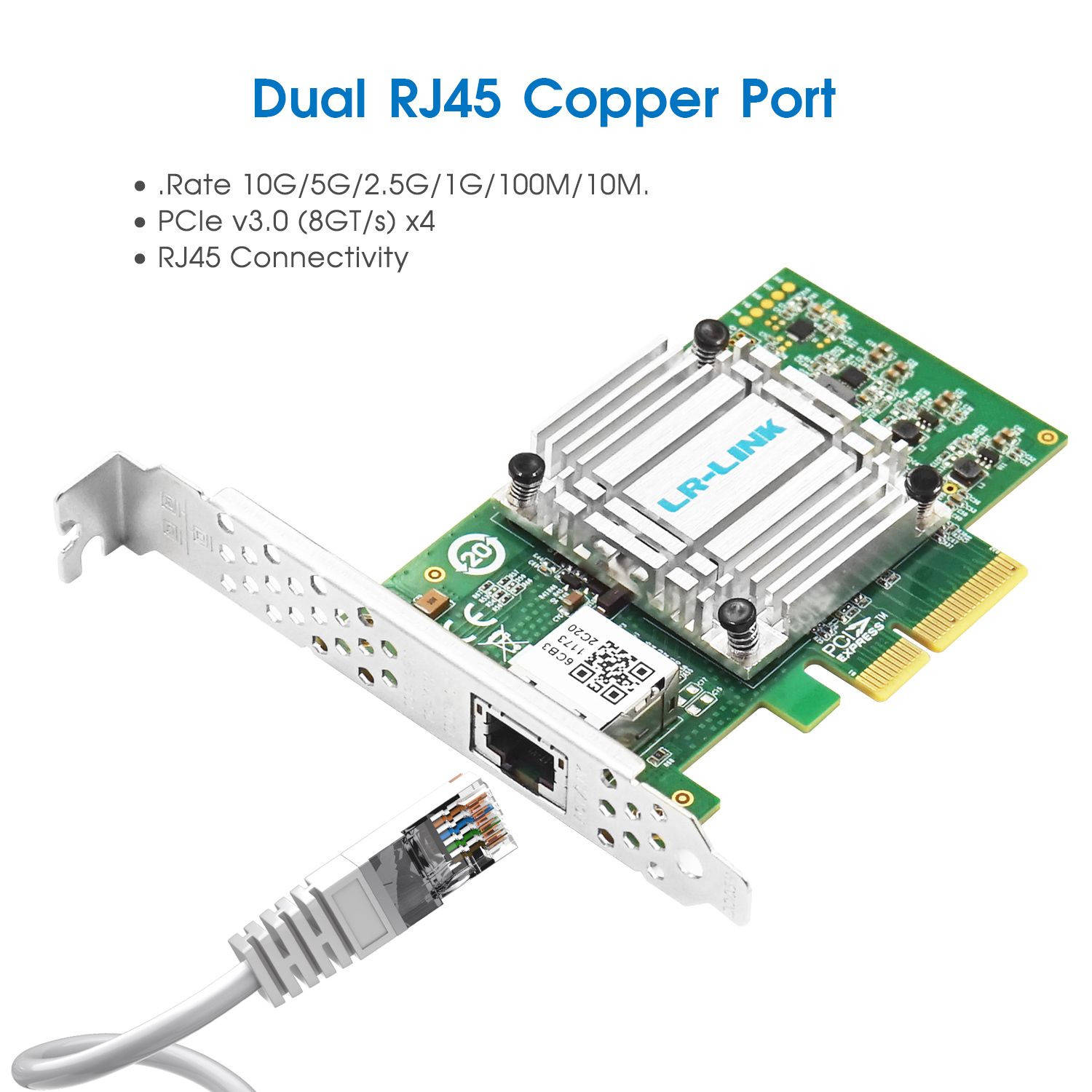

Connector | 1*10G RJ45 | |
Power Supply | PCIe | |
Operating System Support | * Windows 10 /11 （21h2 or later） * Windows Server 2022 * RHEL/Centos7.3 /7.6 /7.9 /8.2 /8.3 * Deepin 15.11 /20 /20.6 * Ubuntu 16.04.3 /18.04.5 * ZTE New Fulcrum 3.2.2 /5.0.5 * Asianux Server v7.0 * NeoKylin 7.6 | * Zhongke Fangde desktop operating system 4.0 * Zhongke Fangde server operating system * Tongxin UOS 20 * Emind OS * OpenKylin 0.7.5 * iKuai router |
PXE | Yes | |
WoL | Yes | |
Jumbo Frames | Yes | |
SR-IOV | No | |
ESD_Contact discharge | ±8KV | |
ESD_Air discharge | ±15KV | |
Lightning surge test | ±1KV common mode | |
Protocol Support | IEEE 802.3an 10 Gbit/s Ethernet over unshielded twisted pair IEEE 802.3bz 2.5/5GBASE-T IEEE 802.3ab 1000BASE-T Gigabit Ethernet IEEE 802.3u 100BASE-TX Fast Ethernet IEEE 802.1Q VLANs IEEE 802.3x Full Duplex and flow control IEEE 802.3az - Energy Efficient Ethernet (EEE) | |
10M/100M/1G /2.5G/5G/10G | Connection Status | (ACT) Orange Link + (LINK) Green Link |
Transfer status | (ACT) Orange Link + (LINK) Green Blink |
Operating Temperature | 0℃ to 70℃ (-32 ℉ to 158 ℉) |
Storage Temperature | -55 ℃ to 105 ℃ (-67 ℉ to 221 ℉) |
Storage Humidity | Maximum: 90% non-condensing relative humidity at 35 ℃ |
Certification | FCC, CE, RoHS |
PCB size(unit:mm) | 105.1*68.1*1.6 |
Package size (unit: mm) | 179*150*30 |
Product Weight(unit:g) | * |
Baffle specifications | Full bracket(installed) and Low Profile |
Network card | *1 |
Product warranty card | *1 |
Packing | Carton and Blister box |
