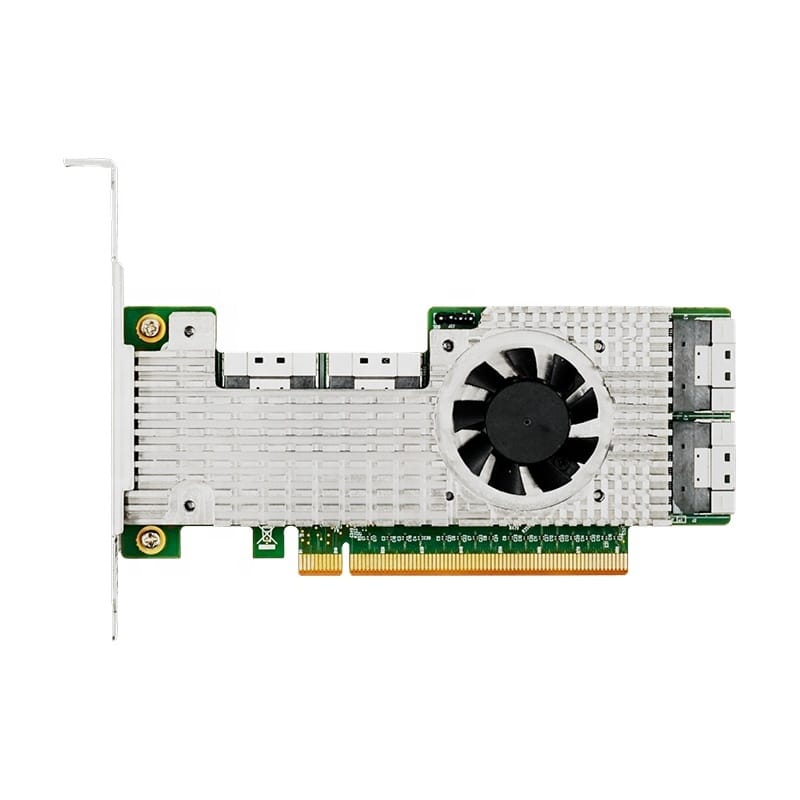

LRNV9F48 PCIe X16 4-port NVMe Switch Adapter Storage Expansion Card NVMe 8*SSD N.2 or GPU

LRNV9F48 PCIe X16 4-port NVMe Switch Adapter Storage Expansion Card NVMe 8*SSD N.2 or GPU

Name: LRNV9F48 PCIe X16 4-port NVMe Switch Adapter Storage Expansion Card NVMe 8*SSD N.2 or GPU
Brand: LR-LINK
SKU: LRNV9F48

LRNV9F48

LR-LINK

Size Guide

0 reviews

1 orders

$900.00

Lv.1

0% OFF

Lv.2

1% OFF

Lv.3

3% OFF

model number:

x4signal (SSD Expansion)

X16 Signal Extension GPU

Quantity :

ADD TO CART

More payment options

INQUIRE NOW

ADD TO FAVORITES (1)

Introduction

Compliant with PCIe 4.0 base specification, compatible with PCIe 1.0
Built-in four 8654 8I ports for connecting SSD drives according to different usage scenarios.
Does not require motherboard support for PCle slot split function
Compliant with PCI Power Management Specification v1.2
Compatible with Microsoft Vista
Supports access control services
High-performance, non-blocking switching fabric with full wire speed on all ports
Quality of Service, Reliability, Availability, Suitability
Supports hot-swapping of PCle NVME ports
High-performance, non-blocking switching fabric with full wire-speed processing on all interfaces

Description

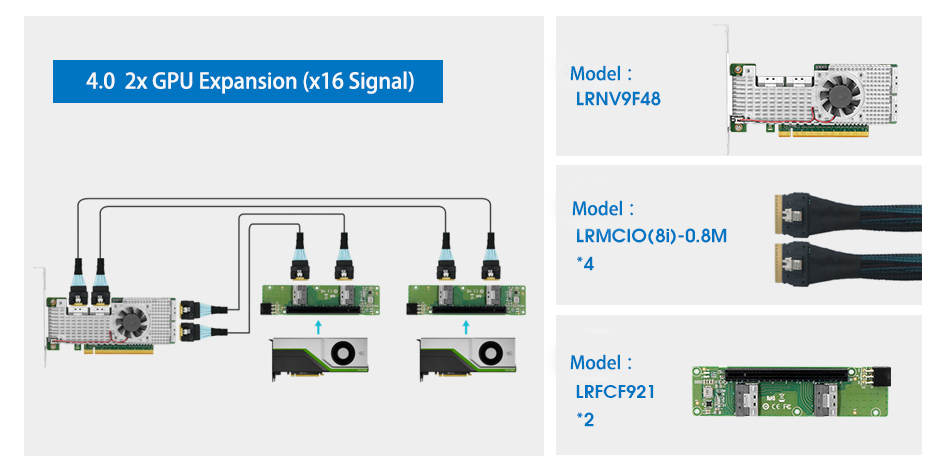

GPU Expansion Solution

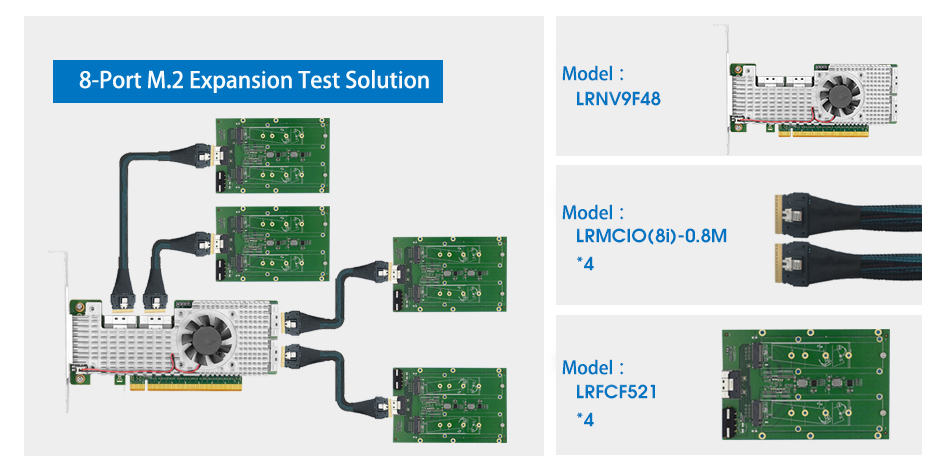

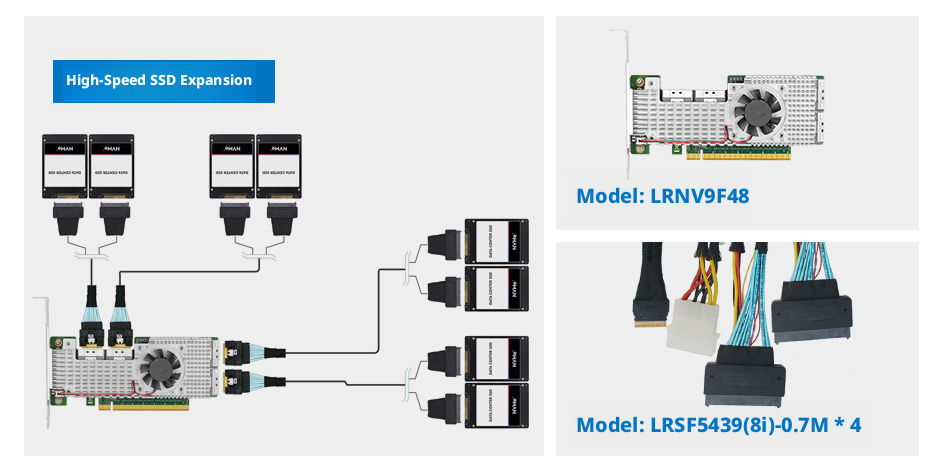

ssd Expansion Solution

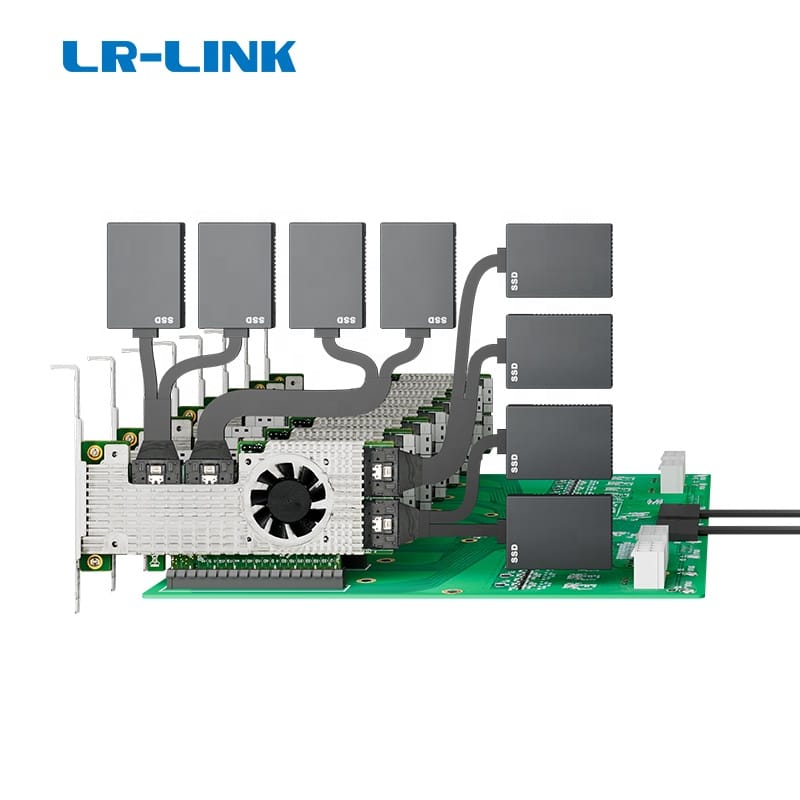

LRNV9F48 is a PCIe 4.0 x16 to 4-port built-in 8654 8I NVMe switch adapter developed by Linkreal CO.,LTD. based on Broadcom PEX88048. LRNV9F48 has 4 built-in 8654 8I ports to connect SSD drives according to different usage scenarios
and supports up to 8 PCIe 4.0 SSD connections. The design, combined with large packet memory, flexible common buffer/FC credit pools, and non-blocking internal switch architecture, provides full wire speed on all ports for performance-critical applications such as servers and switch fabrics; up to 6.9GB data transfer rate per port under full load.

Controller	Broadcom PEX88048
Bus Type	PCI Express 4.0 x16
External Port	8654 8I
Interface	4
Transfer Speed (total)	32GB/s
System Support	Windows 10 /11 Windows Server 2019 /2022 RHEL/Centos7.6 /7.9 /8.2 /8.3 Deepin 15.11 /20 /20.6 /20.9 Ubuntu 18.04.5 /20.04.1 /22.04.3 SUSE 12.5 FreeBSD 12.2 /13.2 ZTE New Fulcrum 3.2.2 /5.0.5 Asianux Server v7.0 Galaxy Kylin OS v10 NeoKylin 7.6 Zhongke Fangde Desktop OS 4.0 Zhongke Fangde server Tongxin UOS 20 Emind OS OpenKylin 0.7.5 VMware ESXi 6.5 /6.7 /7.0
Bus Type	OCP3.0 SFF
Data rate per port	100/1000Mbps/2.5/5/10Gbps
Connector	2*10G RJ45
Power Supply	OCP

CONNECTOR
Device Connector	4 * 8654 8I
Storage Interface	PCIe (NVMe): x4, x2, x1

ENVIRONMENTAL
Humidity	15%-90%
Operating Temperature	0℃ - 55℃ (32℉ - 131℉)
Operating Temperature	-45℃ - 105℃ (-49℉ - 221℉)
Power(min)	20.532W
Power(min)	23.592W

PHYSICAL CHARACTERISTICS
PCB Size(mm)	68.6155.71.6
Package Size(mm)	22214728
Weight (g)	*
