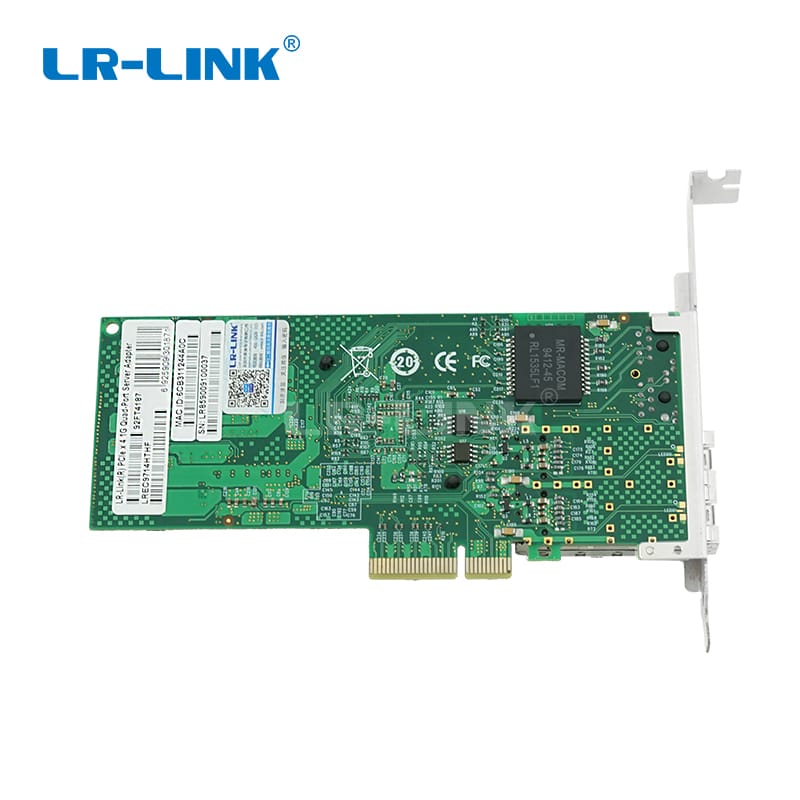

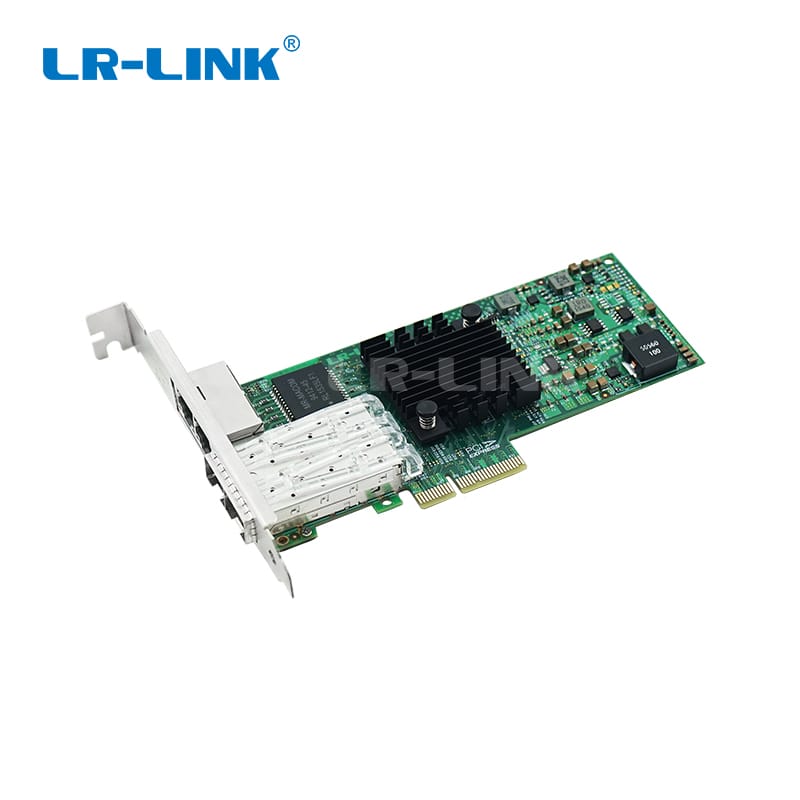

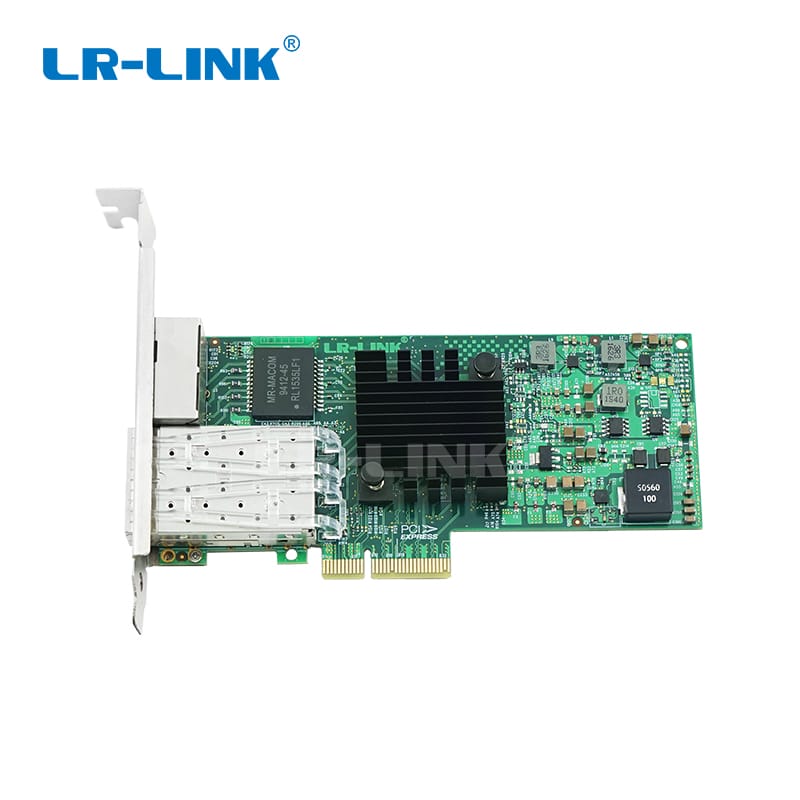

LREC9714TF-2T2S is a Dual-Fiber & Dual-Copper Gigabit PCI Express x4 ethernet network card independently developed by Shenzhen Lianrui Electronics Co., Ltd. based on the Intel I350 master control solution. It is on the same chip. Innovative products that have been made together with optoelectronics are suitable for use on both servers and PCs.
The adapter card can be bundled into a group to achieve fault tolerance, automatically detecting and routing communication from the failed port to other members in the same group to continue operation for uninterrupted communication. The NIC master has integrated hardware acceleration and is capable of performing TCP/UDP/IP checksum offloading and TCP segmentation tasks. Host processing technology can offload the accelerator, freeing up CPU resources to free up more CPU resources to handle other applications. The adapter is the ideal solution for deploying multiple networks and deploying critical network applications and environments on high-performance servers (with the advantage of a mix of fiber and twisted-pair cable).
The LREC9714TF-2T2S card is equipped with a dedicated PCI Express input/output (I/O) bandwidth in the Gigabit Ethernet connection of the opto-electric hybrid network to ensure superior performance without consuming bus bandwidth. The onboard 2 SFP and 2 RJ45 interfaces are compatible with various Gigabit SFP modules. Users can select the appropriate Gigabit fiber module according to the actual transmission distance without replacing the network card. The adapter supports the PCI-SIG Single-Root I/O virtualization & sharing specification (SR-IOV) (single root I/O virtualization and sharing specification).
LREC9714TF-2T2S This adapter card is suitable for Gigabit fiber optic Ethernet, has excellent noise immunity, and also supports long-distance fiber connection. The adapter card supports Intel PRO Smart Install and the new Intel PROSet designed for Microsoft Device Manager, simplifying the installation and management process. The Intel PROSet program simplifies the installation process for the adapter.
Specifications
Controller | Intel I350 |
Baffle Height | Low Profile Bracekt and Full-height Bracket |
Power(max) | 4.0W |
Transmission medium | Fiber + Copper |
Fiber type | 1000Base-T Cat 5E/6 or higher: up to 100m |
Copper type | 1000Base-T Cat 5E/6 or higher: up to 100m |
100Base-T Cat 5/5E/6 or higher: up to 100m | |
10Base-T Cat 3/4/5/5E/6 or higher: up to 100m | |
System Support | Windows XP/Vista/7/8/8.1/10/11 |
Windows Server 2003 R2/2008 R2/2012 R2/2016 R2/2019 /2019 R2/2022 R2 | |
Linux Stable Kernel version 2.4.x/2.6.32/3.x/4.x or later | |
Linux CentOS/RHEL 6.5 / 7.x or later | |
Ubuntu 14.x/15.x/16.x or later | |
VMware ESX/ESXi 4.x/5.x/6.x or later | |
Bus type | PCIe v2.1 x4, compatible with x8 & x16 |
Data rate supported per port | 1000Mbps + 10/100/1000Mbps |

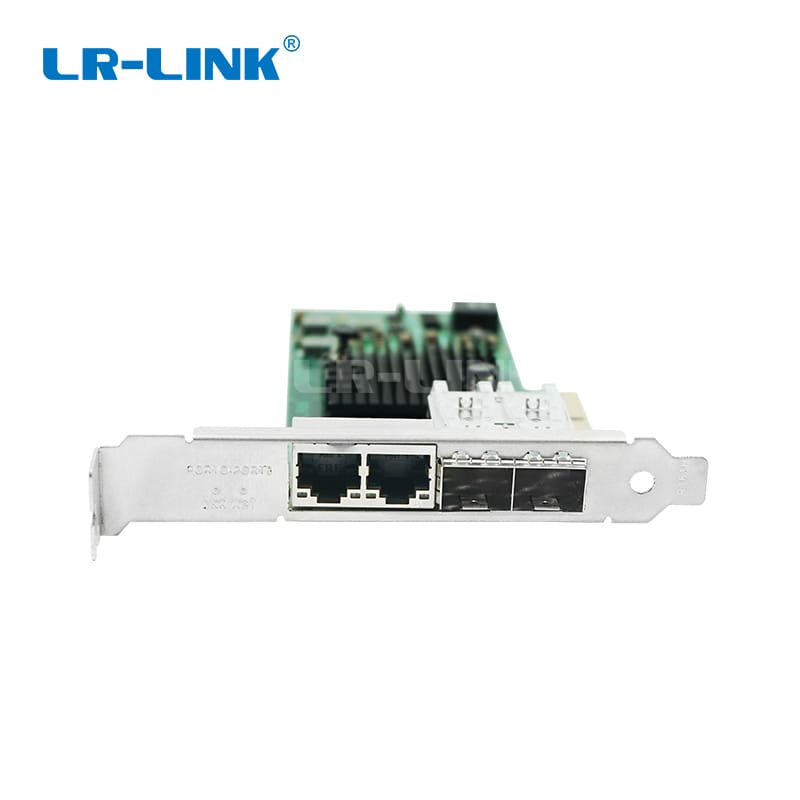

Connector | 2*1G RJ45 + 2*1G SFP |
Technical Features
Protocol Support | IEEE 802.3ab 1000BASE-T Gigabit Ethernet IEEE 802.3u 100BASE-TX Fast Ethernet IEEE 802.3z IEEE 802.1Q VLANs IEEE 802.3x IEEE 802.3az - Energy Efficient Ethernet (EEE) |
iSCSI | No |
WoL | Yes |
Jumbo Frames | Yes |
DPDK | Yes |
PXE | Yes |
