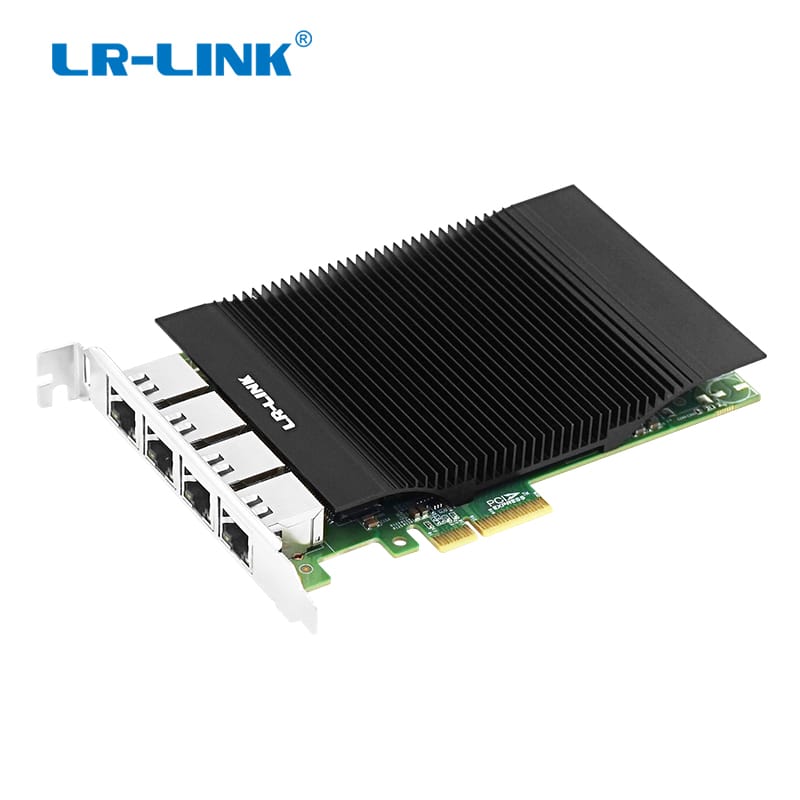

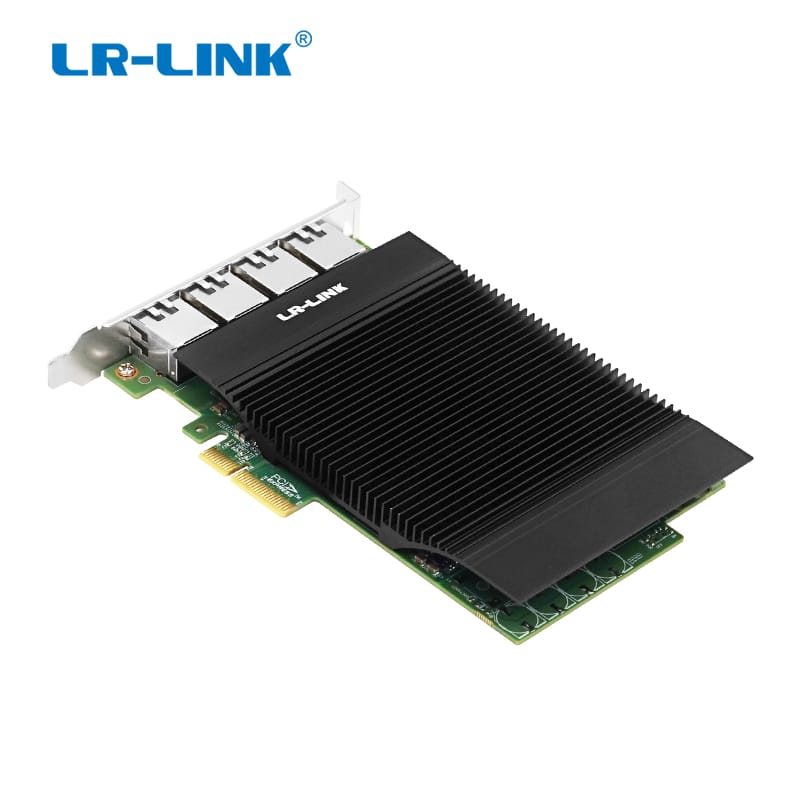

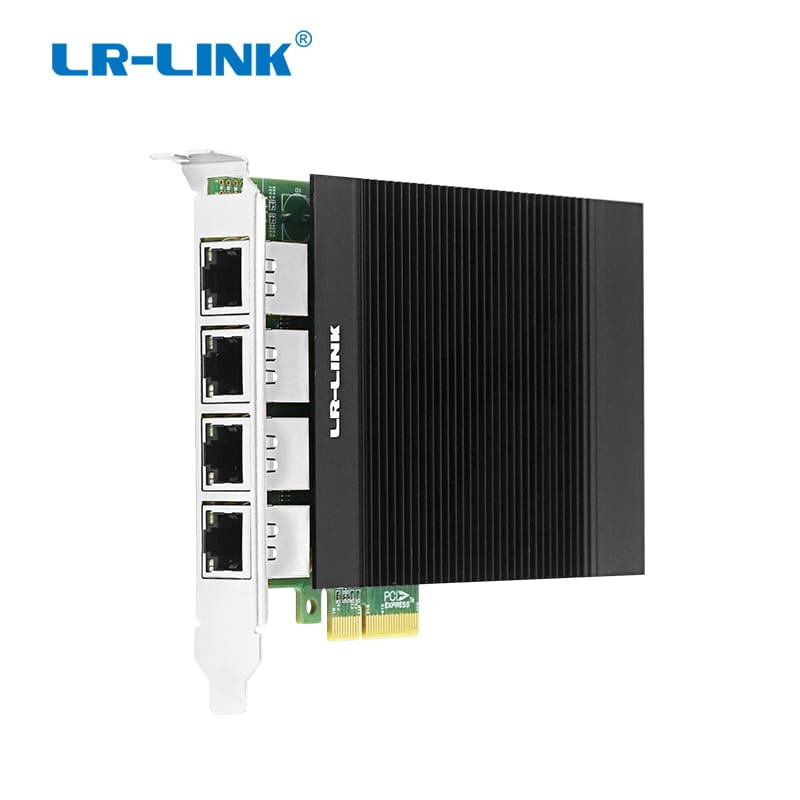

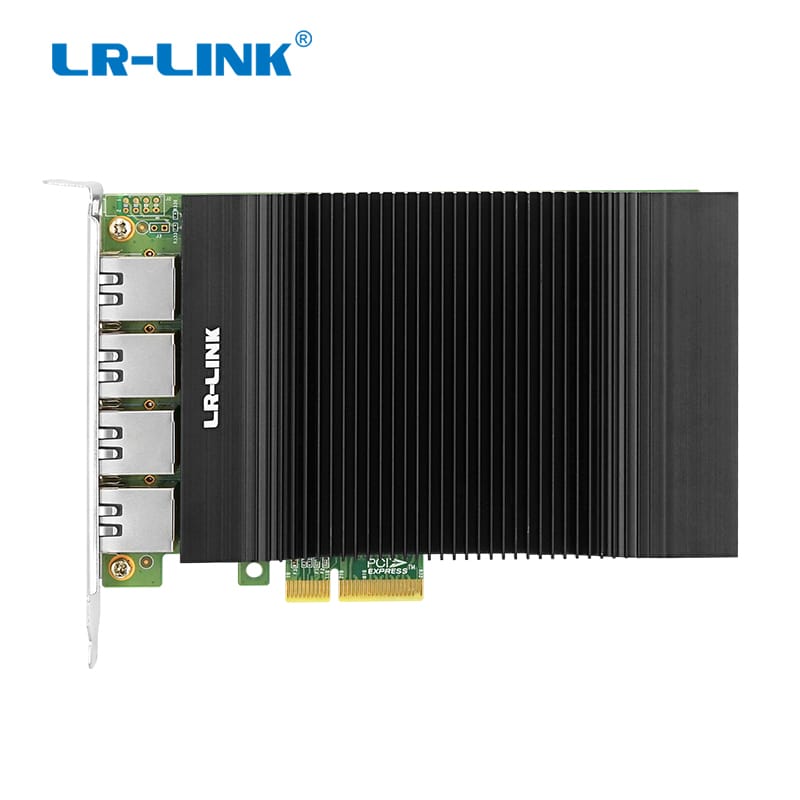

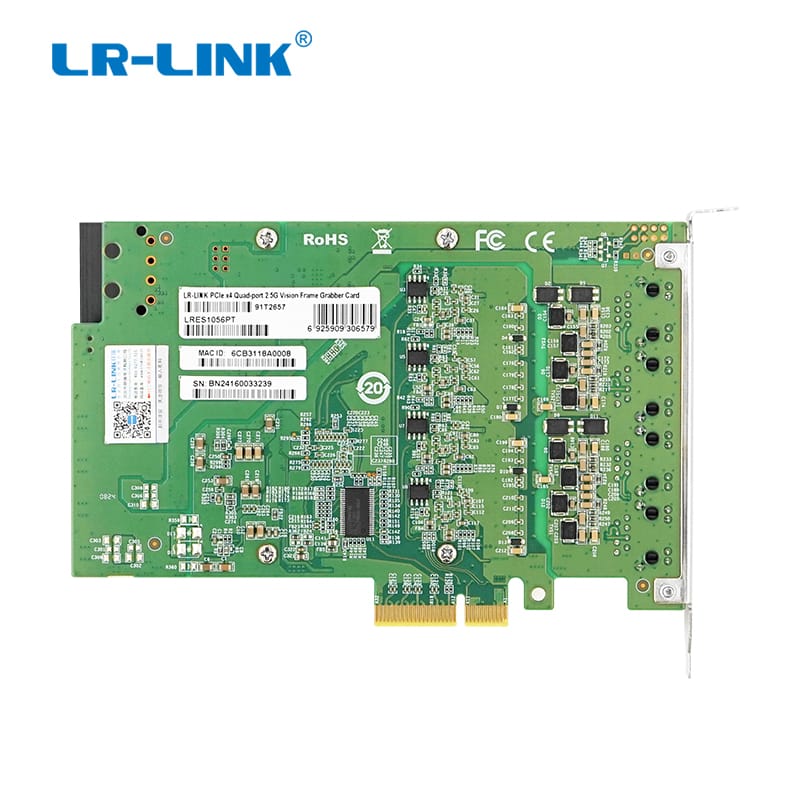

LRES1056PT is a PCIe x4 quad-port 2.5G vision frame grabber card independently developed by Linkreal Co., Ltd. based on the Intel I226 main controller solution. It is also compatible with PCIe x8 and x16 slots. It supports data transmission speeds up to 2.5Gbps and is equipped with four electrical ports, which can connect multiple devices at the same time to improve the efficiency of data collection.. In addition, LRES1056PT has outstanding performance in data transmission, network bandwidth, average transmission delay, actual small packet transmission rate and other indicators. It can be widely used in industrial visual inspection, intelligent monitoring systems, medical imaging diagnosis and other fields. Provide users with high-quality image data collection solutions.
Model | LRES1056PT | |||
Controller | Intel I226 | |||
Cable medium | Copper | |||
Fiber Type | CAT-5 | 50M（100Mbps）；100M（100Mbps）；150M（100Mbps） | ||
CAT-6 | 50M（100Mbps）；100M（100Mbps）；150M（100Mbps） | |||
CAT-6e | 50M（2.5Gbps）；100M（2.5Gbps） | |||
CAT-7 | 50M（2.5Gbps）；100M（2.5Gbps） | |||
Bracket Height | Full Height | |||
Power (min) | 5.88W | |||
Power (max) | 9.36 W | |||
Bus Interface | PCIe 2.0 (5.0GT/s) x1; structure x4, compatible with x8 x16 | |||
Data rate per port | 10Mbps;100Mbps;1Gbps;2.5Gbps | |||
Connector | 4*2.5G RJ45 | |||
Power Supply | PCIe | |||
ESD | Contact discharge | ±8kV | ||
Lightning surge test | ±2kV common mode | |||
Operating System Support | * Windows 11 * Deepin 20/20.6/20.9 * RHEL/CentOS 8.2 * Ubuntu 20.04.1/22.04.2 | * SUSE 12.5/15.4 * FreeBSD 13.2 * Mikrotik * iKuai router | ||
PXE | No | |||
UEFI | Yes | |||
MDI/MDI-X | Yes | |||
WoL | Yes | |||
Jumbo Frames | Yes | |||
SR-IOV | No | |||
1588 PTP | Yes | |||
Jumbo Frame(max) | 9.2KB | |||
RSS | 4 | |||
Protocol Support | IEEE 802.3x ; IEEE 802.3x | |||
Model | LRES1056PT | |||
Controller | Intel I226 | |||
Cable medium | Copper | |||
Fiber Type | CAT-5 | 50M（100Mbps）；100M（100Mbps）；150M（100Mbps） | ||
CAT-6 | 50M（100Mbps）；100M（100Mbps）；150M（100Mbps） | |||
CAT-6e | 50M（2.5Gbps）；100M（2.5Gbps） | |||
CAT-7 | 50M（2.5Gbps）；100M（2.5Gbps） | |||
Bracket Height | Full Height | |||
Power (min) | 5.88W | |||
Power (max) | 9.36 W | |||
Bus Interface | PCIe 2.0 (5.0GT/s) x1; structure x4, compatible with x8 x16 | |||
Data rate per port | 10Mbps;100Mbps;1Gbps;2.5Gbps | |||
Connector | 4*2.5G RJ45 | |||
Power Supply | PCIe | |||
ESD | Contact discharge | ±8kV | ||
Lightning surge test | ±2kV common mode | |||
Operating System Support | * Windows 11 * Deepin 20/20.6/20.9 * RHEL/CentOS 8.2 * Ubuntu 20.04.1/22.04.2 | * SUSE 12.5/15.4 * FreeBSD 13.2 * Mikrotik * iKuai router | ||
PXE | No | |||
UEFI | Yes | |||
MDI/MDI-X | Yes | |||
WoL | Yes | |||
Jumbo Frames | Yes | |||
SR-IOV | No | |||
1588 PTP | Yes | |||
Jumbo Frame(max) | 9.2KB | |||
RSS | 4 | |||
Protocol Support | IEEE 802.3x ; IEEE 802.3x | |||
Operating Temperature | 0℃ to 55℃ (32 ℉ to 131 ℉) |
Storage Temperature | -40 ℃ to 70 ℃ (-40 ℉ to 158 ℉) |
Storage Humidity | Maximum: 90% non-condensing relative humidity at 35 ℃ |
Certification | FCC, CE, RoHS |
