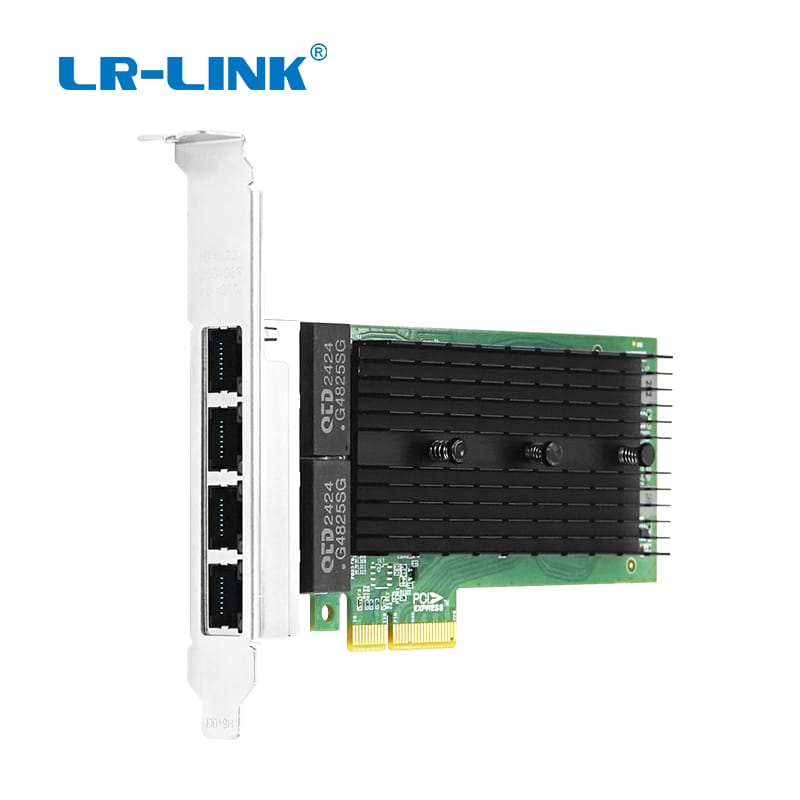

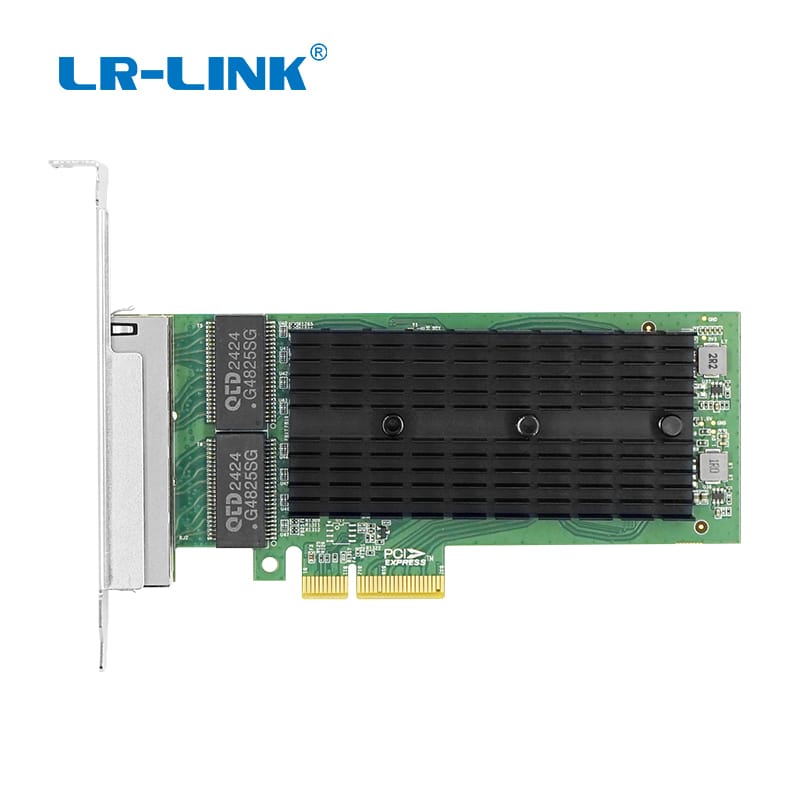

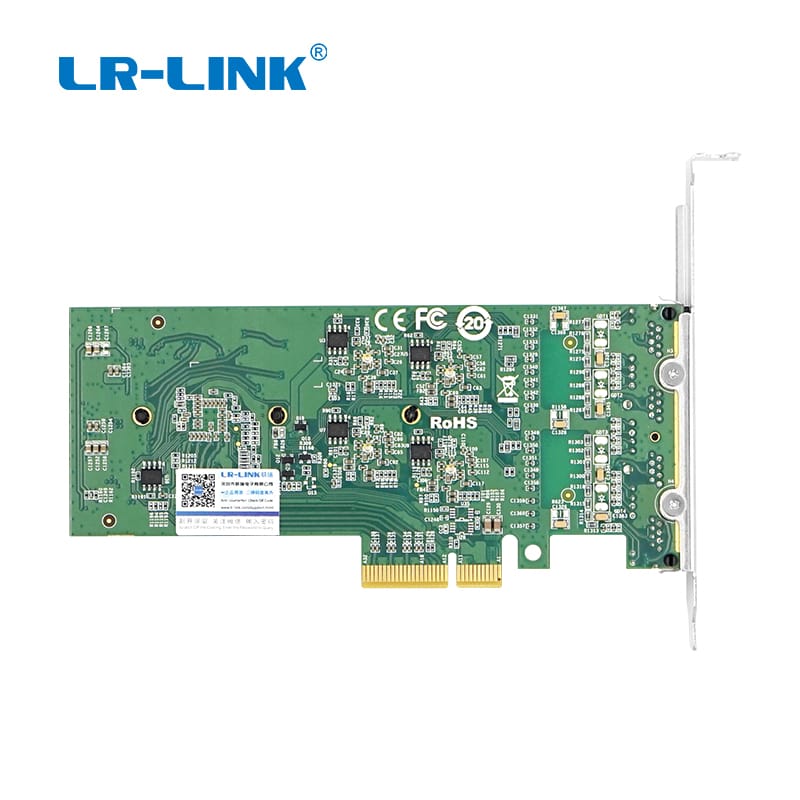

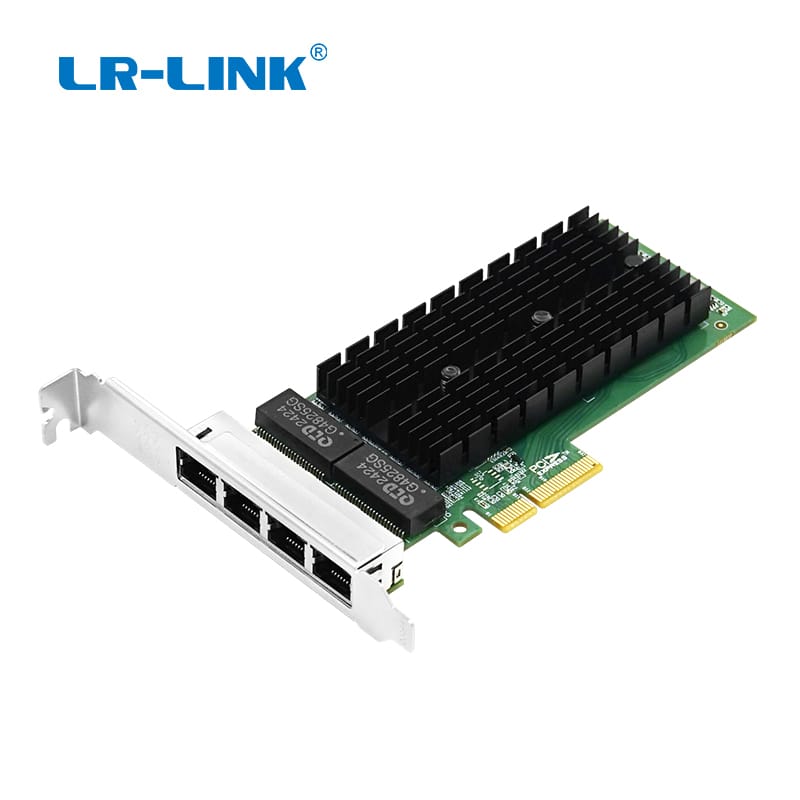

LRES1057PT is a PCIe x4 Quad-port Copper 2.5G Ethernet Network Adapter independently developed by Linkreal Co., Ltd. based on the Intel I226 main controller solution. It is also compatible with PCIe x8 and x16 slots. It supports data transmission speeds up to 2.5Gbps and is equipped with four electrical ports, which can connect multiple devices at the same time to improve the efficiency of data collection.. In addition, the LRES1057PT Ethernet Network Adapter has outstanding performance in data transmission, network bandwidth, average transmission delay, actual small packet transmission rate and other indicators. It can be widely used in industrial visual inspection, intelligent monitoring systems, medical imaging diagnosis and other fields. Provide users with high-quality image data collection solutions.
Model | LRES1057PT | |
Controller | Intel I226 | |
Cable medium | Copper | |
Fiber Type | 2500BASE-T,1000BASE-T,100BASE-TX,10BASE-Te | |
Bracket Height | Low Profile & Full Height | |
Bus Interface | PCIe Gen2 x4 | |
Data rate per port | 10Mbps;100Mbps;1Gbps;2.5Gbps | |
Connector | 4*RJ45 | |
Power Supply | PCIe | |
Operating System Support | * Windows 10/11 * Deepin 20.9 * Ubuntu 22.04.4/23.04.2 * FreeBSD 13.2 * Mikrotik * iKuai router | * SUSE 12.5/15.4 * FreeBSD 13.2 * Mikrotik * iKuai router |
PXE | No | |
UEFI | Yes | |
WoL | No | |
SR-IOV | No | |
1588PTP | Yes | |
Jumbo Frames | 9.2KB | |
Protocol Support | IEEE 802.3, 802.3u, 802.3ab | |
LED indication
10M/100M | Connection Status | Orange Link |
Transfer status | Orange Blink | |
1G | Connection Status | Orange Link + Orange Link |
Transfer status | Orange Link + Orange Blink | |
2.5G | Connection Status | Green Link + Orange Link |
Transfer status | Green Link + Orange Blink |
Working parameters
Operating Temperature | 0℃ to 70℃ (32 T to 158 T) |
Storage Temperature | -40 ℃ to 70 ℃ (-40 T to 158 T) |
Storage Humidity | Maximum: 90% non-condensing relative humidity at 35 ℃ |
Certification | FCC, CE, RoHS |
