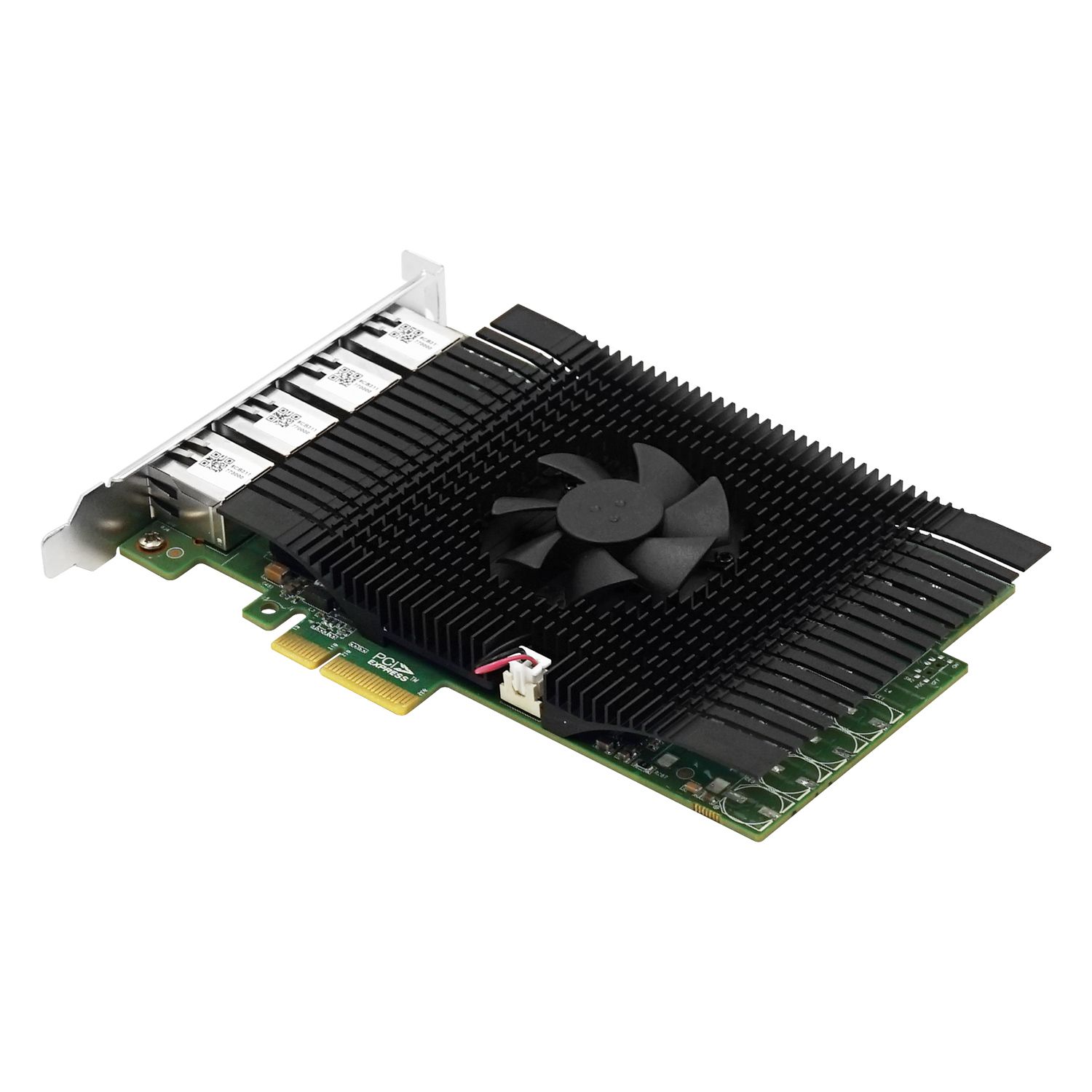

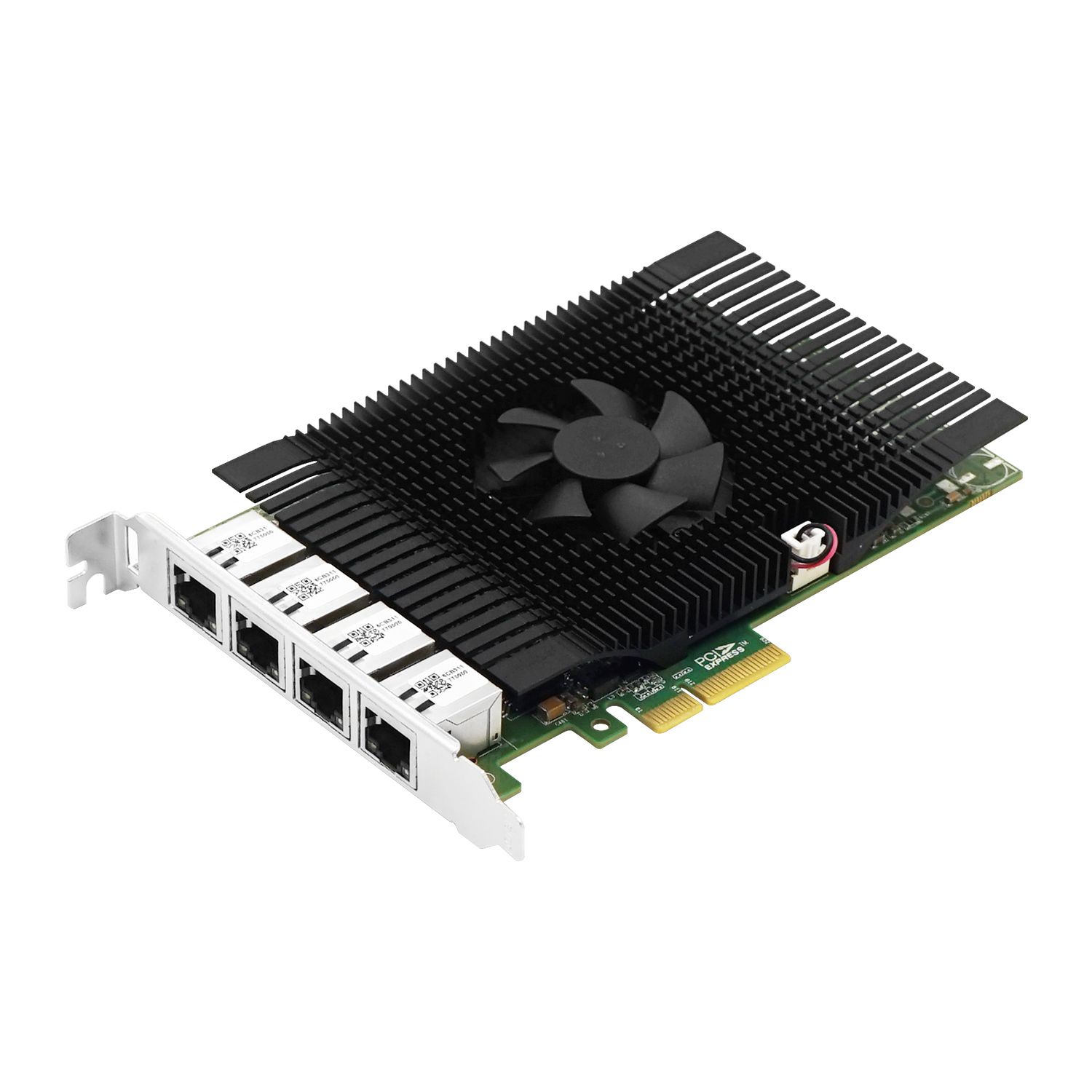

LRES1052PT is a PCIe3.0 x4 Quad-port 5G Vision Framer Grabber Card independently developed by Linkreal Co., Ltd. based on the Aquantia AQtion AQC111C main controller solution. It is also compatible with PCIe x8 and x16 slots. It is a high-performance 4 electrical port adapter. Mainly used in industrial field visual inspection equipment, visual field clients, fast mobile Ethernet data transmission equipment, etc. This image capture card performs outstandingly in data transmission, network bandwidth, average transmission delay, actual small packet transmission rate and other indicators. It can be connected to four 5GigE industrial cameras at the same time to work stably and meet the installation and use of conventional industrial computers.
Technical Specifications
Model | LRES1052PT | ||
Controller | Aquantia AQtion AQC111C | ||
Cable medium | Copper | ||
Fiber Type | CAT-5 | 50M（5Gbps）；100M（5Gbps） | |
CAT-6 | 50M（5Gbps）；100M（5Gbps） | ||
CAT-6e | 50M（5Gbps）；100M（5Gbps） | ||
CAT-7 | 100M（5Gbps） | ||
Bracket Height | Full Height | ||
Power (min) | 4.44W | ||
Power (max) | 20.76W | ||
Bus Interface | PCIe v3.0 (8.0GT/s) x4; compatible x8 x16 | ||
Data rate per port | 100Mbps;1Gbps;2.5Gbps;5Gbps | ||
Connector | 4* RJ45 | ||
ESD | Contact discharge | ±6KV | |
Air discharge | ±8KV | ||
Lightning surge test | ±4kV common mode | ||
Power Supply | PCIe | ||
Operating System Support | * Windows 10 /11 * Windows Server 2016 /2022 * Deepin 15.11 /20 /20.6 /20.9 * VMware ESXi 6.7 /7.0 * Galaxy Unicorn V10 SP1 /V10 * NeoKylin 7.6 * RHEL/CentOS 7.6 /7.9 /8.3 * Ubuntu 16.04.3 /18.04.5 * Ubuntu 20.04.1 /22.04.2 | * ZTE New Fulcrum 5.0.5 /3.2.2 * Tongxin UOS 20 * Asianux Server V7.0 * Zhongke Fangde desktop operating system 4.0 * Zhongke Fangde server operating system * Emind OS * iKuai router | |
PXE | Yes | ||
MDI/MDI-X | Yes | ||
WoL | No | ||
Jumbo Frames | Yes | ||
IEEE 1588 | No | ||
SR-IOV | No | ||
Jumbo Frame(max) | 16KB | ||
Protocol Support | IEEE 802.3bz 10GBASE-T/5GBASE-T/2.5GBASE-T/1000BASE-T/ 100BASE-T/ 10BaseT Gigabit Ethernet | ||
LED indication
100Mbps/1Gbps/2.5Gbps | LINK | Red Link + Green Link |
ACT | Red Link+ Green Blink | |
5Gbps | LINK | Green Link + Green Link |
ACT | Green Link + Green Blink |
Working parameters
Operating Temperature | 0℃ to 70℃ (32 ℉ to 158 ℉) |
Storage Temperature | -40 ℃ to 85 ℃ (-40 ℉ to 185 ℉) |
Storage Humidity | Maximum: 90% non-condensing relative humidity at 35 ℃ |
Certification | FCC, CE, RoHS |
