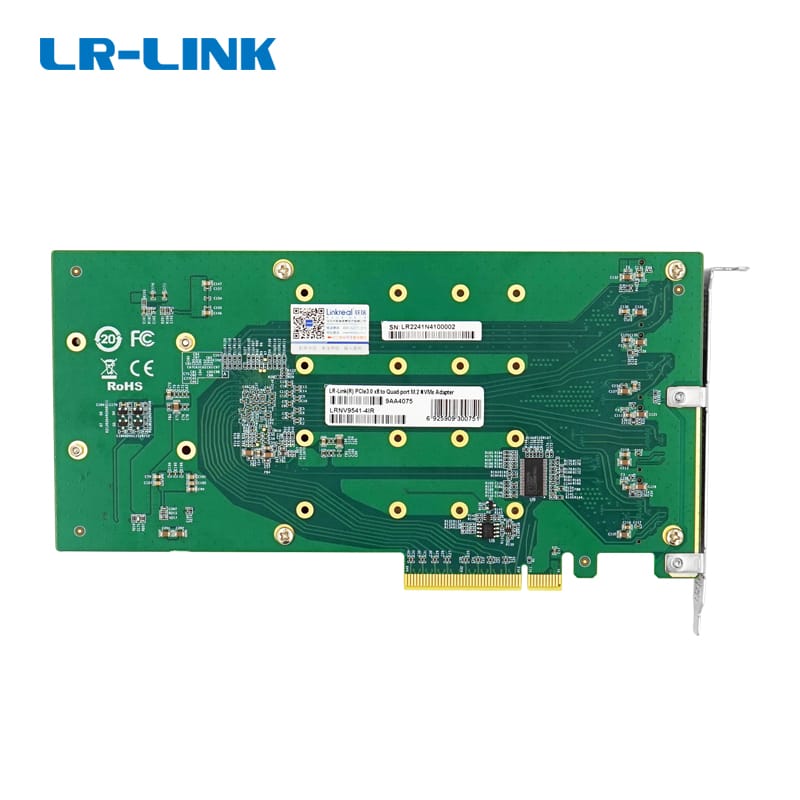

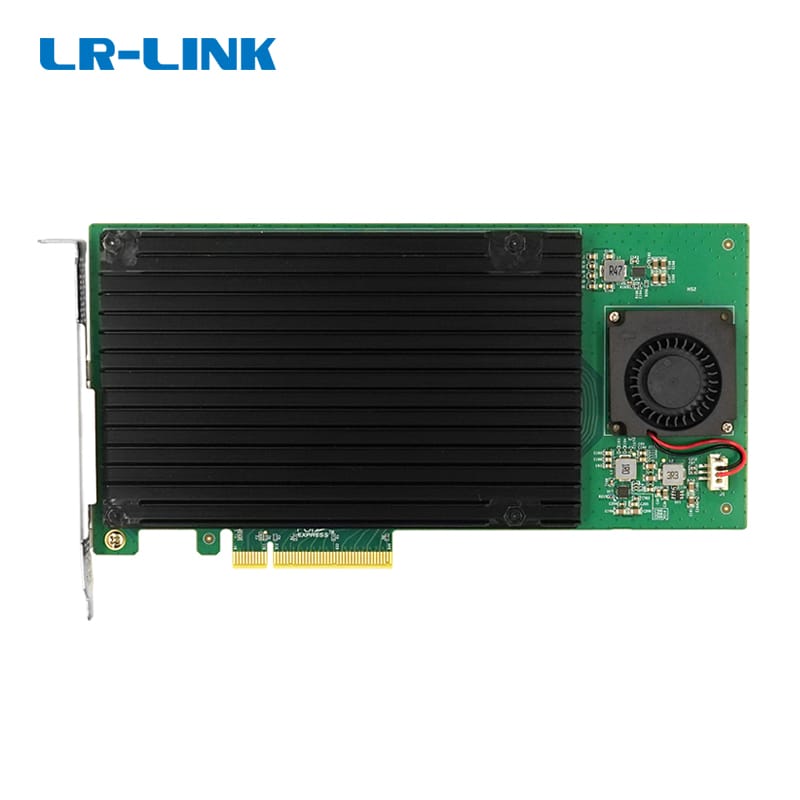

LRNV9541-4IR is a PCIe3.0 x8 to Quad-port M.2 NVMe Adapter developed on the Marvell 88NR2241B0 main controller solution. It extends the maximum storage space of four M.2 SSDs with scalable, high-bandwidth, non-blocking interconnections to connect to a variety of graphics applications, including servers, storage, communication and graphics platforms. It is optimized to support high-resolution graphics while supporting peer-to-peer traffic and multicast for optimal performance; M.2 SSDs are applicable, high bandwidth, and the highest transfer speeds can be achieved while accommodating up to four SSDs at the same time. Suitable for host-centric peer-to-peer communication models, it can be configured for a variety of graphics applications.
After UEFI setting in BOIS, the card can be recognized to create Raid operation tutorial
After UEFI setting in BOIS, the card cannot be recognized to create Raid operation tutorial
Specifications
Model | LRNV9541-4IR |
Bus Type | PCIe3.0 x8 |
I/O Controller | Marvell 88NR2241B0 |
External Port | M.2 |
Interface | 4 |
Transfer Speed | 64Gbps |
Power(min) | 13.344W |
Power(max) | 19.32W |
RAID | RAID 0, RAID 1, JBOD |
Device Connector | 4-M.2 |
Host Bus | PCIe x8, compatible with x16 |
Operating System Support | * Windows 10 /11 * Windows Server 2019 /2022 * RHEL/Centos 7.6 /7.9 /8.2 /8.3 * Deepin 15.11 /20 /20.6 /20.9 * Ubuntu 18.04.5 /20.04.1 /22.04.2 * SUSE 12.5 * SUSE 15 SP4 * ZTE New Fulcrum 3.2.2 /5.0.5 * Asianux Server v7.0 * Galaxy Unicorn v10 * NeoKylin 7.6 * Zhongke Fangde desktop operating system 4.0 * Zhongke Fangde server operating system * Emind OS * OpenKylin 0.7.5 * VMware ESXi 6./6.7 /7.0 |
Environment Features
Operating Temperature | 5℃ - 50℃ (41℉ - 122℉) |
Storage Temperature | -25℃ - 70℃ (-13℉ - 158℉) |
Storage Humidity | Maximum: 90% non-condensing relative humidity at 35 ℃ |
Certification | FCC，CE，RoHS |
