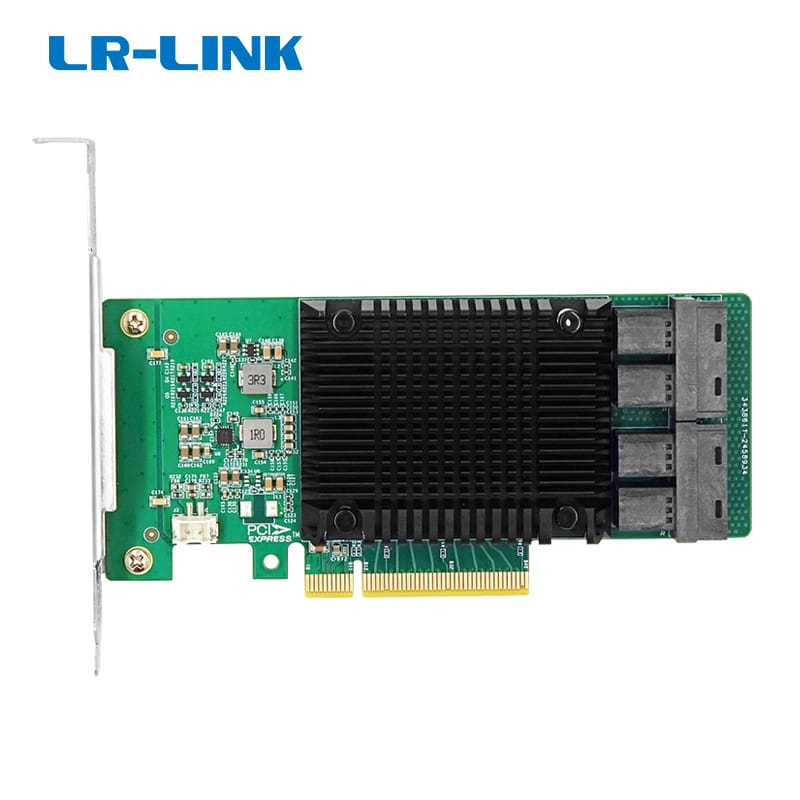

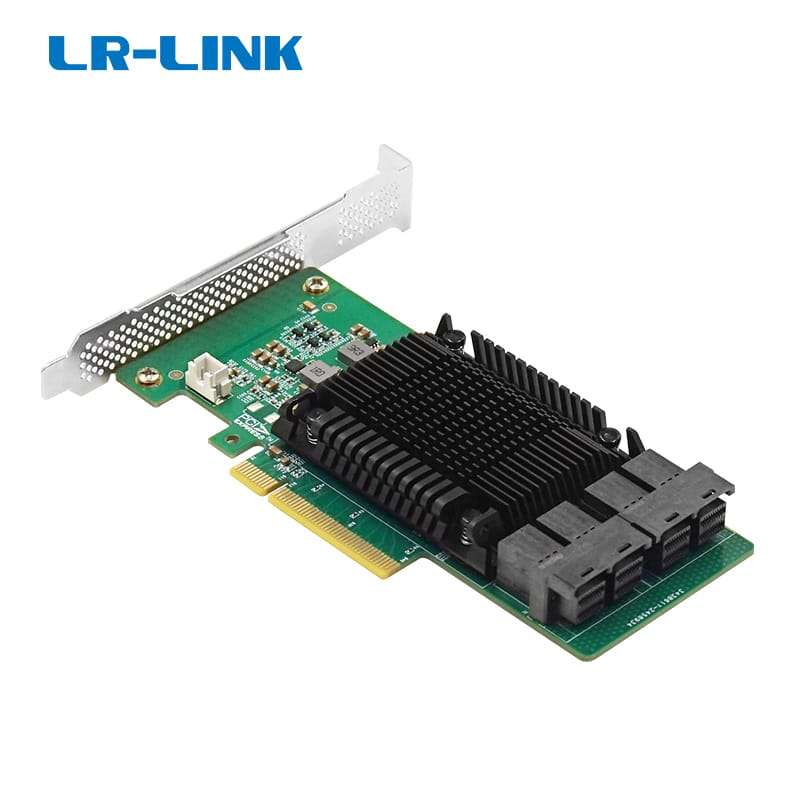

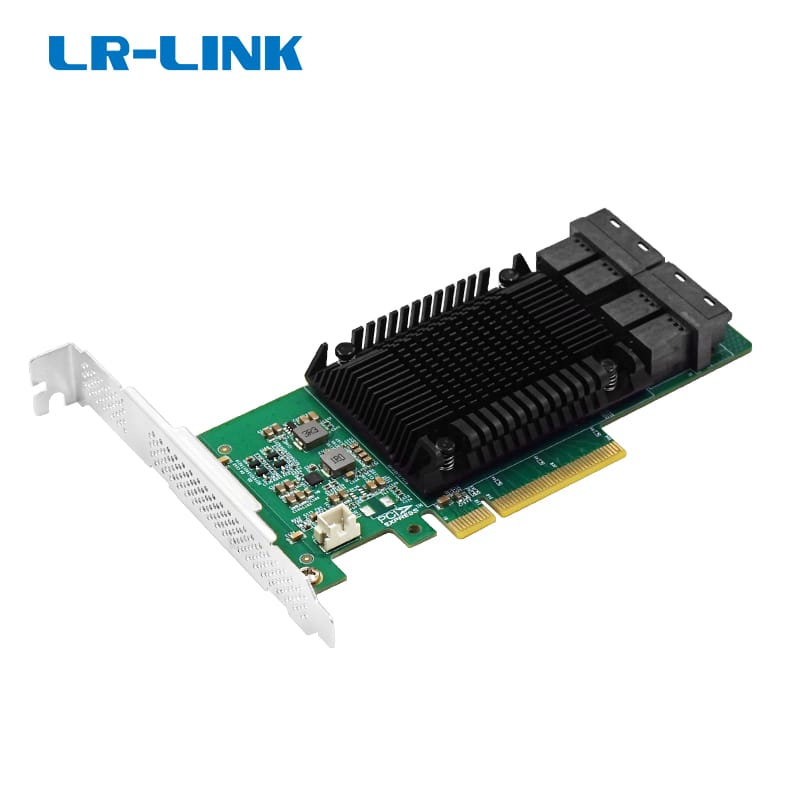

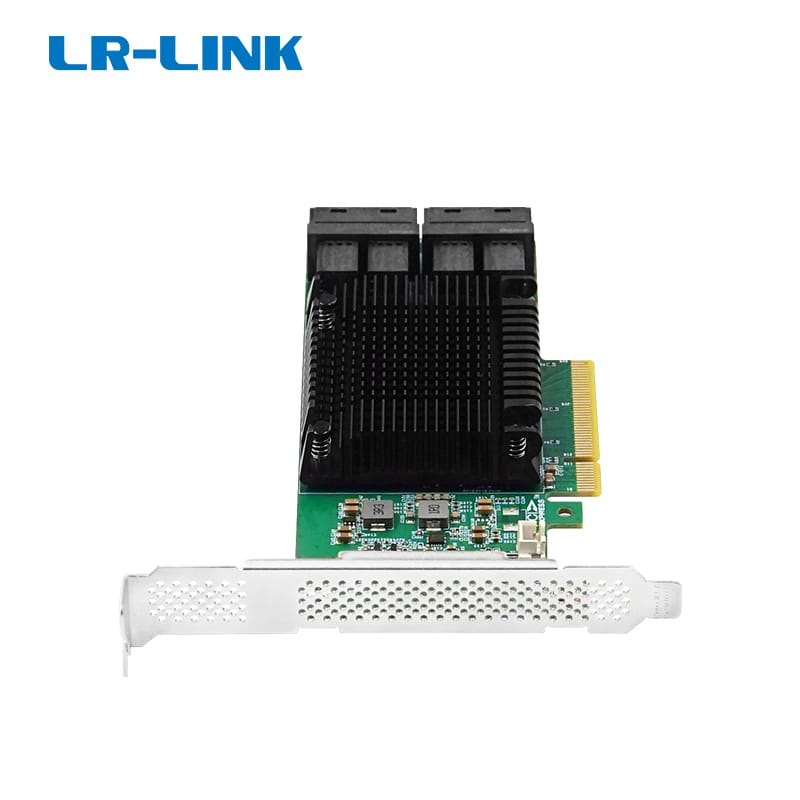

LRNV9441-4IR is a PCIe 3.0 x8 to 4-port U.2 NVMe adapter developed based on the Marvell 88NR2241 main control solution. It supports PCIe 3.0 x8 slots, providing bandwidth up to 8GB/s to ensure high efficiency and low latency of data transmission, fully meeting the demand for high-speed storage. LRNV9441-4IR uses the NVMe protocol. Compared with the traditional SATA interface, the NVMe protocol has lower latency and higher bandwidth, further improving storage performance. It also supports multiple RAID modes, including RAID0, RAID1, JBOD and RAID10, allowing users to flexibly select RAID levels according to specific needs, thereby achieving efficient data backup and multiple protection mechanisms to ensure data integrity and reliability. At the same time, it is equipped with 4 U.2 interfaces, supports the parallel connection of 4 NVMe storage devices, can flexibly configure a variety of storage solutions, and provides ultra-large storage capacity and extremely high data transmission speeds. It also supports hot swapping, is compatible with mainstream operating systems and server platforms, provides high scalability, and can meet the needs of a variety of application scenarios. LRNV9441-4IR provides users with a stable and secure data storage environment, supports flexible deployment options, and can be used in various scenarios such as data centers, servers, and workstations to meet the storage needs of different users.
After UEFI setting in BOIS, the card can be recognized to create Raid operation tutorial
After UEFI setting in BOIS, the card cannot be recognized to create Raid operation tutorial
These fields face problems as high security risks, slow data transmission, and limited storage space.
The Server NVMe SSD Capacity Expansion Solution
The LR-LINK solution provides users with diverse storage management methods by establishing Raid 0, Raid 1, Raid 10, JBOD modes.
Technical Specifications
Model | LRNV9441-4IR | |
Bus Type | PCIe3.0 x8 | |
I/O Controller | Marvell 88NR2241 | |
External Port | U.2 | |
Interface | 4 | |
Transfer Speed | 64Gbps | |
Power(min) | 4.896W | |
Power(max) | 5.076W | |
RAID | RAID 0, RAID 1, JBOD, RAID10 | |
Host Bus | PCIe x8, compatible with x16 | |
Operating System Support | * Windows 10 /11 * Windows Server 2019 /2022 * RHEL/Centos7.6 /7.9 /8.2/8.3 * Deepin 15.11/20 /20.6 /20.9 * Ubuntu 18.04.5 /20.04.1 /22.04.3 * SUSE 12.5/15 SP4 * VMware ESXi 6.5 /6.7 /7.0 * ZTE New Fulcrum 3.2.2 /5.0.5 | * Asianux Server v7.0 * Galaxy Unicorn v10 * Zhongke Fangde desktop operating system 4.0 * Zhongke Fangde server operating system * Emind OS * OpenKylin 0.7.5 |
Working parameters
Operating Temperature | 5℃ - 50℃ (41℉ - 122℉) |
Storage Temperature | -25℃ - 70℃ (-13℉ - 158℉) |
Humidity | 90% non-condensing relative humidity at 35°C |
