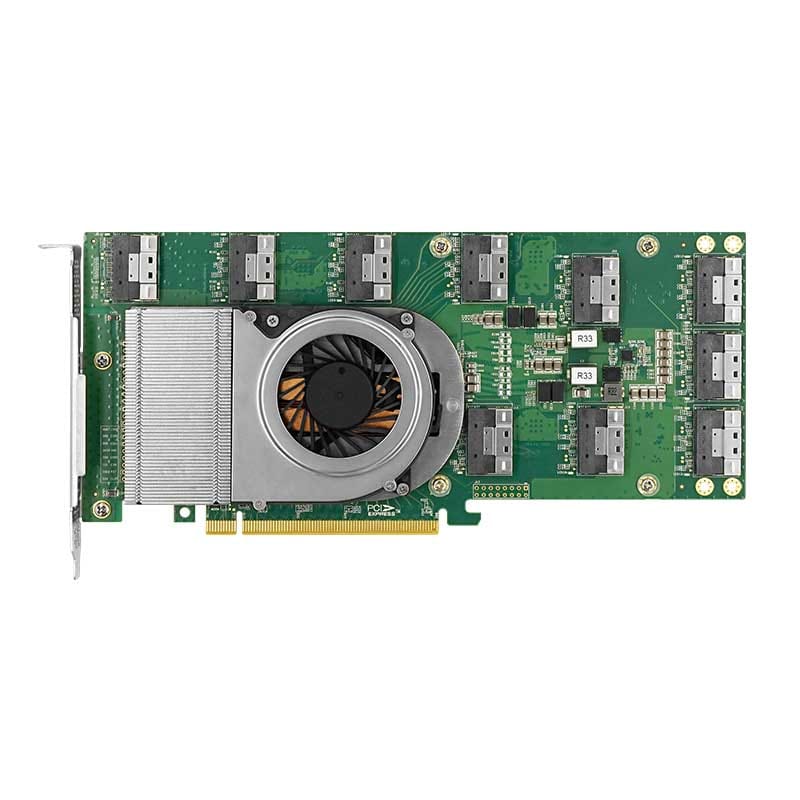

LRNV9F96-10I PCle 4.0 x16 10*SFF-8654 8i NVMe Switch Adapter Expandable to 5 GPU

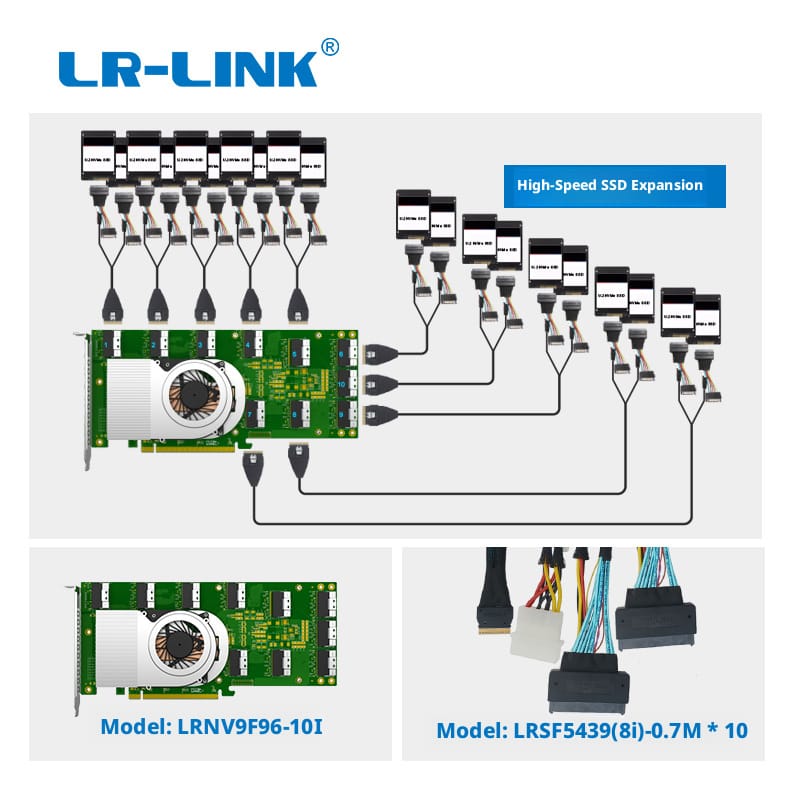

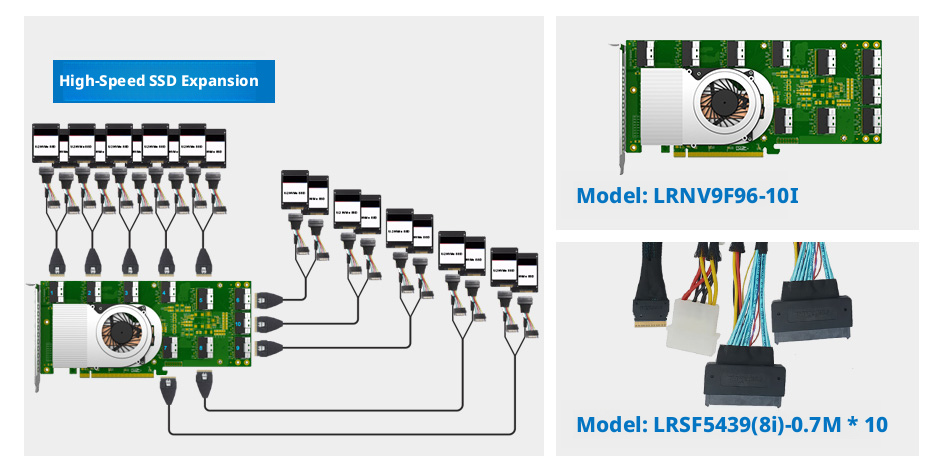

Scaling storage capacity in PCIe slot-limited servers often requires compromising between SSD density and GPU availability. The LRNV9F96-10I NVMe switch adapter resolves this by expanding a single PCIe 4.0 x16 slot into 10 SFF-8654 8i ports, enabling direct connectivity for up to 20 U.2 SSDs without sacrificing expansion slots.

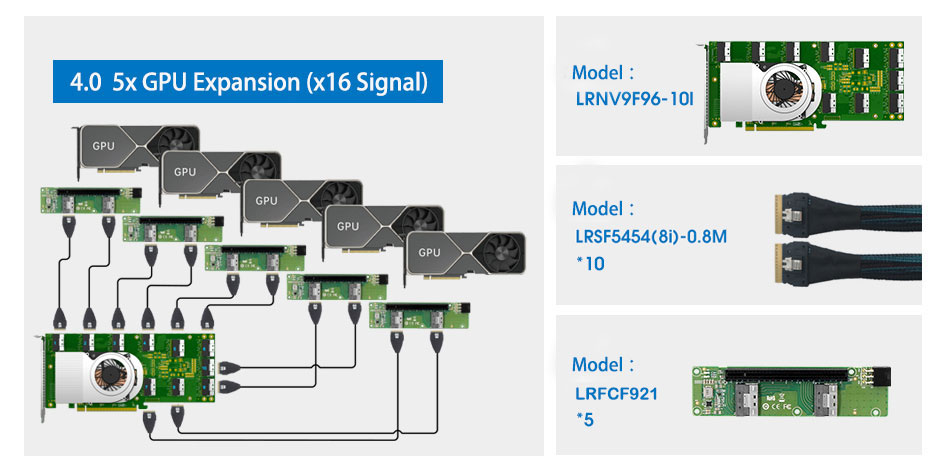

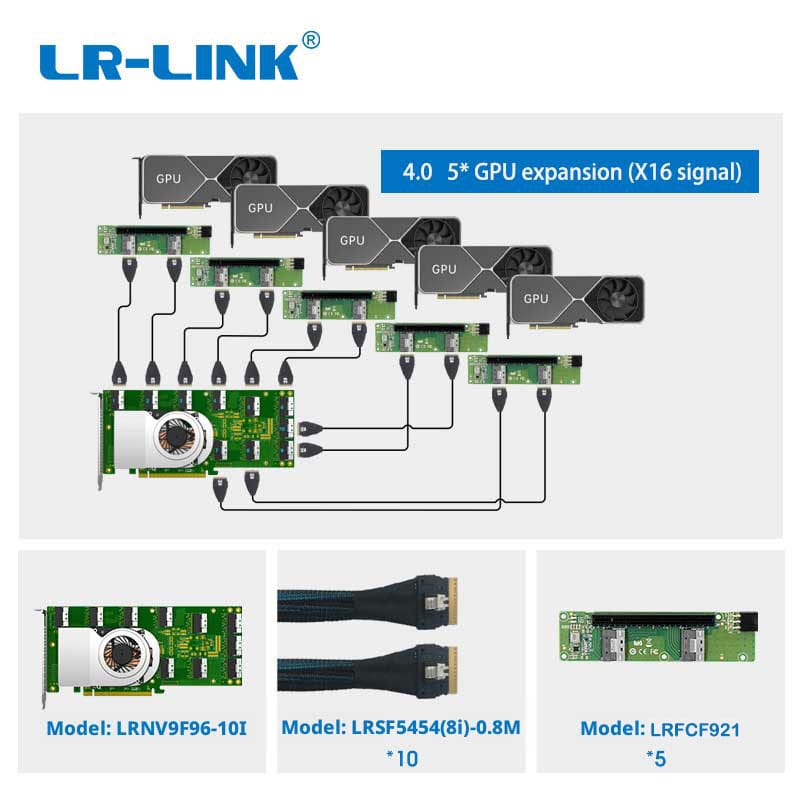

Built on the Broadcom PEX88096 controller, this adapter delivers a total transmission rate of 256Gb/s. It supports flexible splitting modes including 20x PCIe 4.0 x4, 10x PCIe 4.0 x8, or 5x PCIe 4.0 x16 configurations. This flexibility allows users to optimize data transmission architecture and save PCIe resources according to specific application requirements, ensuring high-bandwidth, low-latency connectivity.

Ideal for SSD performance testing, GPU expansion testing, and flash server deployments, the LRNV9F96-10I provides enterprise-class NVMe storage connectivity for x86 servers and workstations. Its integrated hot-swap capability and robust OS support accelerate product development and validation processes in data center environments.
