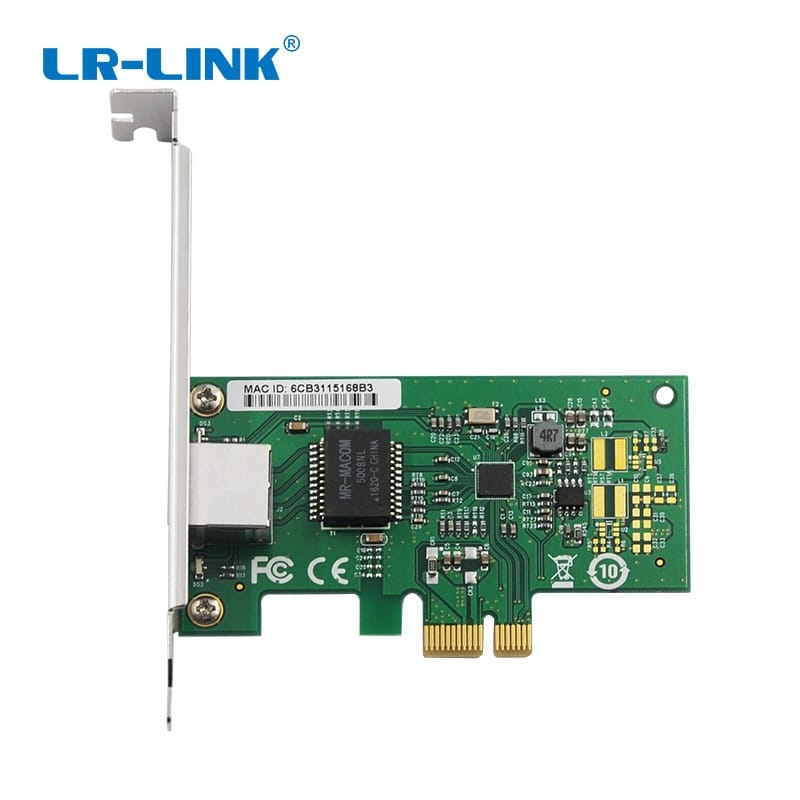

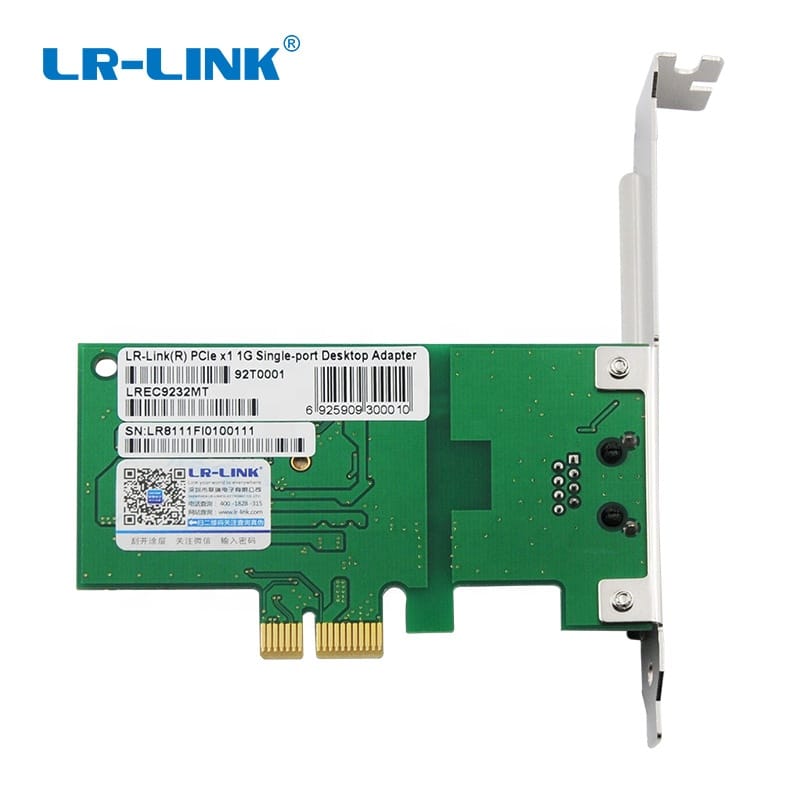

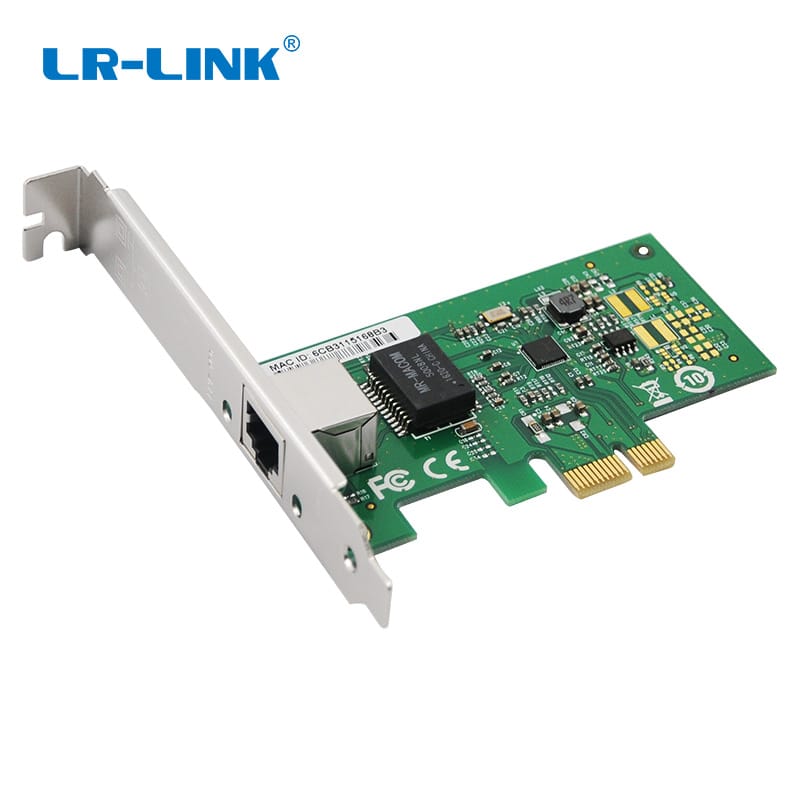

LREC9232MT Realtek RTL8111F PCIe*1 Gigabit Single RJ45 Network Card

Model

LREC9232MT

Controller

RTL8111H

Adapter Type

PCIe

Form Factor

HHHL

Host Connector

PCle1.0 x1

Connectors

RJ45

Port

Single

Link Speed

1Gb

Protocol Support

IEEE 802.3ab 1000BASE-T Gigabit Ethernet IEEE 802.3u 100BASE-TX Fast Ethernet

IEEE 802.3z

IEEE 802.1Q VLANs

IEEE 802.3x

IEEE 1588

IEEE 802.3az - Energy Efficient Ethernet (EEE)

Functional Support

PXE/UEFI

Yes

DPDK

Yes

WoL

Yes

iSCSI

No

FCoE

No

Jumbo Frames

9.2KB

Model

LREC9232MT

Controller

RTL8111H

Adapter Type

PCIe

Form Factor

HHHL

Host Connector

PCle1.0 x1

Connectors

RJ45

Port

Single

Link Speed

1Gb

Protocol Support

IEEE 802.3ab 1000BASE-T Gigabit Ethernet IEEE 802.3u 100BASE-TX Fast Ethernet

IEEE 802.3z

IEEE 802.1Q VLANs

IEEE 802.3x

IEEE 1588

IEEE 802.3az - Energy Efficient Ethernet (EEE)

Functional Support

PXE/UEFI

Yes

DPDK

Yes

WoL

Yes

iSCSI

No

FCoE

No

Jumbo Frames

9.2KB

DAC

*

Optical Transceiver

1.0W (Max)

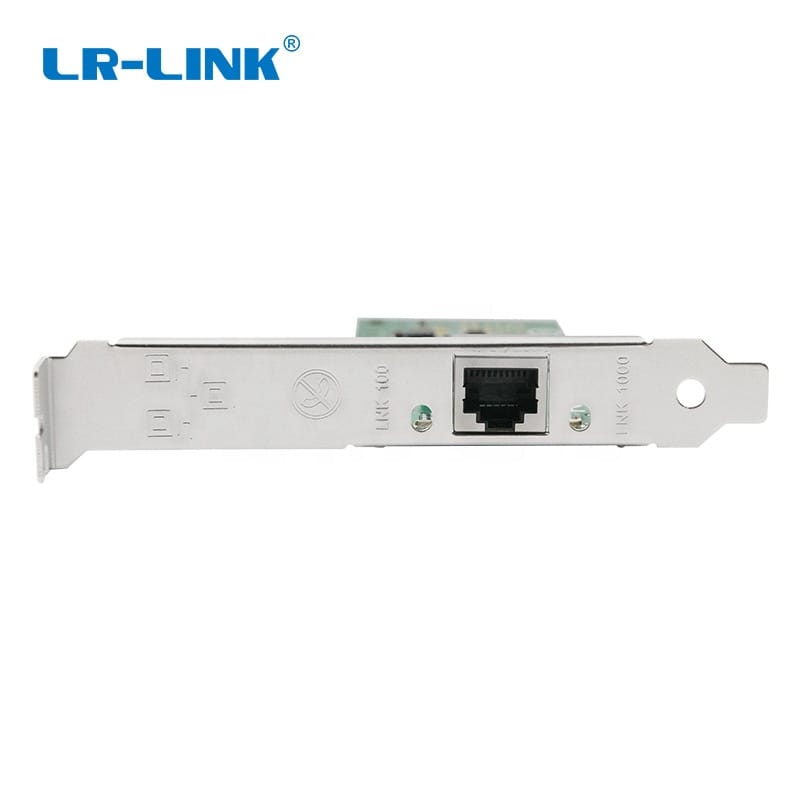

LED Indicators

LED

Rate

Color/Behavior

10Mbps

Off

100Mbps

Green/Green Blink

1000Mbps

Amber/Amber Blink

Supported Physical Layer Interfaces

1000BASE-T,100BASE-TX,10BASE-T

Supported Systems

OS

·Windows

· Deepin

· RHEL/CentOS

·Ubuntu

· Fusion OS

· Kylin OS

·SUSE

· FreeBSD

· NewStart OS

·UOS

· FangdeOS

·OpenEuler

· Debian

·YimingOS

·iKuai Router

Technical Specifications

Operating  Temperature

10°C to 55°C

Storage Temperature

-40°C to 70°C

Storage Humidity

Maximum: 90% non-condensing relative humidity at 35 °C

Certification

FCC, CE, RoHS

Product Size

55.5*64.9mm

Package Size

179*150*30mm

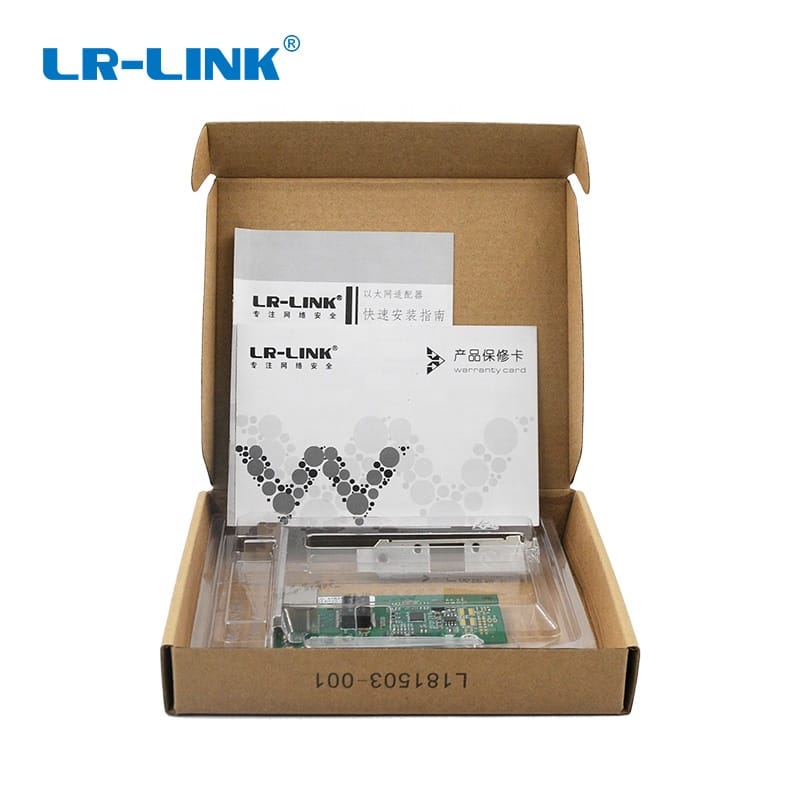

Packing List

Internet Network Adapter

*1

Product Warranty Card

*1

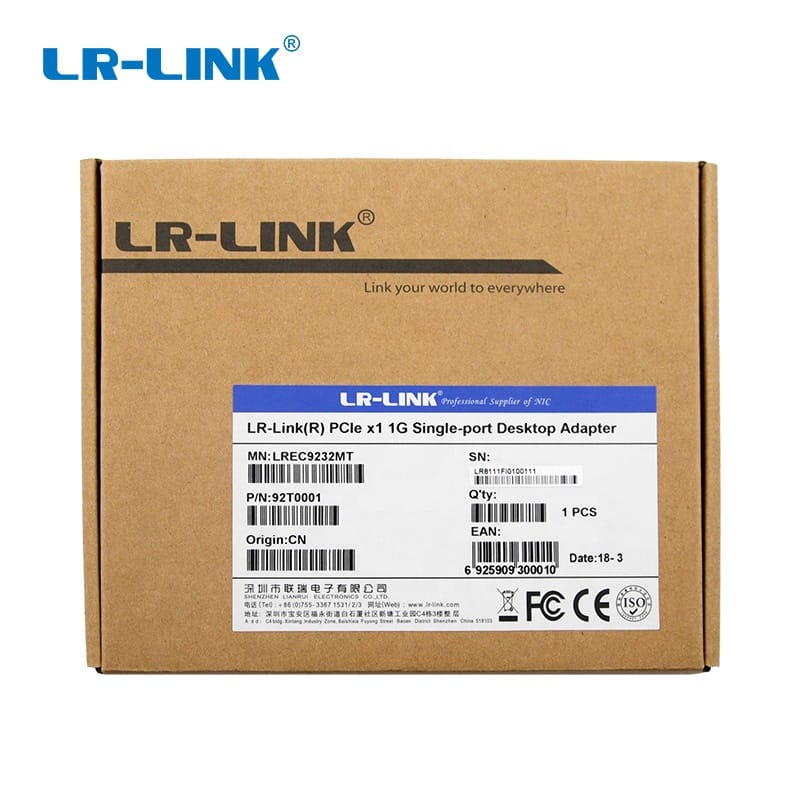

Packaging

Carton + Blister  box
