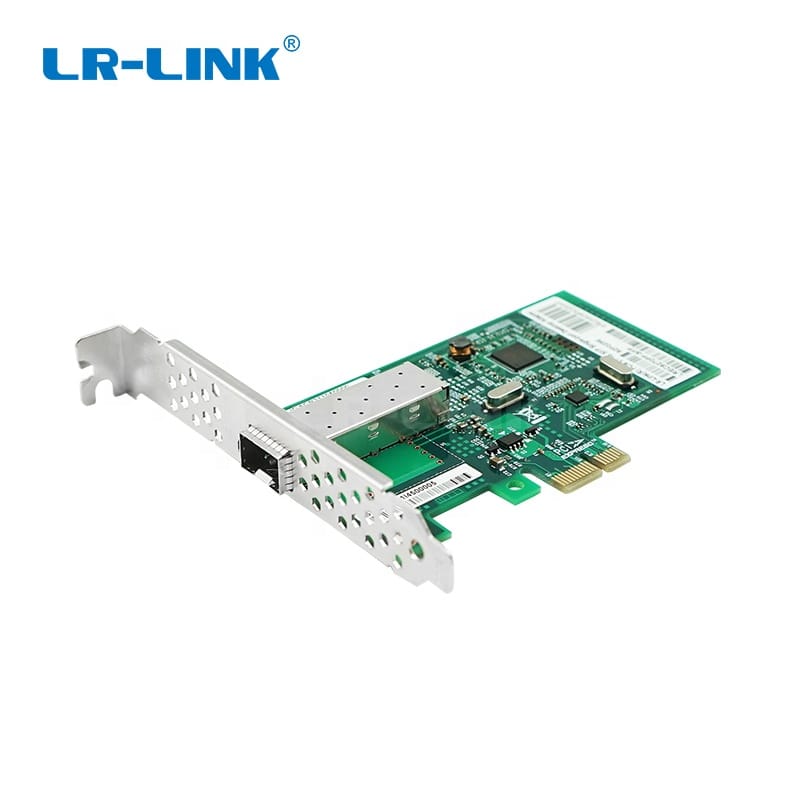

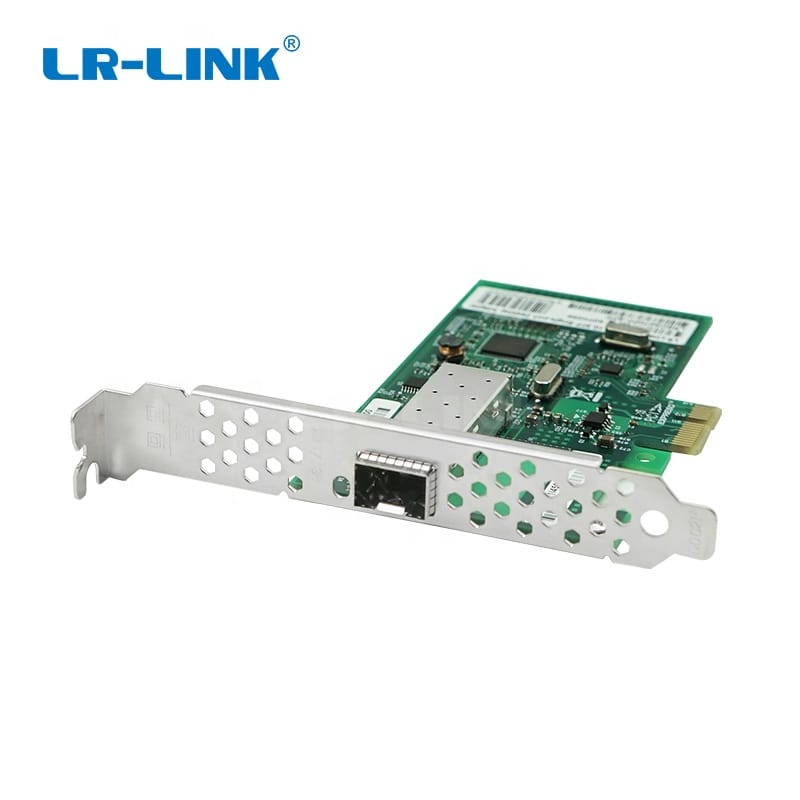

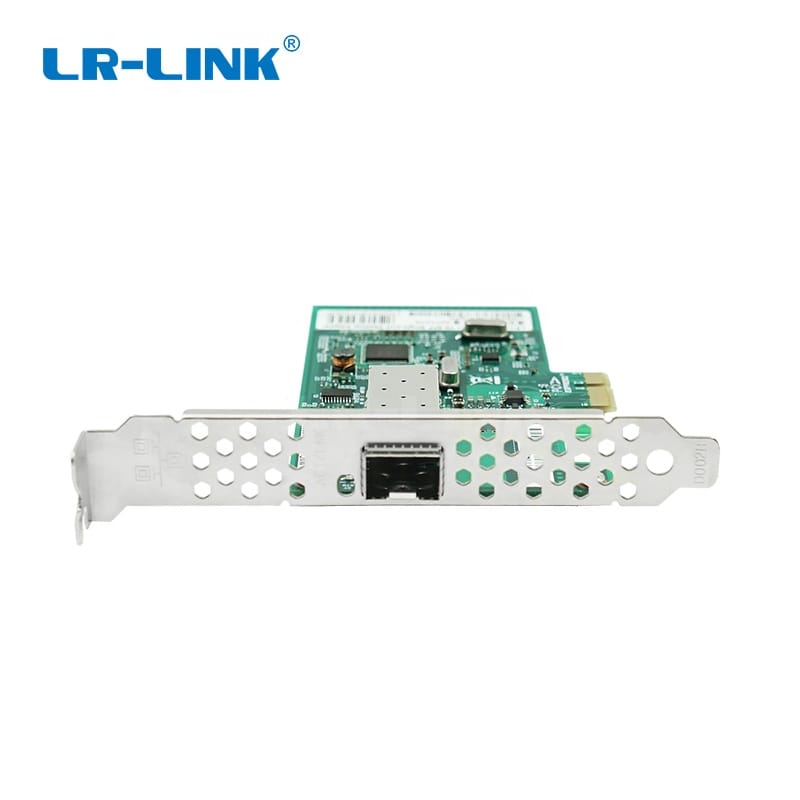

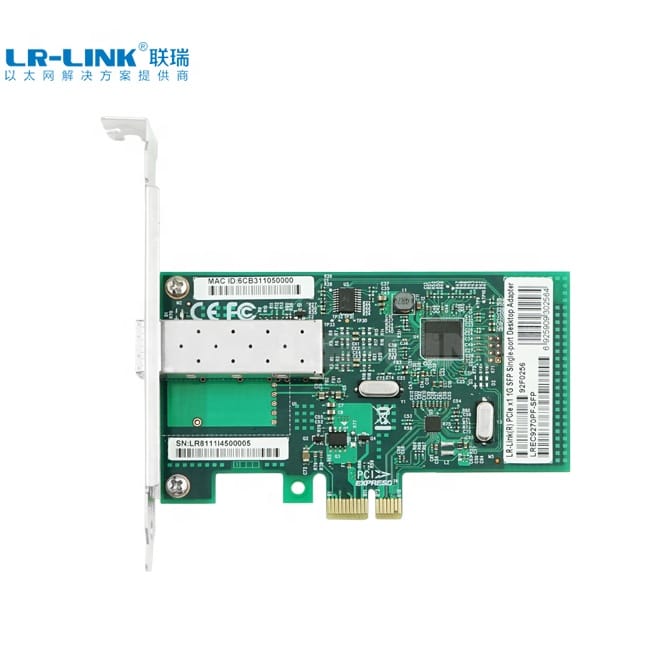

LREC9270PF-SFP
RTL8111H RealteK PCIe Ethernet Card 1000Base-X SFP Port Fiber Network Adapter
LREC9270PF-SFP Fiber Network Adapter is a pci-e bus 1000Mbps fiber network card developed by Shenzhen Lianrui Electronics CO.,LTD. It uses the RTL8111H original chipset as major controller,the intel chipset has the best stability and compatibility in chipset. The quality is in high-level With 1x9 optical transceiver module,it can be matched with different fiber connector or optical transceiver module with different transmission distance according to the requirement of users.
The Fiber Network Adapter can offer users reliable fiber-optic link on fast ethernet internet , particularly it is fit for places where distance of accessing to POI beyond string Cat 5e (>100m).It can completely replace the networking structure of that Ethernet card with RJ45 port connects externally optical transceiver .It can provide users with reliable FTTH and FTTD solutions .Users can select the optical interface parameters (including connectors, single-mode / multi-mode fiber, working distance,etc) according to occasion.
Integrated 10/100/1000 transceiver
Auto-Negotiation with Next Page capability
Supports PCI Express™ 1.1
Supports pair swap/polarity/skew correction
Crossover Detection & & Auto-Correction
Wake-on-LAN and remote wake-up support
Microsoft® NDIS5, NDIS6 Checksum Offload (IPv4, IPv6, TCP, UDP) and Segmentation Task-offload (Large send and Giant send) support
Supports Full Duplex flow control (IEEE 802.3x)
Fully compliant with IEEE 802.3, IEEE 802.3u, IEEE 802.3ab
Supports IEEE 802.1P Layer 2 Priority Encoding
Supports IEEE 802.1Q VLAN tagging
Serial EEPROM
Transmit/Receive on-chip buffer support
Supports power down/link down power saving
Supports PCI MSI (Message Signaled Interrupt) and MSI-X
Supports Receive-Side Scaling (RSS)
64-pin QFN package (Green package)
Embeds an adaptive equalizer in PCI express PHY (PCB traces to reach 40 inches)
Networking Protocol
Fully compliant with IEEE 802.3, IEEE 802.3u, IEEE 802.3ab
Supports IEEE 802.1P Layer 2 Priority Encoding
Supports IEEE 802.1Q VLAN tagging
NOS Software Support
Microsoft Windows 7
Microsoft Windows Vista (32 & 64 bit)
Microsoft Windows XP (32 & 64 bit)
Microsoft Windows CE
Microsoft Windows NT
Microsoft Windows 2000 Server
Microsoft Windows Server 2003 (32 & 64 bit)
SCO UnixWare 7.x
Open Unix 8.0
Novell ODI
Novell Netware
SUSE Linux Enterprise Server 9.0
Red Hat Enterprise Linux*4.0
Linux
FreeBSD
Sun Solaris
Microsoft DOS
VMWare ESX*
Order information:
| M/N | Description |
| LREC9270PF-SFP | PCIe x1 Ethernet Card 1000Base-FX SFP Port Fiber Network Adapter (RTL8111H Based) |
PS: The above details are only for reference, if there are any changes, no prior notice.
